Product Description

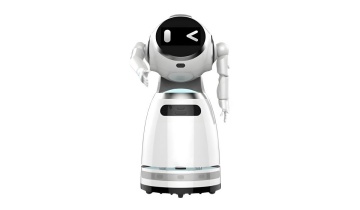

The reception service robot adopts a humanoid design, has 15 motion joints and 12 drive servos, can move 360° in all directions, and is very agile. It takes the initiative to welcome guests, customizes personalized welcome words according to the identity and needs of the visitors, and instantly closes the distance with the guests. It is also equipped with IoT intelligent control, seamlessly connects to lights, air conditioners and other equipment, and can be demonstrated with one click. Whether it is business reception, event reception or venue guidance, it can bring an extraordinary service experience with a professional and friendly attitude.
Product Features

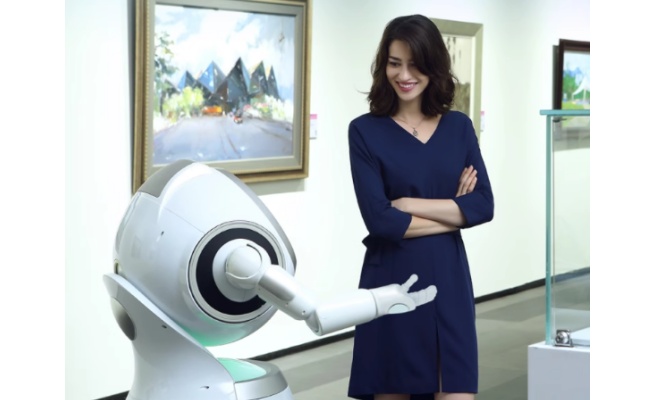

Guided tour
Based on U-SLAM indoor positioning and navigation technology independently developed by UBTECH Robotics, it can achieve all-round and accurate navigation in complex scenes, customize different tour routes according to needs, and visit and understand the exhibition hall from all dimensions.
Business consultation
You can interact through voice, text, video, action, etc. to provide guests with problem consultation, customized questions and answers, achieve business guidance and processing, and improve work efficiency.

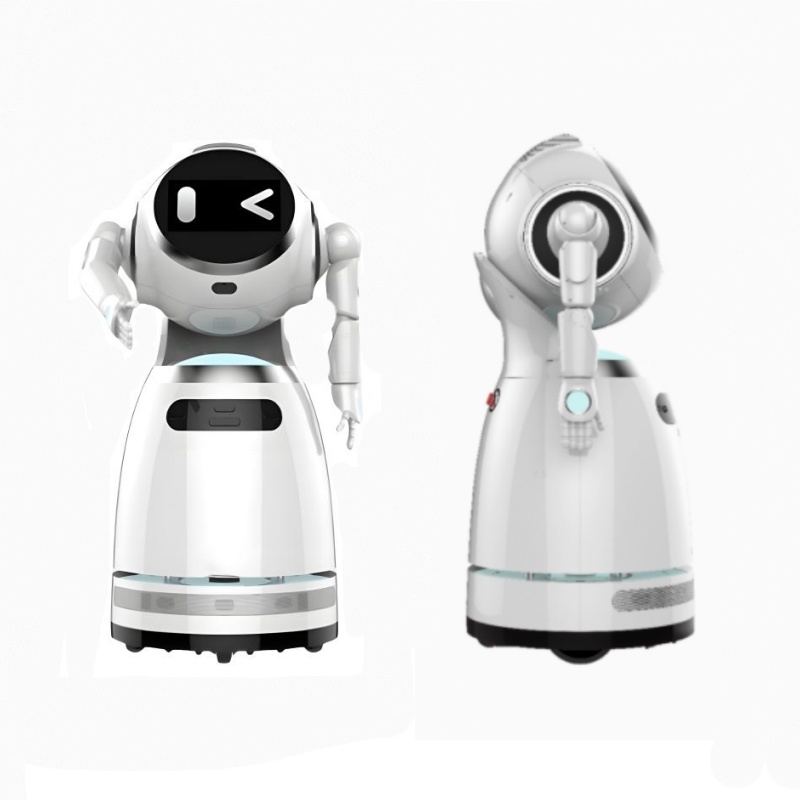

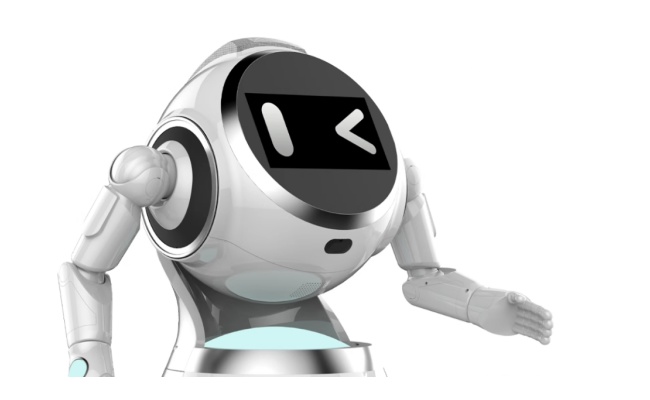

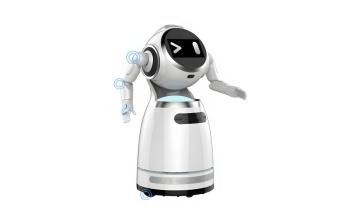

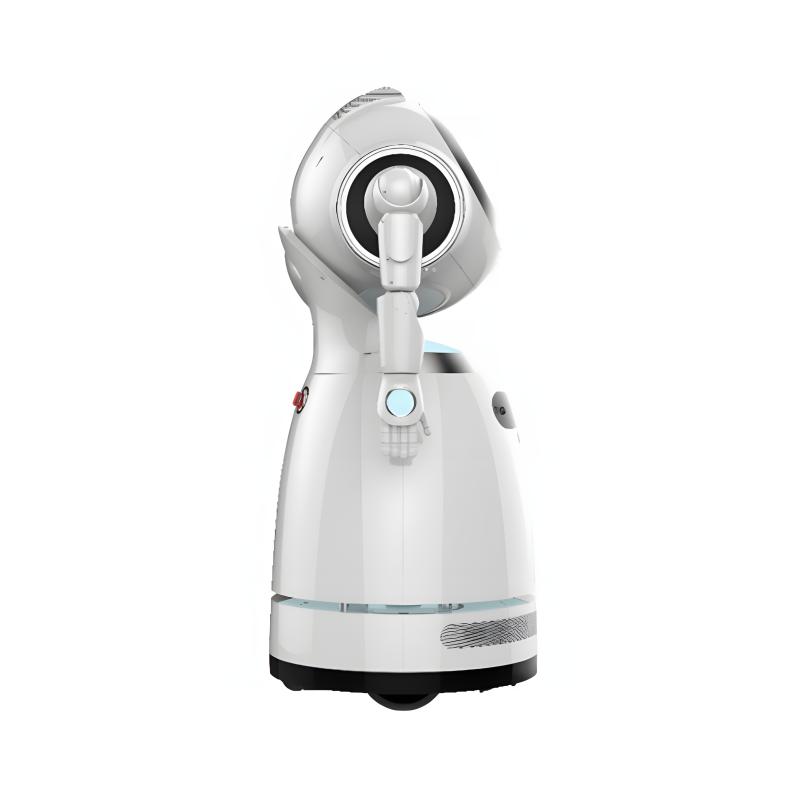

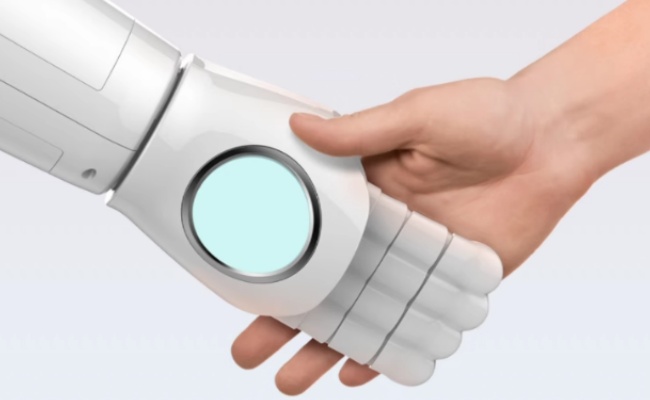

Humanoid design, warm and friendly
15 degrees of freedom for the whole body
12 degrees of freedom for both arms
360° wear-resistant and silent omnidirectional wheels
Highly anthropomorphic design allows the robot to move flexibly and freely like a human
Interactive Entertainment

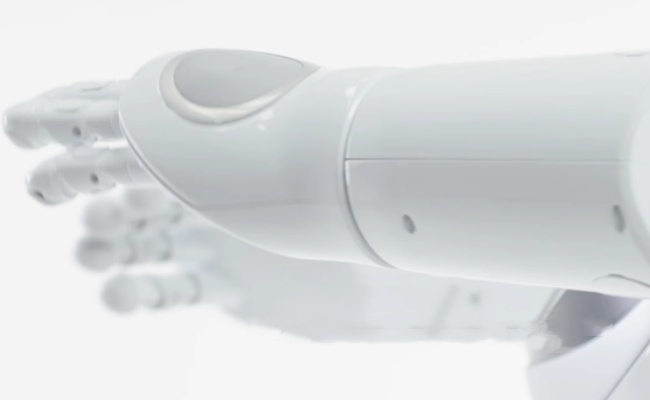

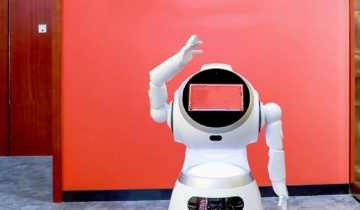

Through precise servo control and flexible motion system, lifelike dances can be edited on the robot with anthropomorphic arms, giving guests and visitors a different experience.
Welcoming reception
Visitors can be actively welcomed, and different welcoming words can be customized according to the situation of different customers, giving visitors a home-like experience.
Advertising broadcast
When the robot is idle, it starts the automatic patrol mode, randomly moves around the venue according to established rules and broadcasts relevant policies and advertising information to improve the coverage of publicity.

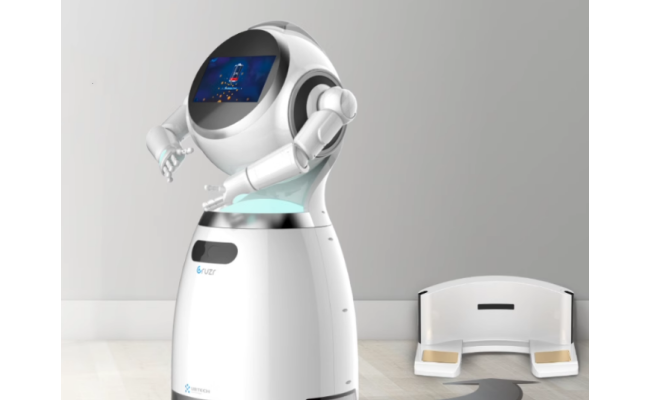

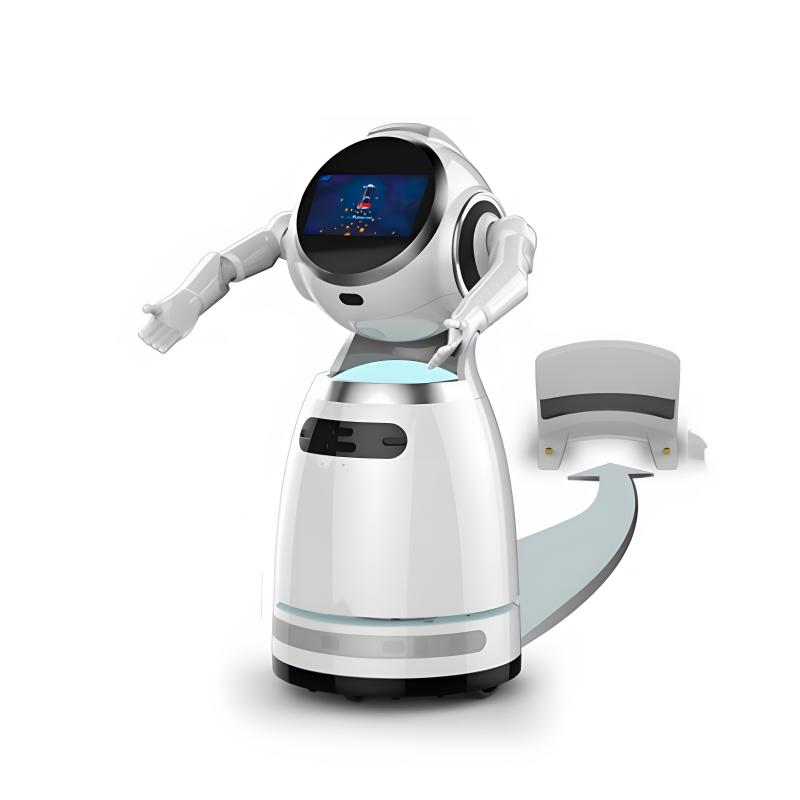

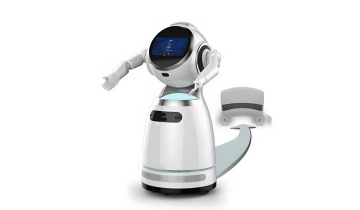

Automatic recharge
The built-in infrared sensor continuously receives the infrared signal from the charging pile, and automatically finds the charging pile for charging. It has three charging modes: command, appointment, and automatic. Once charged, it can be used continuously for 480 minutes and standby for 24 hours.

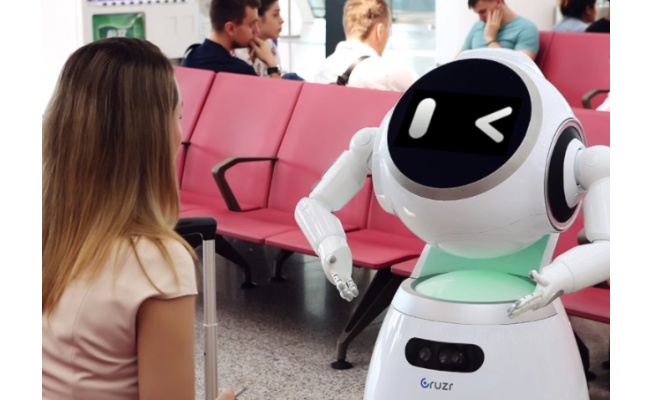

Application Cases

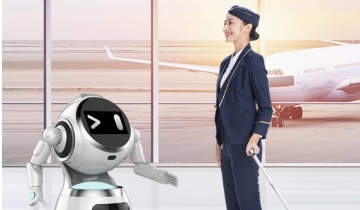

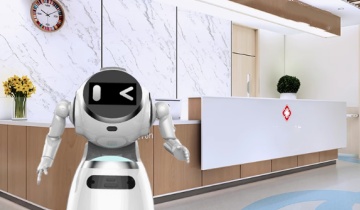

At the airport terminal, the robot proactively greets passengers, broadcasts flight status in real time, and accurately navigates to the boarding gate; in the hospital, it quickly guides the department, answers medical questions, and reminds people to check and take medicine; in the government service hall, the robot politely greets guests, clearly explains the service process, guides the public to the corresponding window, and efficiently resolves business consultation needs.

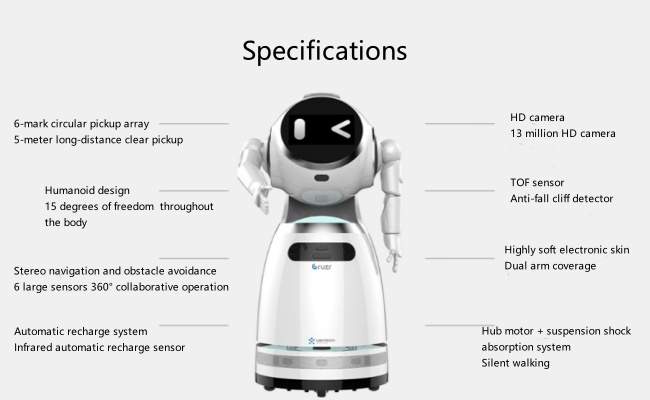

Technical Parameter
Item | Parameter | Item | Parameter |
Volume | 1214(H)*630(W)*537(D) (mm) | System | Android (application layer) + ROS (control layer) |
Weight | 45 KG | Speed | Normal speed 0.3m/s, maximum speed 1m/s |
Color | White+Silver | LiDAR | 360-degree opening |
Material | Plastic+Metal | Electronic skin | 3*2 (two arms, 3 pieces/arm) |
Battery | 20AH,24V | Maximum obstacle crossing width | 3cm |
Screen | 11.6-inch TFT high-definition touch screen | Maximum climbing angle | 6 degrees |
Speaker | Dual-channel stereo, speaker unit: 3 inches*2, output power: 6W*2 | Maximum crossing height | 2cm |
Communication | Wi-Fi (2.4G/5G), 4G (full network access) | Sensor | Head: 6+) microphone array*1, TOF infrared sensor*1 Arm: electronic skin 3*2 Body: closed ultrasonic sensor*3, RGBD depth camera*1 Chassis: infrared sensor*6+recharge infrared*2+recharge ground detection*1 Open ultrasonic sensor*5, 9-axis gyroscope sensor*1 LiDAR*1, temperature and humidity sensor*1, geomagnetic sensor*1 |
