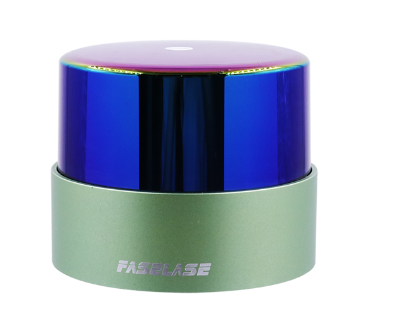

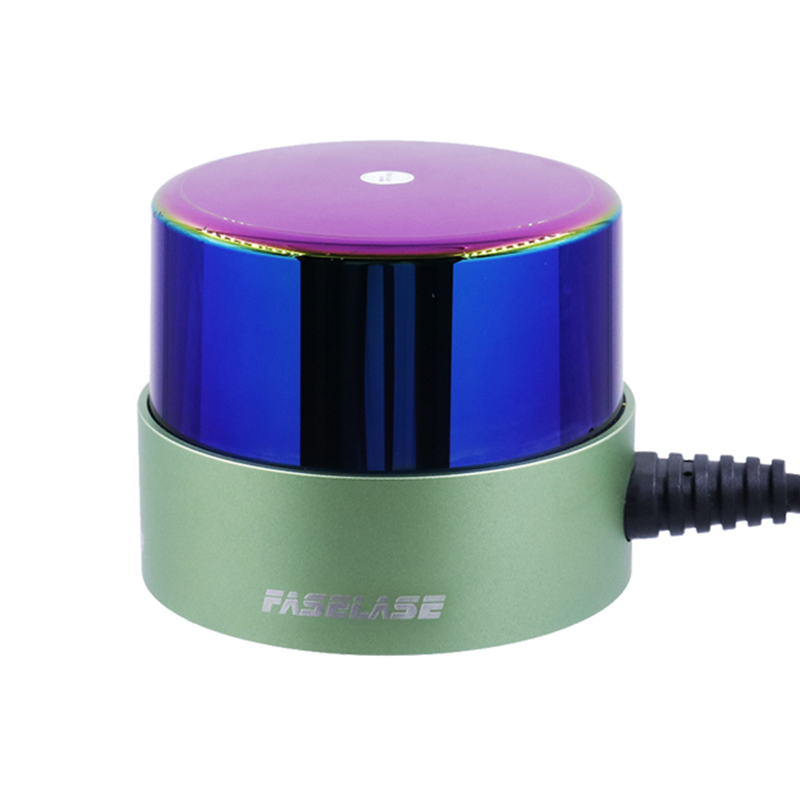

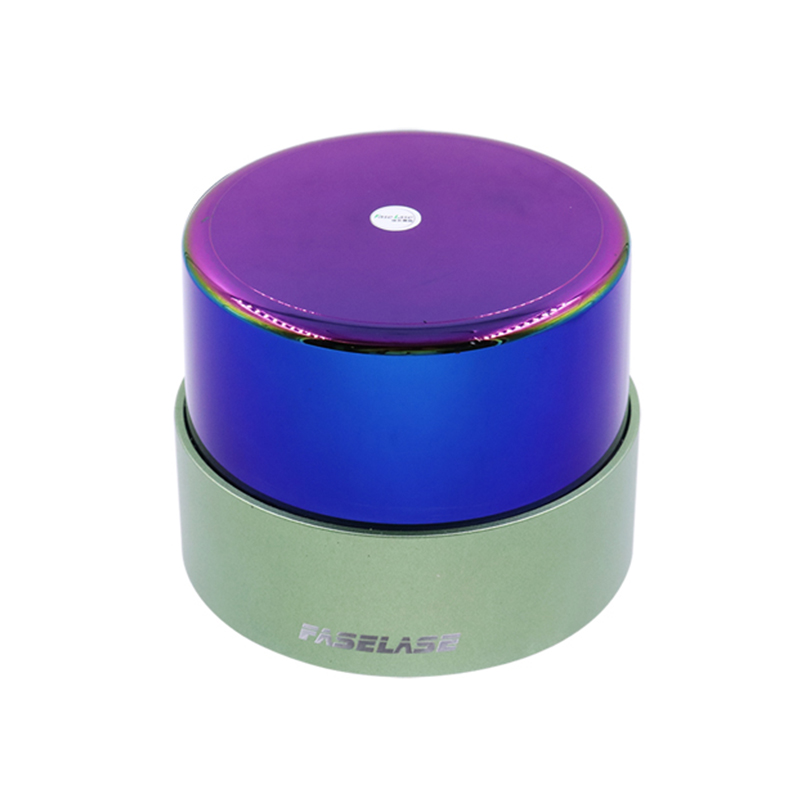

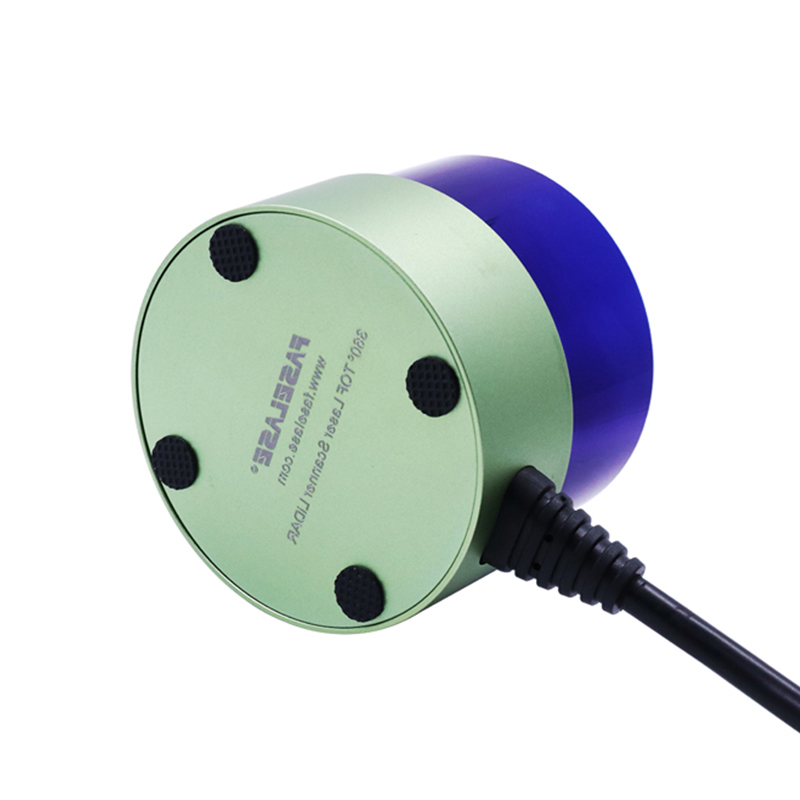

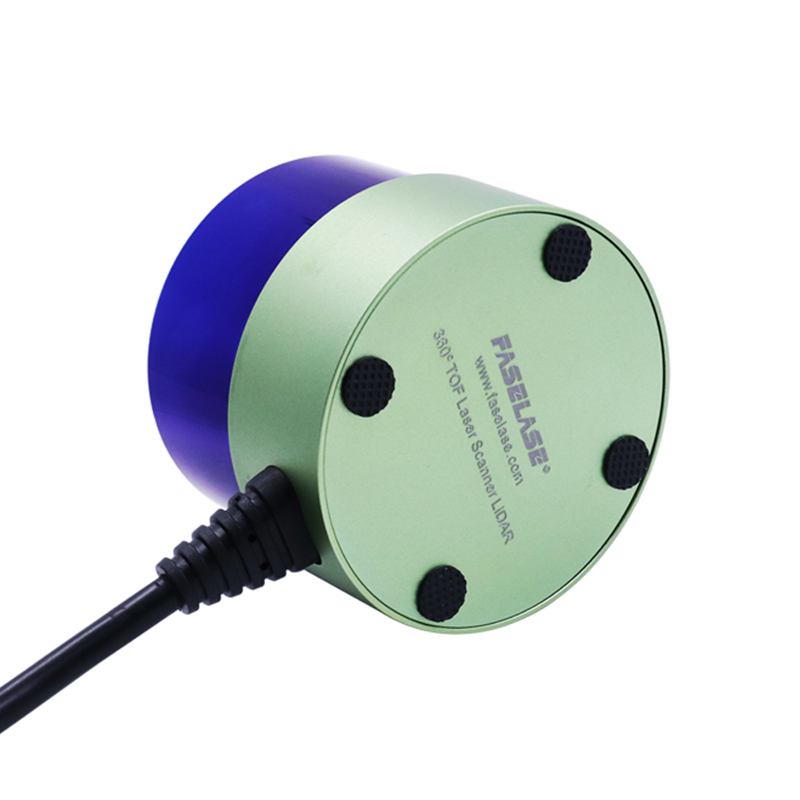

S series 2D industrial 360 ° laser scanning radar 360 °
360 ° 2D outdoor laser scanning radar for industrial robot obstacle avoidance and navigation, human flow detection, and other fields
USD： 860-1280
ablity：Monthly Output300
- Product Description
- Product Params
Product Description
The S series industrial laser scanning radar is a small and economical 360 ° 2D outdoor laser scanning radar newly developed by FaseLaser. The main characteristics of the product are fast speed measurement, small size, light weight, low power consumption, and low cost. Mainly used in industrial robot obstacle avoidance and navigation, screen projection interaction, safety doors, pedestrian flow detection and other fields.
Product features
●Based on TOF pulse measurement technology●Strong ranging ability, up to 40m
●360 ˚ No dead angle scanning, with a maximum resolution of 0.1 for extremely small angles ˚
●Extremely small measurement spot, capable of accurately detecting small objects with high accuracy
●Integrated rotation design with a plane error of ± 0.08 ˚
● Anti light interference: 50000Lux
●The Weightstone LCPA algorithm includes algorithms such as smoke filtering, particle filtering, mean filtering, median filtering, and standard analysis
●Nano optical dust cover, extended service life and reduced maintenance time
●Japanese motors have an ultra long service life
● Convenient and fast multi-layer security protection area settings
● Adopting human eye safety protection laser, in compliance with standards
●Has multiple interfaces: USB, Ethernet
●Multiple installation methods and rich accessories, easy to use, convenient for users to develop again
● Support remote maintenance and upgrades

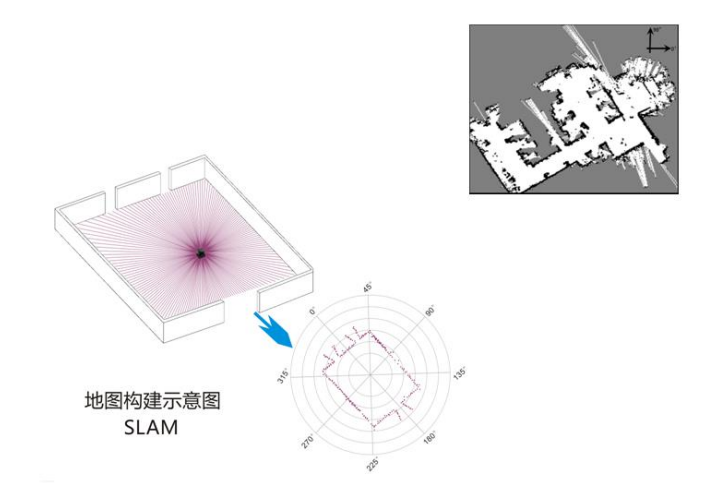

Scanning imaging schematic diagram

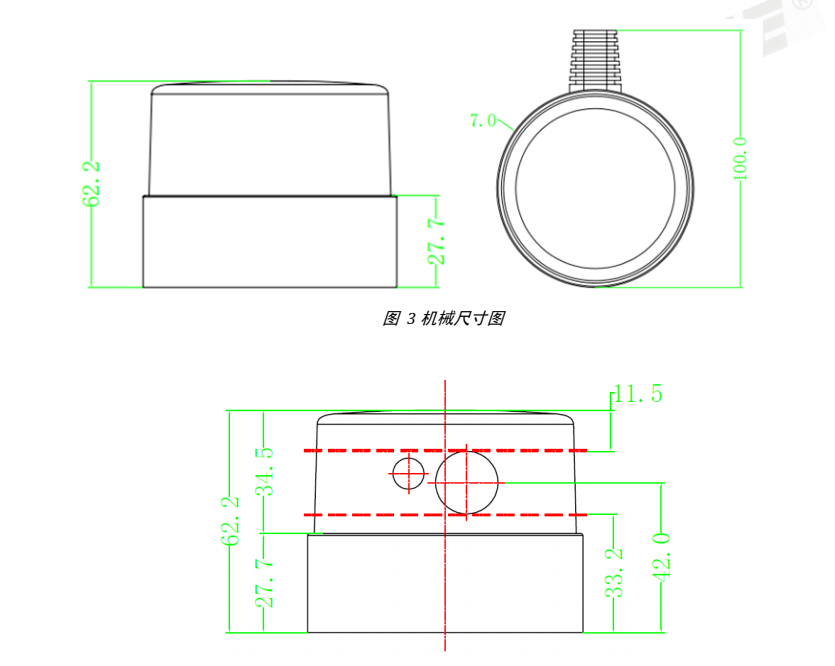

Dimensional drawing (mm)
Applications such as measurement, autonomous driving, commercial robots, industrial robots, logistics and warehousing

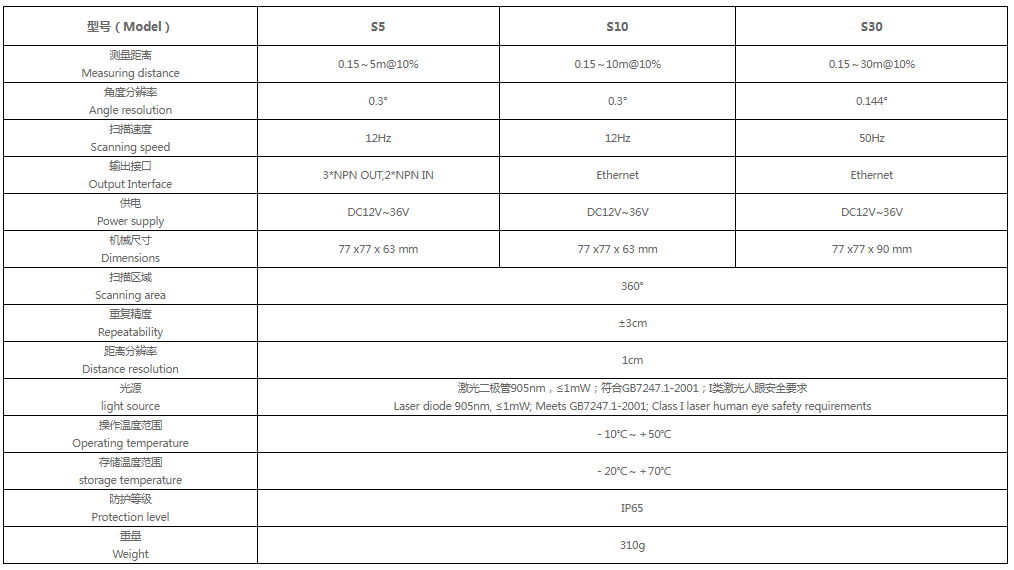

Product parameters
