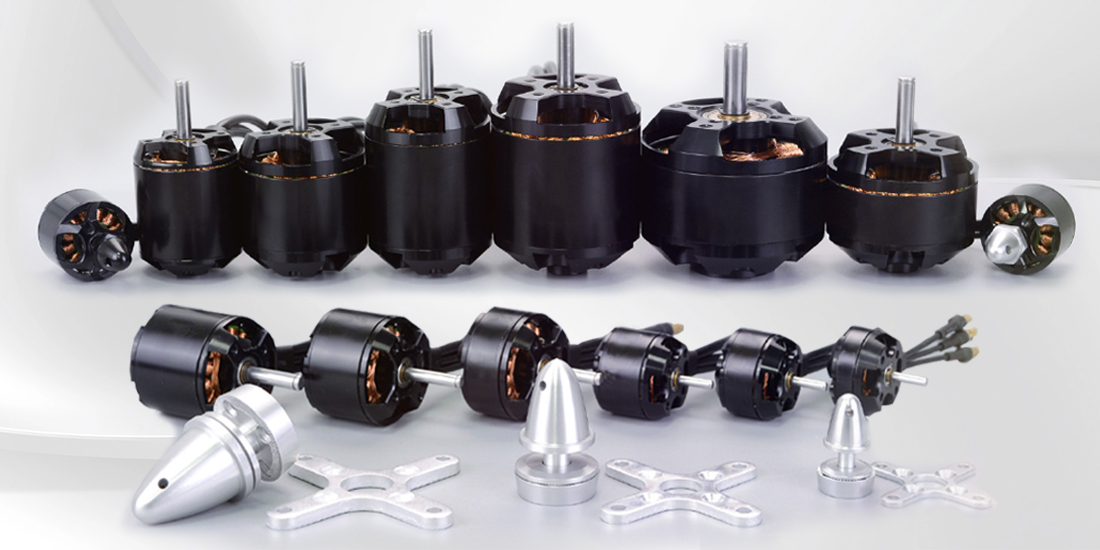

New micro-power option: The precise control advantage of the 28mm-35mm external rotor brushless motor C series

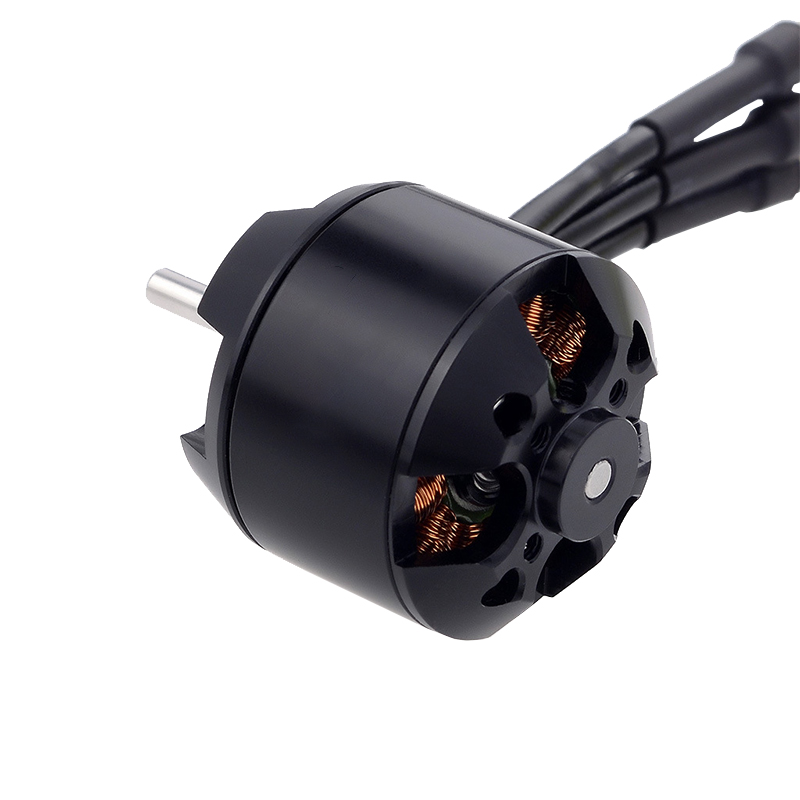

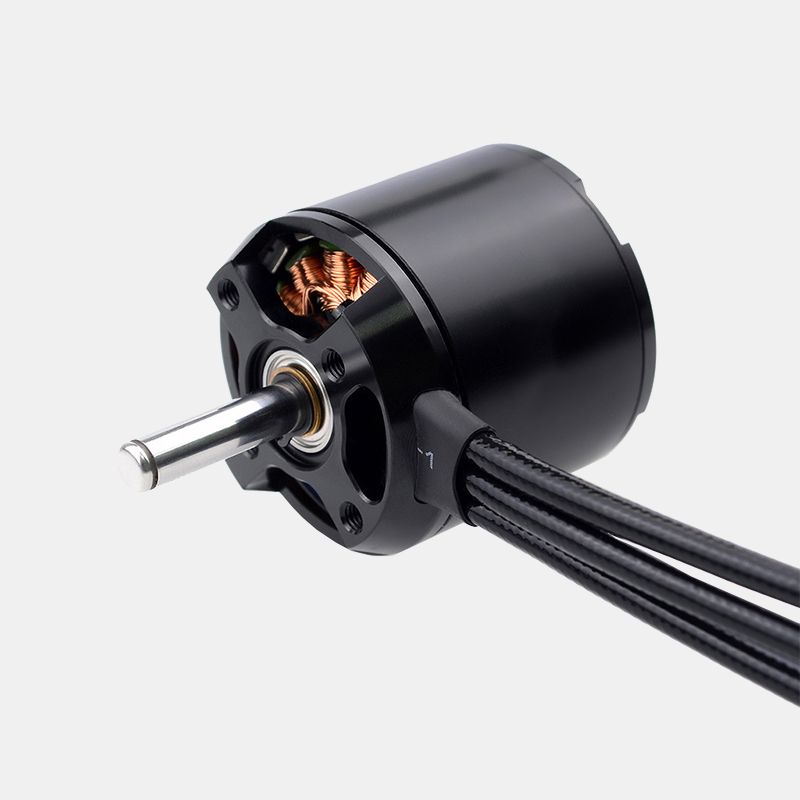

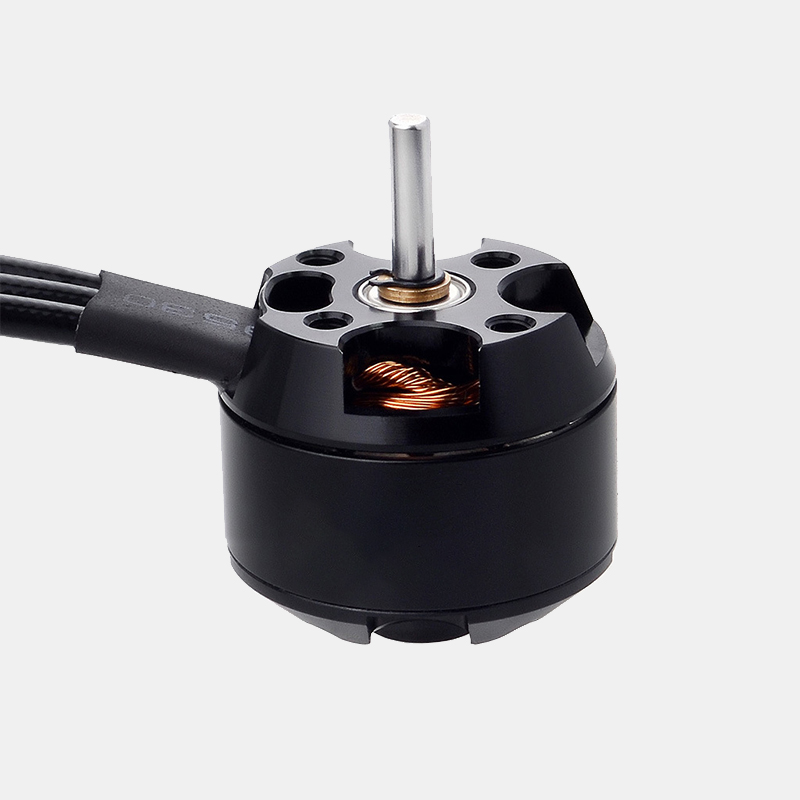

Functional Features
·14 Pole Hi-torque rotor design,stable output power.
·Fits all fixed wing aircraft model.
·CNC Machined 6061 T6 aluminum front and rear cover.
·High purity copper windings maximizes efficiency.
·Explosion-proof rotor,high toughness stainless steel shaft,high precision and high quality bearing make the motor super durable.
·Preclslon balanced rotor,smoothness for best rellablllty and maximum RPM.
Product parameters
28 Diameter series |
Model | Item Number | KV | MAXWatts | Voltage | Max | Rotor | No load | Resistance | Motor Size | Stator | Weight | Propeller |
C2822-25 | SP-022040-03 | 1400 | 160 | 7~15 | 13 | 14 | 0.4 | 0.307 | φ28x20 | φ22x04 | 30 | 7.5x3.5/8x4/9x5 |
C2822-27 | 1200 | 140 | 7~15 | 11 | 14 | 0.3 | 0.368 | φ28x20 | φ22x04 | 30 | 8x5/8x6/7x5 | |
C2822-16 | 2300 | 180 | 7~15 | 18 | 14 | 0.5 | 0.125 | φ28x20 | φ22x04 | 30 | 6x3/5x3 | |
C2826-09 | SP-022080-01 | 1900 | 250 | 7~12 | 27 | 14 | 1.2 | 0.063 | φ28x24 | φ22x08 | 45 | 8x3.8/8x4/7x5 |
C2826-12 | 1350 | 240 | 7~12 | 24 | 14 | 0.8 | 0.097 | φ28x24 | φ22x08 | 45 | 8x3.8/7x4 | |
C2826-18 | 1000 | 220 | 7~12 | 20 | 14 | 0.7 | 0.256 | φ28x24 | φ22x08 | 45 | 8x5/8x7/9x4.7 | |
C2830-06 | SP-022120-01 | 2200 | 340 | 7~12 | 28 | 14 | 1.4 | 0.035 | φ28x28 | φ22x12 | 57 | 9x6/10x5/10x6 |
C2830-09 | 1300 | 300 | 7~12 | 25 | 14 | 1.2 | 0.085 | φ28x28 | φ22x12 | 57 | 9x6/10x5/10x6 | |
C2830-12 | 1000 | 260 | 7~15 | 21 | 14 | 0.9 | 0.152 | φ28x28 | φ22x12 | 57 | 9x4.5/10x6/10x5 | |
C2830-14 | 850 | 240 | 7~15 | 19 | 14 | 0.6 | 0.189 | φ28x28 | φ22x12 | 57 | 11x5.5/9x6/10x4 | |
C2830-15 | 750 | 230 | 7~15 | 18 | 14 | 0.6 | 0.221 | φ28x28 | φ22x12 | 57 | 11x5.5/10x7 | |
C2836-08 | SP-022160-01 | 1120 | 380 | 7~15 | 26 | 14 | 1.2 | 0.068 | φ28x32 | φ22x16 | 67 | 9x6/10x4/11x5.5 |
C2836-10 | 880 | 340 | 7~18 | 22 | 14 | 0.8 | 0.108 | φ28x32 | φ22x16 | 67 | 11x8.5/10x7/12x6 | |
C2836-12 | 750 | 300 | 7~18 | 19 | 14 | 0.6 | 0.152 | φ28x32 | φ22x16 | 67 | 11x8.5/11x10/12x6 |
38 Diameter series |
Model | Item Number | KV | MAXWatts | Voltage | Max | Rotor | No load | Resistance | Motor Size | Stator | Weight | Propeller |
C3530-08 | SP-028080-01 | 1700 | 420 | 7~15 | 42 | 14 | 1.8 | 0.041 | φ35x29 | φ28x08 | 78 | 7x4/6x6 |
C3530-10 | 1400 | 350 | 7~15 | 35 | 14 | 1.2 | 0.059 | φ35x29 | φ28x08 | 78 | 9x4.5/8x4/7x7 | |
C3530-14 | 1100 | 310 | 7~15 | 30 | 14 | 0.7 | 0.113 | φ35x29 | φ28x08 | 78 | 9x5/10x4.7 | |
C3536-05 | SP-028140-01 | 1500 | 750 | 7~15 | 55 | 14 | 2.5 | 0.025 | φ35x35 | φ28x14 | 109 | 8x4/9x6/10x6 |
C3536-06 | 1300 | 680 | 7~15 | 50 | 14 | 1.8 | 0.038 | φ35x35 | φ28x14 | 109 | 9x4.5/10x4.7/9x5 | |
C3536-08 | 1050 | 500 | 7~15 | 38 | 14 | 1.5 | 0.055 | φ35x35 | φ28x14 | 109 | 9.5x5/10x6/11x5 | |
C3536-09 | 910 | 400 | 7~15 | 30 | 14 | 1.2 | 0.072 | φ35x35 | φ28x14 | 109 | 10x7/11x8.5/12x5 | |
C3542-04 | SP-028200-01 | 1450 | 1050 | 7~15 | 78 | 14 | 2.3 | 0.021 | φ35x41 | φ28x20 | 132 | 12x5/11x7/13x8 |
C3542-05 | 1250 | 850 | 7~15 | 65 | 14 | 2.1 | 0.026 | φ35x41 | φ28x20 | 132 | 8x7/9x5/10x4 | |
C3542-06 | 1000 | 750 | 7~15 | 55 | 14 | 2 | 0.039 | φ35x41 | φ28x20 | 132 | 10x6/12x6.5/13x8 | |
C3548-04 | SP-028260-01 | 1100 | 1100 | 7~15 | 72 | 14 | 2.6 | 0.028 | φ35x47 | φ28x26 | 172 | 12x6/12x6.5/13x8 |
C3548-05 | 900 | 1000 | 7~18 | 60 | 14 | 2.2 | 0.033 | φ35x47 | φ28x26 | 172 | 11x8/13x6/14x7 | |
C3548-06 | 790 | 840 | 10~20 | 50 | 14 | 2 | 0.051 | φ35x47 | φ28x26 | 172 | 12x7/13x7/14x7 |

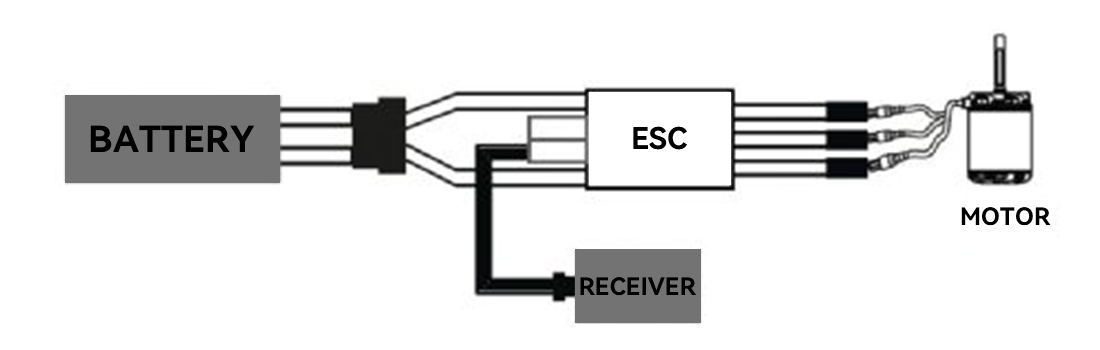

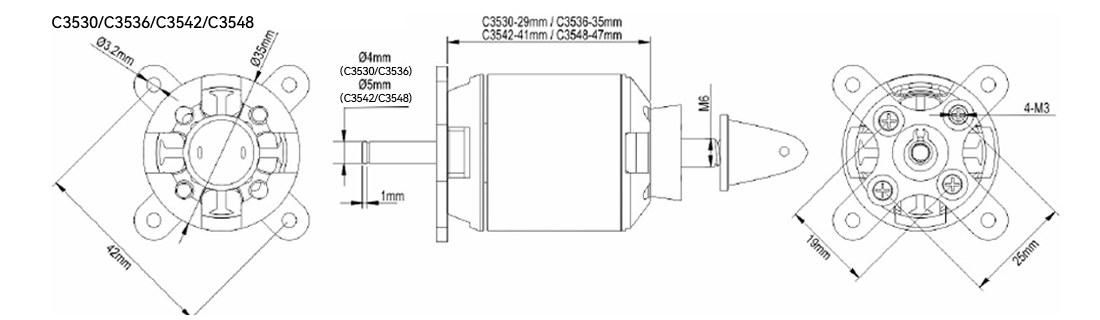

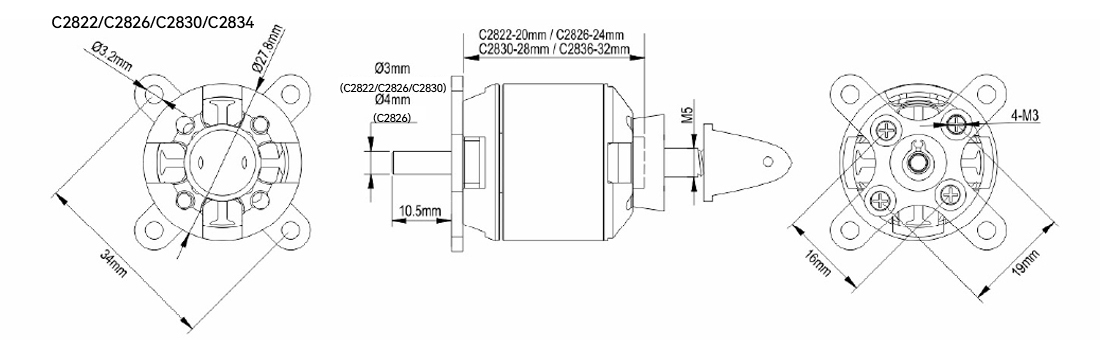

Application wiring diagram

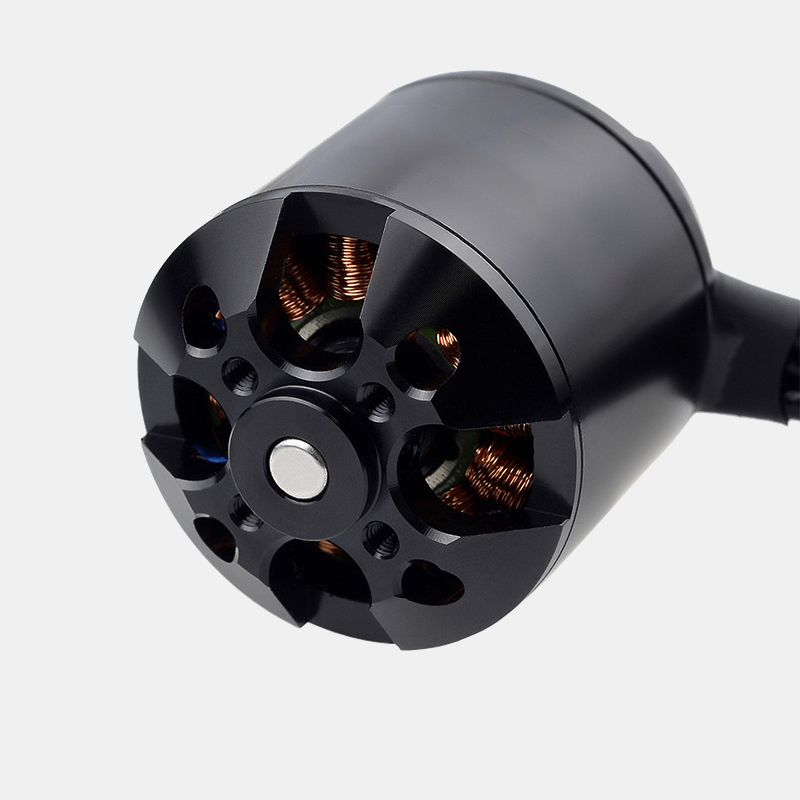

1. Install the motor
The motor mounting screw holes are M3(C28,C35,C42 series)/M4(C50,C63 series) screws.
2. Motor connection
There is no strict line sequence requirement for the motor and the electrical connection, and the #A/#B/#C of the motor can be docking with the three lines of the electrical adjustment at will, if the reverse direction occurs, the two motor lines can be exchanged at will.
3. Check
Before turning on the power supply of the remote control model, be sure to double check the correctness of the power system connection and the reliability of the installation.
Application
It is widely applied to: unmanned aerial vehicles, fixed-wing aircraft, model cars, model ships, power tools, robots, etc
