Planetary reduction brushless motor High power from31 to42mm

Dongchuang Pioneer Direct Store

GuaranTee supplier (GT) 12 Years

Planetary reduction brushless motor High power from31 to42mm

Dc gear motor planetary 12V / 24V high-power and high-torque micro speed regulation equipment motor

Model :

37GB-31ZY

36-555

36-36ZY

36-3650

42-42ZY

42-775

42-4250

42-4260

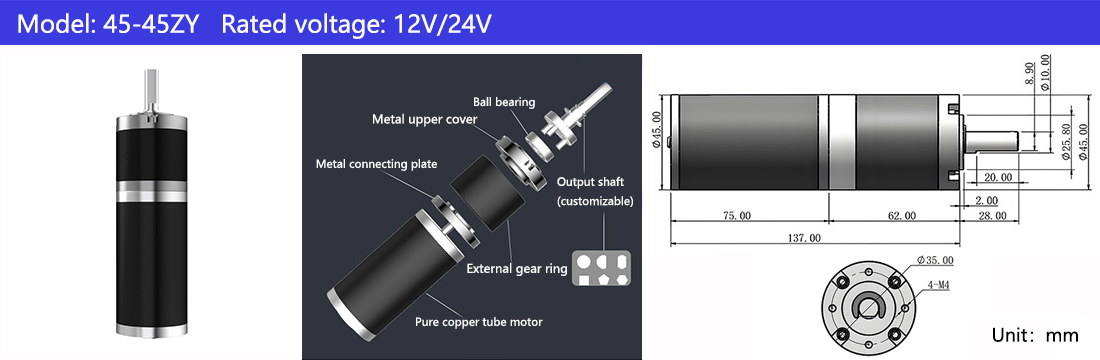

45-45ZY

USD： 10

ablity：Monthly Output5000

contact shop

Product DescriptionProduct parameters

Product Description

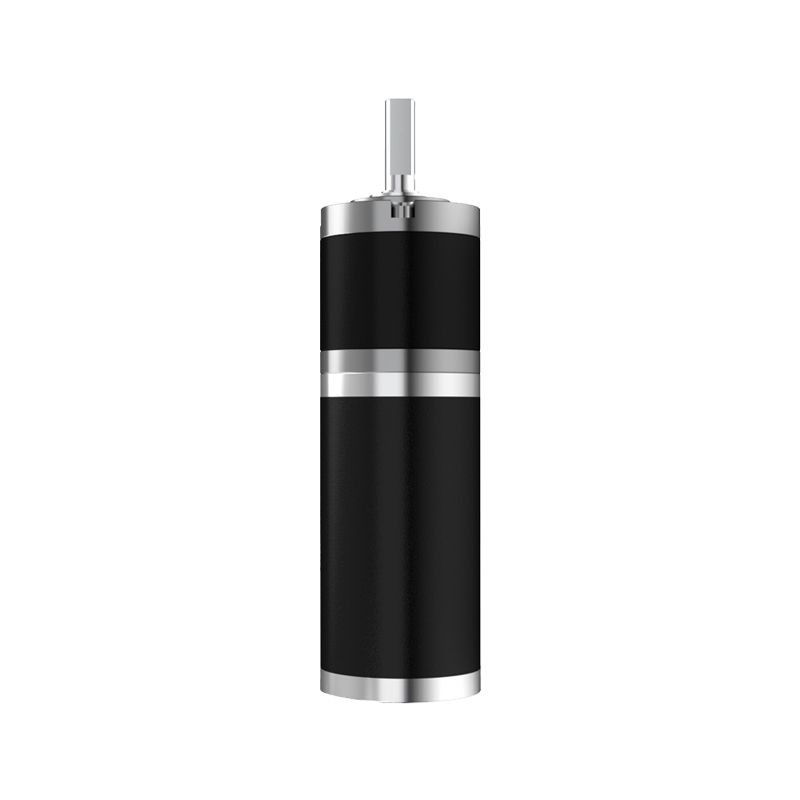

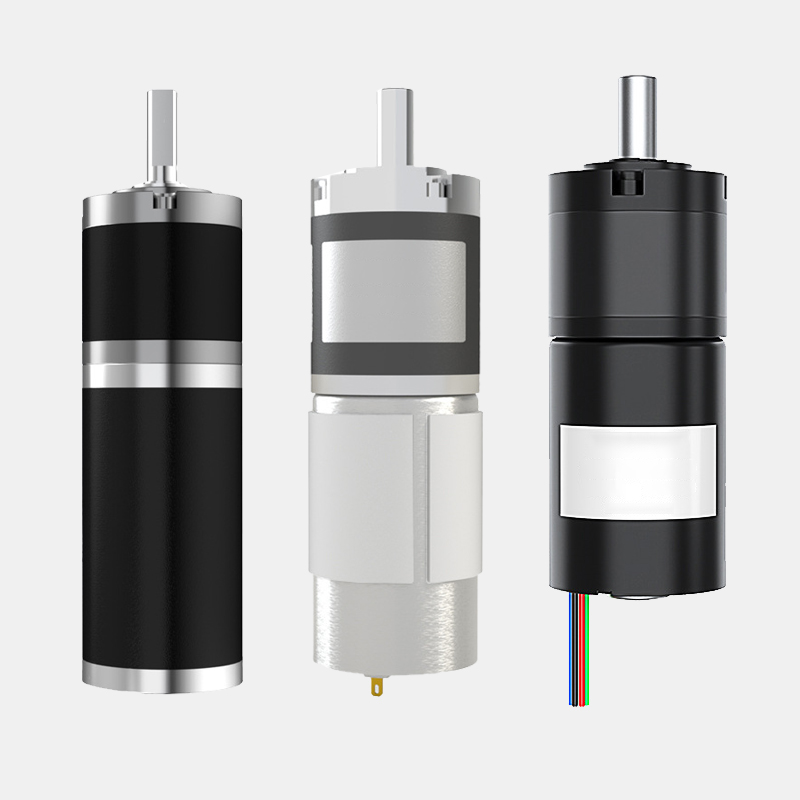

Planetary brushless gear motor

High precision, strong torque, low noise, high efficiency and energy saving, long service life, fast response, compact structure, maintenance-free, strong adaptability

It is widely used in fields such as automation, robotics, and medical equipment, and is stable and reliable!

Functional Features

Made of high-quality metal materials, strong magnetic materials, carefully selected motors, with strong wear resistance, noise reduction and silent operation, and powerful torque

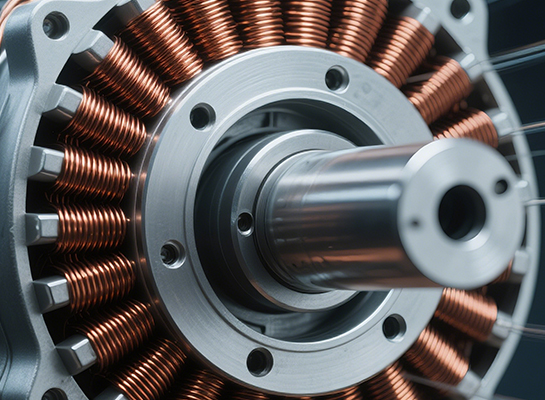

Pure copper coil, with high electrical conductivity and low heat generation, effectively reduces energy loss and enables the motor to continuously output power

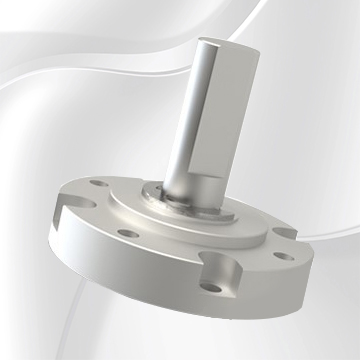

The output shaft (D-type shaft) is easy to install, anti-slip and stable. It is made of stainless steel and features a high-precision structure for smooth operation

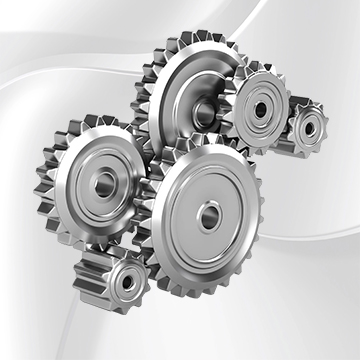

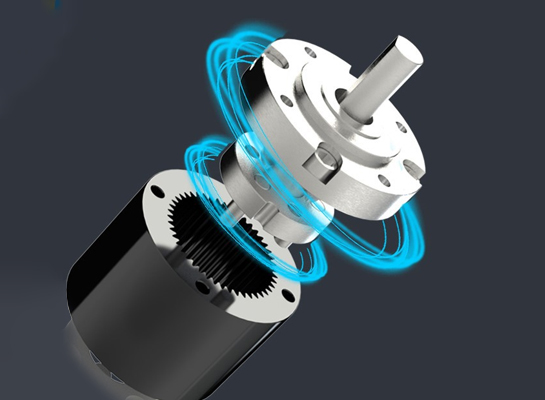

Planetary metal gears, made of high-quality metal materials, are corrosion-resistant, not prone to rust, durable, and low-noise

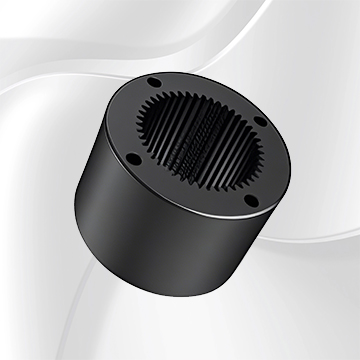

The gear ring is made of sturdy and durable metal material, which is hard in texture and extends the service life of the product

Product parameters

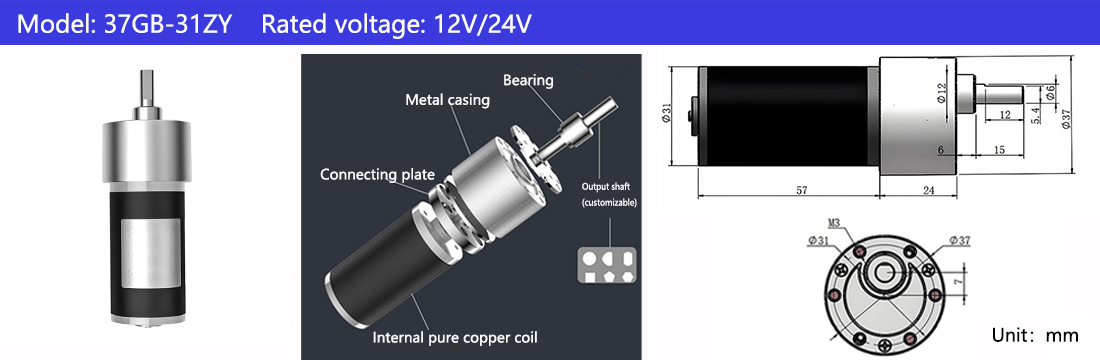

37GB-31ZY-12V 8000RPM
Voltage used	Voltage	Range	V	/
	Voltage	Rating	V	12V
	Reducer	Reduction ratio	i:1	6.25	10	18.8	30	56	70	90	131	168	210	270	393	506	630	810
12V	Reducer	Size	mm	/
	Idle	Velocity	rpm	1280	800	425	266	143	114	88	61	48	38	30	20	16	12	10
	Idle	Current	ma	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
	Rated load	Velocity	rpm	1088	680	361	226	121	97	75	52	40	32	25	17	13	10	8
		TorQue	kgf.cm	1	1.5	2.8	4.5	8	10	13	18	23	29	37	51	65	80	100
		Current	ma	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	500	500	500	500
		Power	w	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18
	Stalled	TorQue	kgf.cm	5	7.5	14	22	40	50	65	90	110	Stalled rotors are prohibited
	Stalled	Current	ma	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000

37GB-31ZY-24V 8000RPM
Voltage used	Voltage	Range	V	/
	Voltage	Rating	V	24V
	Reducer	Reduction ratio	i:1	6.25	10	18.8	30	56	70	90	131	168	210	270	393	506	630	810
	Reducer	Size	mm	/
24V	ldle	Velocity	rpm	280	800	425	266	143	114	88	61	48	38	30	20	16	12	10
	ldle	Current	ma	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
	Rated load	Velocity	rpm	1088	680	361	226	121	97	75	52	40	32	25	17	13	10	8
		TorQue	kgf .cm	1	1.5	2.8	4.5	8	10	13	18	23	29	37	51	65	80	100
		Current	ma\|	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800
		Power	w	19	19	19	19	19	19	19	19	19	19	19	19	19	19	19
	Stalled	TorQue	kgf .cm	5	7.5	14	22	40	50	65	90	110	Stalled rotors are prohibited
	Stalled	Current	ma	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500

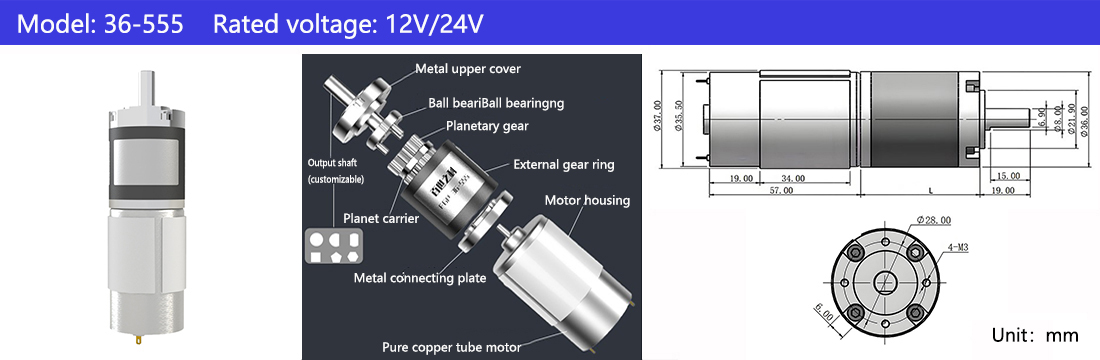

36- 555-12V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	83.5		89.5			98.5				102
	Weight		g	370		400			430				460
12V	Idle	Velocity	rpm	2162	544	5	4	95	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	580	580	580	580	580	580	580	580	580	580	580	580	580	580	580	580
	Rated load	Velocity	rpm	1837	1312	485	357	251	136	95	68	49	36	26	18	16	13	11	9
		TorQue	kgf.cm	1.4	2	5	6.9	9.8	17	24	34	47	64	89	125	125	125	125	125
		Current	ma	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400	3400
		Power	w	31	31	31	31	31	31	31	31	31	31	31	31	31	31	31	31
	staled	TdrQue	kgf.cm	5.6	7.9	20	27	38	67	95	135	185	Stalled rotors are prohibited
		Current	ma	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000
		Power	w	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73	73

36- 555-24V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	89	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	83.5		89.5			98.5				102
	Weight		g	370		400			430				460
24V	Idle	Velocity	rpm	2162	544	5	4	95	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	340	340	340	340	340	340	340	340	340	340	340	340	340	340	340	340
	Rated load	Velocity	rpm	1837	1312	485	357	251	136	95	68	49	36	26	18	16	13	11	9
		TorQue	kgf.cm	1.2	1.6	4	6	8	15	20	28	39	5	69	98	113	113	113	113
		Current	ma	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600	1600
		Power	w	27	27	27	27	27	27	27	27	27	27	27	27	27	27	27	27
	staled	TdrQue	kgf.cm	4.7	6.6	17	23	32	56	80	112	146	Stalled rotors are prohibited
		Current	ma	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700	5700
		Power	w	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50

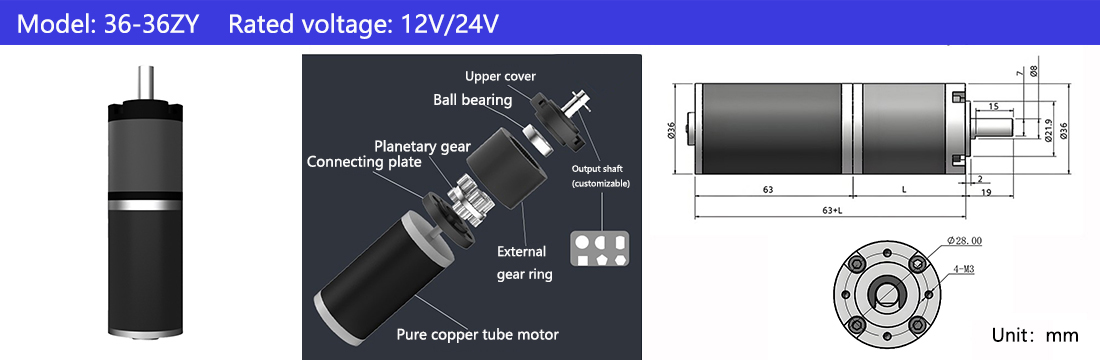

36-36ZY-12V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	89	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
12V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
	Rated load	Velocity	rpm	1702	1216	450	331	233	126	88	63	45	33	24	17	14	12	10	8.5
		TorQue	kgf.cm	1.5	2.2	5.6	7.6	10.5	18.5	26.5	37.5	52.5	66	91.5	120	120	120	120	120
		Current	ma	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900
		Power	w	34	34	34	34	34	34	34	34	34	34	34	34	34	34	34	34
	/	TdrQue	kgf.cm	6	8	22	30	43	75	106	150	Stalled rotors are prohibited
	/	Current	ma	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000

36-36ZY-24V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
24V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250
	Rated load	Velocity	rpm	1702	1216	450	331	233	126	88	63	45	33	24	17	14	12	10	8.5
		TorQue	kgf.cm	1.5	2.2	5.6	7.6	10.5	18.5	26.5	37.5	52.5	66	91.5	120	120	120	120	120
		Current	ma	1500	1500	1500	1500	1500	1500	1500	500	1500	1500	1500	1500	1500	1500	1500	1500
		Power	w	36	36	36	36	36	36	36	36	36	36	36	36	36	36	36	36
	/	TdrQue	kgf.cm	6	8	22	30	43	75	106	150	Stalled rotors are prohibited
	/	Current	ma	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000

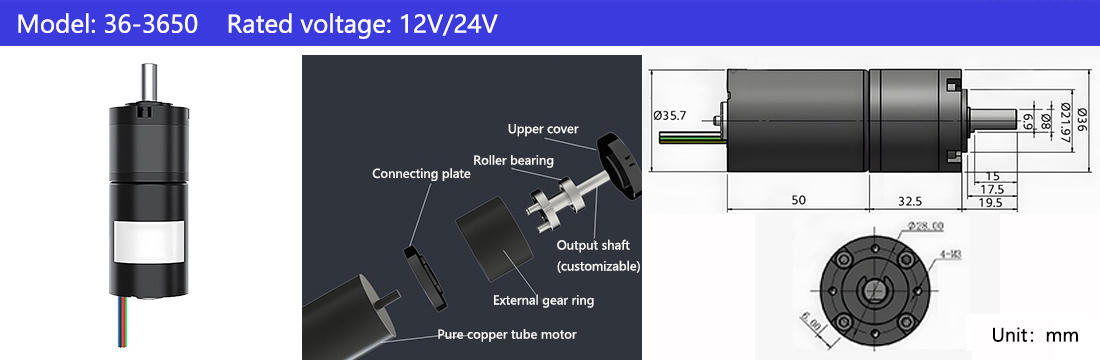

36-3650-12V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	89	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	81.5		88			94				100
	Weight		g	/		370			/				/
12V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400
	Rated load	Velocity	rpm	1783	1274	471	374	244	132	93	66	47	35	25	17	15	13	11	9
		TorQue	kgf.cm	0.9	1.2	3	4.2	5.5	10.5	15	21	29	36	51	72	72	72	72	72
		Current	ma	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
		Power	w	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29
	/	TdrQue	kgf.cm	4	6.5	16.5	23.5	30	56	79	110	Stalled rotors are prohibited
	/	Current	ma	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000	11000

36-3650-24V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	89	262	369	427	516	596	721
	Gearbox length		(L) mm	28.5		35			41				47
	Motor overall length		mm	81.5		88			94				100
	Weight		g	/		370			/				/
24V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	58	42	30	22	19	16	14	11
	Idle	Current	ma	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
	Rated load	Velocity	rpm	1783	1274	471	374	244	132	93	66	47	35	25	17	15	13	11	9
		TorQue	kgf.cm	0.9	1.2	3	4.2	5.5	10.5	15	21	29	36	51	72	72	72	72	72
		Current	ma	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
		Power	w	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30
	/	TdrQue	kgf.cm	4	6.5	16.5	23.5	30	56	79	110	Stalled rotors are prohibited
	/	Current	ma	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800	5800

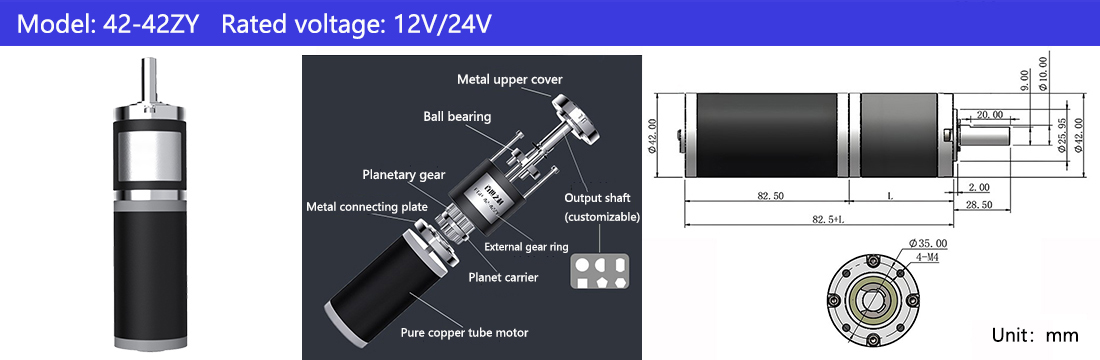

42-42ZY-12V 6000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
12V	Idle	Velocity	rpm	1621	1158	428	315	222	120	85	60	43	32	22	16	12	8
	Idle	Current	ma	700	700	700	700	700	700	700	700	700	700	700	700	700	700
	Rated load	Velocity	rpm	351	965	357	263	185	100	70	50	36	26	19	13	9.5	6.5
		TorQue	kgf.cm	1.9	2.6	6.7	9	13	22.5	32	45	62	79	110	150	150	150
		Current	ma	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900	2900
		Power	w	35	35	35	35	35	35	35	35	35	35	35	35	35	35
	/	TdrQue	kgf.cm	6.9	9.6	24.5	33	47.5	82	117	165	Stalled rotors are prohibited
	/	Current	ma	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000

42-42ZY-24V 6000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
24V	Idle	Velocity	rpm	1621	1158	428	315	222	120	85	60	43	32	22	16	12	8
	Idle	Current	ma	400	400	400	400	400	400	400	400	400	400	400	400	400	400
	Rated load	Velocity	rpm	351	965	357	263	185	100	70	50	36	26	19	13	9.5	6.5
		TorQue	kgf.cm	1.9	2.6	6.7	9	13	22.5	32	45	62	79	110	150	150	150
		Current	ma	1500	1500	500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500
		Power	w	36	36	36	36	36	36	36	36	36	36	36	36	36	36
	/	TdrQue	kgf.cm	6.9	9.6	24.5	33	47.5	82	117	165	Stalled rotors are prohibited
	/	Current	ma	7000	7000	7000	7000	7000	7000	7000	7000	7000	7000	7000	7000	7000	7000

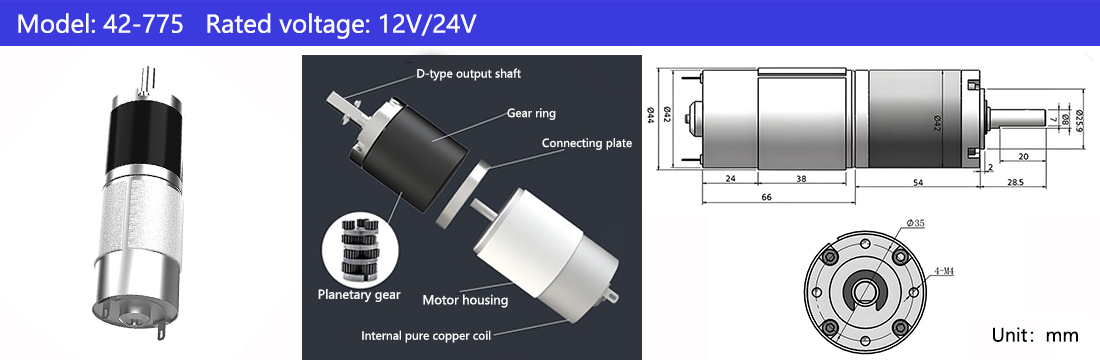

42-775-12V 6000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	427	516
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	97.5		108			119.8				130
	Weight		g	600		685			765				790
12V	Idle	Velocity	rpm	1621	1158	428	315	222	120	85	60	43	32	22	16	12	8
	Idle	Current	ma	900	900	900	900	900	900	900	900	900	900	900	900	900	900
	Rated load	Velocity	rpm	351	965	357	263	185	100	70	50	36	26	19	13	9.5	6.5
		TorQue	kgf.cm	2.2	3	7.5	10	15	26	37	52	72	92	129	129	129	129
		Current	ma	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000
		Power	w	39	39	39	39	39	39	39	39	39	39	39	39	39	39
	/	TdrQue	kgf.cm	15	22	59	76	108	200	Stalled rotors are prohibited
	/	Current	ma	31000	31000	31000	31000	31000	31000	31000	31000	31000	31000	31000	31000	31000	31000

42-775-24V 6000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	427	516
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	97.5		108			119.8				130
	Weight		g	600		685			765				790
24V	Idle	Velocity	rpm	1621	1158	428	315	222	120	85	60	43	32	22	16	12	8
	Idle	Current	ma	500	500	500	500	500	500	500	500	500	500	500	500	500	500
	Rated load	Velocity	rpm	1351	965	357	263	185	100	70	50	36	26	19	13	9.5	6.5
		TorQue	kgf.cm	2.3	3.3	8.9	12	16	30	42	56	78	99	135	135	135	135
		Current	ma	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		Power	w	38	38	38	38	38	38	38	38	38	38	38	38	38	38
	/	TdrQue	kgf.cm	13	18	47	63	90	157	223	Stalled rotors are prohibited
	/	Current	ma	10000	10000	10000	10000	10000	10000	10000	10000	10000	10000	10000	10000	10000	10000

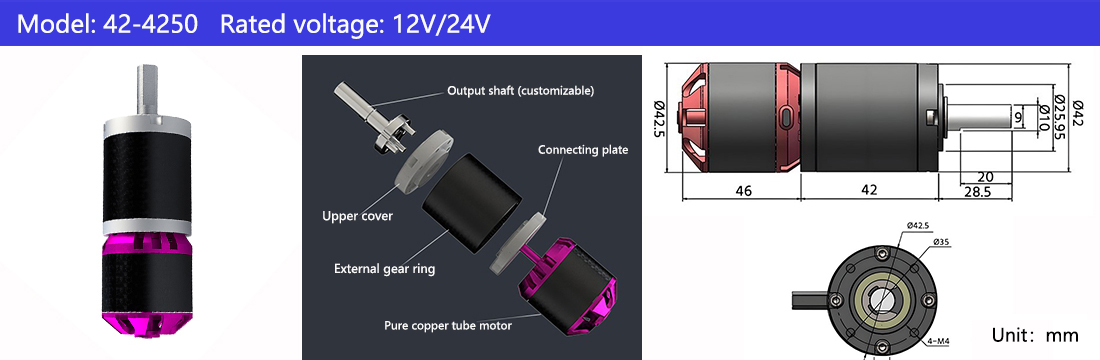

Parameters		42-4250-270KV	42-4250-270KV	42-4250-560KV	42-4250-560 KV
Performance	Maximum power	560W	560W	560W	560W
	Maximum current	60A	60A	60A	60A
	No-load current	0.8A	0.8A	1.3A	1.3A
	Torque	0.8-1.2N/m	0.8-1.2N/m	0.8-1.2N/m	0.8-1.2N/m
	Fuselage diameter	42mm	42mm	42mm	42mm
	Gearbox	1:14	1:19	1:14	1:19
	Voltage	DC 7-24V	DC 7-24V	DC 7-24V	DC 7-24V
	kv value	270KV	270KV	560KV	560KV
	No-load speed	135 RPM-460 RPM	100 RPM-340 RPM	280 RPM-960 RPM	206 RPM-700 RPM
	Fuselage height	90mm	90mm	90mm	90mm

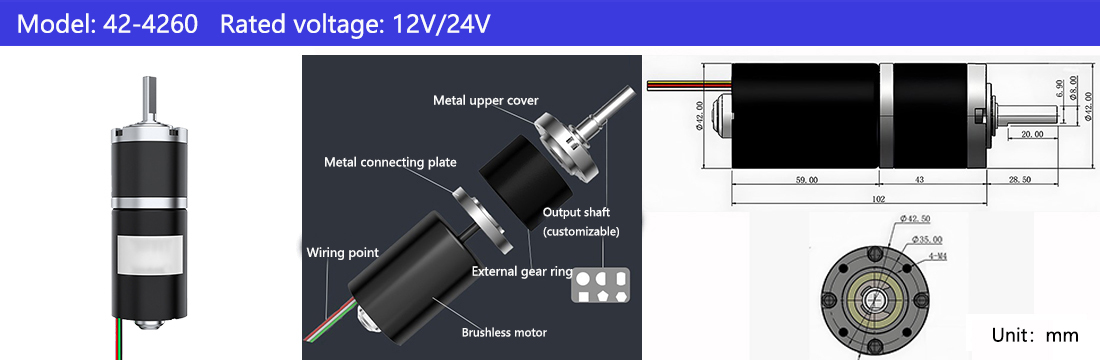

42-4260-12V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	97.5		108			119.8				130
	Weight		g	/		600			/				/
12V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	57	42	30	22	16	11
	Idle	Current	ma	900	900	900	900	900	900	900	900	900	900	900	900	900	900
	Rated load	Velocity	rpm	1783	1274	471	347	244	132	93	66	47	35	25	17	13	9
		TorQue	kgf.cm	1.5	2	5	7	10	17	24	35	45	61	85	85	85	85
		Current	ma	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
		Power	w	43	43	43	43	43	43	43	43	43	43	43	43	43	43
	/	TdrQue	kgf.cm	7.5	10	26	35.5	87	120	Stalled rotors are prohibited
	/	Current	ma	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000

42-4260-24V 8000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	31.5		42			54				64
	Motor overall length		mm	97.5		108			119.8				130
	Weight		g	/		600			/				/
24V	Idle	Velocity	rpm	2162	1544	571	421	296	160	112	80	57	42	30	22	16	11
	Idle	Current	ma	500	500	500	500	500	500	500	500	500	500	500	500	500	500
	Rated load	Velocity	rpm	1783	1274	471	347	244	132	93	66	47	35	25	17	13	9
		TorQue	kgf.cm	1.5	2	5	7	10	17	24	35	45	61	85	85	85	85
		Current	ma	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200
		Power	w	43	43	43	43	43	43	43	43	43	43	43	43	43	43
	/	TdrQue	kgf.cm	7.5	10	26	35.5	87	120	Stalled rotors are prohibited
	/	Current	ma	9500	9500	9500	9500	9500	9500	9500	9500	9500	9500	9500	9500	9500	9500

45-45ZY-12V 5000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	/		/			/				/
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
12V	Idle	Velocity	rpm	1350	960	357	263	185	100	70	50	35	27	19	14	10	7
	Idle	Current	ma	800	800	800	800	800	800	800	800	800	800	800	800	800	800
	Rated load	Velocity	rpm	102	787	291	215	151	82	57	41	29	21	16	12	8	6
		TorQue	kgf.cm	1.2	1.7	4.4	6	8.5	15	21	30	41	52	73	103	144	200
		Current	ma	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300	2300
		Power	w	27	27	27	27	27	27	27	27	27	27	27	27	27	27
	/	TdrQue	kgf.cm	9	13	33	45	64	110	146	220	Stalled rotors are prohibited
	/	Current	ma	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000	15000

45-45ZY-24V 5000RPM
Voltage used	Reductionratio		i:1	3.7	5.18	14	19	27	50	71	100	139	189	262	369	516	721
	Gearbox length		(L) mm	/		/			/				/
	Motor overall length		mm	/		/			/				/
	Weight		g	/		/			/				/
24V	Idle	Velocity	rpm	1350	960	357	263	185	100	70	50	35	27	19	14	10	7
	Idle	Current	ma	450	450	450	450	450	450	450	450	450	450	450	450	450	450
	Rated load	Velocity	rpm	102	787	291	215	151	82	57	41	29	21	16	12	8	6
		TorQue	kgf.cm	1.2	1.7	4.4	6	8.5	15	21	30	41	52	73	103	144	200
		Current	ma	1200	1200	200	1200	1200	1200	1200	1200	1200	1200	1200	2300	1200	1200
		Power	w	29	29	29	29	29	29	29	29	29	29	29	29	29	29
	/	TdrQue	kgf.cm	9	13	33	45	64	110	146	220	Stalled rotors are prohibited
	/	Current	ma	8000	8000	8000	8000	8000	8000	8000	8000	8000	8000	8000	8000	80000

Application

Planetary brushless gear motors, with their small size, high torque and long service life, are widely used in high-precision and high-reliability scenarios, meeting the demands of multiple fields such as industry, medical care and intelligent devices.

After-sale guarantee

In the event of a motor malfunction, our after-sales team will respond immediately and promptly arrange for professional technicians to communicate with you to understand the details of the fault. We will provide you with remote technical guidance based on the specific situation and assist you in solving problems. Meanwhile, we also offer you regular follow-up services to understand the usage of the motor, collect your opinions and suggestions, and continuously optimize our products and services. When our products are upgraded and replaced, we will also promptly notify you and provide you with corresponding technical support and solutions to ensure that your equipment always maintains good performance.

Home

Supplier

Products

Forum

Demand Hall

News

About ERIK

Become A Supplier

Planetary reduction brushless motor High power from31 to42mm

Product Description

Functional Features

Product parameters

Application

After-sale guarantee

Recommended products

12/24/36/48V/60V 600W DC brushless motor driver current/speed /FOC drive mode

The BL series servo driver 220V current 3.5-35A incremental absolute encoder supports position, speed and torque control

12/24/36/48/60V 1800W DC brushless motor driver current/speed/position PID control FOC drive mode

The DH series incremental DC servo driver has a voltage range of 110V to 220V and is compatible with various motors

our service
