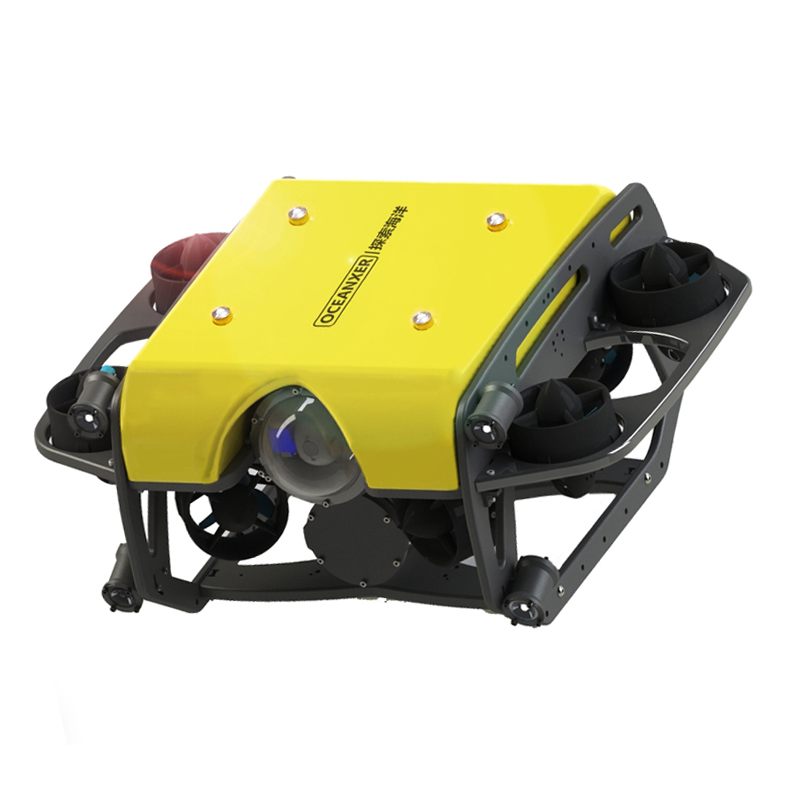

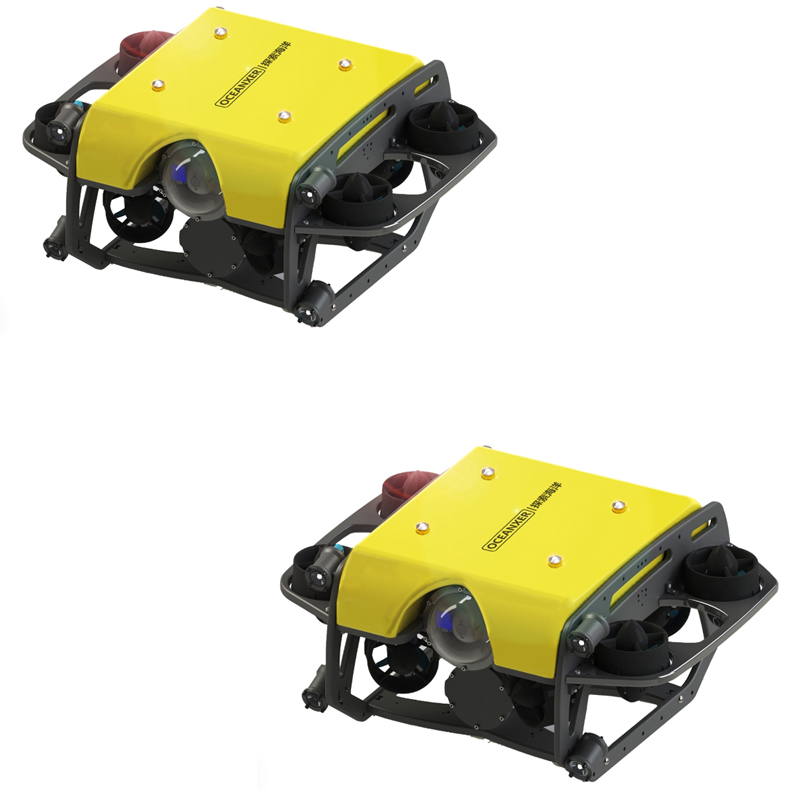

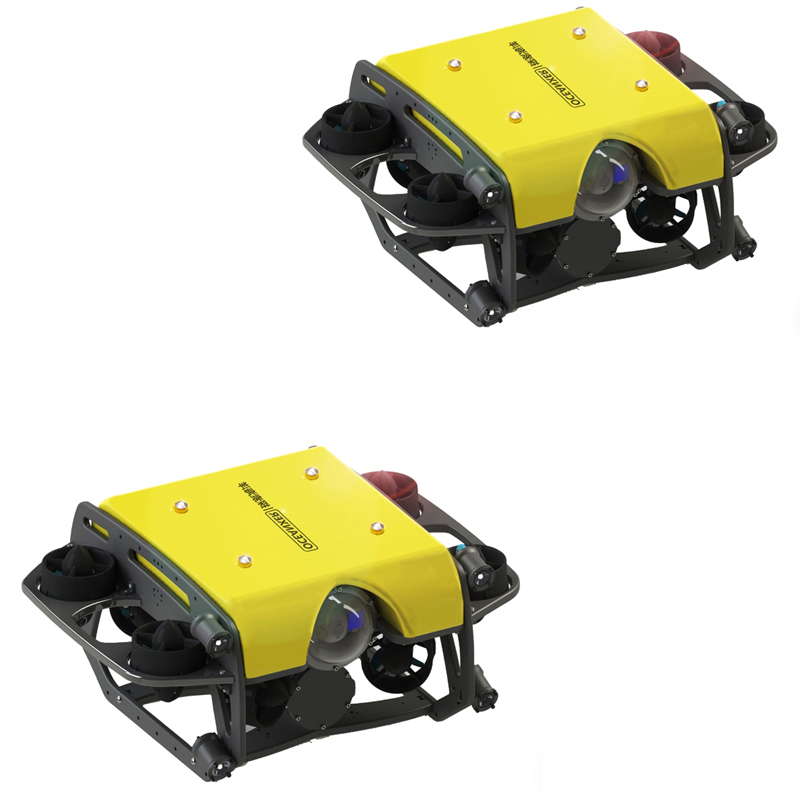

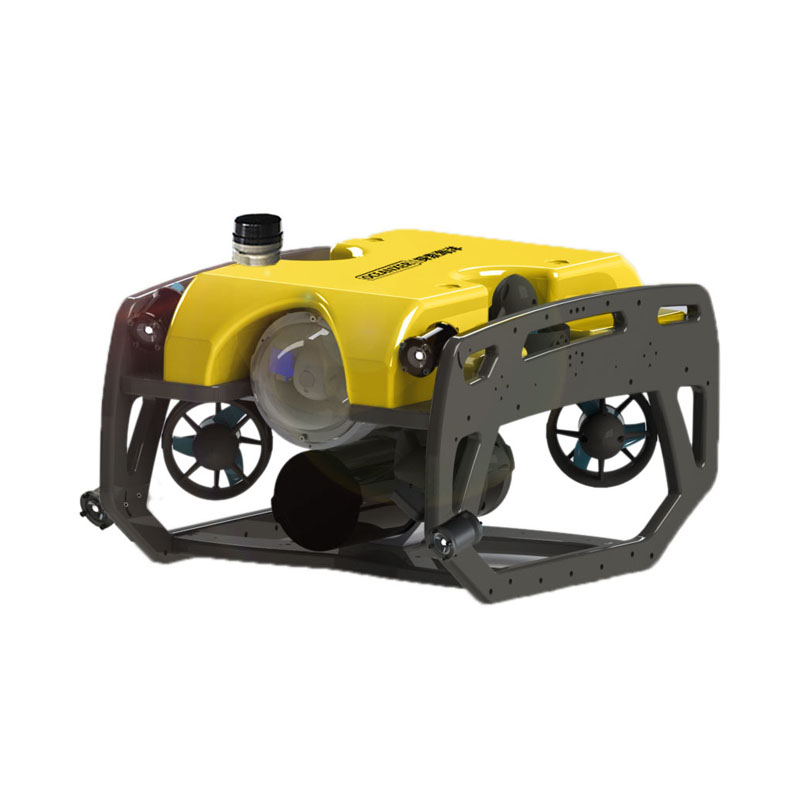

S200 underwater robot
The S200 underwater robot has eight thrusters, a larger load capacity, multiple expansion functions, and can be equipped with shore-based power supply
- Size：595x460x260mm
- Weight in air：15kg
- Load capacity：4kg
- Working depth：300m
USD： 14911
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

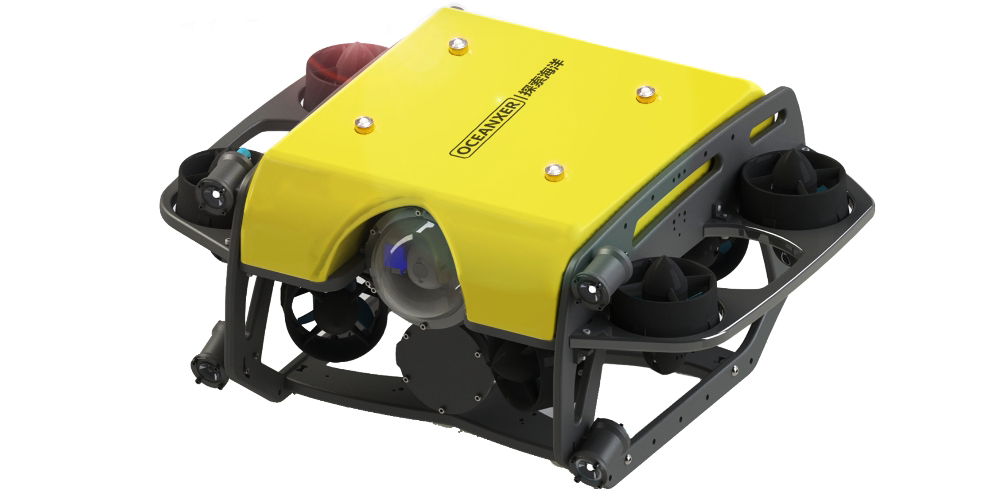

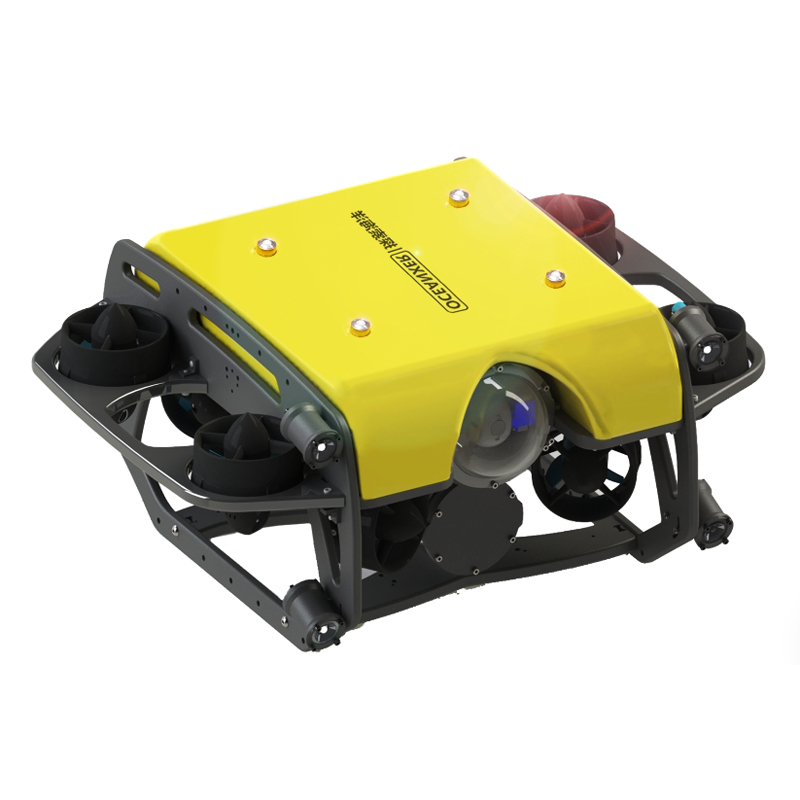

S200 underwater robot
Product Description
S200 underwater robot, rated working depth 300 meters. Equipped with two 1500 lumen ultra-bright LED lights. Uses brushless DC submerged thrusters. Eight thruster vector configuration, with extremely high motion controllability. Adjustable buoyancy, reserved for a variety of expansion interfaces, can carry a variety of equipment, such as sonar, robotic arms, sampling tools and other customized tooling. Suitable for most underwater operations. The system is equipped with a 1080p, 0.001lux low-light high-resolution digital camera with tilt and pan function. The standard configuration is a rov host (including a battery), a 100-meter umbilical cable plus a winch, and a 10.1-inch shore-based control box. Packed in an aviation-grade transport box.
ROV body includes
——8 350W brushless DC thrusters
——1 1080P PTZ camera
——2 1500 lumen high brightness LED lights
——16.8V lithium battery pack with switch
Product Parameters
ROV-S200 underwater robot
| Mechanical parameters | Size | 595x460x260mm |
| Weight in air | 15kg | |
| Load capacity | 4kg | |
| Working depth | 300m | |
| Maximum forward speed | 3 knots |
| Electrical parameters | Operating Voltage | 16.8V |
| Camera sensitivity | 0.01lux | |
| Camera resolution | 1080P |
Zero buoyancy cable
| Mechanical parameters | Length | 100mm |
| Tensile strength | 150kg | |
| Buoyancy in seawater | Slightly neutral |
| Electrical parameters | Communication line | 2 twisted pairs |
Ground Station
| Mechanical parameters | Size | 550x430x230mm |
| High brightness screen | 19 inches |
| Electrical parameters | Operating Voltage | 12V |
| Operating system | Win10 | |
| Storage | 516G(SSD) |
Optional accessories
| ——Multiple types of sonar | ——Underwater GPS |
| ——Multi-degree-of-freedom robotic arm | ——Shore-based power supply |

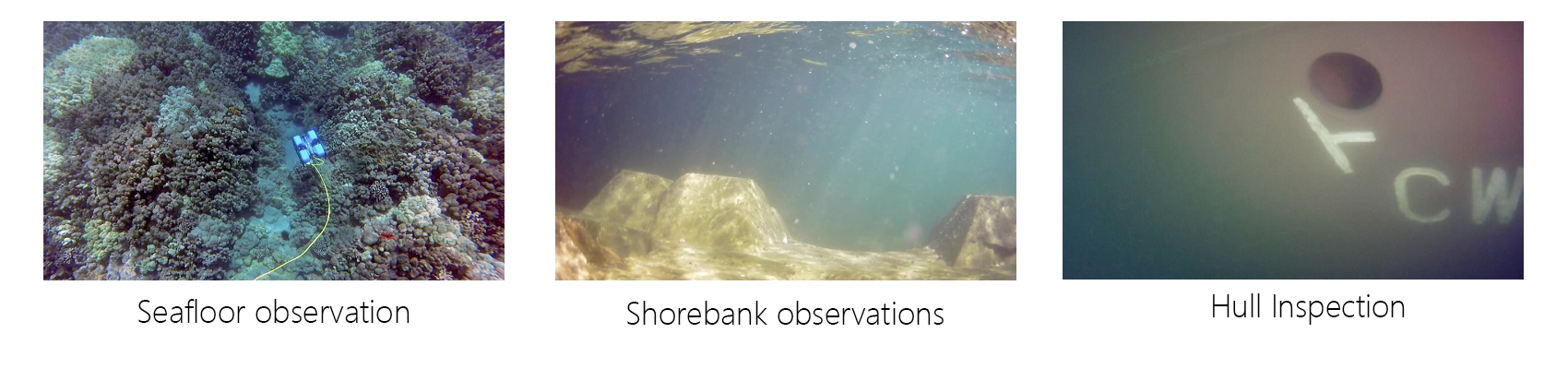

Application Areas
Recommended products
19.0 inch ground station
Industrial grade protection, lightweight and portable 19.0-inch operating table
collect：0
E-100 Underwater Robot
Small and flexible underwater inspection robot High-definition underwater camera Remote control underwater drone
collect：0
S100 Underwater Robot

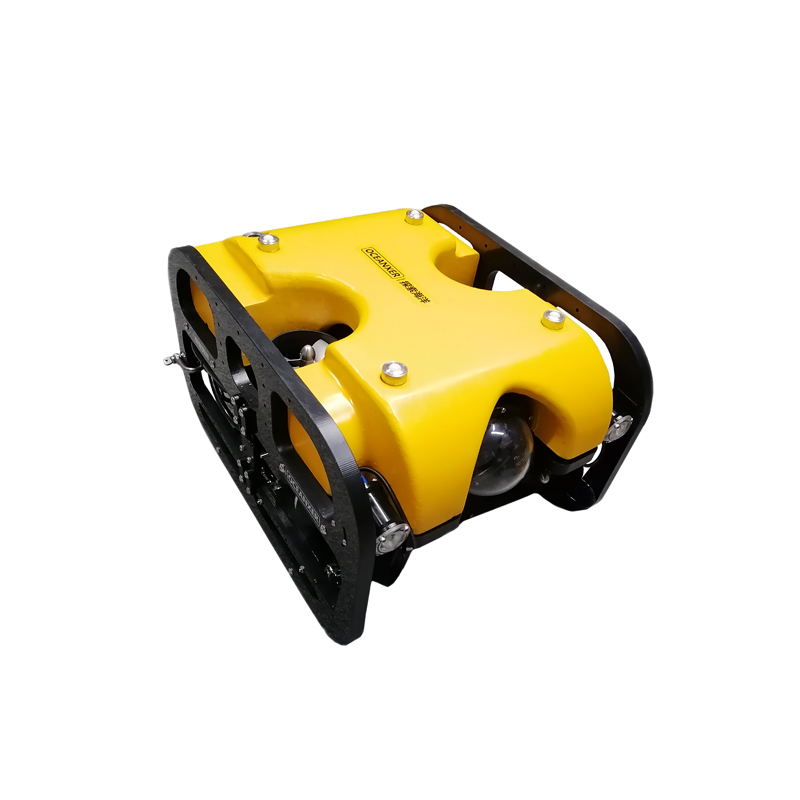

Flagship best-selling model Multiple expansion functions Multi-function ground station Can be equipped with shore-based power supply Underwater robot
collect：0

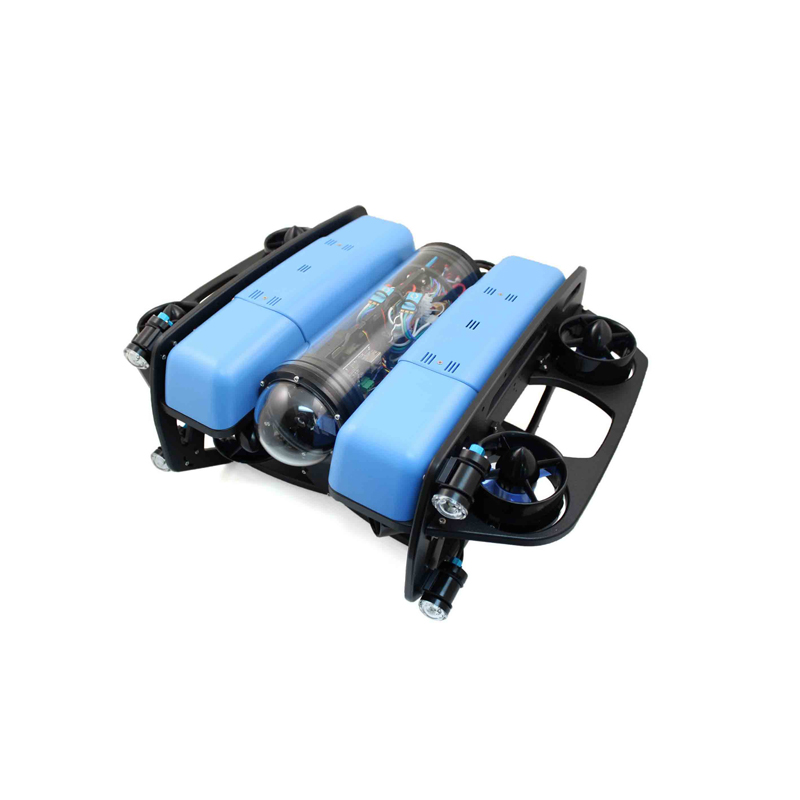

BLUEROV2 HEAVY underwater robot
