PH series hollow harmonic micro-integrated machine for robot joint module

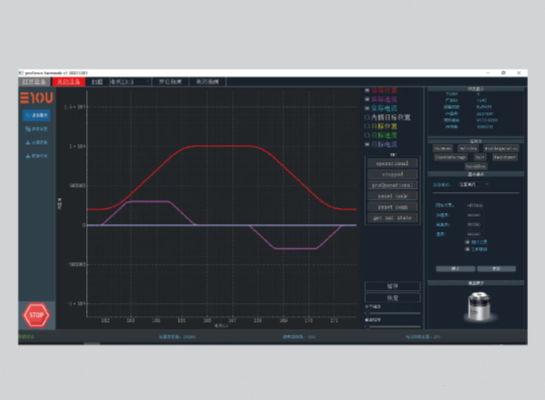

Full hardware FOC technology, chip-level FPGA development, three-ring control frequency is all 20K, fast response, 16-bit ADC 1MHz sampling rate

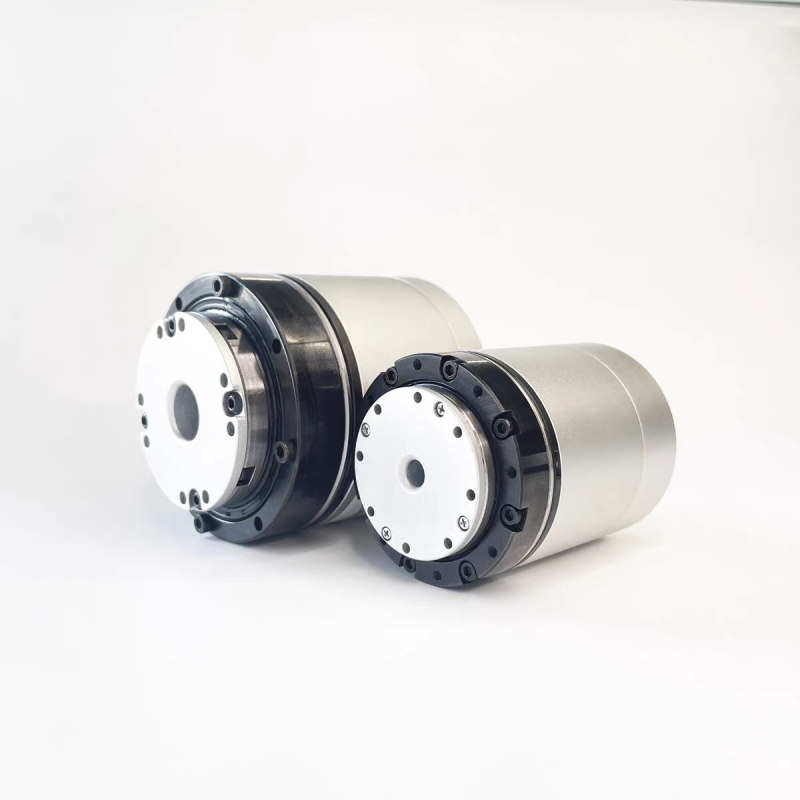

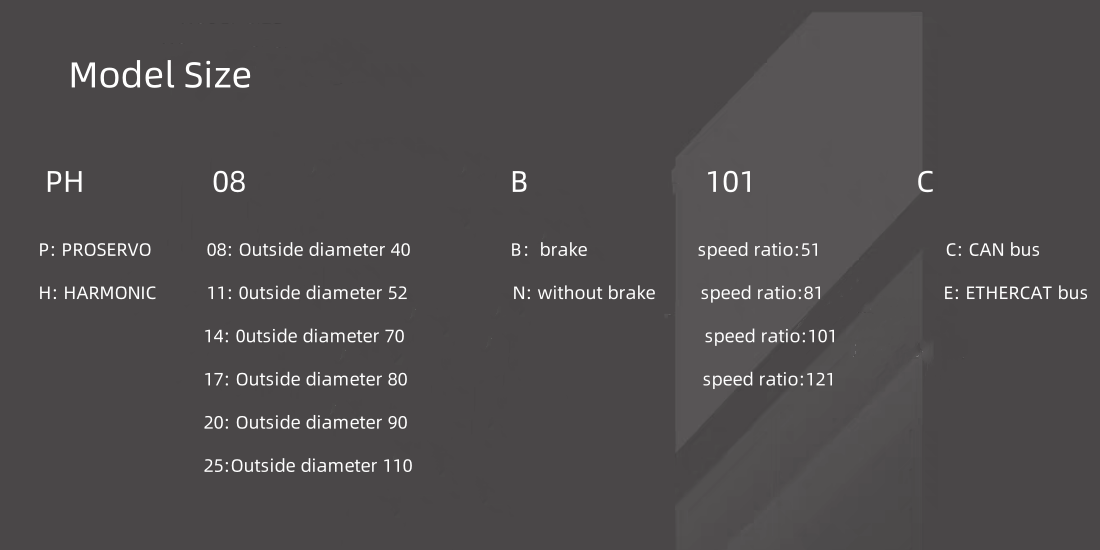

Model :
PH8
PH11
PH14
PH17
PH20
PH25
Ratio :
51
81
101
121
Brake :
Without brake(N)
With brake(B)

USD: Inquiry

ablity:Monthly Output500

contact shop

Product Description

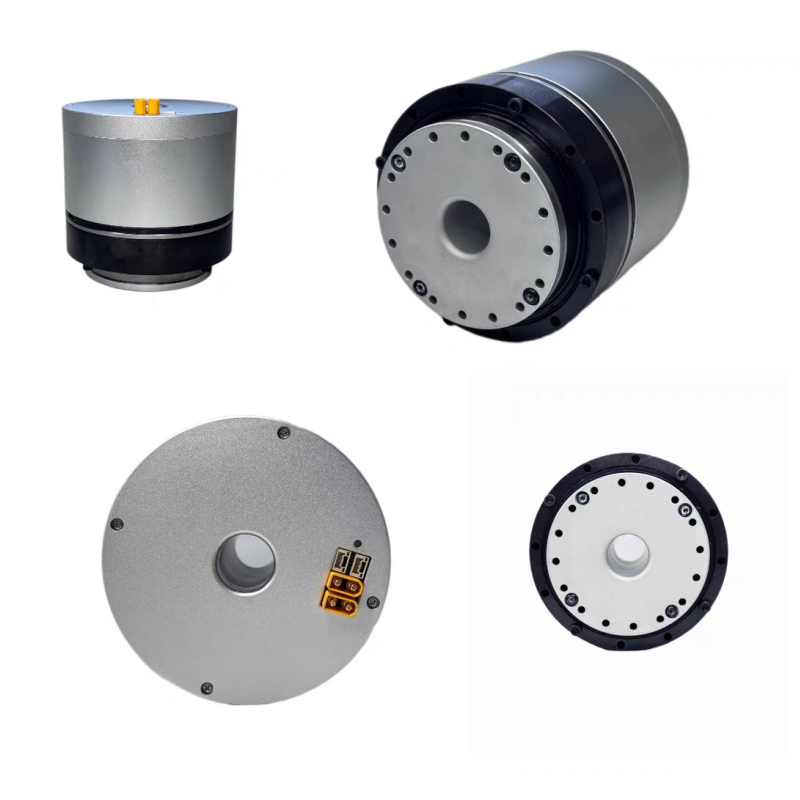

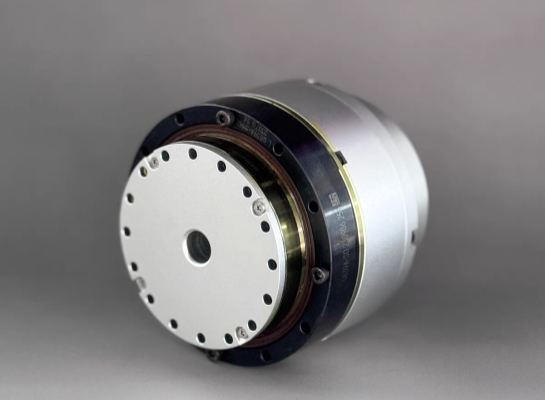

19-bit dual encoder high-precision hollow wiring harmonic servo motor, support EtherCAT/CANopen bus, power-off automatic brake, integrated design, fast response, accurate positioning.

Application

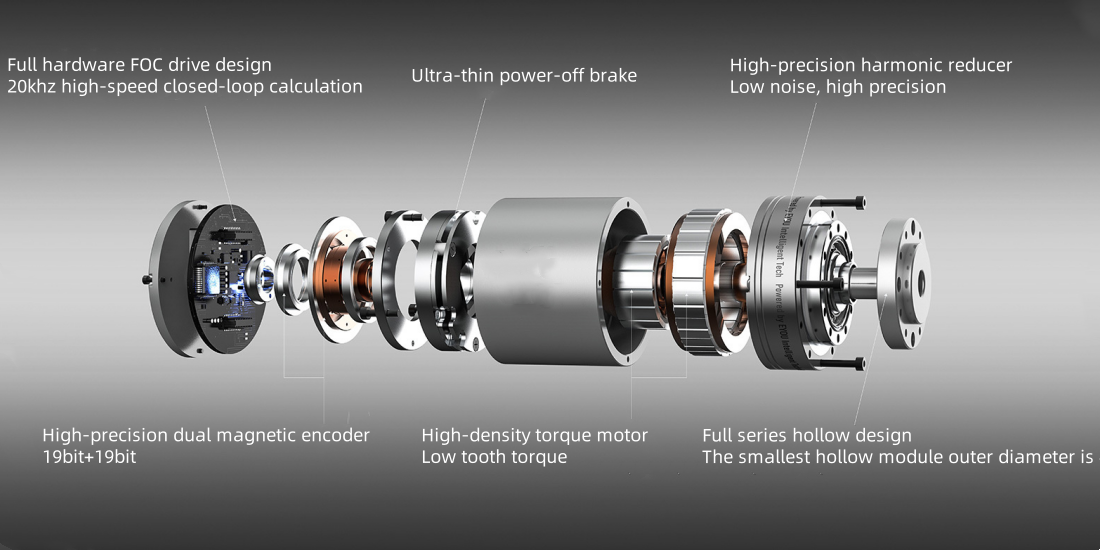

The joint module, which consists of a high-density frameless torque motor, an integrated drive motor and a dual absolute encoder motor, is widely used in robotics, precision automation and high-end industrial fields. Its high power density and compact frameless design are particularly suitable for space-constrained collaborative robot joints, achieving lightweight and high dynamic response; the integrated drive integrates the motor, encoder and controller to simplify the structure and improve reliability, and is suitable for high-precision scenarios such as medical robot surgical arms; the dual absolute encoder provides redundant position feedback to ensure the absolute positioning accuracy and safety of industrial automation equipment (such as semiconductor wafer handling robotic arms). In addition, the module also performs well in extreme environments such as aerospace servos and exoskeleton power joints, taking into account high torque output and low cogging effect to meet the needs of complex working conditions.

Product parameters

Model

PH08

PH11

PH14

PH17

PH20

PH25

Motor type

Inner rotor torque motor

Diameter

40mm

52mm

70mm

80mm

90mm

110mm

Hollow inner diameter

4.6mm

6mm

14mm

14mm

18mm

18mm

Weight (with brake/without brake)

/188g

495g/434g

1108g/1023g

1350g/1223g

1991g/1960g

3098g/2927g

Reverse backlash

15arcsec

Noise

<70db

Temperature range

-20~80°C

Operating voltage

24v-36v

                                                             24v-48v

Rated power

36w

120w

120w

200w

250w

500w

Speed ratio

51

101

51

101

51

101

51

101

81

121

81

121

Rated speed

60rpm

30rpm

60rpm

30rpm

60rpm

30rpm

60rpm

30rpm

38rpm

25rpm

38rpm

25rpm

Rated torque

1.0nm

1.6nm

3.5nm

6.8nm

18nm

22nm

30nm

38nm

52nm

78nm

96nm

144nm

Peak torque

2.8nm

3.5nm

6.8nm

13nm

38nm

45nm

52nm

66nm

104nm

156nm

206nm

220nm

Encoder accuracy

19bit

Encoder type

Dual magnetic encoder

Electromagnetic brake

Power-off brake

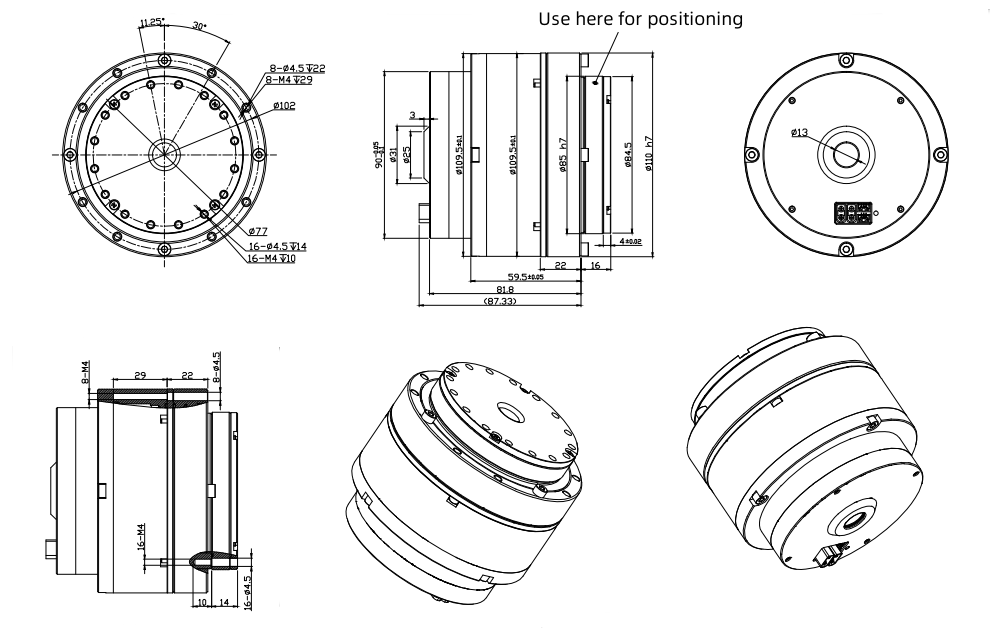

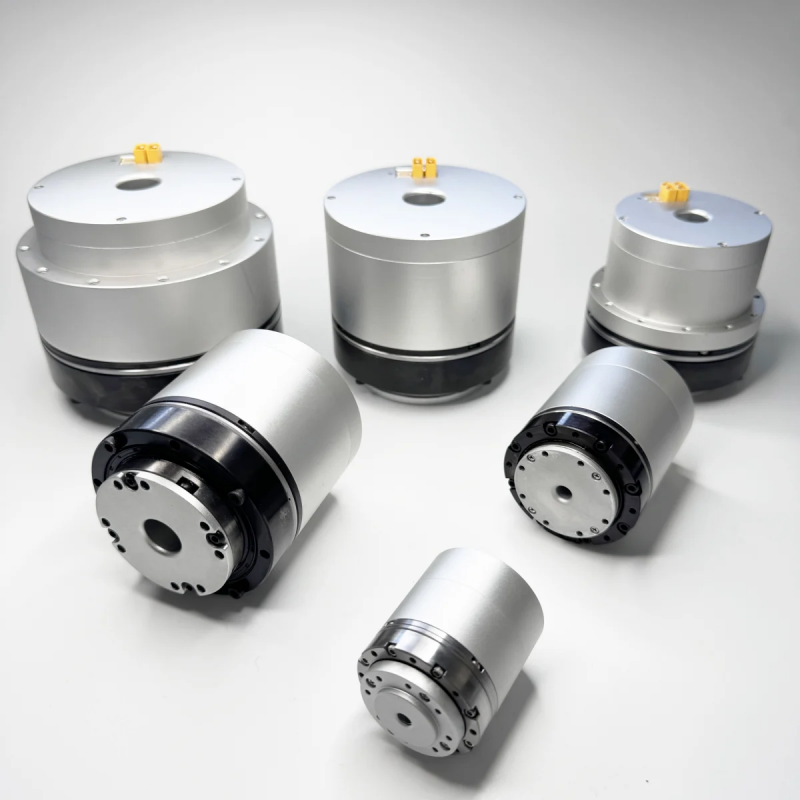

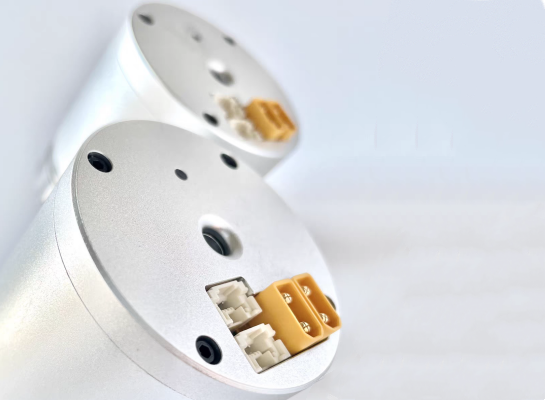

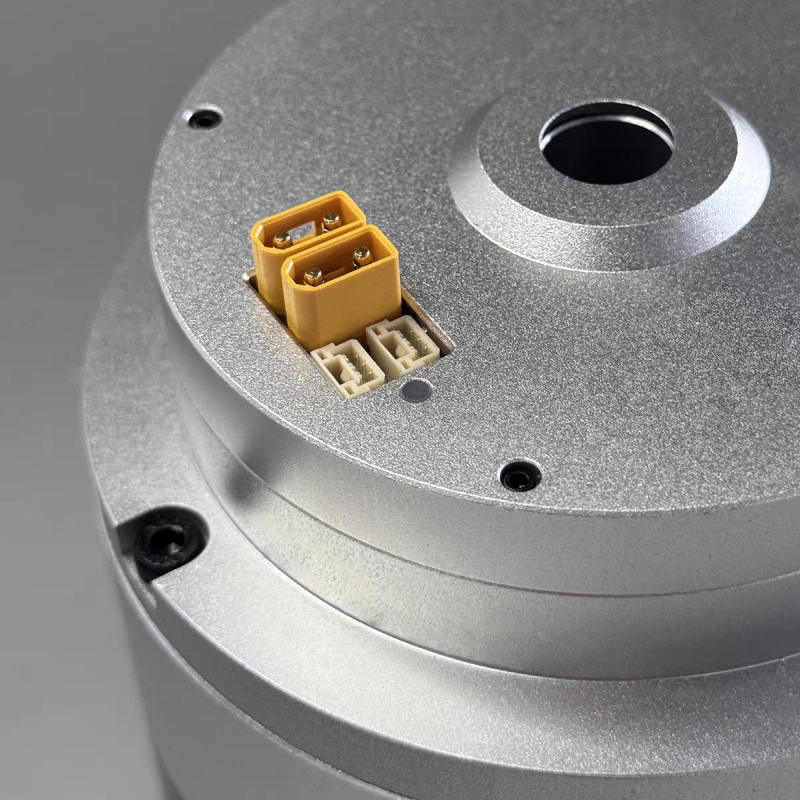

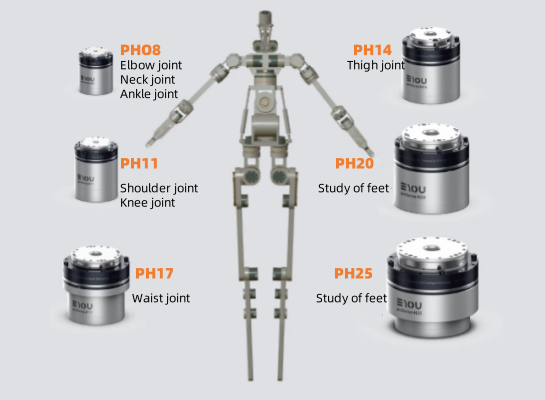

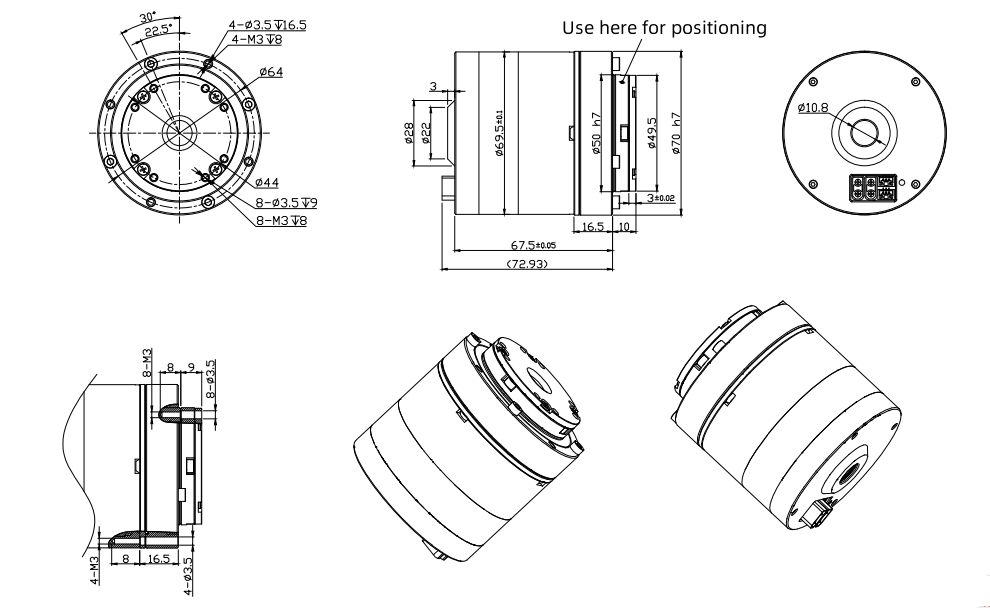

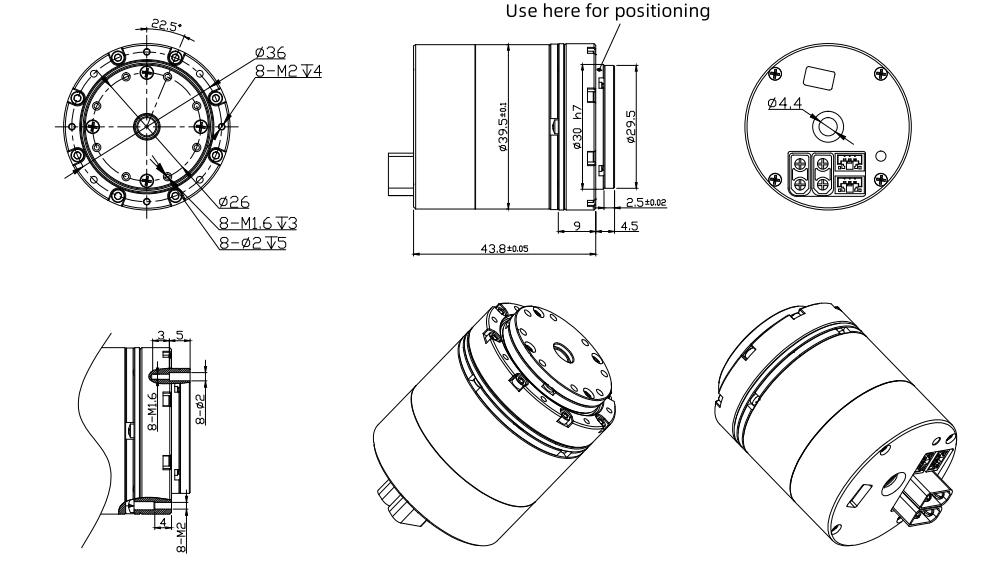

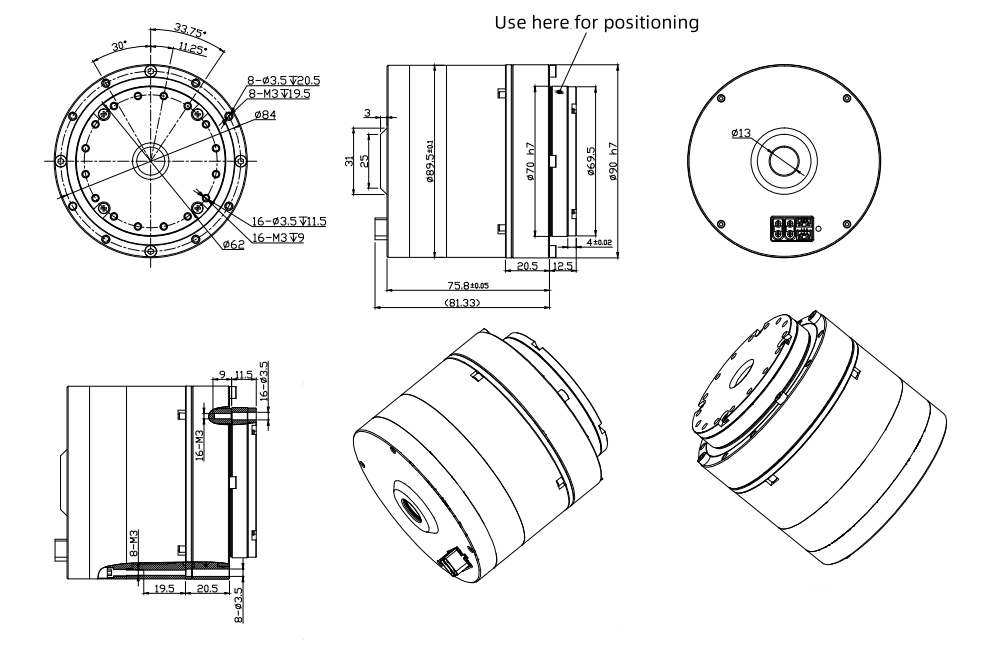

PH08

PH11

PH14

PH17

PH20


PH25


FAQ

1. Does it support customized reduction ratio?

Yes. We can provide customized solutions with different reduction ratios according to your application requirements.

The conventional reduction ratio range covers: 51:1 ~ 121:1, and the best combination can be matched according to the load, speed, and torque requirements.


2. What is the difference between the single encoder and dual encoder versions?

The single encoder version monitors the rotation of the motor end and is suitable for general precision requirements; the dual encoder version monitors the motor end and the output end at the same time, which can effectively compensate for the backlash and elastic error, and is suitable for high-precision control and high safety requirements (such as collaborative robots, medical equipment). We provide 19-bit single-turn dual encoders


3. What communication interfaces can the joint module support?

The standard version supports analog control (current/voltage command) or pulse command control;

According to requirements, it can optionally support CAN, EtherCAT, and other industrial bus protocols.


4. Does it support integrated drive and control? Can it be directly connected to the controller?

We provide optional drive-control integrated joint modules with built-in motor drivers and position servo controllers.

Users can control directly through the bus or pulse interface without external independent drivers, simplifying wiring and system integration.


5. Are there standard 3D model files available for download?

Yes. We provide 3D model files in STEP format for all models, which is convenient for customers to quickly integrate mechanical design.

If you need to obtain it, please contact our sales staff to obtain the download link or data package.


6. Can the joint module be designed hollow? Can it be wired?

All models are designed with hollow shafts, and the center aperture can be used for wiring, air pipes, water pipes, etc., which is convenient for realizing the functional layout of complex end effectors.

For specific center aperture dimensions, please refer to the model selection table or consult customer service.


7. How long is the standard delivery period and customized delivery period?

Standard model delivery period: usually 7-14 working days.

The delivery period for customized requirements (such as IP56 waterproof, reduction ratio customization, communication protocol customization, etc.) depends on the specific requirements, generally 5-10 weeks.


8. How long is the warranty period? How is the after-sales service?

All joint module products have a 12-month warranty period (under normal use).

We provide remote technical support, fault diagnosis guidance, and fast spare parts supply services. Paid repair and maintenance services are also available outside the warranty period.
