E-200 underwater robot

E-200 underwater robot is a high-performance, light-duty, high-expansion, high-load capacity underwater inspection robot.

  • Size：549.85 x 498.64 x 399.5mm
  • Weight in air：40kg
  • Load capacity：16kg
  • Maximum working depth：300m
  • Operating Voltage：24V
  • Maximum forward speed：1.5m/s

USD： Price Inquiry

ablity：Monthly Output200

contact shop
  • Product Description
  • Product Params

Product Description

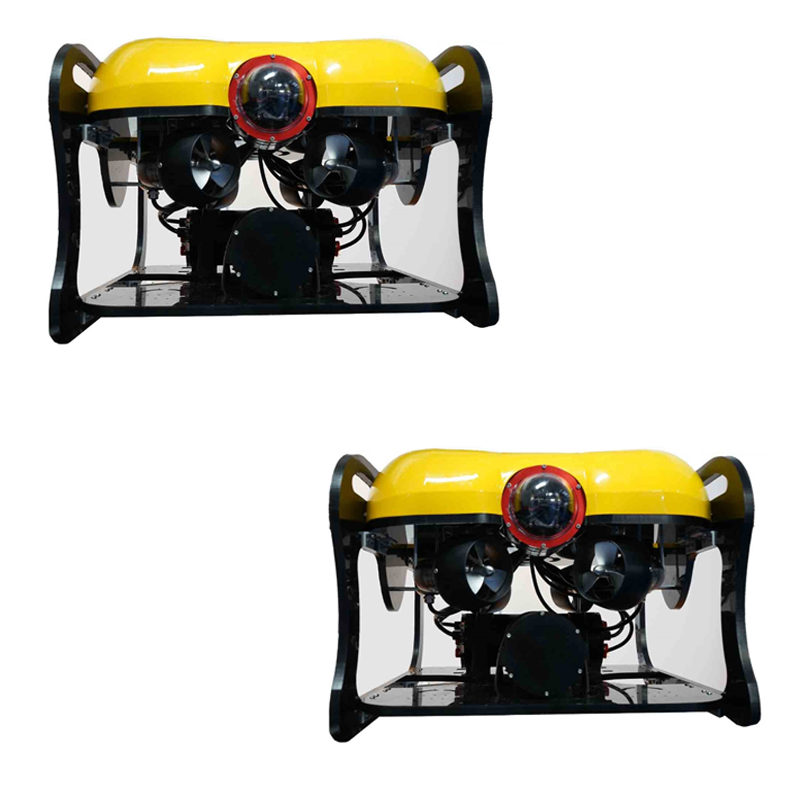

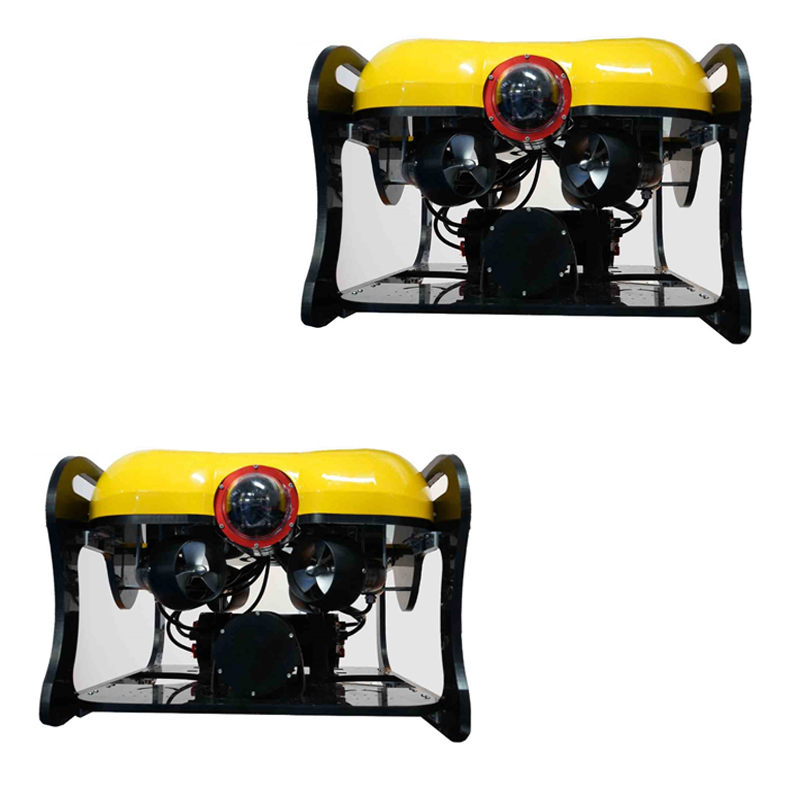

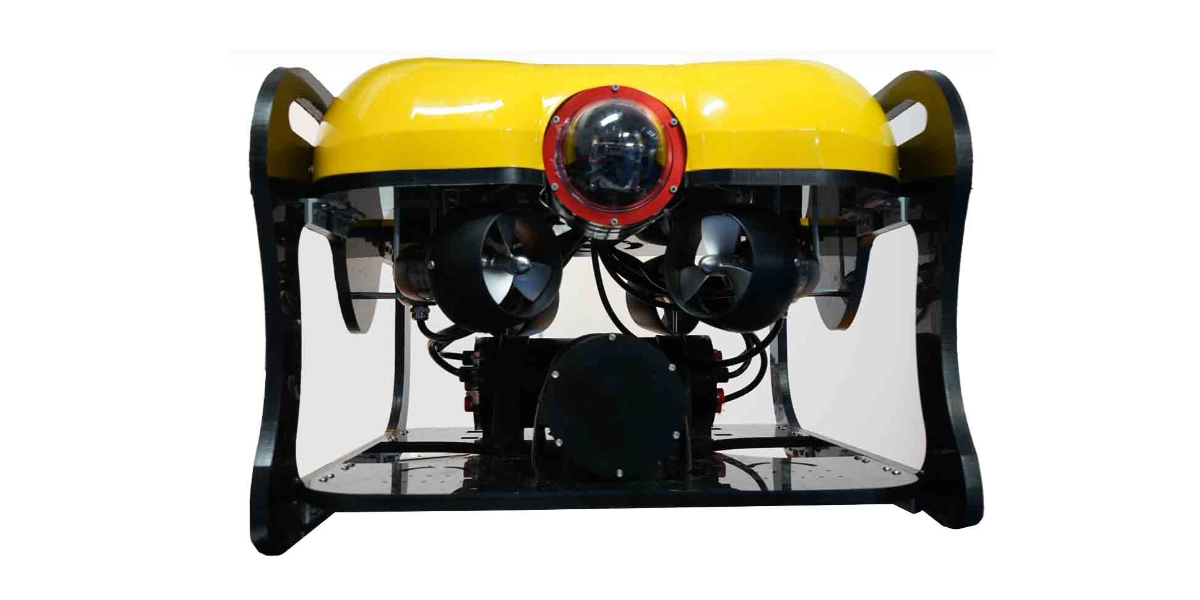

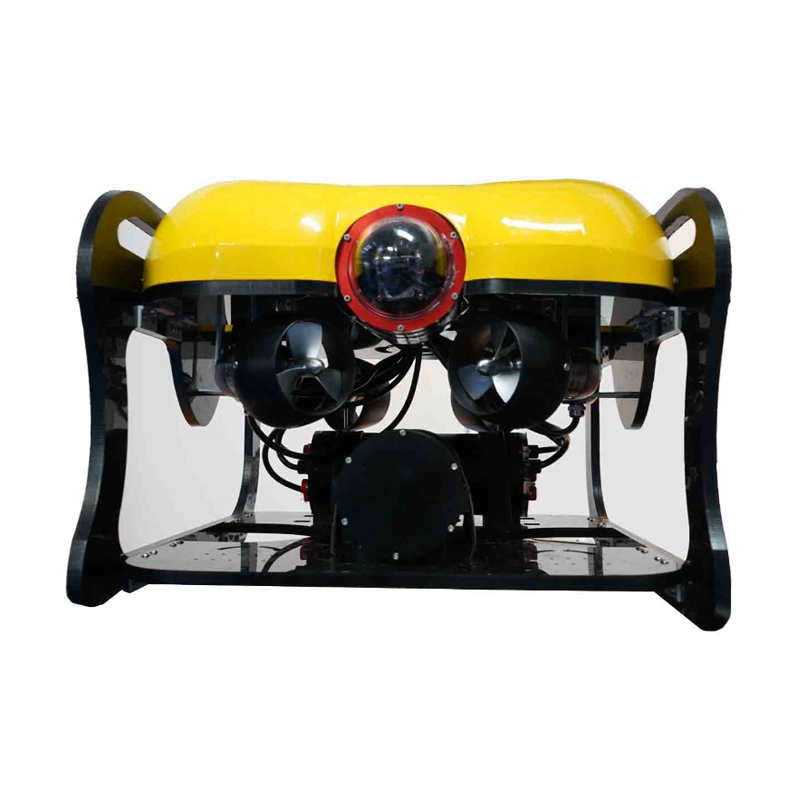

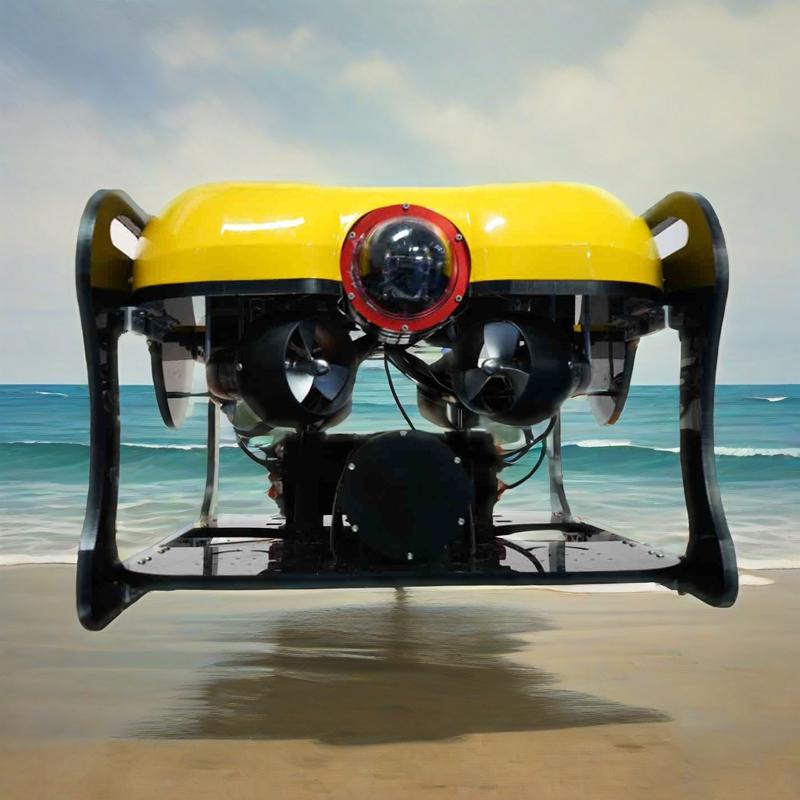

E-200 underwater robot

E-200 is a high-performance light-duty underwater robot. It has sufficient scalability and load capacity, and can be equipped with multi-functional manipulators, acoustic equipment, CTD and other units to complete operating tasks. Its excellent performance and reliable quality make it the best choice for practical applications such as underwater inspection, underwater operations, and scientific research.



The ROV body includes

——6 high-power thrusters
——1 4K PTZ camera
——3000 lumens high brightness LED light (dimmable)
——Equipped with gyroscope, accelerometer, magnetometer, internal barometer, depth sensor, voltage and current meter

Product parameters

E-200 underwater robot

Mechanical parameters
Size
549.85 x 498.64 x 399.5mm
Weight in air
40kg
Load capacity
16kg
Maximum working depth
300m
Maximum forward speed
1.5m/s
Forward thrust
27kgf
Vertical thrust
18kgf
Side thrust
27kgf



Electrical parameters
Operating Voltage
24V
Camera sensitivity
0.01lux

Zero buoyancy cable

Mechanical parameters
Standard length
300m
Tensile strength
200kg
Buoyancy in sea water
Slightly neutral
Strength support
Kevlar fiber



Electrical parameters
Communication line
8 cores (4 twisted pairs)


Optional accessories

————Multi-beam imaging sonar
————Multi-degree-of-freedom robotic arm
 ————10.5/19 inch ground station


Application Areas
