Product Description

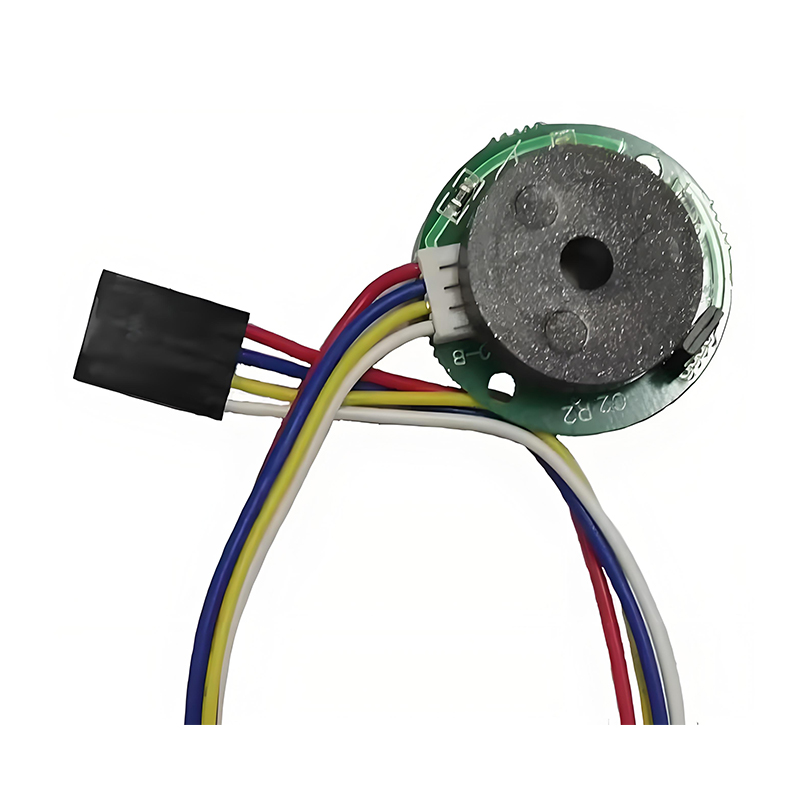

The YC2010-31 series magnetic encoder is a high-performance, low-cost, two-channel incremental magnetic coder, suitable for any harsh environment. Each magnetic encoder contains a magnetic gate and a magnetic sensitive detection circuit, outputting square waves with a 90° orthogonal phase Angle between the two channels. The PCB board equipped with sensors, which is produced according to the motor diameter size and the main shaft size, is welded and fixed to the electrode at the motor tail, and the magnetic grid is sleeved on the tail shaft. It features fast response speed, strong shock resistance, long transmission distance, long service life in harsh environments and high reliability.
Product parameters
Working parameters | Applicable motor size range (mm)±0.5 | |||||||
Type number | YC2010-31 P64 | YC2010-31 P80 | YC2010-31 P100 | YC2010-31LD P48 | YC2010-31LD P64 | YC2010-31LD P100 | Motor model | Brushless motor |
Working voltage (V） | 5～24 | 5～24 | 5 | 5～24 | 5～24 | 5 | Motor diameter A | >ø31 |
Operating temperature (℃) | -20~+80 | -20～+80 | -20~+80 | -20～+80 | -20～+80 | -20～+80 | Fixed hole spacing B | ø26 |
Operating frequency (KHz) | 100 | 100 | 100 | 100 | 100 | 100 | Fixed hole diameter | ø3.2 |
Resolution rate | 16PPR | 20PPR | 25PPR | 12PPR | 16PPR | 25PPR | Tail shaft length | >8 |
Remarks | 16PPR refers to dual-channel output of A and B, with 16 pulse signals in each channel per turn | 12PPR refers to dual-channel output of A and B, with 12 pulse signals (TTL level) in each channel per turn. | Tail shaft diameter C | ø5 | ||||

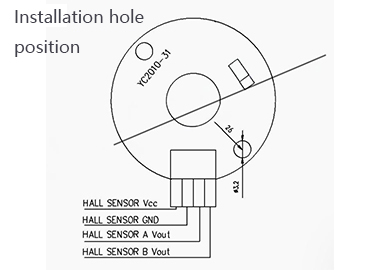

Installation method
| Wiring sequence: (from left to right) | ||
1 | Red | Sensor power supply | |
2 | LAN | Sensor ground wire | |
3 | Yellow | Signal A | |
4 | White | Signal B | |
Notes: | |||

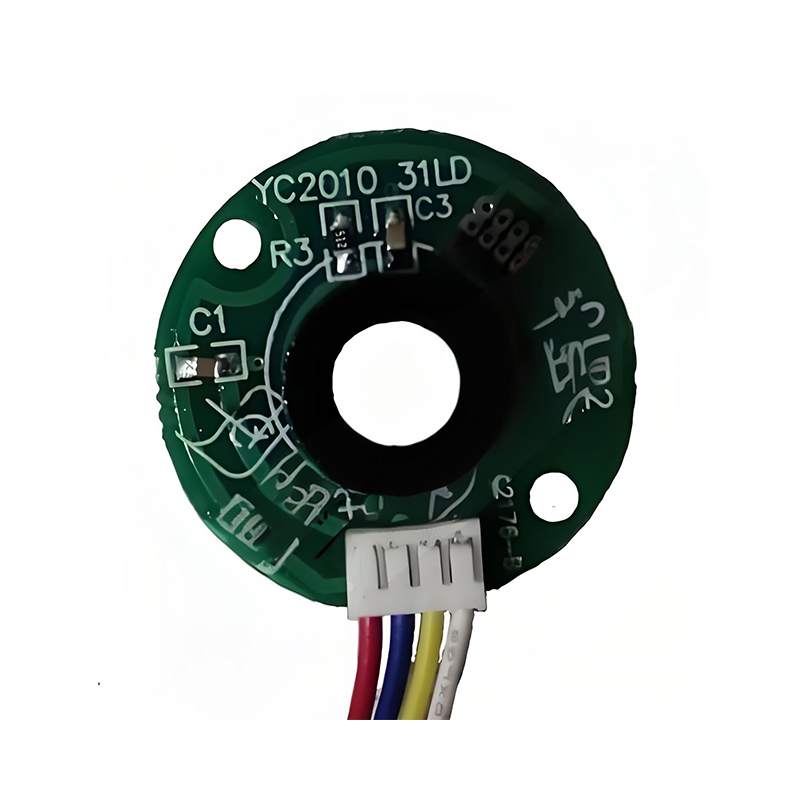

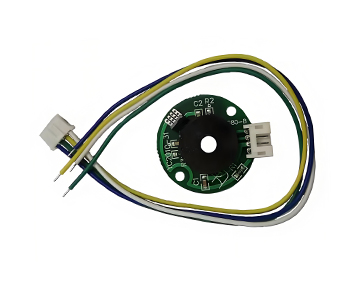

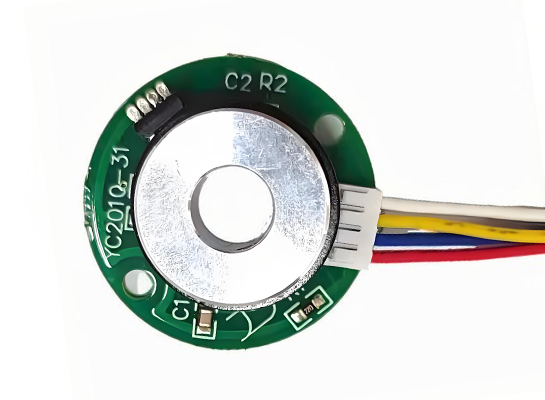

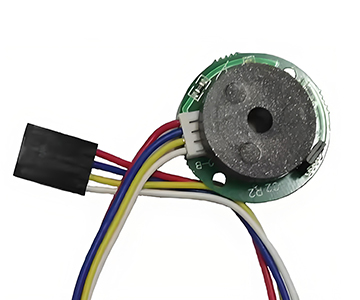

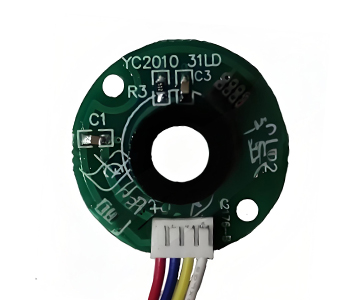

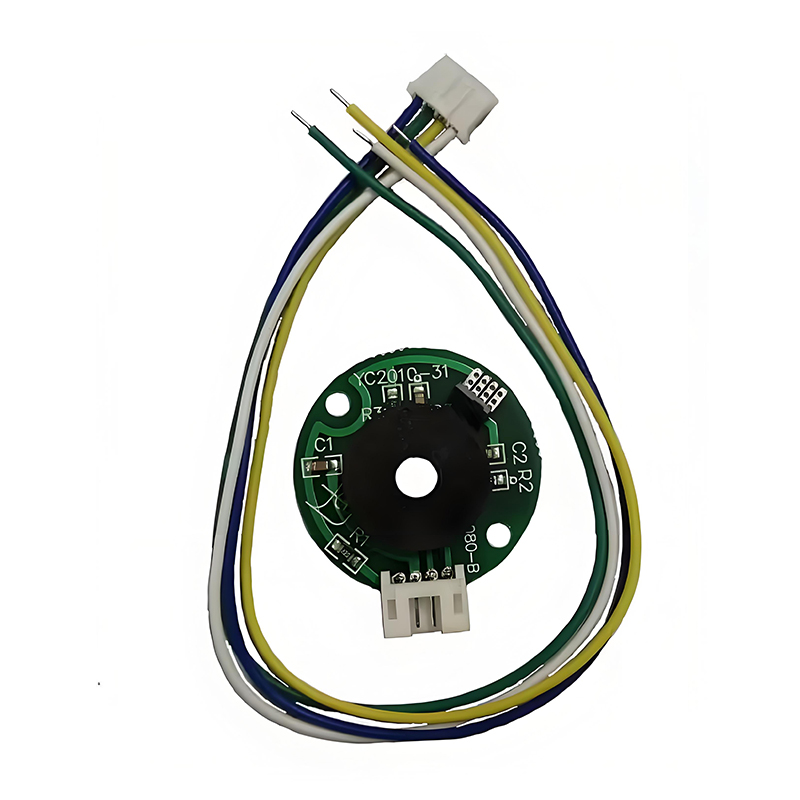

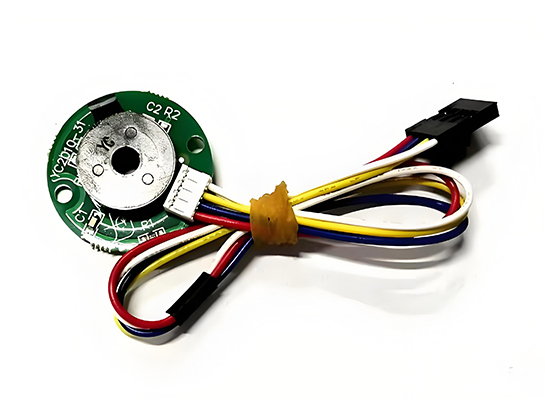

Product Display
High-precision positioning: Utilizing Hall magnetic sensitivity technology, it achieves precise Angle detection with high resolution.
Strong anti-interference ability: Adaptable to complex electromagnetic environments, with stable and reliable signals;
Wide voltage operation: Supports wide range DC power supply (such as 5-24V), with strong compatibility
Long-life design: Brushless structure with no mechanical wear and excellent durability;
Compact and lightweight: Small in size, easy to integrate and install;
Multi-functional output: Offers analog/digital signal options, compatible with various control systems;
Strong environmental adaptability: resistant to temperature and dust, suitable for industrial automation, robotics and other scenarios

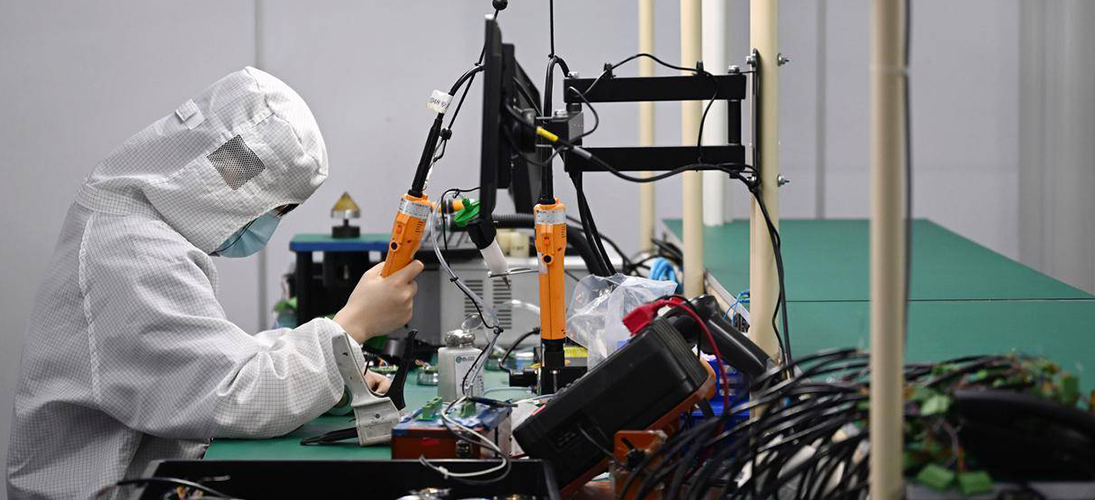

Quality Control
The company's products have passed CE certification, IP68 certification, vibration and shock resistance certification, EMC electromagnetic compatibility certification, low-temperature test certification at minus 40 degrees Celsius, salt spray test certification, low-pressure test certification, and precision inspection certification tests. A high-standard supply chain system. Customizable, highly integrated, and cost-effective.
Application Cases
Cooperative partner
Service
1. Precautions for Using Encoders
A place where the ambient temperature must not exceed the storage temperature; A place where the relative humidity must not exceed the storage
humidity; It cannot be in places with sharp temperature changes and fogging. Places close to corrosive gases and flammable gases; Stay away from
places with a lot of dust, salt and metal powder. Stay away from places where water, oil and medicine are used; Excessive vibration and shock can be
transmitted to the main body
2. Precautions for Installing Encoders
Electrical components must not be subjected to overvoltage or other phenomena. Please conduct static electricity assessment of the setting
environment, etc. Do not allow the motor power line to approach the encoder. The FG wire of the motor and the FG wire of the mechanical device
must be reliably grounded. Since the shielded wire is not connected to the encoder body, the shielded wire must be effectively connected to the
ground at the user end
3. Precautions on Wiring
When used at the specified power supply voltage, please pay attention to the decrease in power supply voltage amplitude caused by the long wiring.
Please do not use the encoder line and other power lines in the same pipe or bundle them in parallel. Please use twisted-pair wires for the signal line
and power line of the encoder. Please do not apply excessive force to the wire harness of the encoder, as there is a risk of wire breakage
4. Regarding the warranty of the encoder
Within twelve months of purchasing the products of our company, if any malfunction occurs due to correct use in accordance with the precautions
in the user manual, warning signs, etc., free warranty will be provided.
The following situations will be charged even within the warranty period: (Freight is at your own expense)
①. Faults and damages caused by the user landing during transportation or handling or improper installation;
②. Faults of this product caused by the machine connected to it;
③. Faults and damages caused by fire, salt water, corrosive gases, abnormal voltages, and other natural disasters such as earthquakes, lightning, wind, and floods;
④. Repair, adjustment or modification without the permission of our company (the label is not present or the outer cover is removed by oneself).
⑤. Malfunctions that occur when the user does not follow the usage methods and precautions described in the user manual.
⑥. Except where there are other agreements signed with the client.
