Latent handling robot Y7-600
AGV car automatic handling robot latent SLAM/QR code navigation/magnetic navigation
- Dimensions：950mm(L)X650mm(W)X260mm(H)
- Rotation diameter：1100mm
- Specified load：600KG
- Lifting height：6cm
USD： 9550
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

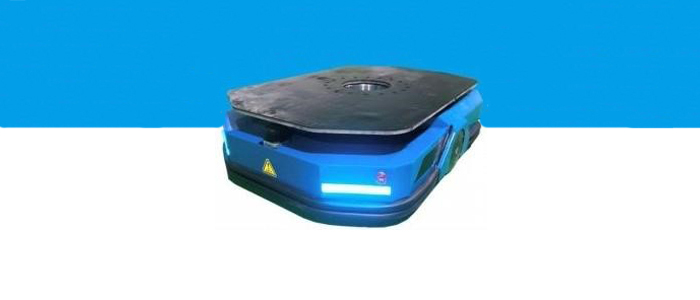

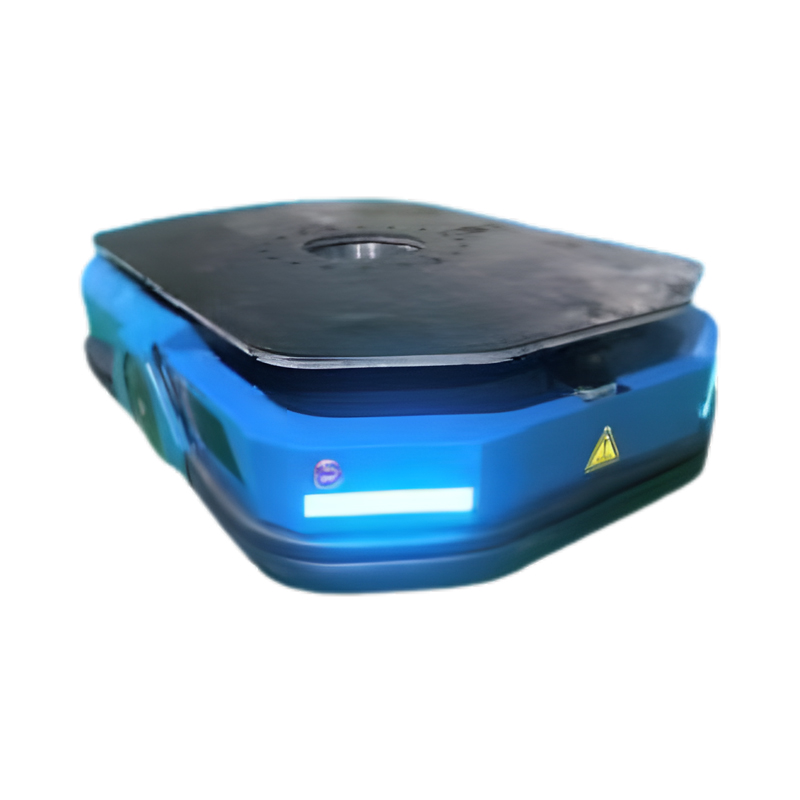

Latent handling robot Y7-600
Product Features
—— -
Fast and efficient
Maximum speed 2 m/s Maximum angular velocity 3.5 rad/s | Multiple protection safety guarantees
Front and rear laser barrier clearing Pneumatic anti-collision detection three-dimensional integrated warning of sound, light and light |
Powerful control core with high precision
Repeat positioning accuracy ±5mm Stop angle accuracy 0.5° | Small size, large load
Dimensions(950*650*260)mm Maximum load 600KG |
Technical Parameters
—— -
| Dimensions | 950mm(L)X650mm(W)X260mm(H) |
| Rotation diameter | 1100mm |
| Specified load | 600KG |
| Lifting height | 6cm |
| Follow function | Have |
| Navigation | SLAM/QR code navigation/magnetic guidance |
| Weight | 150KG |
| Positioning accuracy | ±10mm |
| Walking style | Go straight, turn, rotate on the spot |
| Rated speed | 2m/s(1.5m/s) |
| Laser obstacle avoidance | Before/after |
| Collision avoidance detection | Touch edge |
| Emergency button | Before/after |
| Battery Type | Lithium Iron Phosphate |
| Battery capacity | 48V 30Ah |
| Charging method | Manual / Auto |
| Charging time | 1.5H |

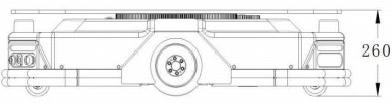

Structure size
—— -
 |  |
