T1
5 Years

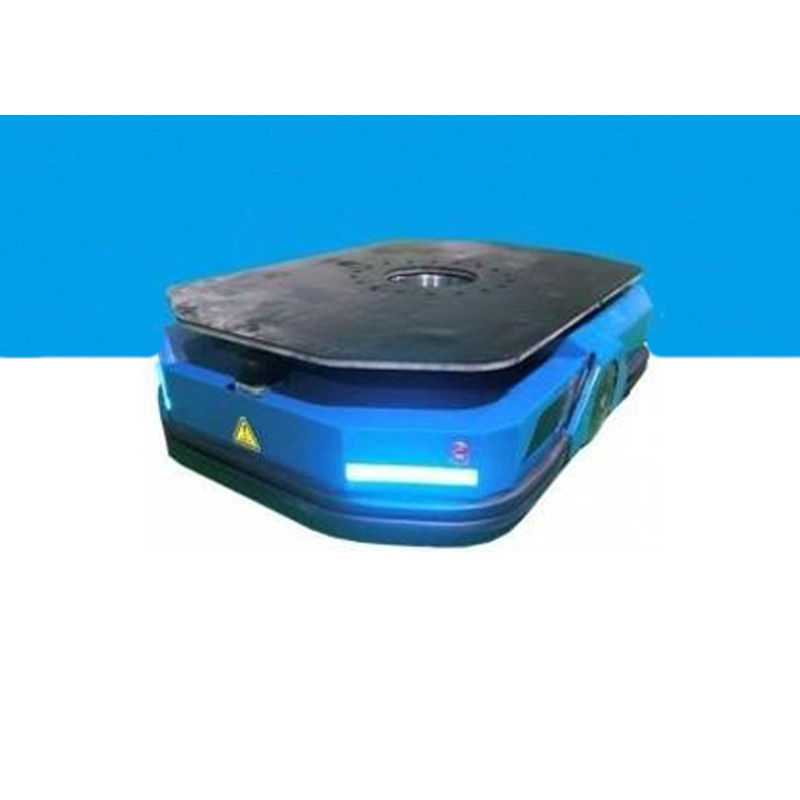

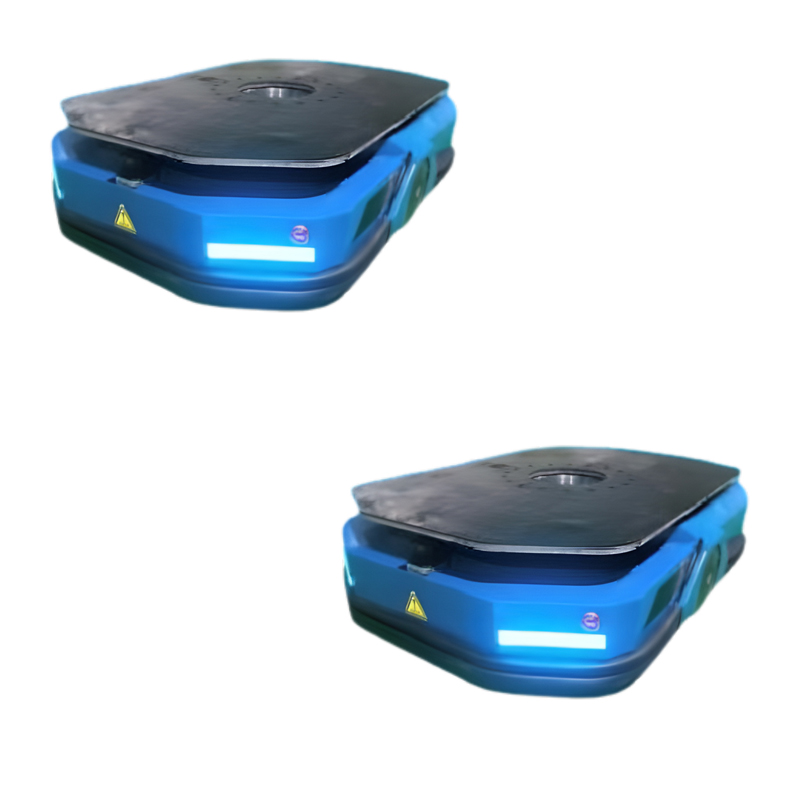

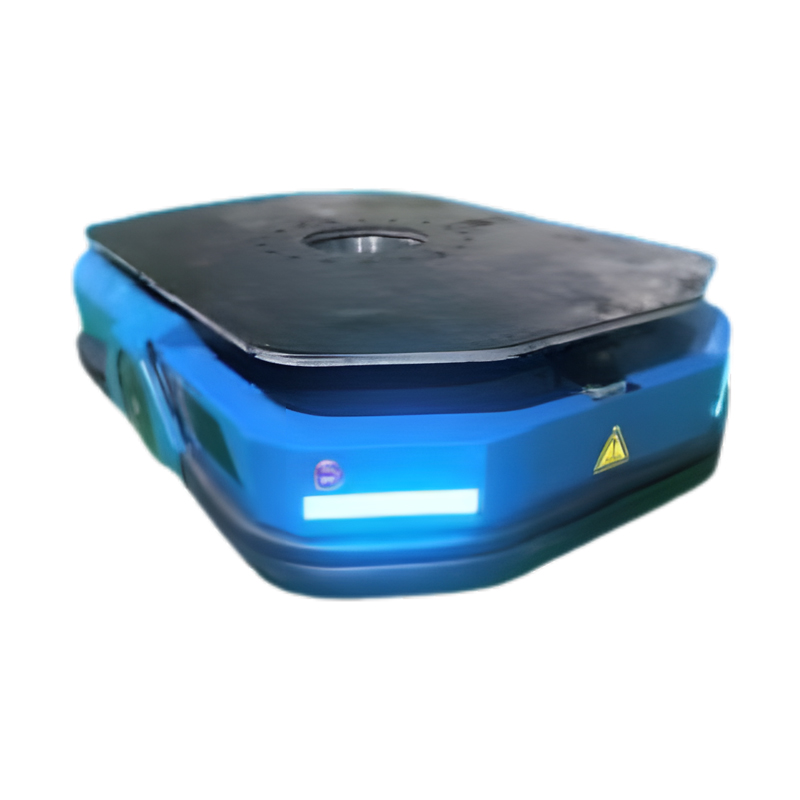

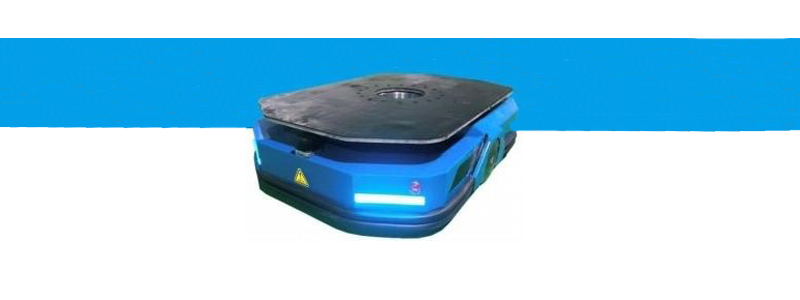

Latent handling robot Y7-1000
Latent handling robot AGV car logistics unmanned handling latent robot
- Dimensions：1090mm(L)x810mm(W)x260mm(H)
- Rotation diameter：1200mm
- Specified load：1000KG
- Lifting height：6cm
- Weight：195KG
- Positioning accuracy：±10mm
USD： 11470
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Latent handling robot Y7-1000
Features
—— -
Fast and efficient
Maximum speed 2 m/s Maximum angular velocity 3.5 rad/s | Multiple protection safety guarantees
Front and rear laser obstacle avoidance、Pneumatic anti-collision detection Three-in-one warning of sound, light and light |
Powerful control core with high precision
Repeat positioning accuracy ±5 mm Stop angle accuracy 0.5° | Small size, large load
Size(1090*810*260)mm Maximum load 1200 KG |
Technical Parameters
—— -
| Dimensions | 1090mm(L)x810mm(W)x260mm(H) |
| Rotation diameter | 1200mm |
| Specified load | 1000KG |
| Lifting height | 6cm |
| Follow function | Have |
| Weight | 195KG |
| Navigation | SLAM/QR code navigation/magnetic guidance |
| Positioning accuracy | ±10mm |
| Walking style | Go straight, turn, rotate on the spot |
| Rated speed | 2m/s(1.5m/s) |
| Laser obstacle avoidance | Before/after |
| Collision avoidance detection | Touch edge |
| Emergency button | Before/after |
| Battery Type | Lithium Iron Phosphate |
| Battery capacity | 48V 40Ah |
| Charging method | Manual / Auto |
| Charging time | 1.5H |

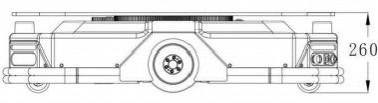

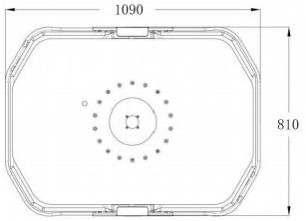

Structure size
—— -
 |  |
Recommended products

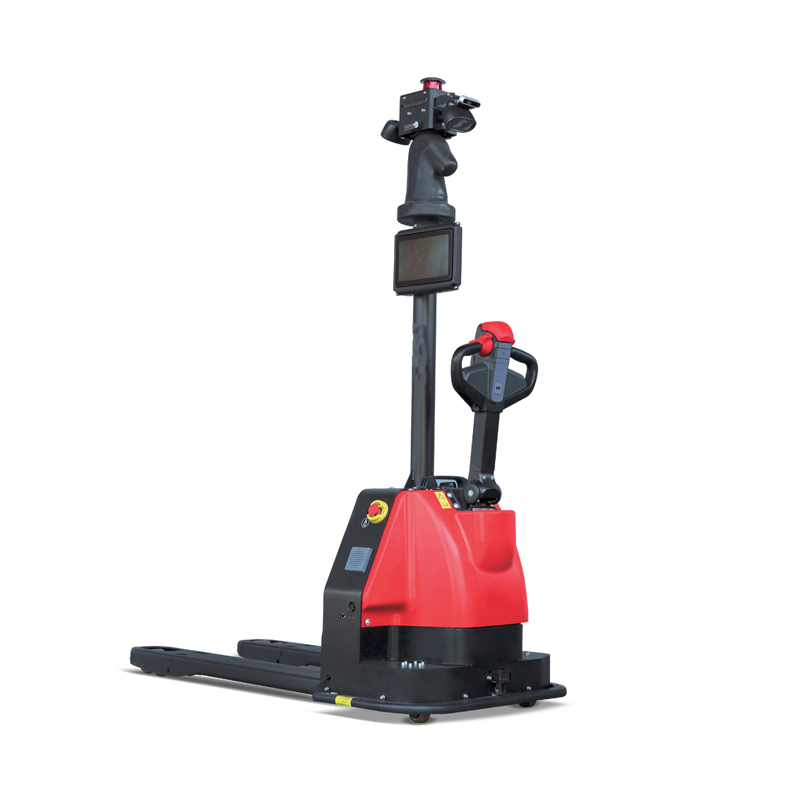

Forklift XP1151AGV
