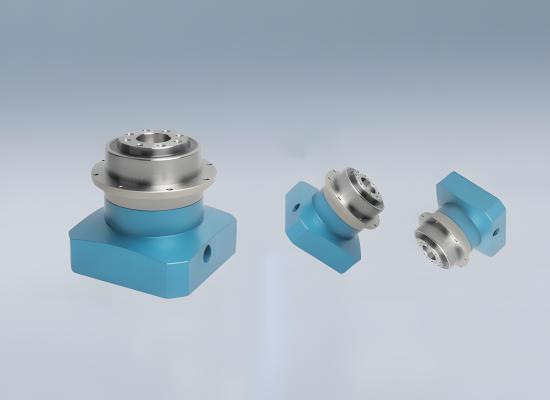

Product Description
TAD series precision planetary reducers have excellent performance. With a helical gear design, the tooth meshing rate exceeds 33%, the operation is smooth and low-noise, and the working environment is quieter. The backlash is extremely small, ≤5 arc minutes for single stage and ≤7 arc minutes for double stage, and the positioning is accurate to achieve high-precision transmission. The output shaft is optimized and matched with high-quality bearings to give high rigidity and high torque to cope with harsh working conditions. The efficiency performance is outstanding, with a single stage exceeding 95% and a double stage exceeding 92%, and significant energy saving. It has the advantages of maintenance-free, low grease loss, and lifetime lubrication. It is compatible with any servo motor and is easy to install, providing reliable guarantee for the efficient operation of the equipment.
Functional Features
Low Noise: The use of helical gear design, to achieve a smooth, quiet operation of the reducer.
High Precision:Backlash 3 arcmin or less, accurate positioning.
High Rigidity, High Load: Flange-type output, and the use of large span double support angular contact ball bearings design, which improves the rigidity and load capacity of the reducer.
High Efficiency: 1-Stage up to 95% or more, 2-Stage up to 92% or more.
Maintenance-Free: Low grease wear, can be lifetime lubrication.
Sealing Efect Is Good: Lubricating grease with high viscosity, not easy to separate the characteristics, ip65 protection class to ensure that no grease leakage.
Installation Unrestrained: Can be installed arbitrarily.
Wide Applicability: Applicable to any type of servo motor.

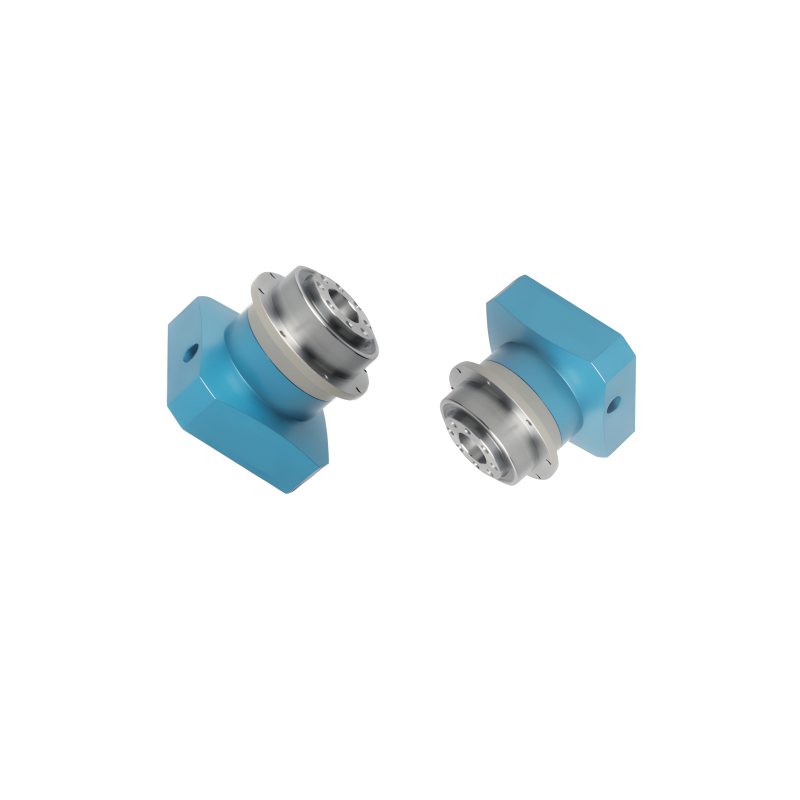

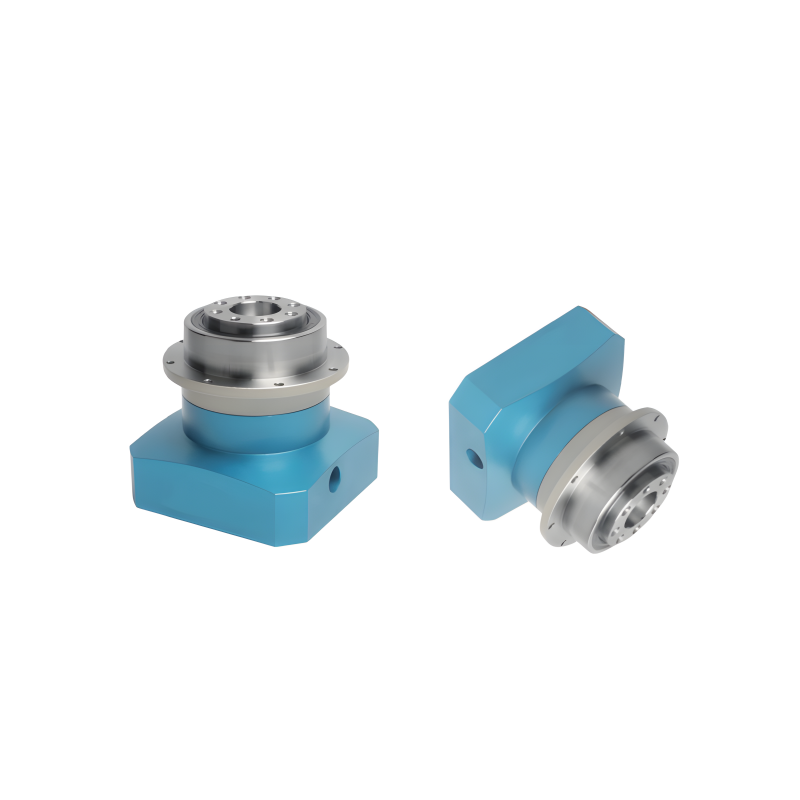

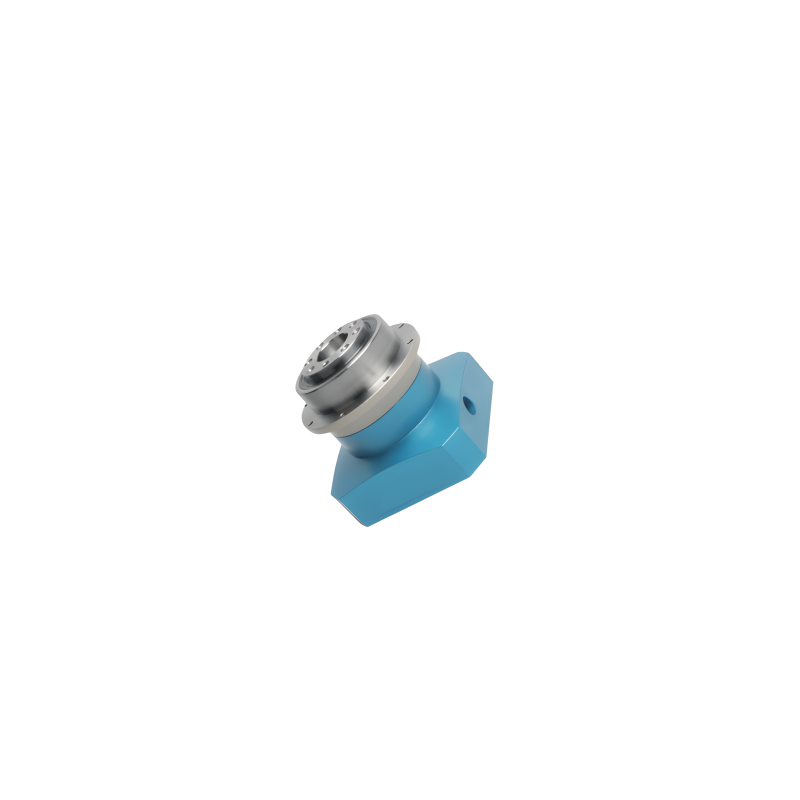

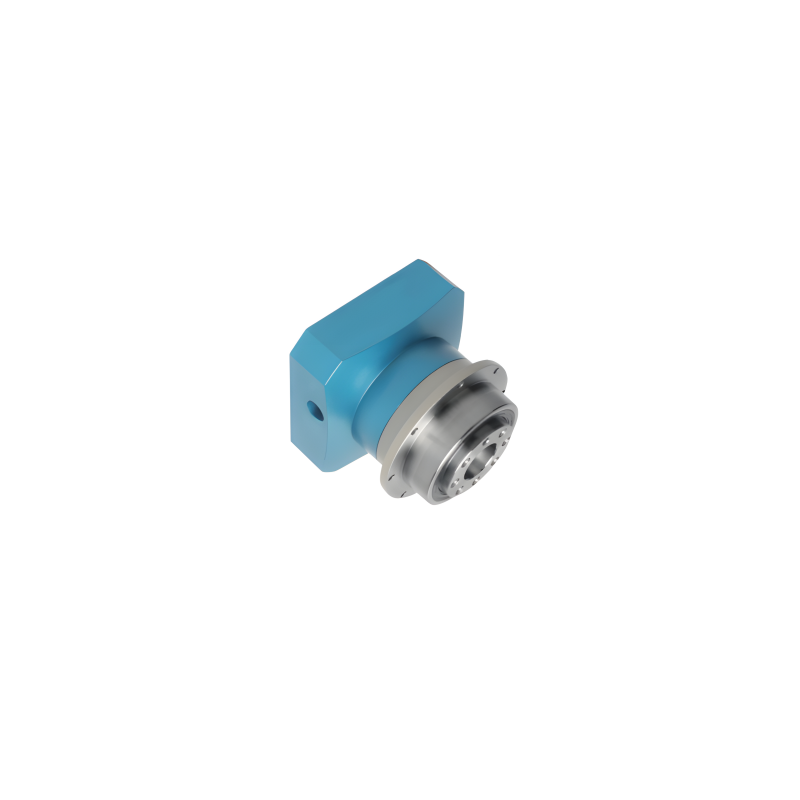

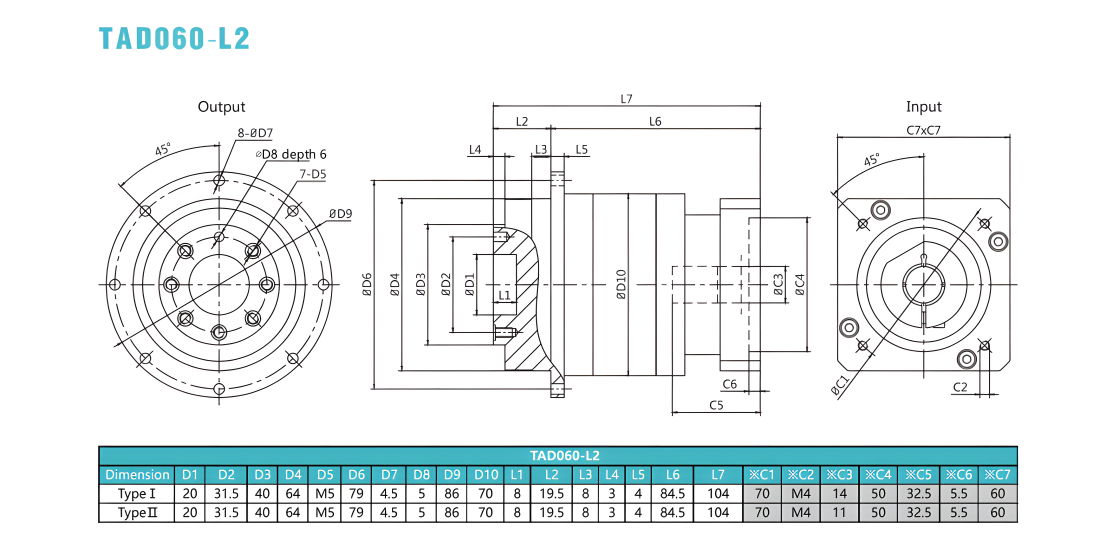

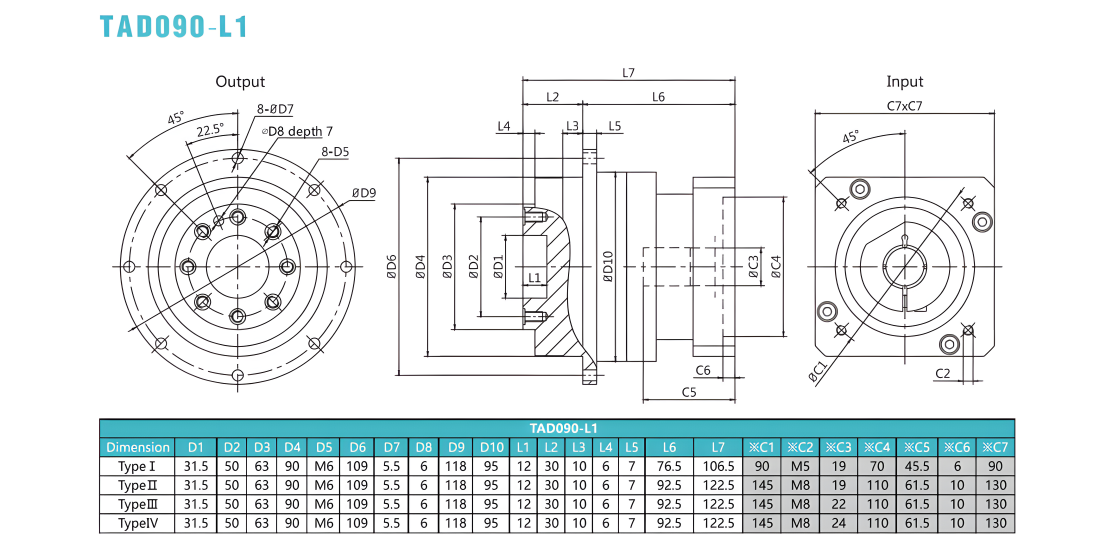

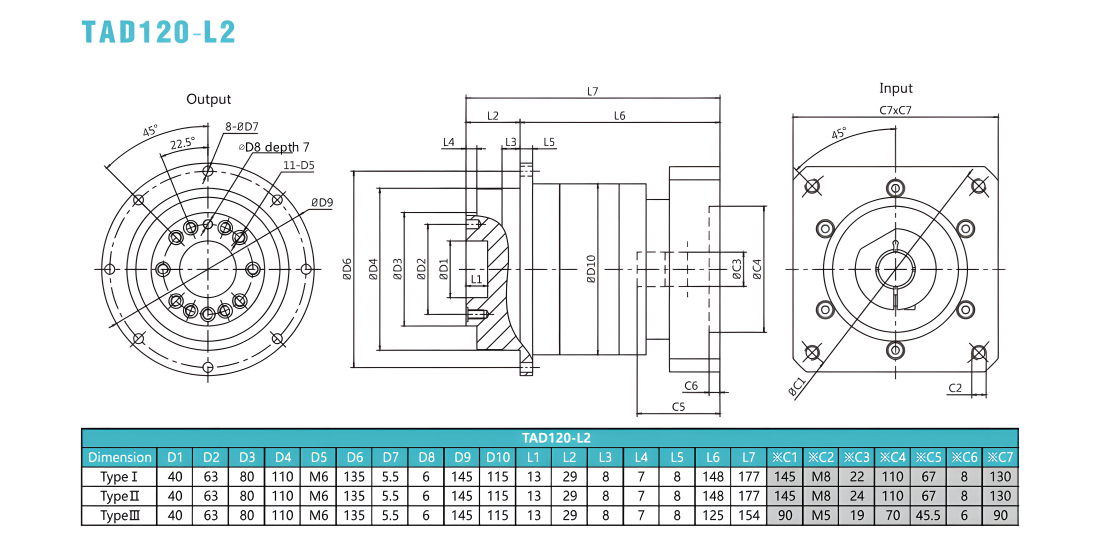

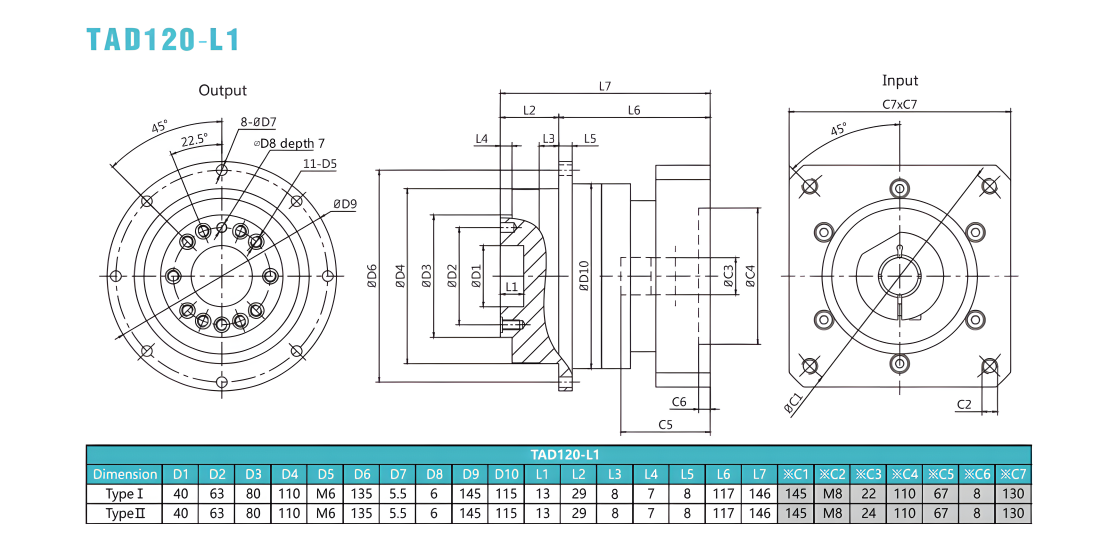

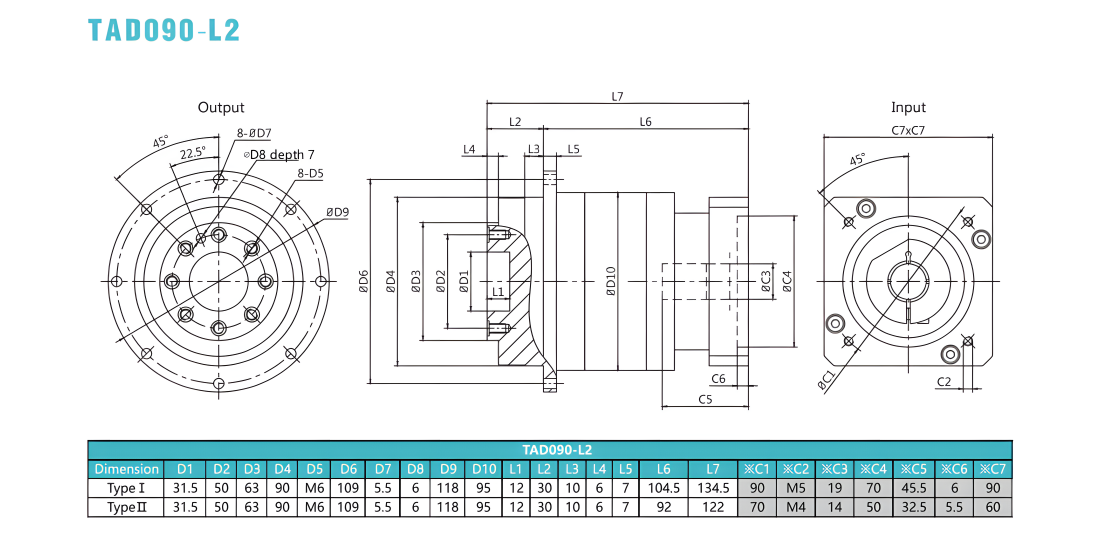

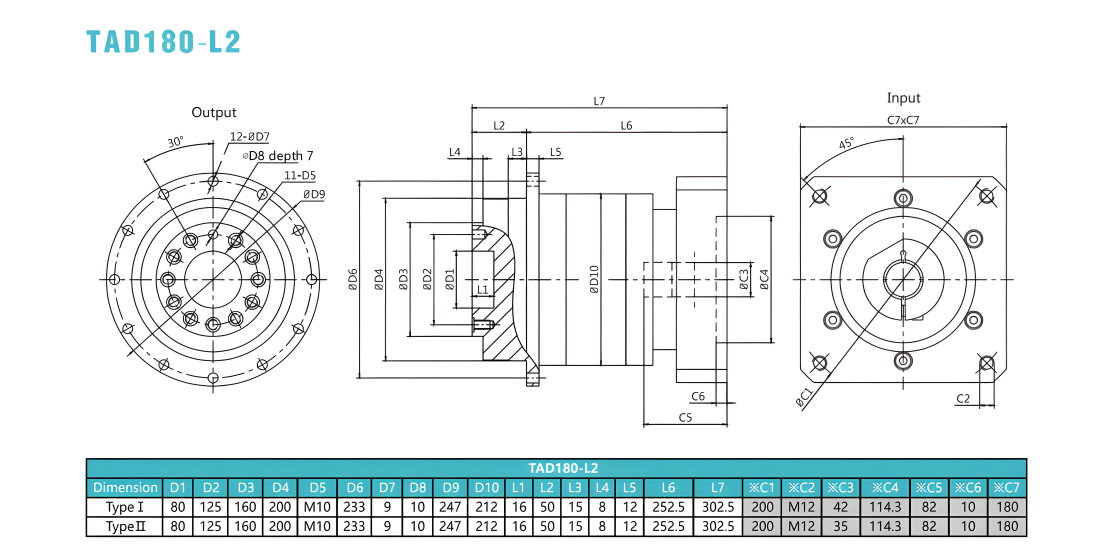

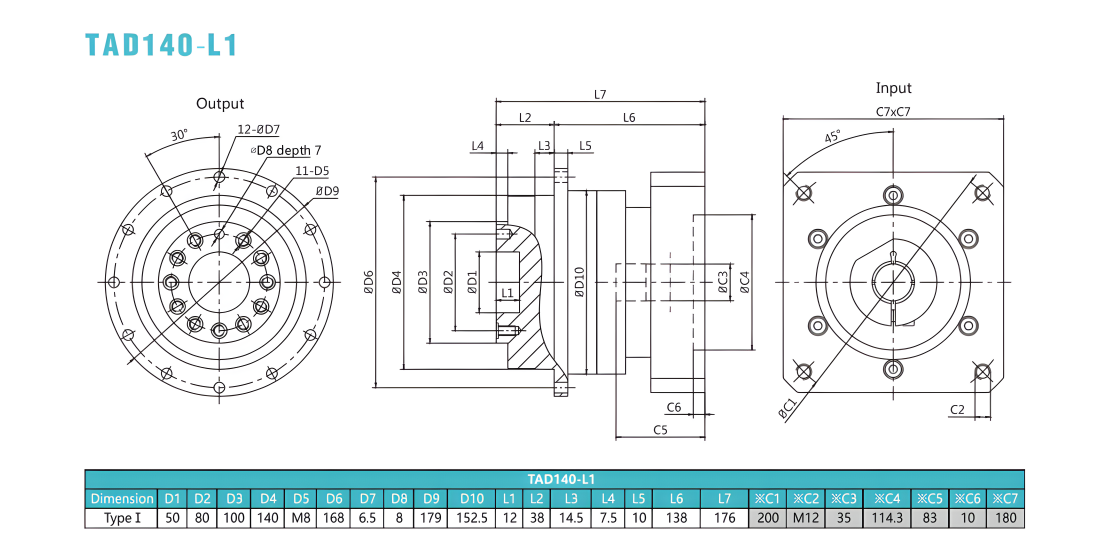

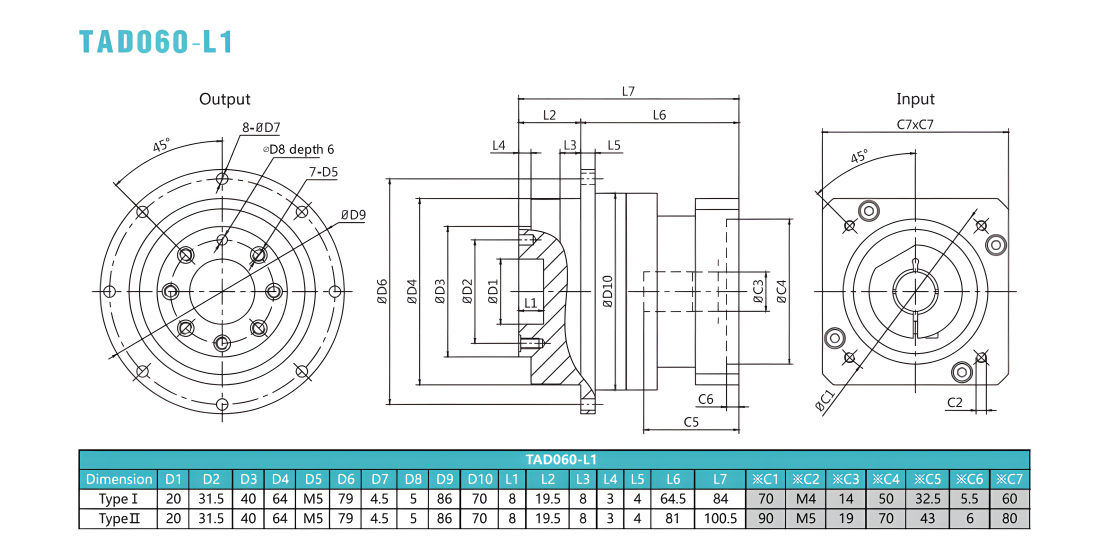

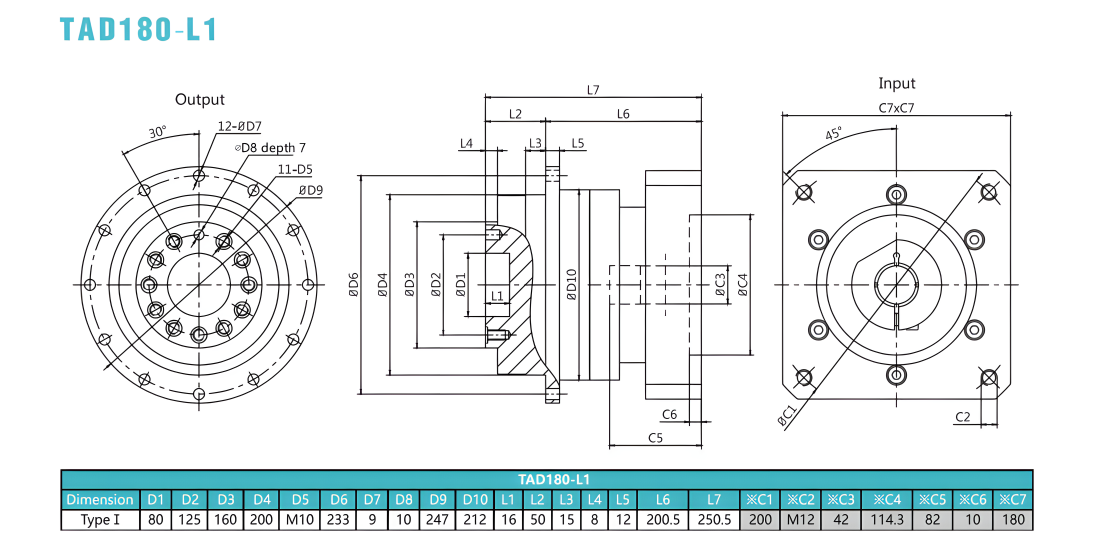

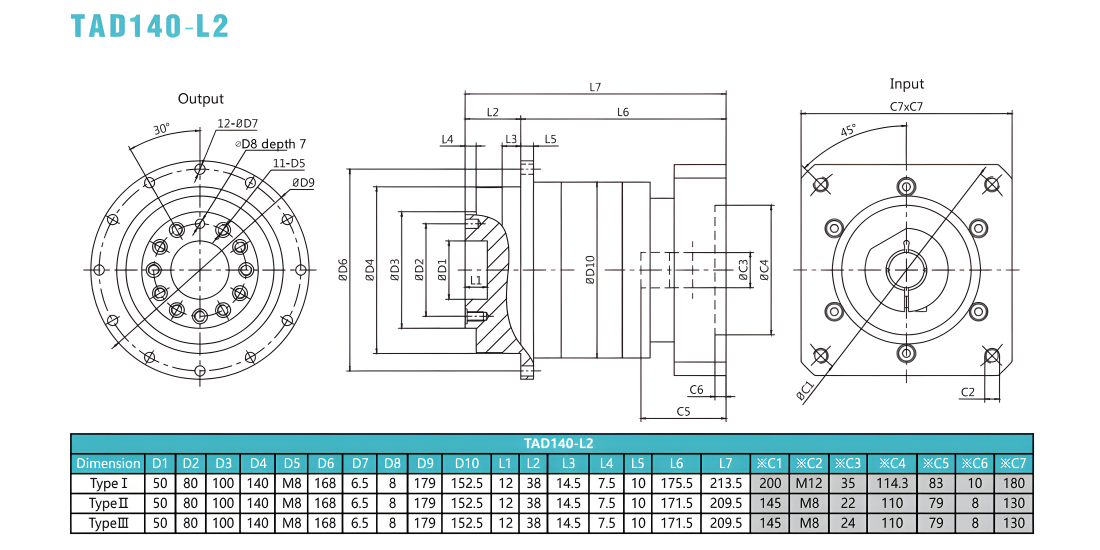

Dimensional drawing
※Dimension can be customized according to the motor,if necessary,please contact us!
Product parameters
TAD60 | ||||||||||||
Parameter name | Unit | Value | ||||||||||
Ratio | - | 4 | 5 | 7 | 10 | 20 | 25 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 48 | 60 | 50 | 40 | 48 | 60 | 50 | 48 | 60 | 50 | 40 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | ||||||||||
Nominal Input Speed n1N | rpm | 5000 | ||||||||||
Max. Input Speed n1B | rpm | 10000 | ||||||||||
Torsional Rigidity | Nm/arcmin | 13 | ||||||||||
Max. Bending moment M2XB | Nm | 125 | ||||||||||
Max. Axial Load F2aB | N | 2110 | ||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | ||||||||||
Noise | dB | ≤60(Input speed = 3000rpm, no load, distance 1M②) | ||||||||||
Operating Temp | ℃ | -10 ~+90 | ||||||||||
Degree of Reducer Protection | - | IP65 | ||||||||||
Lubrication | - | Synthetic lubrication oils | ||||||||||
Mass Moments of Inertia J1 | kg-cm² | 0.14 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | |||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤8 | |||||||||
Efficiency η | % | ≥95% | ≥92% | |||||||||
① Half - life under continuous operation mode. | ||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | ||||||||||||
TAD90 | ||||||||||||
Parameter name | Unit | Value | ||||||||||
Ratio | - | 4 | 5 | 7 | 10 | 20 | 25 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 130 | 160 | 140 | 100 | 130 | 160 | 140 | 130 | 160 | 140 | 100 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | ||||||||||
Nominal Input Speed n1N | rpm | 4000 | ||||||||||
Max. Input Speed n1B | rpm | 8000 | ||||||||||
Torsional Rigidity | Nm/arcmin | 31 | ||||||||||
Max. Bending moment M2XB | Nm | 235 | ||||||||||
Max. Axial Load F2aB | N | 2310 | ||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | ||||||||||
Noise | dB | ≤60(Input speed = 3000rpm, no load, distance 1M②) | ||||||||||
Operating Temp | ℃ | -10 ~+90 | ||||||||||
Degree of Reducer Protection | - | IP65 | ||||||||||
Lubrication | - | Synthetic lubrication oils | ||||||||||
Mass Moments of Inertia J1 | kg-cm² | 0.48 | 0.47 | 0.45 | 0.44 | 0.47 | 0.47 | 0.47 | 0.44 | 0.44 | 0.13 | 0.13 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | |||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤8 | |||||||||
Efficiency η | % | ≥95% | ≥92% | |||||||||
① Half - life under continuous operation mode. | ||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | ||||||||||||
TAD120 | ||||||||||||
Parameter name | Unit | Value | ||||||||||
Ratio | - | 4 | 5 | 7 | 10 | 20 | 25 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 270 | 330 | 300 | 230 | 270 | 330 | 300 | 270 | 330 | 300 | 230 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | ||||||||||
Nominal Input Speed n1N | rpm | 4000 | ||||||||||
Max. Input Speed n1B | rpm | 8000 | ||||||||||
Torsional Rigidity | Nm/arcmin | 82 | ||||||||||
Max. Bending moment M2XB | Nm | 430 | ||||||||||
Max. Axial Load F2aB | N | 4800 | ||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | ||||||||||
Noise | dB | ≤65(Input speed = 3000rpm, no load, distance 1M②) | ||||||||||
Operating Temp | ℃ | -10 ~+90 | ||||||||||
Degree of Reducer Protection | - | IP65 | ||||||||||
Lubrication | - | Synthetic lubrication oils | ||||||||||
Mass Moments of Inertia J1 | kg-cm² | 2.74 | 2.71 | 2.62 | 2.57 | 2.71 | 2.71 | 2.62 | 2.57 | 2.57 | 0.44 | 0.44 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | |||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤8 | |||||||||
Efficiency η | % | ≥95% | ≥92% | |||||||||
① Half - life under continuous operation mode. | ||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | ||||||||||||
TAD140 | ||||||||||||
Parameter name | Unit | Value | ||||||||||
Ratio | - | 4 | 5 | 7 | 10 | 20 | 25 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 560 | 650 | 550 | 450 | 560 | 650 | 550 | 560 | 650 | 550 | 450 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | ||||||||||
Nominal Input Speed n1N | rpm | 3000 | ||||||||||
Max. Input Speed n1B | rpm | 6000 | ||||||||||
Torsional Rigidity | Nm/arcmin | 151 | ||||||||||
Max. Bending moment M2XB | Nm | 1300 | ||||||||||
Max. Axial Load F2aB | N | 6200 | ||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | ||||||||||
Noise | dB | ≤67(Input speed = 3000rpm, no load, distance 1M②) | ||||||||||
Operating Temp | ℃ | -10 ~+90 | ||||||||||
Degree of Reducer Protection | - | IP65 | ||||||||||
Lubrication | - | Synthetic lubrication oils | ||||||||||
Mass Moments of Inertia J1 | kg-cm² | 7.54 | 7.42 | 7.14 | 7.03 | 7.42 | 7.42 | 7.14 | 7.03 | 7.03 | 2.57 | 2.57 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | |||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤8 | |||||||||
Efficiency η | % | ≥95% | ≥92% | |||||||||
① Half - life under continuous operation mode. | ||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | ||||||||||||
TAD180 | ||||||||||||
Parameter name | Unit | Value | ||||||||||
Ratio | - | 4 | 5 | 7 | 10 | 20 | 25 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 1100 | 1200 | 1100 | 900 | 1100 | 1200 | 1100 | 1100 | 1200 | 1100 | 900 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | ||||||||||
Nominal Input Speed n1N | rpm | 3000 | ||||||||||
Max. Input Speed n1B | rpm | 6000 | ||||||||||
Torsional Rigidity | Nm/arcmin | 440 | ||||||||||
Max. Bending moment M2XB | Nm | 3064 | ||||||||||
Max. Axial Load F2aB | N | 5450 | ||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | ||||||||||
Noise | dB | ≤70(Input speed = 3000rpm, no load, distance 1M②) | ||||||||||
Operating Temp | ℃ | -10 ~+90 | ||||||||||
Degree of Reducer Protection | - | IP65 | ||||||||||
Lubrication | - | Synthetic lubrication oils | ||||||||||
Mass Moments of Inertia J1 | kg-cm² | 23.67 | 23.29 | 22.48 | 22.51 | 23.29 | 23.29 | 22.48 | 22.51 | 22.51 | 7.03 | 7.03 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | |||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤8 | |||||||||
Efficiency η | % | ≥95% | ≥92% | |||||||||
① Half - life under continuous operation mode. | ||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | ||||||||||||
Precautions For Use
1.Select the reasonable reducer, damage of reducer may happen if choosen a reducer beyond the right power.
2.During the set up of reducer, please do not use the hammer hitting the reducer body, in case of impacting the accuracy during running.
3.Under the running status of reducer, do not put the hands or other objects on the rotary shaft, in case of injury.
4.Any uncommon sound /nosie or uncommon vibration, please stop the reducer running and contact us, we will provide the best solution.
5.Do not disassemble the reducer, no guarantee on performance after reassemblying.
6.Start the reducer step by step, do not lift the loader to the upper limit.
7.To extend the life of reducer, please do not put the reducer in bad environment.
Mounting lnstruction
Table I Motor Lock Sleeve Screw Tightening Torque
|
|
|
| |
mm | Nm | In-lbs | ||
040-Series | M4 | 3 | 4.9 | 44 |
060 Series | M5 | 4 | 9.8 | 87 |
090 Series | M6 | 5 | 17 | 151 |
120/140 Series | M8 | 6 | 41 | 364 |
180 Series | M10 | 8 | 80 | 709 |
220 Series | M12 | 10 | 139 | 1232 |
TableII Motor Mounting Screw Tightening Torque
|
|
| |
mm | Nm | In-lbs | |
M3 | 2.5 | 2.1 | 19 |
M4 | 3 | 4.9 | 44 |
M5 | 4 | 9.8 | 87 |
M6 | 5 | 17 | 151 |
M8 | 6 | 41 | 364 |
M10 | 8 | 80 | 709 |
M12 | 10 | 139 | 1232 |
M16 | 14 | 343 | 3038 |
Application
The TAD series is widely used in many fields. In industrial automation production lines, it ensures stable operation of equipment with high precision and low noise, improves product quality and production efficiency; in the field of CNC machine tools, its high rigidity and high load capacity can withstand strong cutting forces, ensure processing accuracy, and reduce equipment vibration; in the joints of industrial robots, it is maintenance-free and high-precision, making the robot precise and flexible, and extending its service life; in medical equipment, aerospace ground test equipment and other scenes with extremely high requirements for stability, the TAD series provides reliable power transmission with stable performance to meet the needs of harsh working conditions.
Quality Assurance
We always regard product quality as our core competitiveness, and strictly adhere to the industry's high standards throughout the production of planetary reducers. When raw materials enter the factory, we conduct composition analysis and mechanical property testing on key materials such as steel and bearings to ensure quality at the source; high-precision CNC equipment is used in the production process, and quality control points are set in each process to strictly control parameters such as gear accuracy and housing tolerance; before the finished product leaves the factory, it passes multi-dimensional performance tests such as no-load, load, and noise to ensure that indicators such as transmission efficiency and sealing meet the standards. The full-process quality inspection system ensures the stable performance of each planetary reducer.
After-sale guarantee
If a product fails, our after-sales team will respond immediately and quickly arrange for professional technicians to communicate with you to understand the details of the failure. We will provide you with remote technical guidance based on the specific situation to help you solve the problem. At the same time, we also provide you with regular return visits to understand the use of the product and collect your opinions and suggestions in order to continuously optimize our products and services. When the product is upgraded, we will also notify you in a timely manner and provide you with corresponding technical support and solutions to keep your equipment in good performance.
