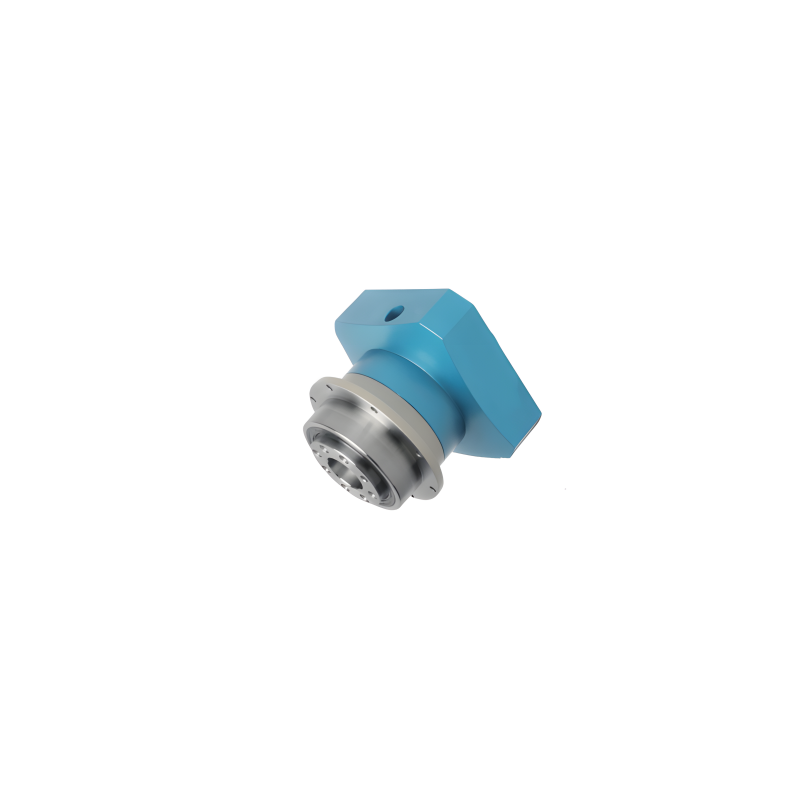

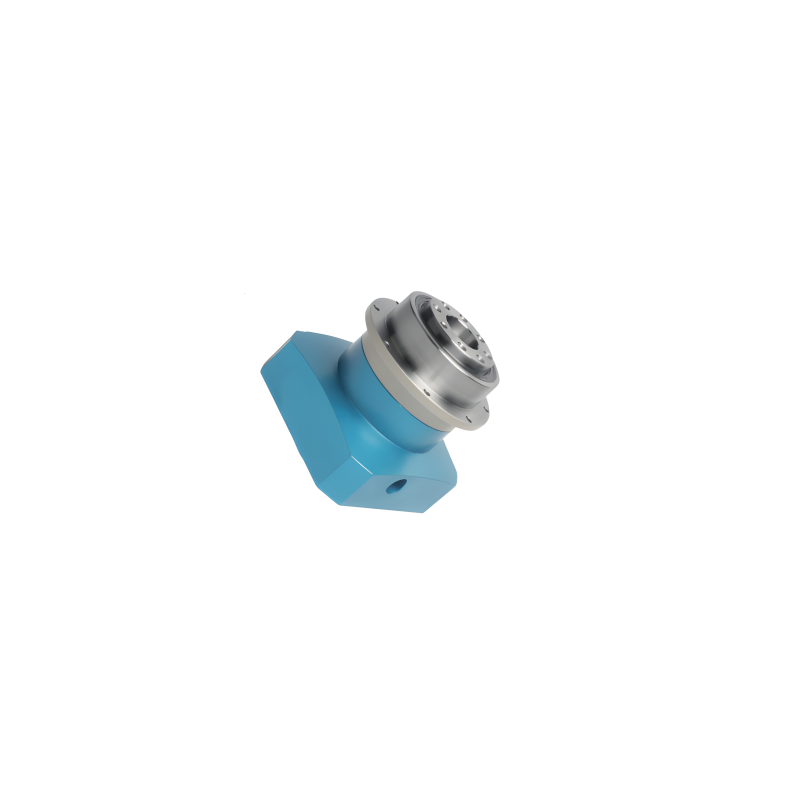

Product Description

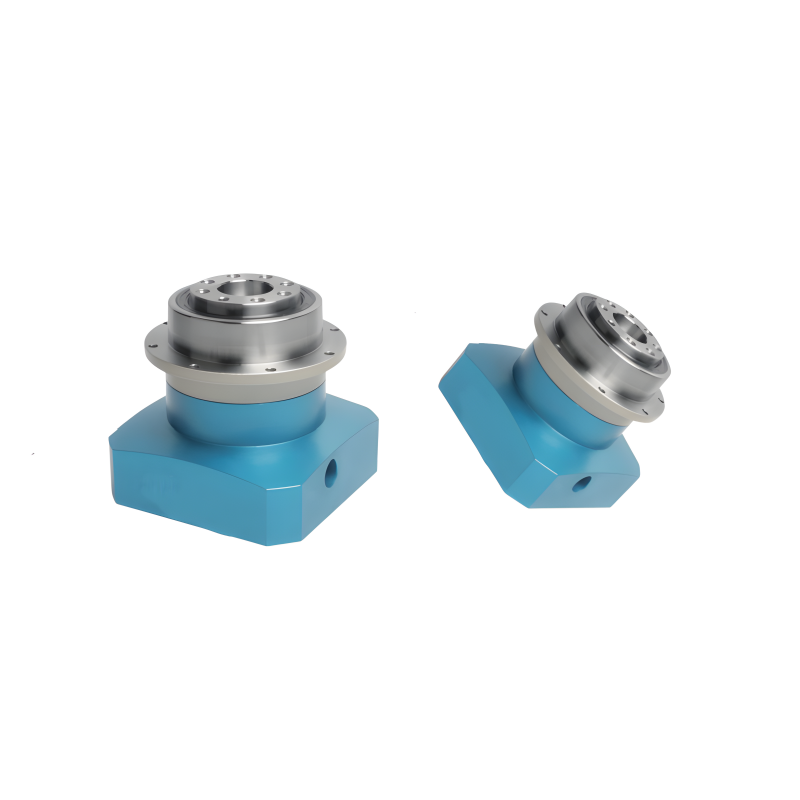

TAE series precision planetary reducer has outstanding advantages. It uses helical gears for quiet and low noise operation. The backlash is within 3 arc minutes, with precise positioning and high transmission accuracy. The large output shaft is equipped with double support bearings, which has strong rigidity and high torque. The single-stage efficiency exceeds 93%, and the double-stage efficiency exceeds 92%, which is highly efficient and energy-saving. It has maintenance-free characteristics, low grease loss, lifelong lubrication, and IP65 protection against leakage. It can be freely installed and adapted to any servo motor, providing stable and reliable power transmission for various equipment.
Functional Features
Low Noise: The use of helical gear design, to achieve a smooth, quiet operation of the reducer.
High Precision: Backlash 3 arcmin or less, accurate positioning.
High Rigidity, High Torque: The output shaft used large size, large span double support bearing design,which improves the rigidity and torque of the reducer.
High Efficiency: 1-Stage up to 95% or more, 2-Stage up to 92% or more.
Maintenance-Free: Low grease wear, can be lifetime lubrication.
Sealing Effect Is Good: Lubricating grease with high viscosity, not easy to separate the characteristics, ip65 protection class to ensure that no grease leakage.
Installation Unrestrained: Can be installed arbitrarily.
Wide Applicability: Applicable to any type of servo motor.

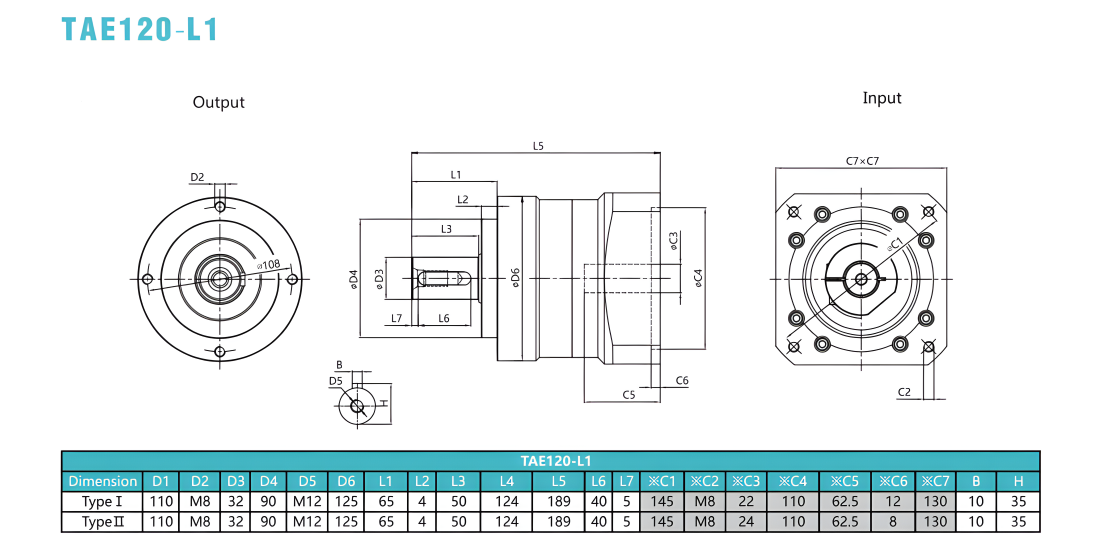

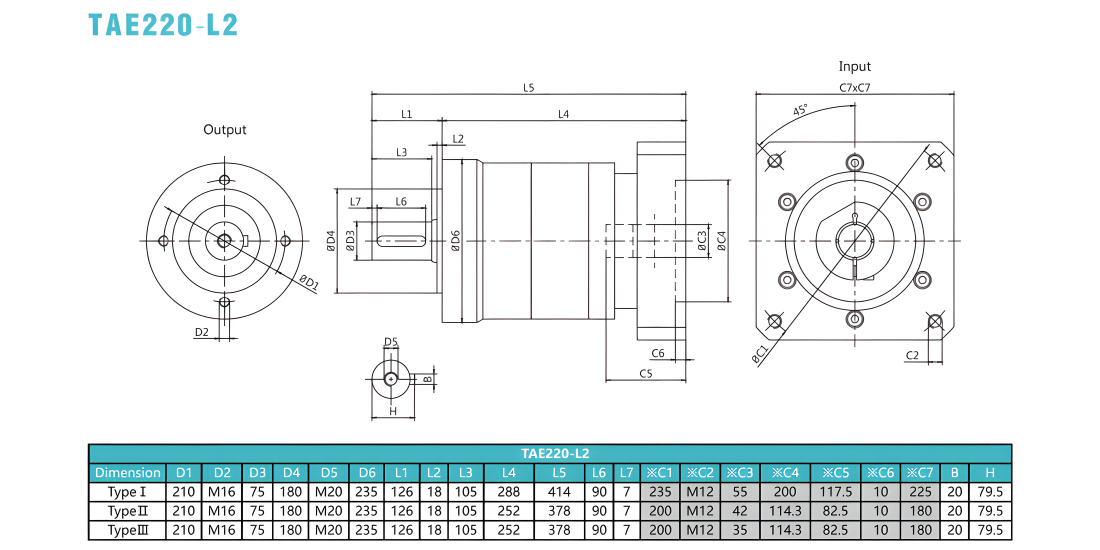

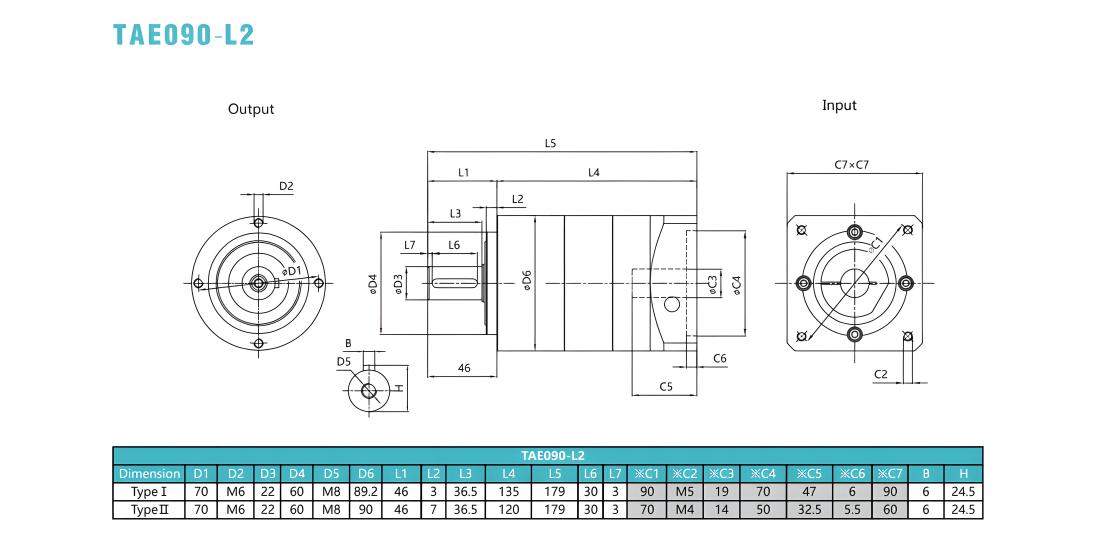

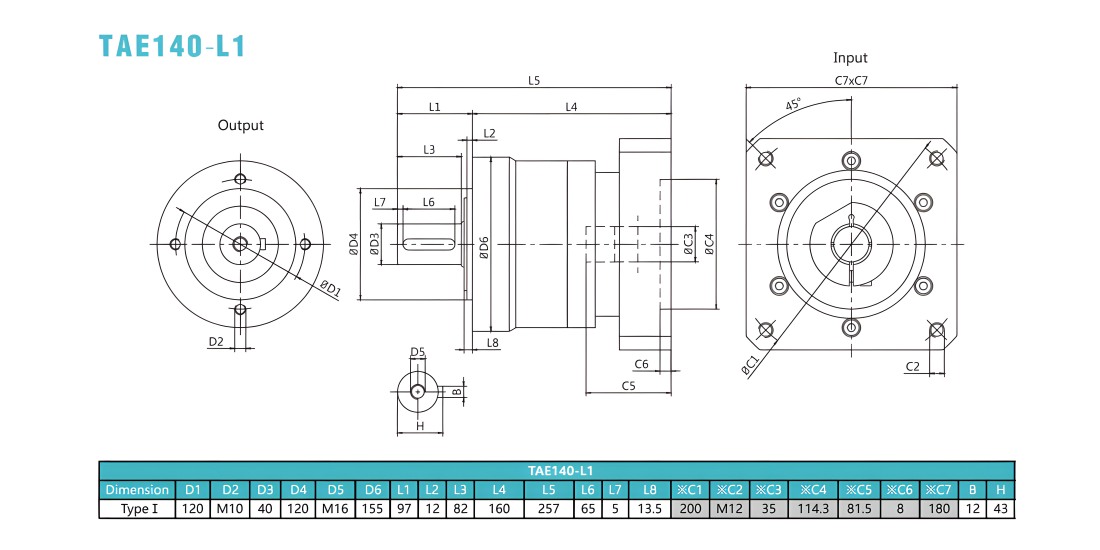

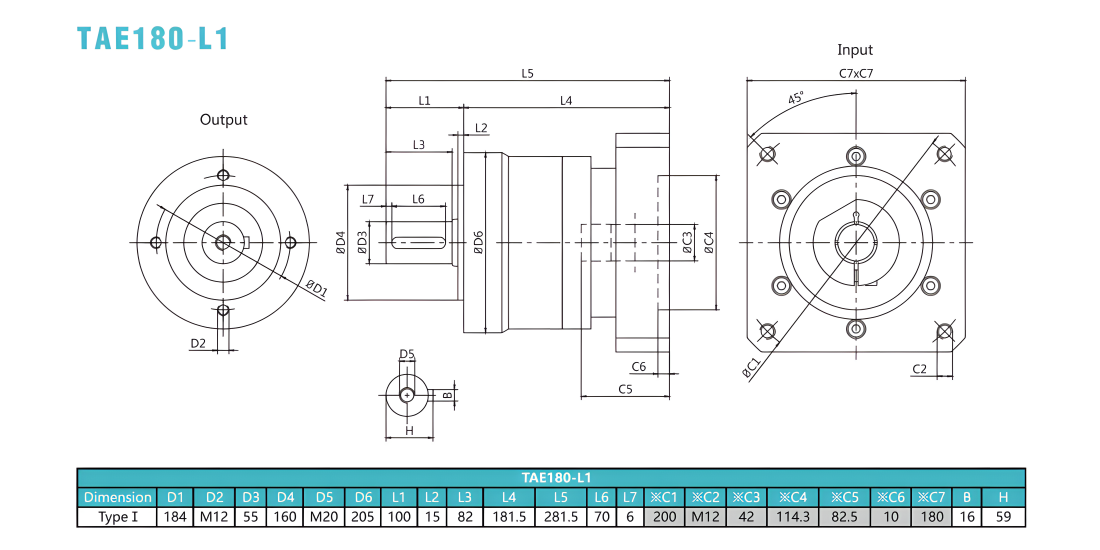

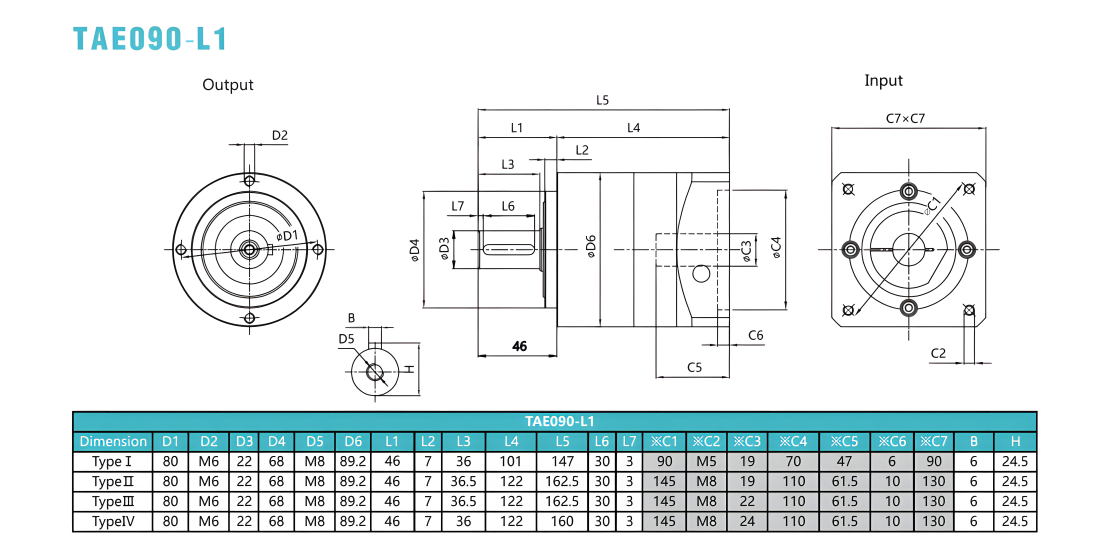

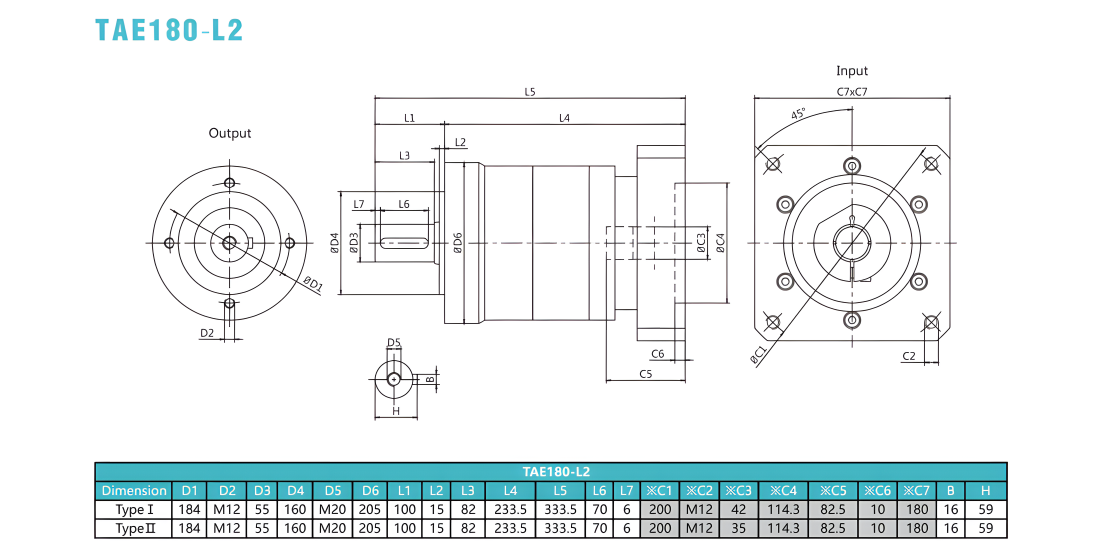

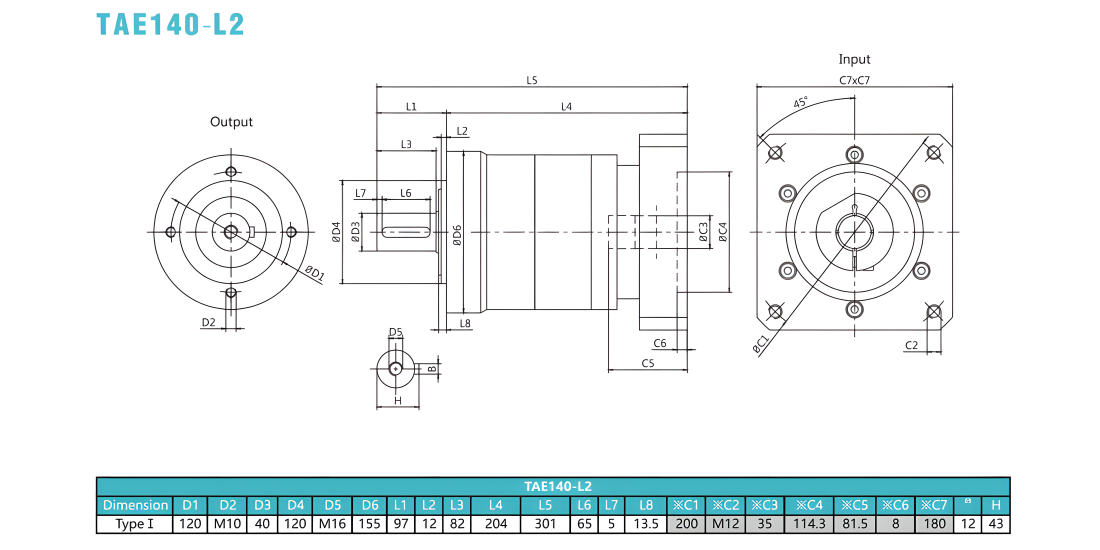

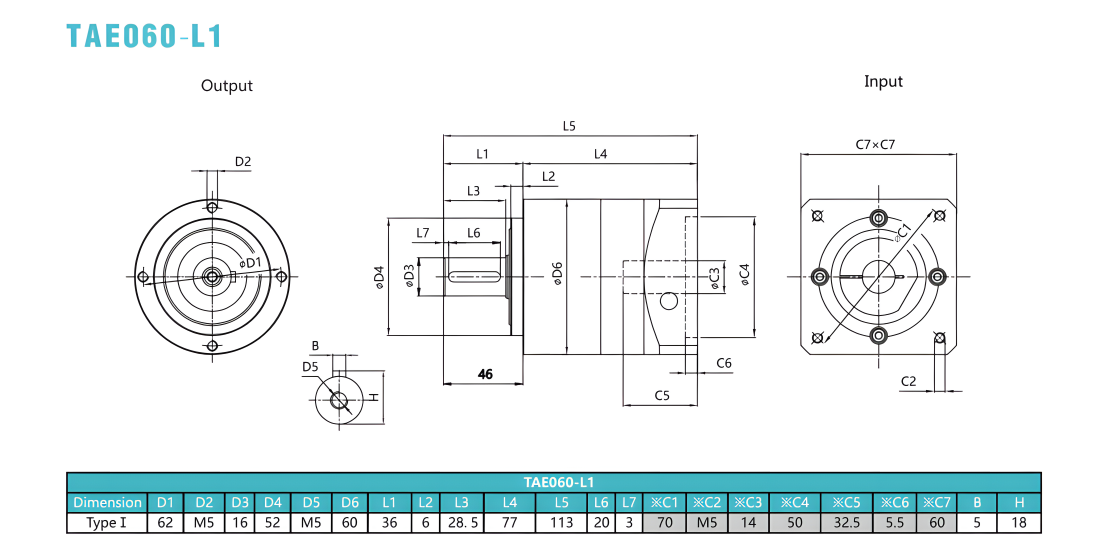

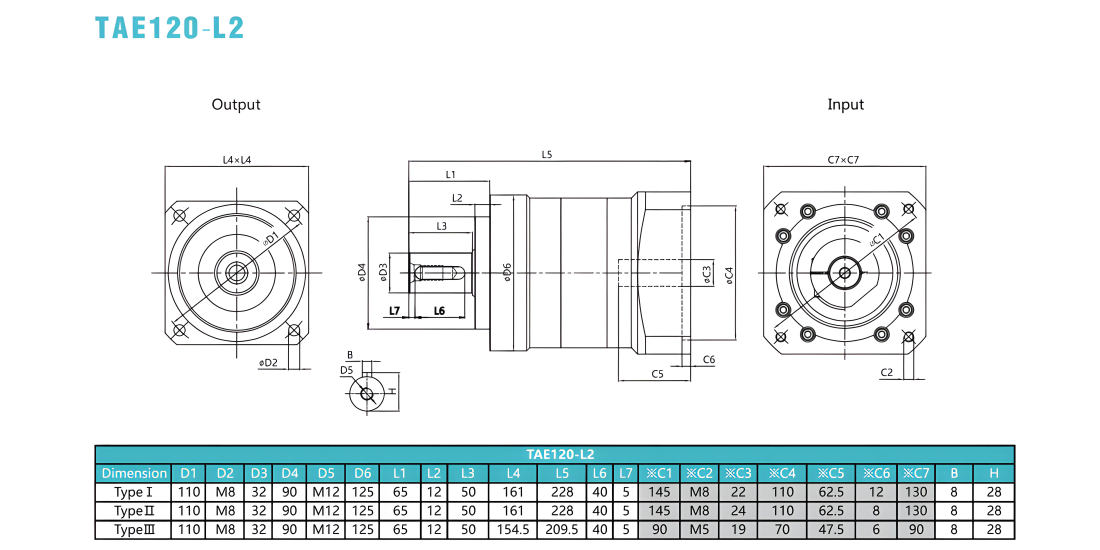

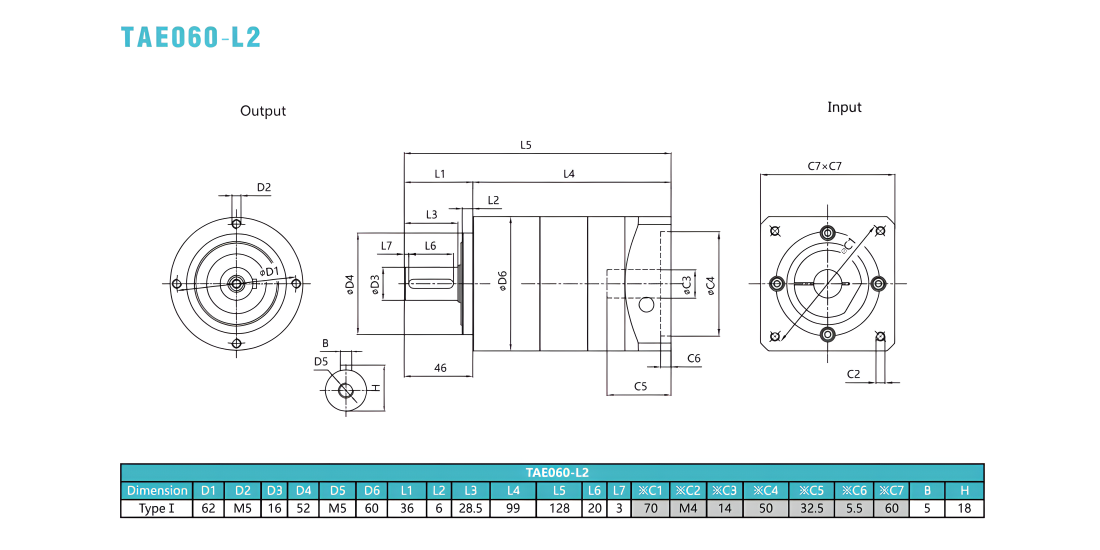

Dimensional drawing
※Dimension can be customized according to the motor,if necessary,please contact us!
Product parameters
TAE60 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 35 | 40 | 45 | 40 | 30 | 35 | 45 | 45 | 40 | 40 | 40 | 45 | 40 | 30 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 5000 | |||||||||||||
Max. Input Speed n1B | rpm | 10000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 5 | |||||||||||||
Max. Bending moment M2XB | Nm | 1300 | |||||||||||||
Max. Axial Load F2aB | N | 550 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤60(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 0.16 | 0.14 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TAE90 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 100 | 110 | 125 | 110 | 80 | 100 | 110 | 125 | 110 | 125 | 110 | 125 | 110 | 80 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
Max. Input Speed n1B | rpm | 8000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 11 | |||||||||||||
Max. Bending moment M2XB | Nm | 2800 | |||||||||||||
Max. Axial Load F2aB | N | 1000 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤60(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 0.61 | 0.48 | 0.47 | 0.45 | 0.44 | 0.47 | 0.47 | 0.47 | 0.44 | 0.45 | 0.44 | 0.44 | 0.13 | 0.13 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TAE120 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 170 | 220 | 250 | 200 | 180 | 170 | 220 | 250 | 220 | 200 | 220 | 250 | 200 | 180 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
Max. Input Speed n1B | rpm | 8000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 18 | |||||||||||||
Max. Bending moment M2XB | Nm | 5200 | |||||||||||||
Max. Axial Load F2aB | N | 2300 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤65(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 3.25 | 2.74 | 2.71 | 2.62 | 2.57 | 2.71 | 2.71 | 2.71 | 2.57 | 2.62 | 2.57 | 2.57 | 0.44 | 0.44 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TAE140 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 342 | 542 | 650 | 550 | 450 | 342 | 542 | 650 | 600 | 550 | 542 | 650 | 550 | 450 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
Max. Input Speed n1B | rpm | 6000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 50 | |||||||||||||
Max. Bending moment M2XB | Nm | 9400 | |||||||||||||
Max. Axial Load F2aB | N | 4700 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤67(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 9.21 | 7.54 | 7.42 | 7.14 | 7.03 | 7.42 | 7.42 | 7.42 | 7.03 | 7.14 | 7.03 | 7.03 | 2.57 | 2.57 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TAE180 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 588 | 1050 | 1200 | 1100 | 10 | 588 | 1050 | 1200 | 1100 | 1100 | 1050 | 1200 | 1100 | 900 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
Max. Input Speed n1B | rpm | 6000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 145 | |||||||||||||
Max. Bending moment M2XB | Nm | 14500 | |||||||||||||
Max. Axial Load F2aB | N | 7250 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤70(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 29 | 23.7 | 23.3 | 22.5 | 22.5 | 23.3 | 23.3 | 23.3 | 22.5 | 22.5 | 22.5 | 22.5 | 7.03 | 7.03 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
TAE220 | |||||||||||||||
Parameter name | Unit | Value | |||||||||||||
Ratio | - | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 |
Nominal Output Torque T2N | Nm | 1140 | 1700 | 2000 | 1800 | 1500 | 1140 | 1700 | 2000 | 1900 | 1800 | 1700 | 2000 | 1800 | 1500 |
Emergency Stop Torque T2NOT | Nm | 2.5 times of Nominal Output Torque | |||||||||||||
Nominal Input Speed n1N | rpm | 2000 | |||||||||||||
Max. Input Speed n1B | rpm | 4000 | |||||||||||||
Torsional Rigidity | Nm/arcmin | 225 | |||||||||||||
Max. Bending moment M2XB | Nm | 50000 | |||||||||||||
Max. Axial Load F2aB | N | 35000 | |||||||||||||
Service Life | hr | 20000 (continuous operation life is halved①) | |||||||||||||
Noise | dB | ≤72(Input speed = 3000rpm, no load, distance 1M②) | |||||||||||||
Operating Temp | ℃ | -10 ~+90 | |||||||||||||
Degree of Reducer Protection | - | IP65 | |||||||||||||
Lubrication | - | Synthetic lubrication oils | |||||||||||||
Mass Moments of Inertia J1 | kg-cm² | 69.6 | 54.4 | 53.3 | 51 | 50.6 | 53.3 | 53.3 | 53.3 | 50.6 | 51 | 50.6 | 22.5 | 22.5 | 22.5 |
Precision Backlash P1 | arcmin | ≤3 | ≤5 | ||||||||||||
Standard Backlash P2 | arcmin | ≤5 | ≤5 | ||||||||||||
Efficiency η | % | ≥95% | ≥92% | ||||||||||||
① Half - life under continuous operation mode. | |||||||||||||||
② Reducer under no - load mode,input speed is 3000,the value which Noise Measurement machine get at one meter away position. | |||||||||||||||
Precautions For Use
1.Select the reasonable reducer, damage of reducer may happen if choosen a reducer beyond the right power.
2.During the set up of reducer, please do not use the hammer hitting the reducer body, in case of impacting the accuracy during running.
3.Under the running status of reducer, do not put the hands or other objects on the rotary shaft, in case of injury.
4.Any uncommon sound /nosie or uncommon vibration, please stop the reducer running and contact us, we will provide the best solution.
5.Do not disassemble the reducer, no guarantee on performance after reassemblying.
6.Start the reducer step by step, do not lift the loader to the upper limit.
7.To extend the life of reducer, please do not put the reducer in bad environment.
Mounting lnstruction
Table I Motor Lock Sleeve Screw Tightening Torque
|
|
|
| |
mm | Nm | In-lbs | ||
040-Series | M4 | 3 | 4.9 | 44 |
060 Series | M5 | 4 | 9.8 | 87 |
090 Series | M6 | 5 | 17 | 151 |
120/140 Series | M8 | 6 | 41 | 364 |
180 Series | M10 | 8 | 80 | 709 |
220 Series | M12 | 10 | 139 | 1232 |
TableII Motor Mounting Screw Tightening Torque
|
|
| |
mm | Nm | In-lbs | |
M3 | 2.5 | 2.1 | 19 |
M4 | 3 | 4.9 | 44 |
M5 | 4 | 9.8 | 87 |
M6 | 5 | 17 | 151 |
M8 | 6 | 41 | 364 |
M10 | 8 | 80 | 709 |
M12 | 10 | 139 | 1232 |
M16 | 14 | 343 | 3038 |
