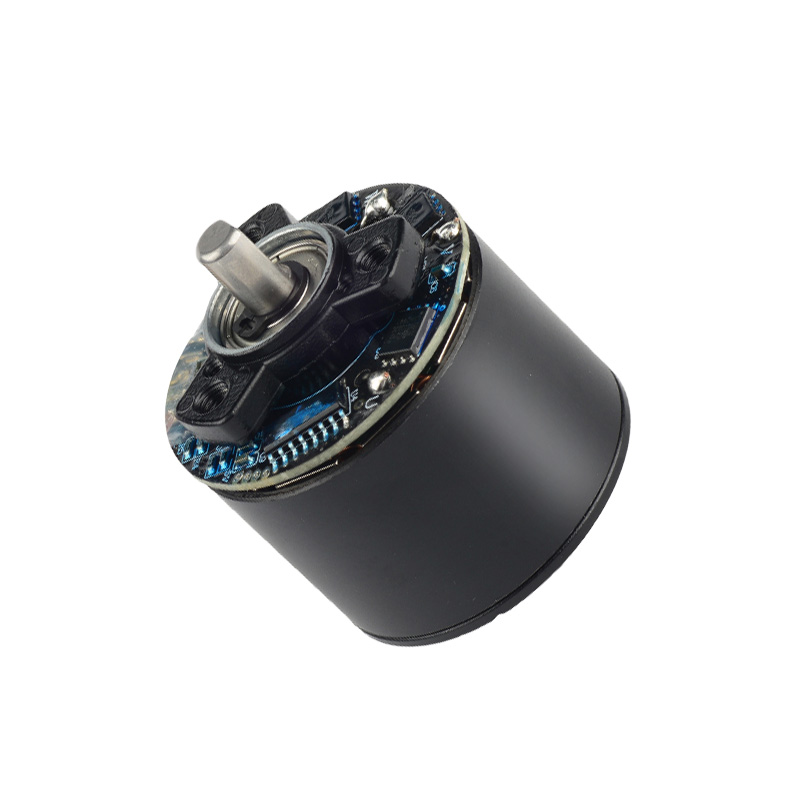

The external rotor brushless motor has a diameter of 37mm to 65mm and is a high-torque silent brushless motor

Dongchuang Pioneer Direct Store

GuaranTee supplier (GT) 12 Years

The external rotor brushless motor has a diameter of 37mm to 65mm and is a high-torque silent brushless motor

The external rotor DC brushless motor operates more smoothly, with extremely low noise, high power conversion efficiency and outstanding energy-saving effect

Model :

BL3717O

BL3825O

BL3830O

BL4020O

BL4035O

BL4220O

BL4225O

BL4525O

BL4825O

BL5025O

BL5520O

BL5525O

BL5530O

BL6522H

BL3825O(Sintered Strong Magnetic)

BL3830O(Sintered Strong Magnetic)

BL3835O(Sintered Strong Magnetic)

USD： 4

ablity：Monthly Output5000

contact shop

Product DescriptionProduct parameters

Product Description

External rotor DC brushless motor, innovative design, with significant advantages. Its rotor is on the outside and the stator on the inside, featuring a unique structure. By adopting electronic commutation technology and eliminating mechanical commutators, mechanical wear and sparks are eliminated, significantly reducing maintenance and lowering the failure rate. During operation, as there is no interference from mechanical commutators, it runs more smoothly with extremely low noise. Moreover, the rotor is composed of permanent magnets and bearings, without energy-consuming components such as resistors and brushes. It has a high efficiency in electrical energy conversion and outstanding energy-saving effects. In addition, the brushless design makes its lifespan much longer than that of traditional motors. In fields such as industrial automation, smart home, and medical equipment, it can operate stably and reliably with outstanding performance, providing strong power.

Product parameters

BL3717O
OUTPUT:APPROX 2W_~30W	OUTER ROTOR		WEIGHT:50g(APPROX）
	●Typical Application		●Motor Terminations
		Vancuum Cleaner Home Application Personal Care Business Equipment Medical Apparatus		NO.	PIN ARRANGEMENT
				1	PWM
				2	FG
				3	VCC
				4	GND

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL3717O-V1	8V-16V	12V	11876	0.25	10332	1.60	153.9	16.31	1184.8	10.64
BL3717O-V2	8V-26V	18V	18020	0.29	15497	1.79	168.4	26.76	1202.7	10.98
BL3717O-V3	8V-26V	24V	23274	0.34	20481	2.61	253.4	53.24	2111.9	19.28

BL3825O（Sintered NdFeB）
OUTPUT:APPROX 10W_~60W	OUTER ROTOR		WEIGHT:115g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A

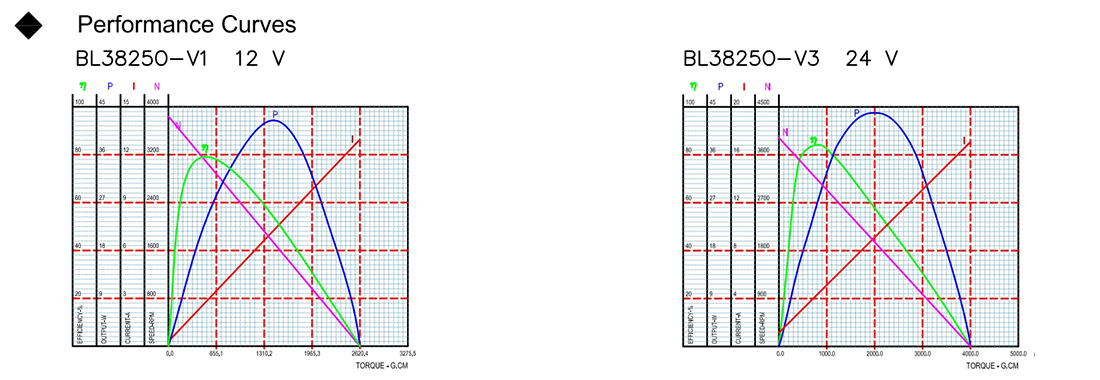

BL3825O-V1	8V-15V	12V	3868	0.28	3321	1.4	438	31	3221	8.9
BL3825O-V2	8V-26V	16.8V	3900	0.33	3408	2.5	502	43	4320	10.2
BL3825O-V3	8V-26V	24V	3960	0.28	3550	3.4	615	51	5100	12.2

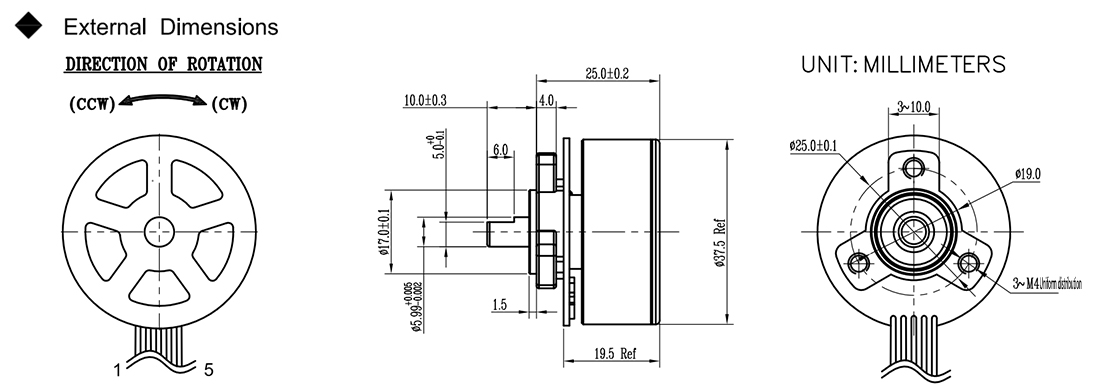

BL3825O
OUTPUT:APPROX 10W_~45W	OUTER ROTOR		WEIGHT:120g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFIClENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL3825O-V1	8V-15V	12V	3810	0.23	3230	1.4	397	26	2700	7.6
BL3825O-V2	8V-20V	16.8V	3820	0.17	3300	1.08	438	32	3400	12
BL3825O-V3	8V-26V	24V	3850	0.39	3385	0.9	490	40	4200	6.5

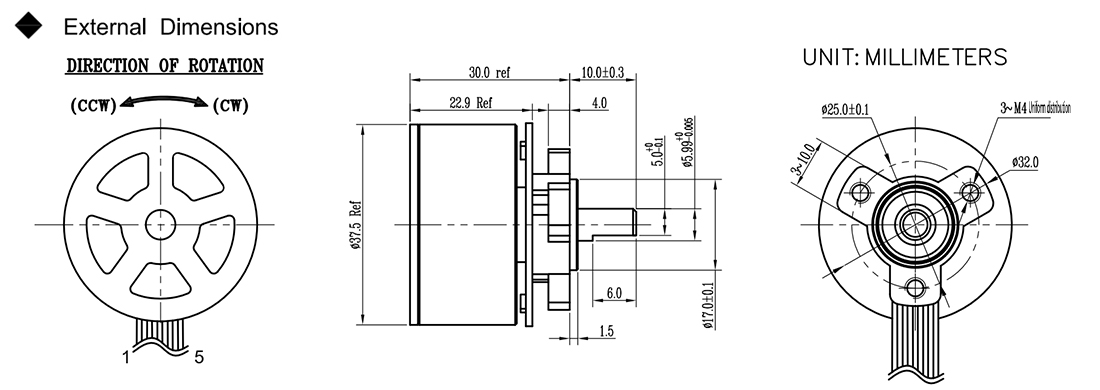

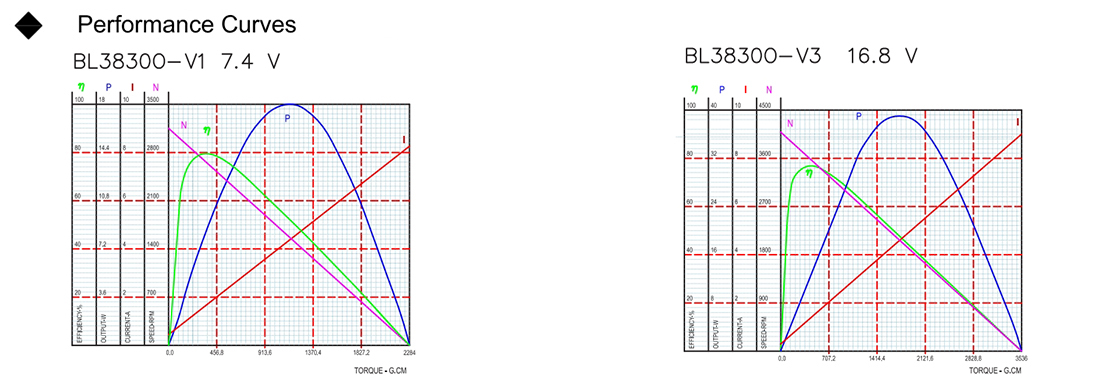

BL38300
OUTPUT:APPROX 10W_~40W	OUTER ROTOR		WEIGHT:130g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL3830O-V1	5V-12V	7.4V	3000	0.3	2500	1.6	365	10	2284	8.3
BL3830O-V2	8V-16V	12.0V	4000	0.24	3400	1.5	468	17	3485	10
BL3830O-V3	8V-26.4V	16.8V	4200	0.26	3600	1.5	520	21	3536	8.7

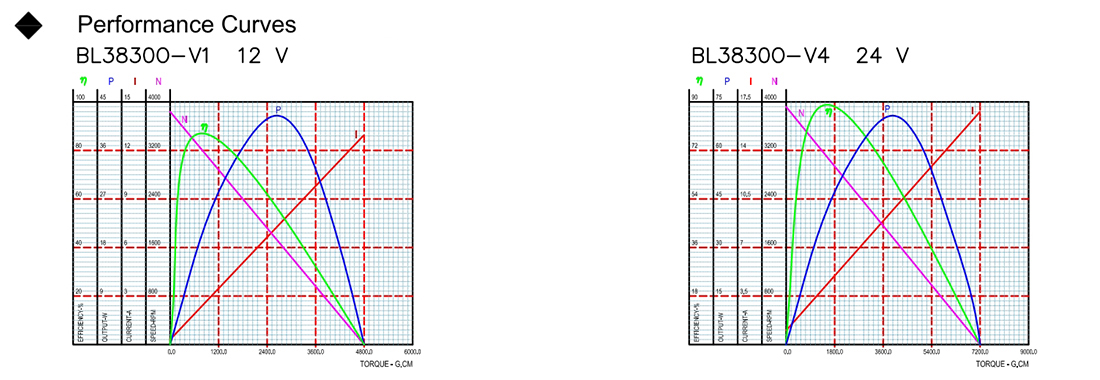

BL3830O（Sintered NdFeB）
OUTPUT:APPROX 10W_~60W	OUTER ROTOR		WEIGHT:135g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL3830O-V1	5V-12V	7.4V	3920	0.51	3300	3.6	580	20	3790	19.3
BL3830O-V2	8V-15V	12V	3900	0.41	3340	2.4	654	32	4488	14
BL3830O-V3	8V-26V	16.8V	3910	0.27	3400	2.3	690	41	6810	20.1
BL3830O-V4	8V-26V	24V	3960	0.21	3460	1.4	734	54	7100	10.2

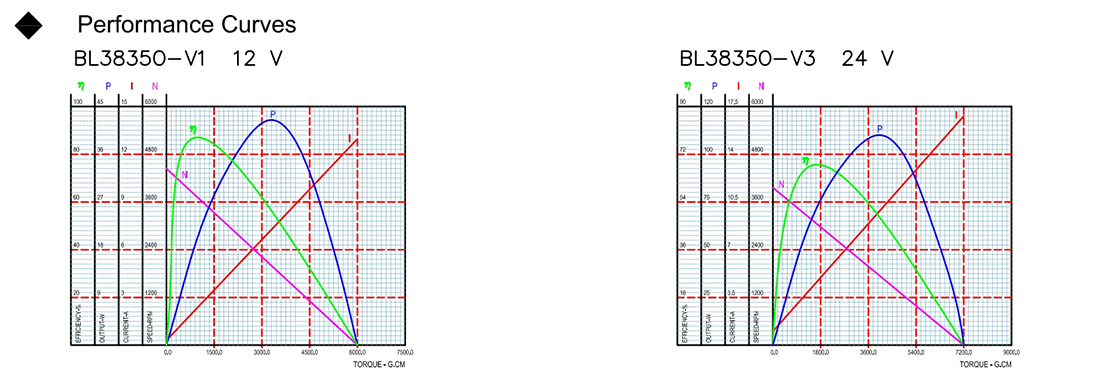

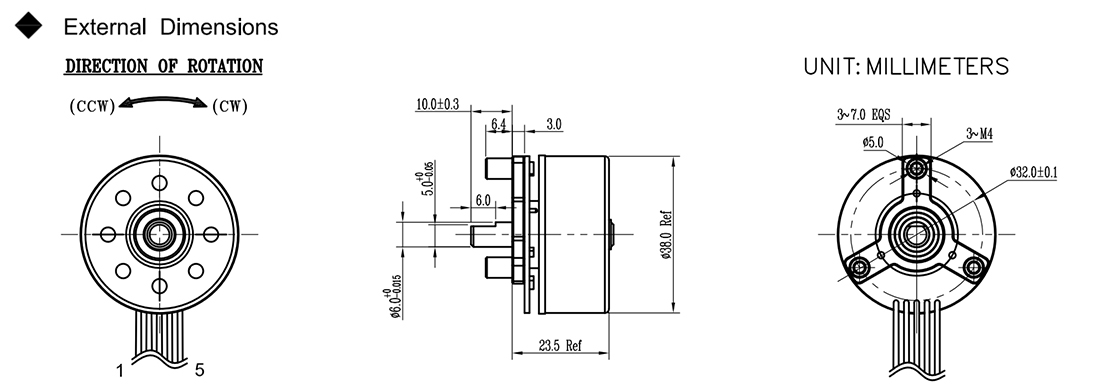

BL3835O（Sintered NdFeB）
OUTPUT:APPROX 10W_~80W	OUTER ROTOR		WEIGHT:150g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL3835O-V1	8V-15V	12V	4200	0.39	3790	2.7	720	32	6108	19.2
BL3835O-V2	8V-26V	16.8V	4400	0.31	3810	1.9	810	52	6982	12.4
BL3835O-V3	8V-26V	24V	4460	0.39	3852	1.3	892	65	7250	10.2

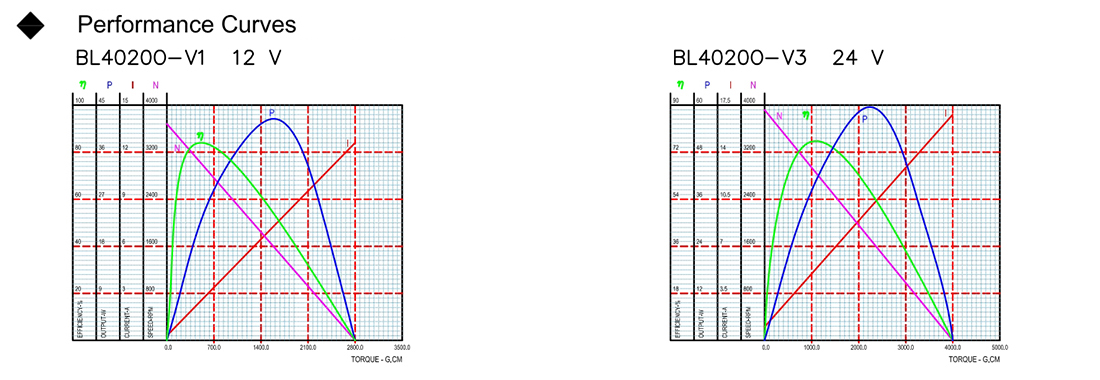

BL40200
OUTPUT:APPROX 5W_~40W	OUTER ROTOR		WEIGHT:125g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL4020O-V1	8V-15V	12V	3880	0.32	3200	1.5	390	23	2300	7.3
BL4020O-V2	8V-26V	16.8V	3800	0.27	3300	2.6	450	30	3150	9.2
BL4020O-V3	8V-26V	24V	3860	0.15	3400	3.6	510	43	4100	10.3

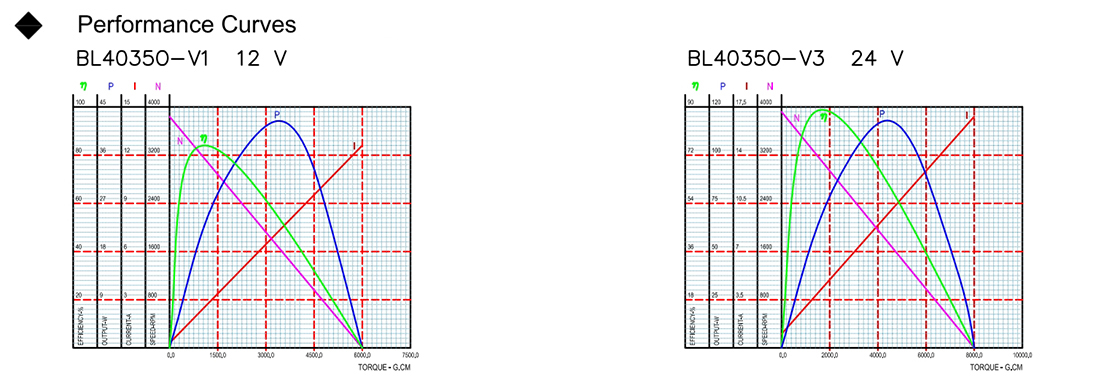

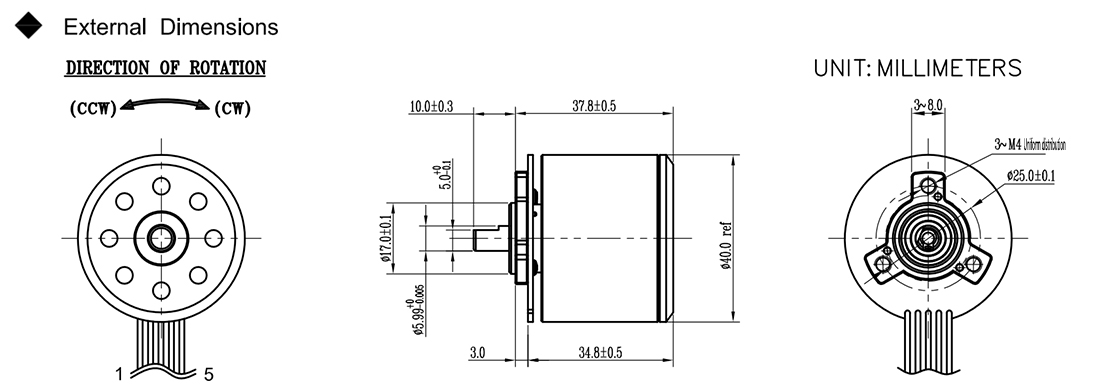

BL40350
OUTPUT:APPROX 10W_~80W	OUTER ROTOR		WEIGHT:190g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFIClENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL4035O-V1	8V-15V	12V	3620	0.34	3010	3.1	905	28	6052	13.4
BL4035O-V2	8V-26V	16.8V	3760	0.39	3250	4.4	1130	40	7486	15
BL4035O-V3	8V-26V	24V	3800	0.28	3350	4.5	410	66	8220	12.1

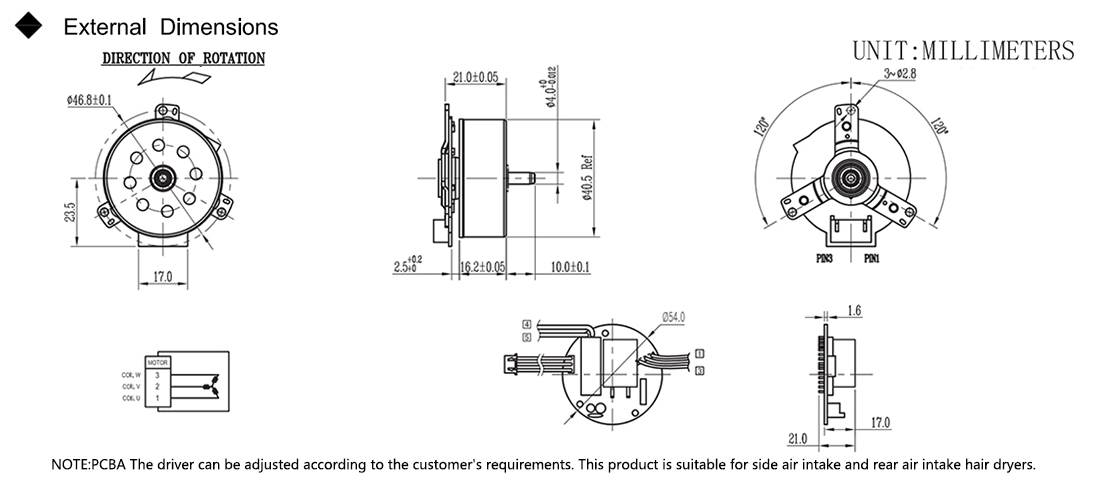

BL42200
OUTPUT:APPROX 40W_~120W	OUTER ROTOR		WEIGHT:130g(APPROX）
	●Typical Application		●Motor Terminations
		电吹风(Hair Drier) Home Application Personal Care		NO.	PIN ARRANGEMENT
				1	BLACK WIRE(AC±N)
				2	RED WIRE (AC±L)
				3	WHITE WIRE (AC±S)

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		RATED LOAD
	Scope of work	RATED	SPEED	INPUT(P)	SPEED	TORQUE	INPUT(P)
	Scope of work	RATED	r/min	W	r/min	g.cm	W
BL4220O-V1	100-125VAC	120VAC	25800	10	18700	350	105
BL4220O-V2	220-240VAC	230VAC	24200	9	18500	350	106

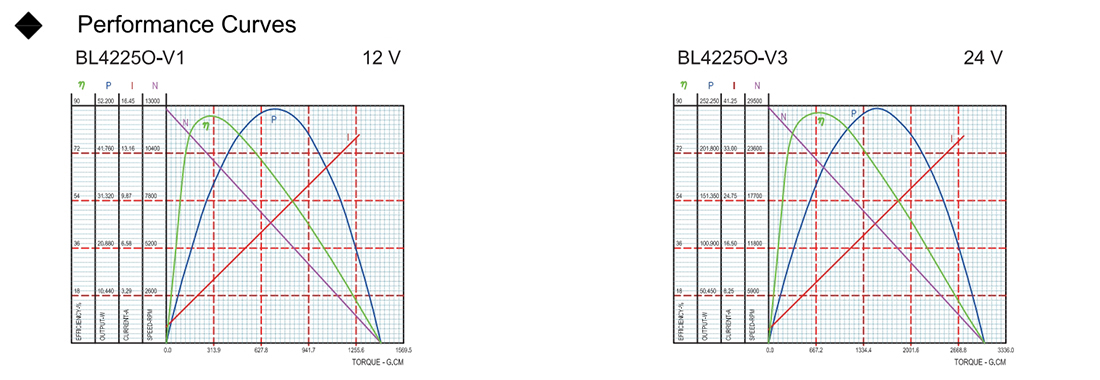

BL42250
OUTPUT:APPROX 10W_~180W	OUTER ROTOR		WEIGHT:125g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Business Equipment Medical Apparatus		NO.	PIN ARRANGEMENT
				1	PWM
				2	FG
				3	VCC
				4	GND

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL4225O-V1	8V-16V	12V	12963	0.23	11537	2.01	172.6	20.43	1569.4	16.44
BL4225O-V2	8V-26V	18V	23246	0.34	21066	3.29	237.6	51.38	2533.8	31.77
BL4225O-V3	8V-26V	24V	29489	0.53	26540	4.60	333.6	90.81	3335.9	41.23

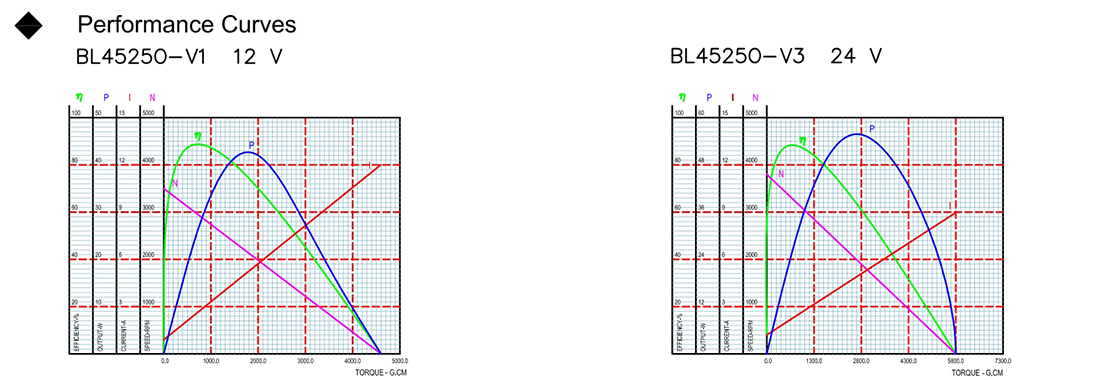

BL45250
OUTPUT:APPROX 10W_~50W	OUTER ROTOR		WEIGHT:170g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL4525O-V1	8V-15V	12V	3500	0.35	3000	2.0	678	20	4651	12.0
BL4525O-V2	8V-26.4V	16.8V	3800	0.20	3500	1.5	613	22	5151	11.1
BL4525O-V3	8V-26.4V	24V	3800	0.15	3300	1.2	683	23	5871	8.6

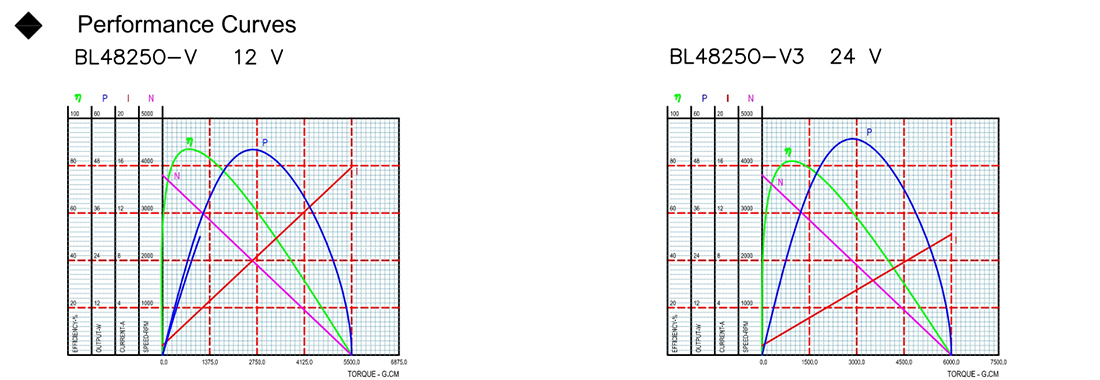

BL48250
OUTPUT:APPROX 10W_~50W	OUTER ROTOR		WEIGHT:165g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL4825O-V1	8V-15V	12V	3800	0.30	3300	2.2	660	22	5532	15.7
BL4825O-V2	8V-26.4V	16.8V	3800	0.28	3200	2.0	728	24	5809	13.7
BL4825O-V3	8V-26.4V	24V	3800	0.17	3200	1.7	851	27	6043	10.3

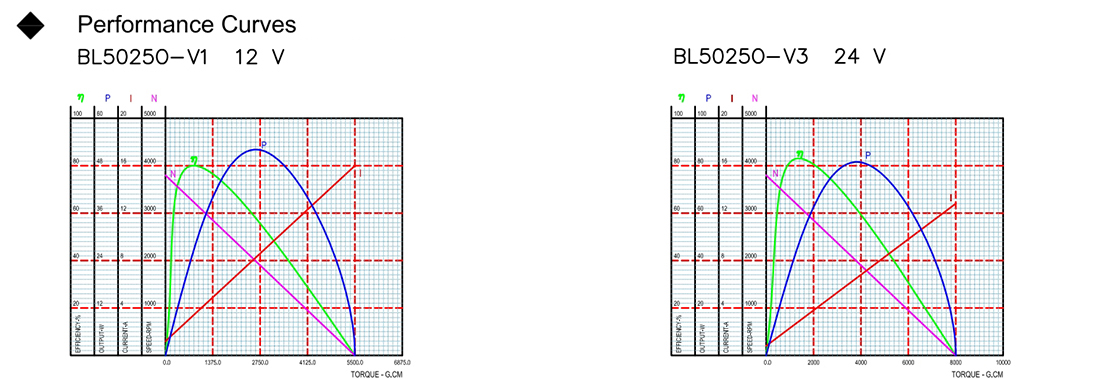

BL50250
OUTPUT:APPROX 10W_~60W	OUTER ROTOR		WEIGHT:190g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL5025O-V1	8V-15V	12V	3800	0.45	3200	2.7	783	26	5435	16.0
BL5025O-V2	8V-26.4V	16.8V	3800	0.32	3300	2.3	948	32	7610	16.0
BL5025O-V3	8V-26.4V	24V	3800	0.22	3400	1.7	970	34	8278	12.8

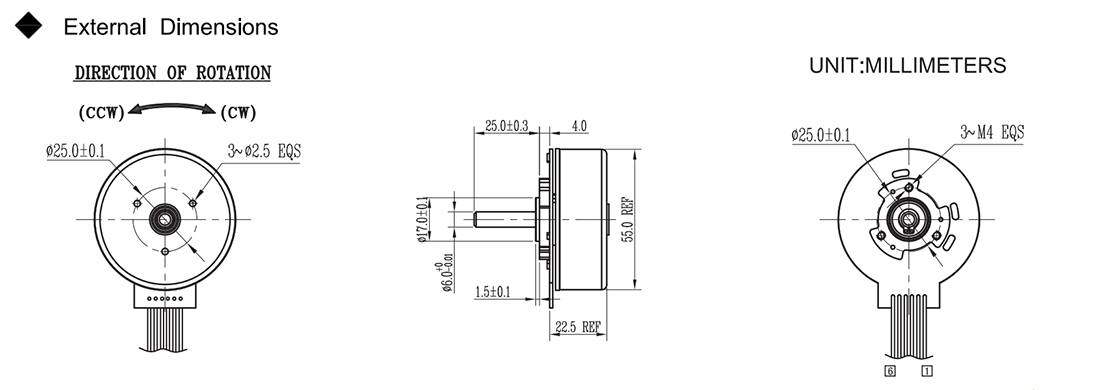

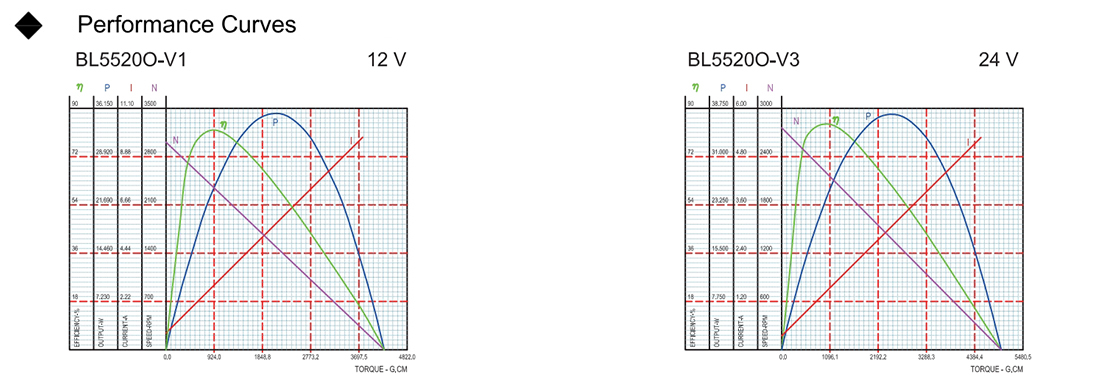

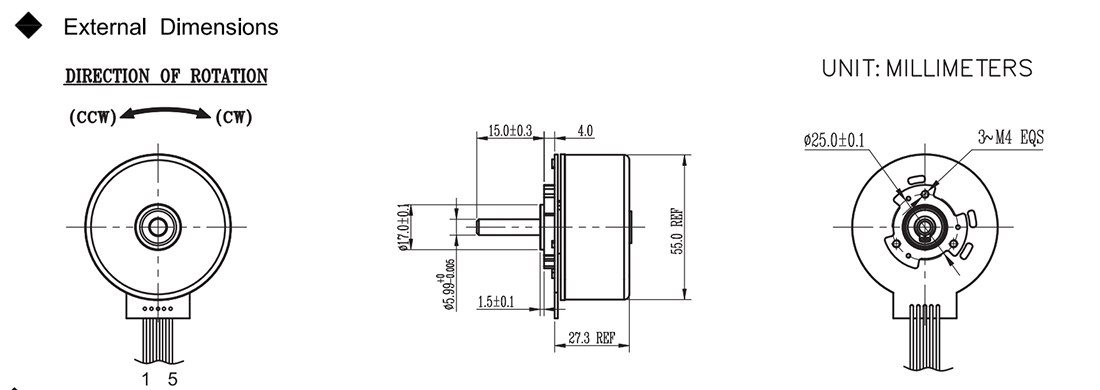

BL5520O
OUTPUT:APPROX 10W_~80W	OUTER ROTOR		WEIGHT:220g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Business Equipment Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFIClENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL5520O-V1	8V-16V	12V	3050	0.24	2657	1.639	595.5	16.25	4661.7	11.19
BL5520O-V2	8V-26V	18V	2758	0.17	2408	1.171	702.5	17.37	5545.8	8.065
BL5520O-V3	8V-26V	24V	2383	0.14	2383	0.933	738.5	18.06	5473.2	5.988

BL55250
OUTPUT:APPROX 10W_~80W	OUTER ROTOR		WEIGHT:280g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Massage Gun Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A

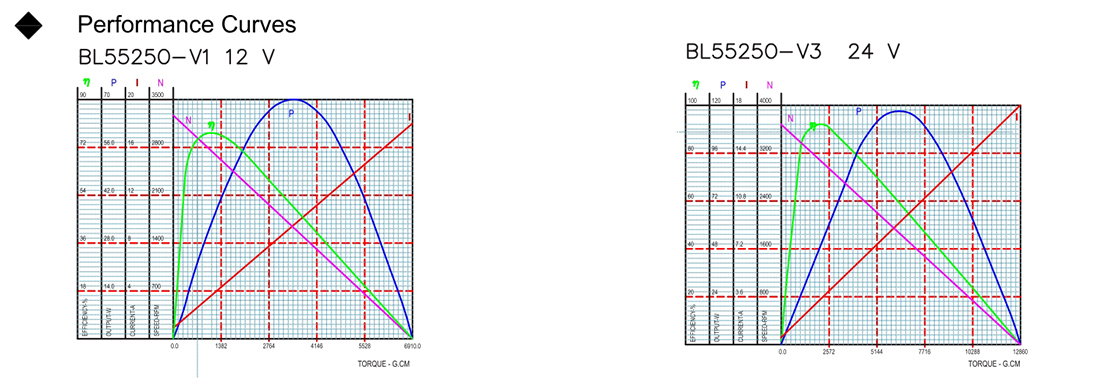

BL5525O-V1	8V-16V	12V	3200	0.45	2700	2.9	1010	29	6910	19
BL55250-V2	8V-26.4V	16.8V	3500	0.36	3100	2.6	1220	37	9130	18
BL5525O-V3	8V-26.4V	24V	3500	0.25	3200	2.1	1335	45	12860	18

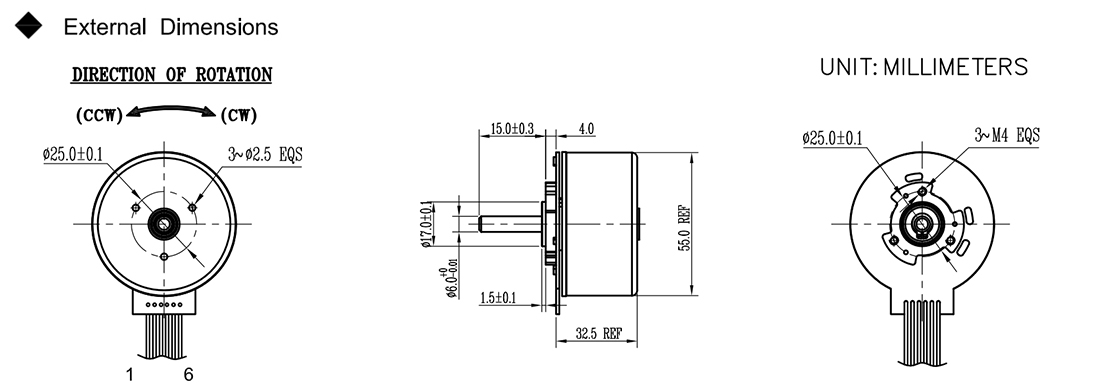

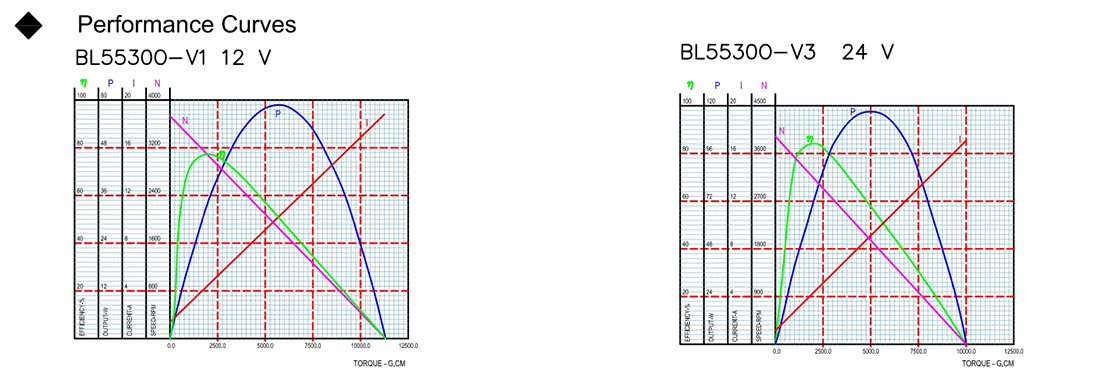

BL55300
OUTPUT:APPROX 10W_~100W	OUTER ROTOR		WEIGHT:300g(APPROX）
	●Typical Application		●Motor Terminations
		Personal Care Home Application Industry Apparatus Business Equipment Medical Apparatus		NO.	PIN ARRANGEMENT
				1	VCC
				2	FG
				3	CW/CCW
				4	GND
				5	PWM
				6	BRAKE

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BL5530O-V1	8V-16V	12V	3260	0.5	2800	3.2	1080	31	7250	18.9
BL5530O-V2	8V-26.4V	16.8V	3500	0.4	3060	3.0	1320	42	10400	20.9
BL5530O-V3	8V-26.4V	24V	3830	0.3	3380	2.5	1430	50	12200	18.8

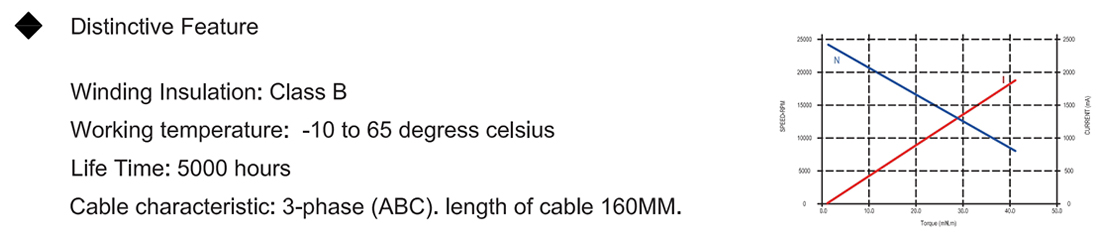

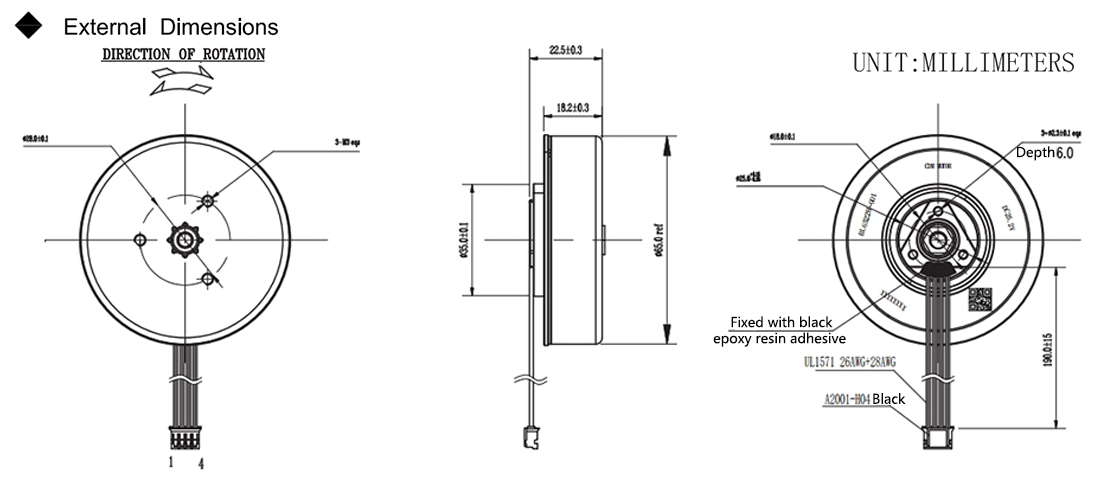

BL6522H
OUTPUT:APPROX 7W_~15W	OUTER ROTOR		WEIGHT:200g(APPROX）
	●Typical Application		●Motor Terminations
		Home Application Industry Apparatus Business Equipment		NO.	PIN ARRANGEMENT
				1	VCC
				2	GND
				3	LIN
				4	ID

◆ Major Characteristic Parameters
Model	Voltage		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	Scope of work	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	Scope of work	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A

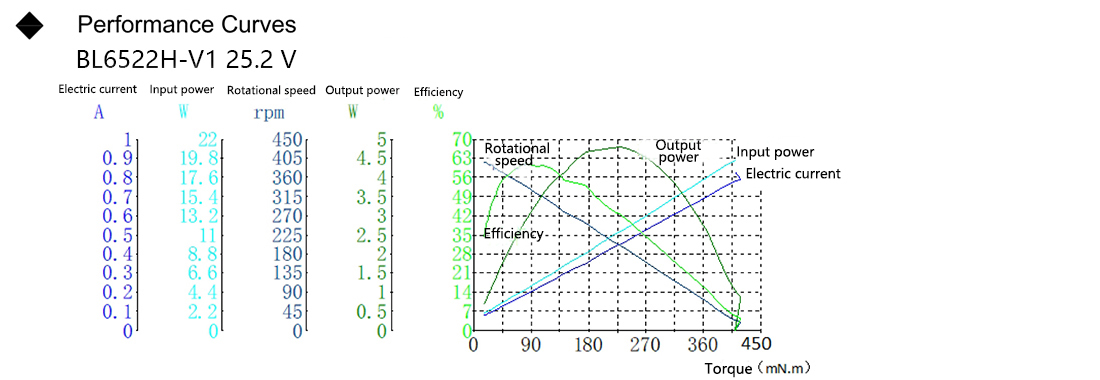

BL6522H-V1	16V-27V	25.2V	400	0.25	100	0.25	1500	10	3000	0.6

Application

External rotor DC brushless motors are widely used. In the field of smart home, they are used in indoor and outdoor units of air conditioners, fans, etc. They feature energy conservation, low noise, and precise speed regulation, enhancing the comfort of use. In the industrial field, it can be used for various types of fans and pumps, which can operate efficiently and stably, reducing energy consumption and maintenance costs. In the field of new energy vehicles, it is applicable to cooling system fans, electric power steering systems, etc., meeting the vehicle's requirements for reliability and efficiency. In the aerospace field, due to its light weight, high efficiency and strong reliability, it is applied to the power systems of small aircraft, etc. In the field of medical equipment, such as ventilators and centrifuges, it can provide precise and stable power to ensure the performance of the equipment.

After-sale guarantee

In the event of a motor malfunction, our after-sales team will respond immediately and promptly arrange for professional technicians to communicate with you to understand the details of the fault. We will provide you with remote technical guidance based on the specific situation and assist you in solving problems. Meanwhile, we also offer you regular follow-up services to understand the usage of the motor, collect your opinions and suggestions, and continuously optimize our products and services. When our products are upgraded and replaced, we will also promptly notify you and provide you with corresponding technical support and solutions to ensure that your equipment always maintains good performance.

Home

Supplier

Products

Forum

Demand Hall

News

About ERIK

Become A Supplier

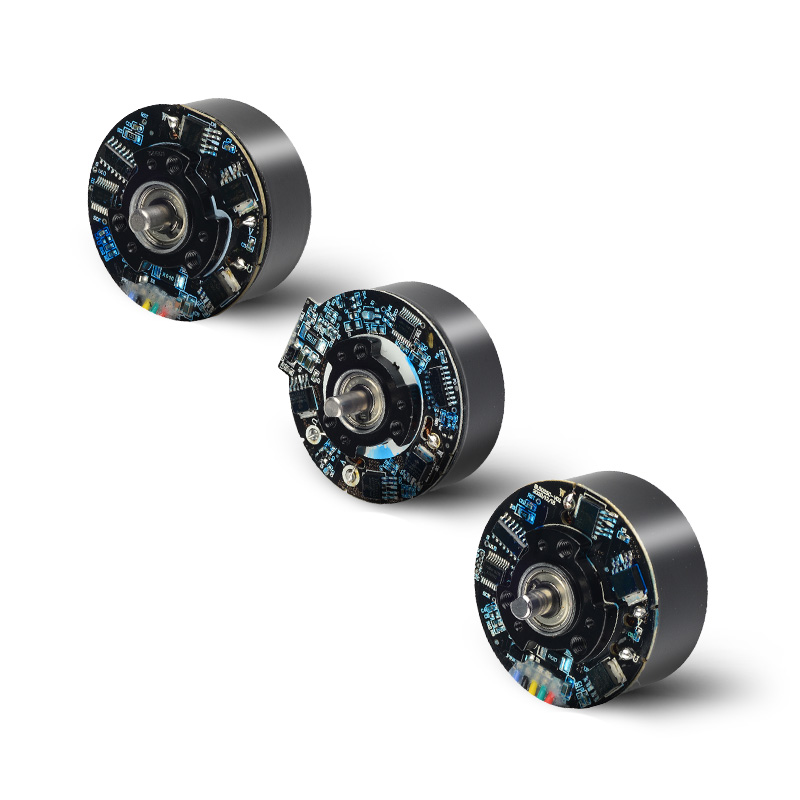

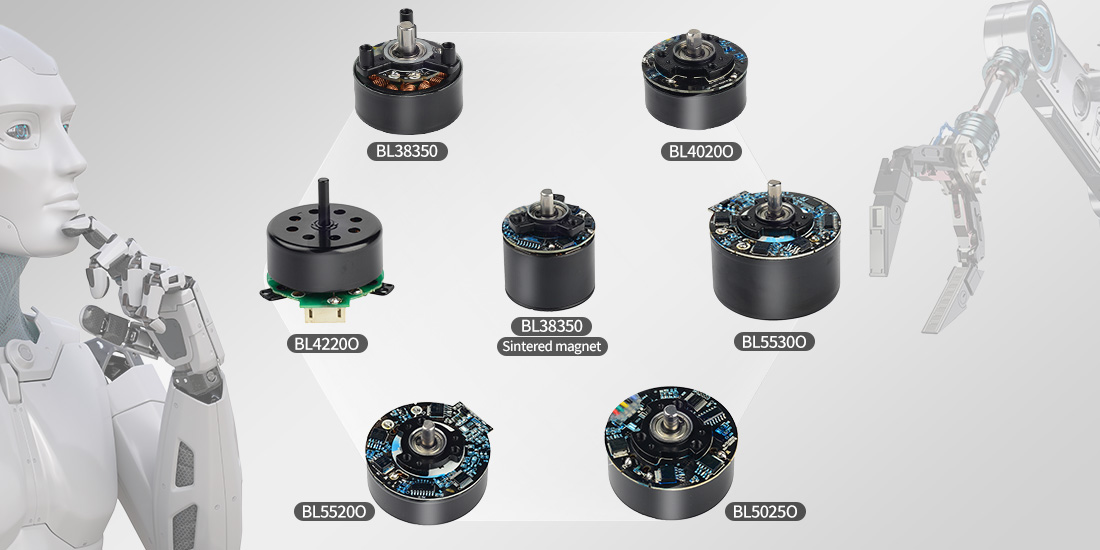

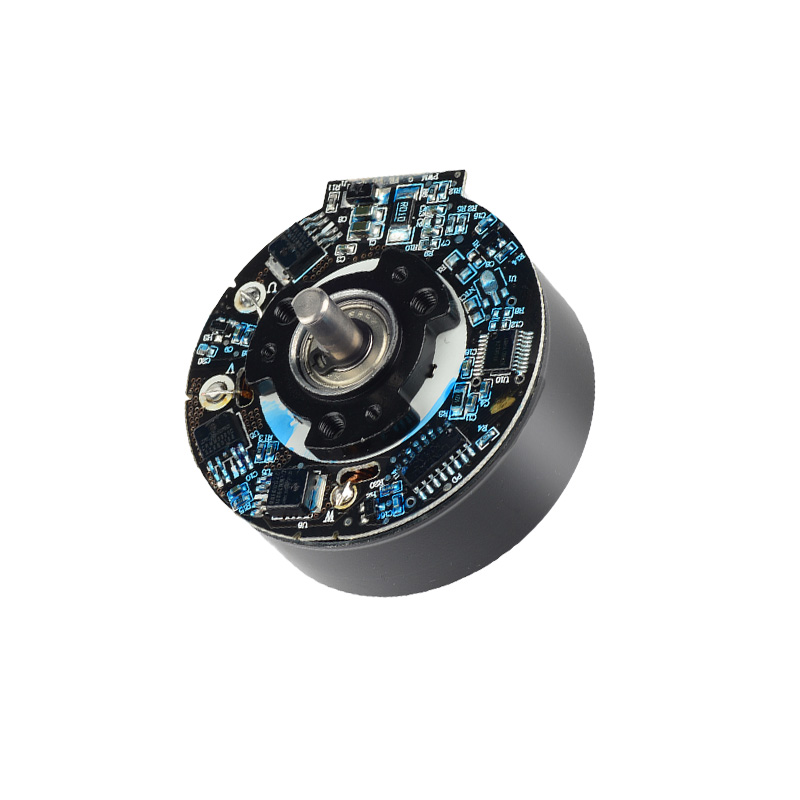

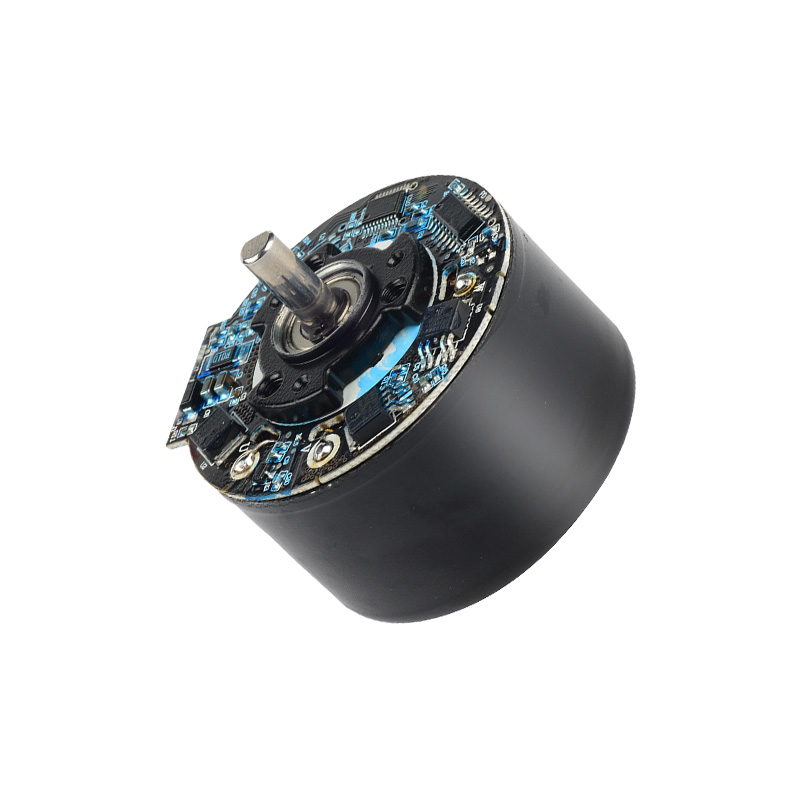

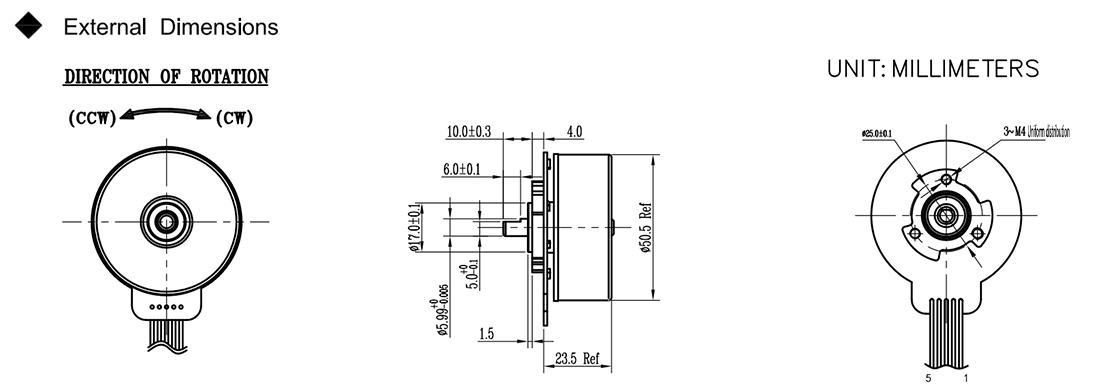

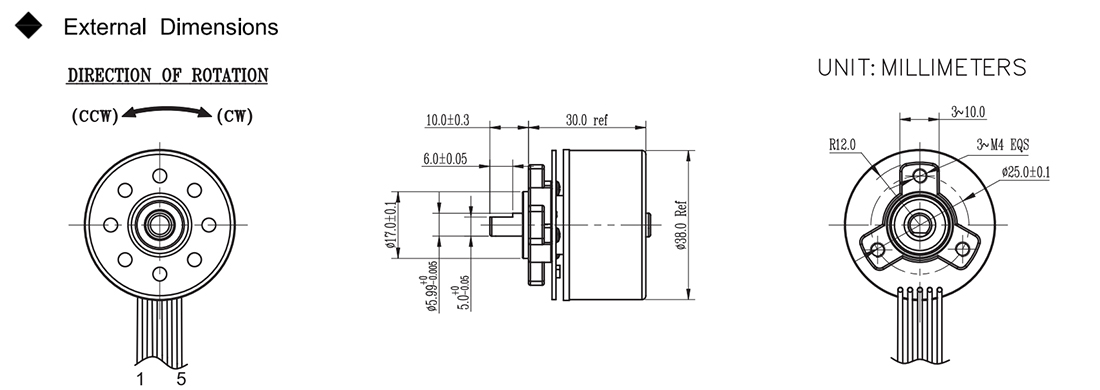

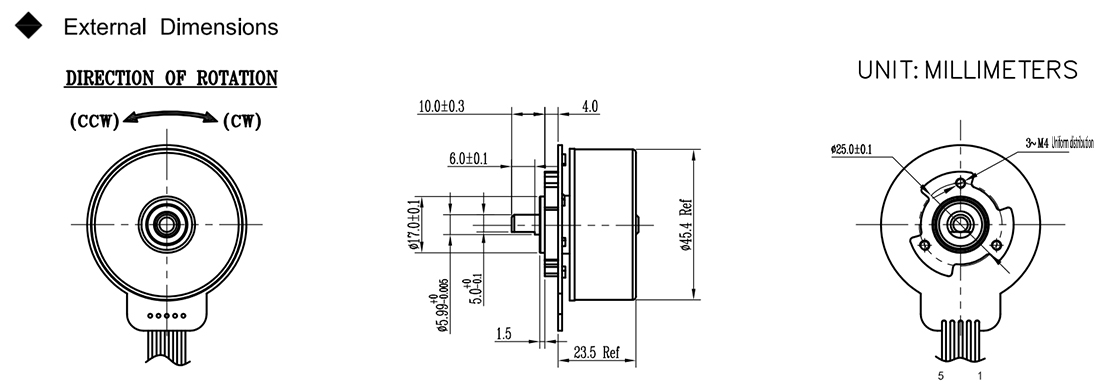

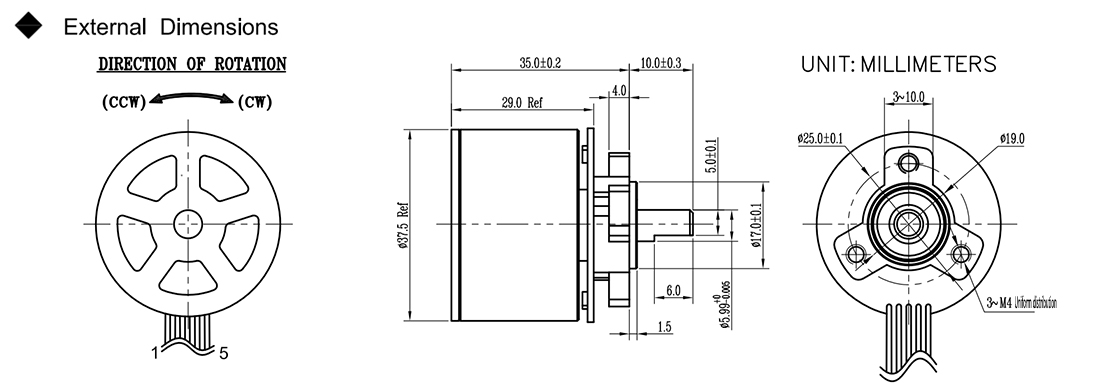

The external rotor brushless motor has a diameter of 37mm to 65mm and is a high-torque silent brushless motor

Product Description

Product parameters

Application

After-sale guarantee

Recommended products

12/24/36/48V/60V 600W DC brushless motor driver current/speed /FOC drive mode

The BL series servo driver 220V current 3.5-35A incremental absolute encoder supports position, speed and torque control

12/24/36/48/60V 1800W DC brushless motor driver current/speed/position PID control FOC drive mode

The DH series incremental DC servo driver has a voltage range of 110V to 220V and is compatible with various motors

our service
