Product Description

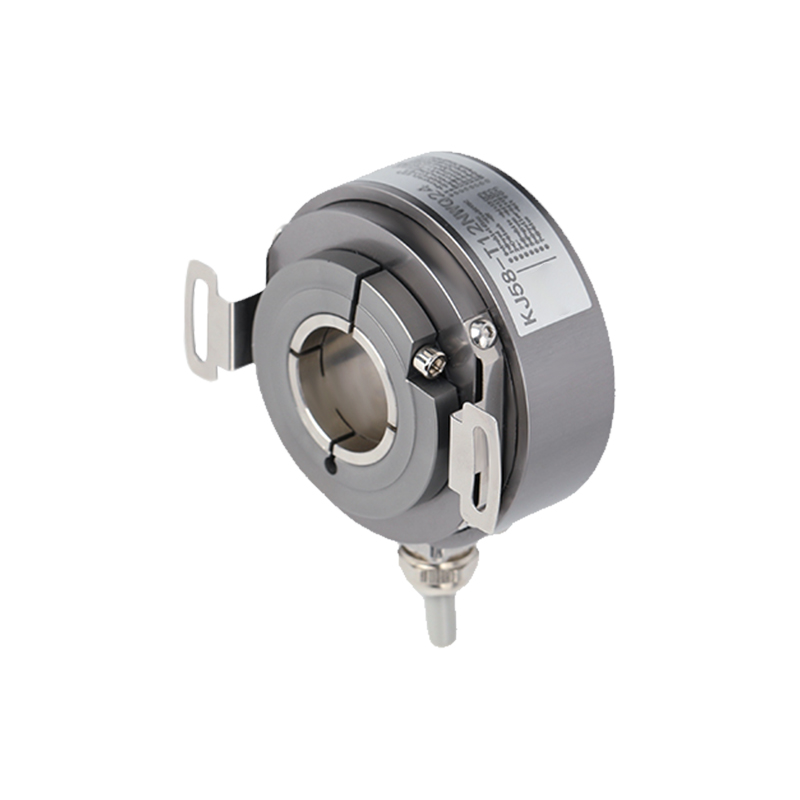

The KJ58 absolute value parallel Gray code (hollow shaft, through) is a robust large-aperture through shaft design, featuring a compact structure, high protection level and high safety
Product Features 1.1 Characteristics: |
|
Product parameters

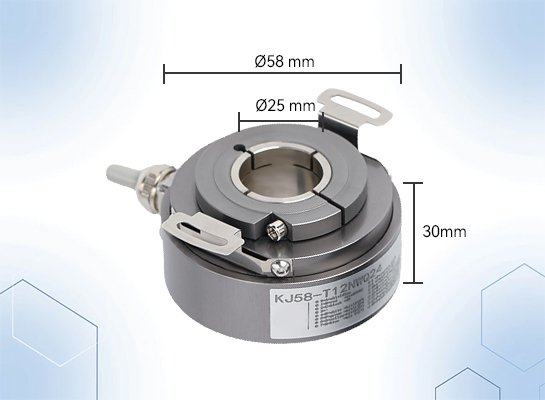

Project | Main parameters |
External dimensions | Outer diameter: 58mm |
Thickness: 30mm | |
Hollow shaft diameter :14mm 18mm; 20mm; 22mm; 24mm | |
Pulse | Up to 12 bits (4096ppr) |
Counting direction | CW/ CCW |
Power supply voltage | DC5V & DC8-30V |
Maximum allowable rotational speed | Continuously for 3000 minutes; |
Qualification method | The cable is pulled out from the side |
The cable strip comes out from the socket side | |
Circuit output mode | 1.The NPN collector has an open circuit output and is effective at a low level |
2. NPN collector open-circuit output, high level effective | |
Output type | Gray Code Binary Class & Angle Class (Parallel) |
Ambient temperature | Operating temperature: -20 to +85° C (no condensation) |
Environmental humidity | Storage temperature: -25 to +95° C (no condensation. |
During operation and storage, RH: 35-85% (no condensation) | |
Protection grade | IP50&IP65 |
Line length | 1000mm |
Shell material | Die-cast aluminum alloy |
Packaging | Paper box |
Net weight | 200g |
Instructions for Use

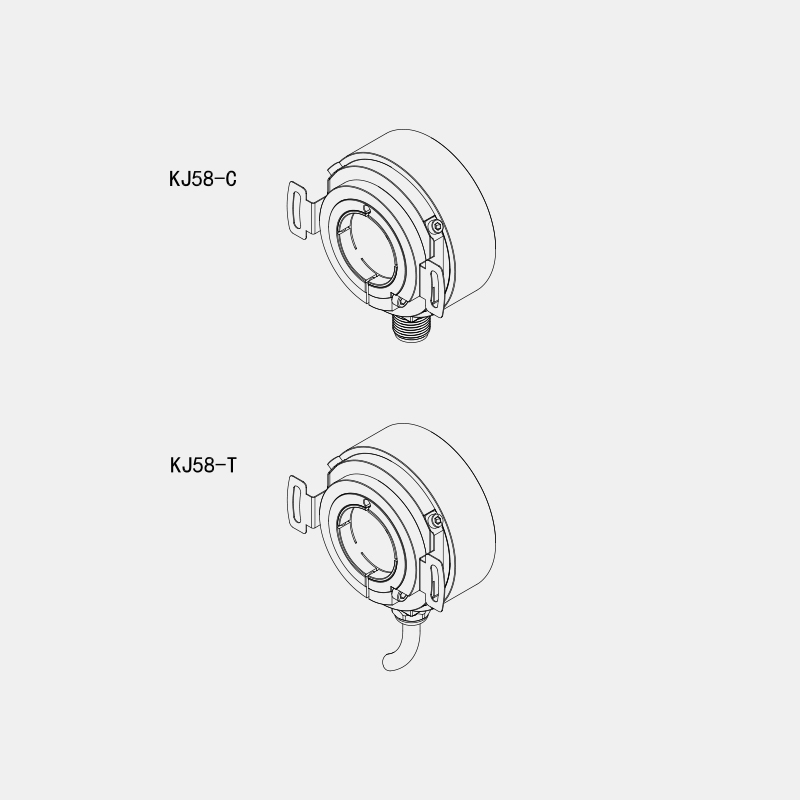

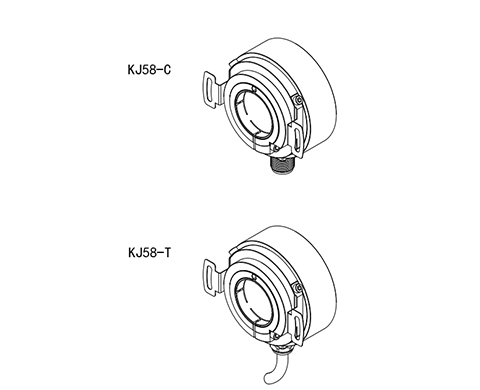

1. Selection Guide | ||||||||||||||||
Model composition (Selection parameters) | ||||||||||||||||
KJ58- | T | 12 | N | Q25 | — | 000 | ||||||||||
↑ | ↑ | ↑ | ↑ | ↑ | ↑ | ↑ | ↑ | ↑ | ||||||||
Product model | Connection method: | Bit(Steps): | Interface (Parallel): | Calculation direction: | Shaft diameter: (through) | Power supply voltage: | Special Specifications: | Management Number | ||||||||
Note: Zero level signal: ①. The Z signal is valid at a low level. ②. The Z signal is valid at a high level | ||||||||||||||||

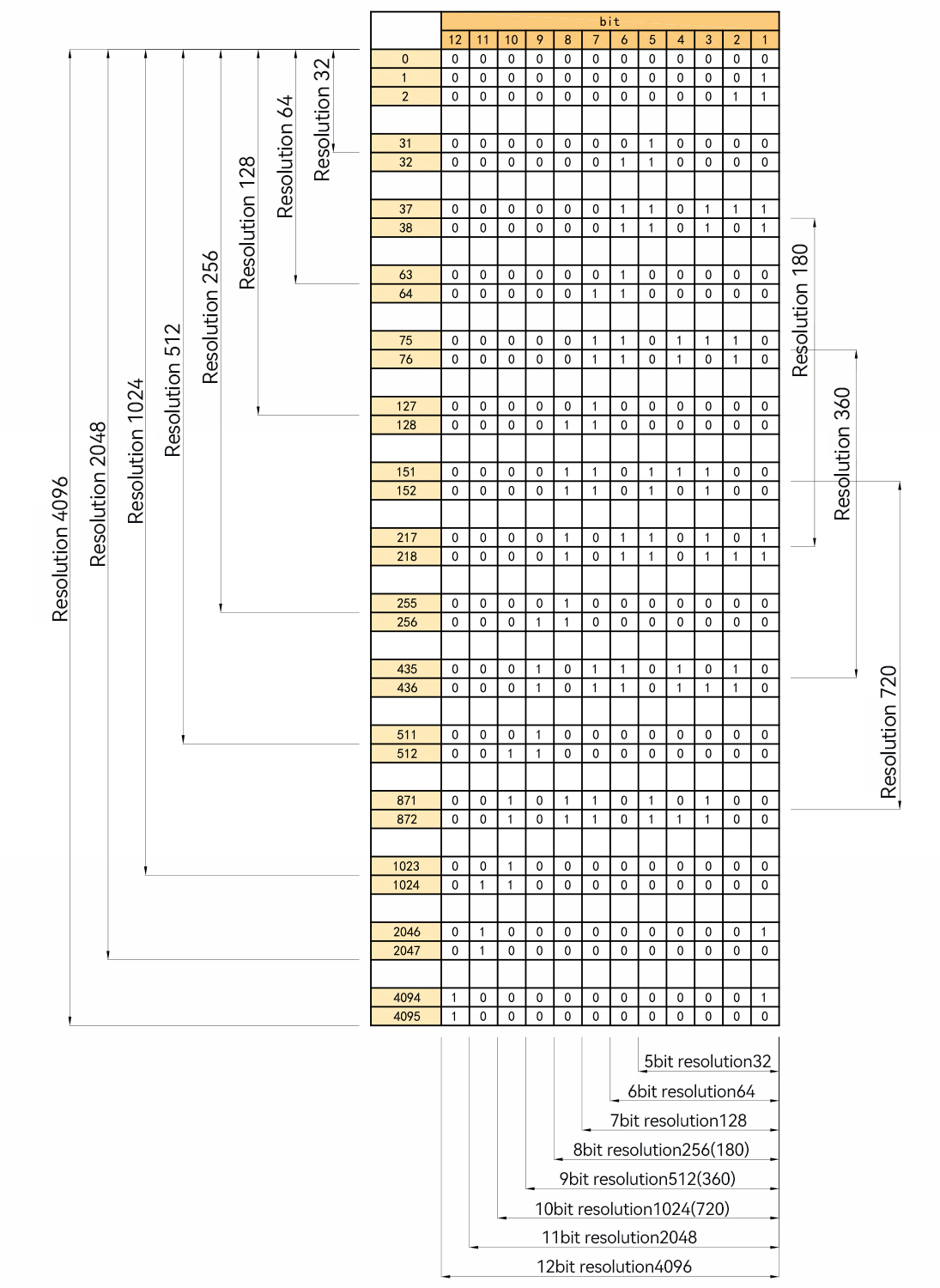

2. Resolution Output Summary table

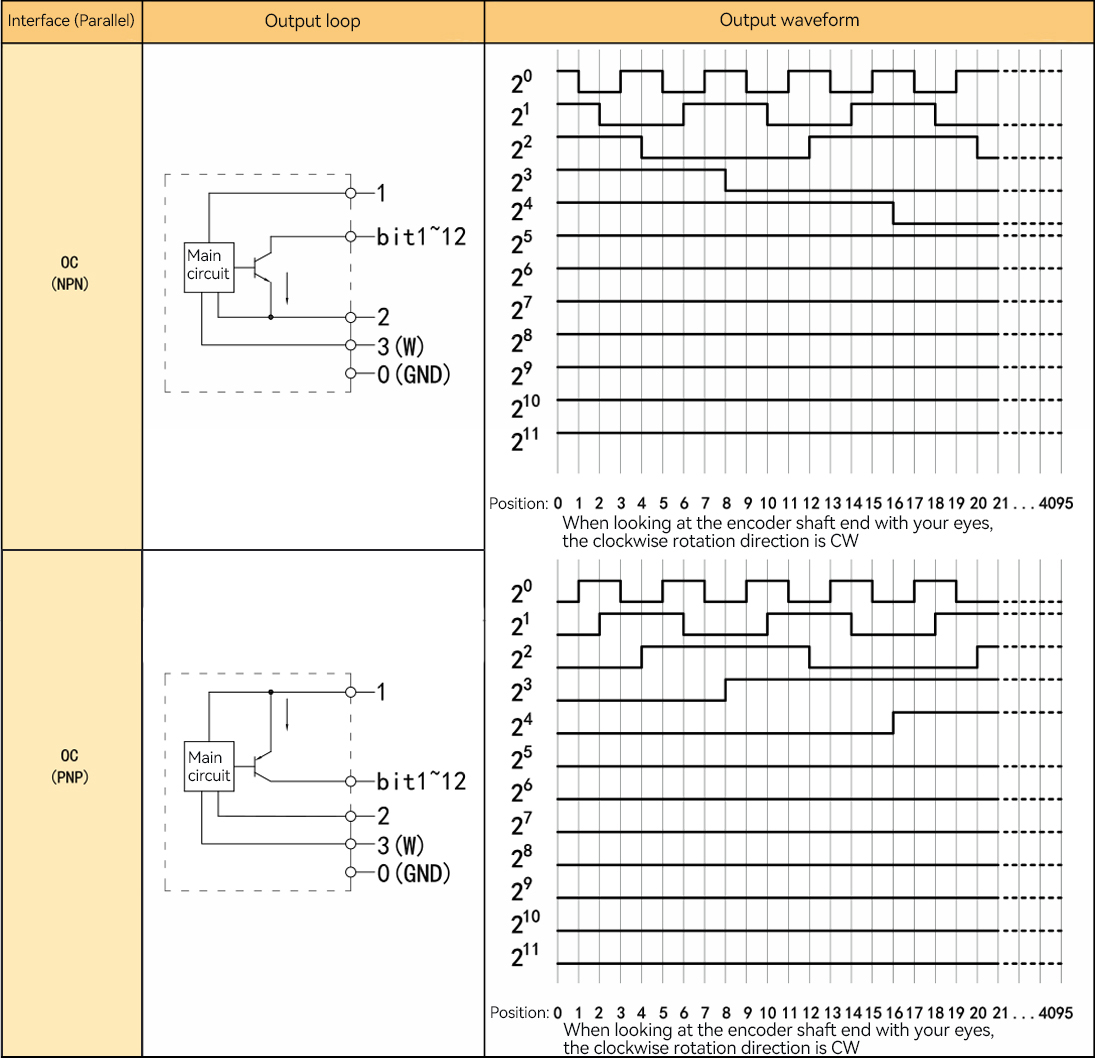

3. Output mode
4. Electrical parameters
Project parameters | Interface (Parallel) | |||
OC(NPN) | 0C(PNP) | |||
Power supply voltage | DC5V±5%;DC8V-30V±5% | |||
Allow ripples | ≤3%rms | |||
Consumed current | 100mA Max | |||
Encoding type | Gray Code | |||
Accuracy | [360/(resolution x4)]° | |||
Maximum response frequency | 100kHz Max | |||
Output capacity | Output | Inflow | ≤30mA | |
Outflow | 一 | |||
Output | “H” | 一 | ||
“L” | ≤0.4V | |||
Load voltage | ≤DC30V | |||
Rising and falling time | Less than 2us (load resistance 1KΩ, wire length: 2m) | |||
Output level | Low level effective | High level effective | ||
Insulation withstand voltage | AC500V 60s | |||
Insulation impedance | 10M | |||
Shielded wire | The encoder body is not connected | |||
5. Mechanical specifications
Shaft diameter | φ14mm;φ18mm;φ20mm;φ22mm;φ24mm;φ25mm(Stainless steel) |
Starting torque | Below 12×10⁻³N·m |
Inertial moment | Below 11×10-6kg·m² |
Allowable force of the shaft | Radial 30N Axial 20N |
Maximum allowable rotational speed | ≤3000 rpm |
Bearing life | Rated load: 1.5X109, 10,000 hours at 2500RPM |
Outer shell | Die-cast aluminum alloy |
weight | Approximately 180g(in packaging condition) |
6. Environmental parameters
Ambient temperature | During operation: -20 to +85℃(Repeatedly bent cable: -10℃) Storage temperature: -25 to +90℃ |
Environmental humidity | During operation and storage: 35-85%RH(no condensation) |
Vibration (durability) | Amplitude: 0.75mm,10-50HZ, 1 hour in each of the three axes |
Impact (durability) | 49m/s² three times in the X,Y, and Z directions |
Protection grade | IP50 &IP65 |

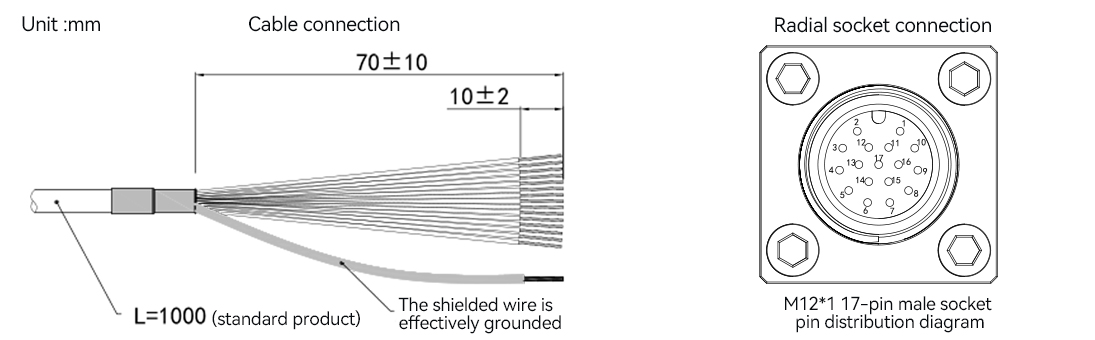

7. Wiring meter
Socket pin number and wire color | Resolution 4096 | Resolution 2048 | Resolution 1024 | Resolution 512 | Resolution 256 | Resolution 128 | Resolution 64 | Resolution 32 |
（720） | （360） | （180） | ||||||
15=R= Pink/black | bit1(2°) | No answer | ← | ← | ← | ← | ← | ← |
14=P= gray/black | bit2(21) | bit1(2°) | No answer | ← | ← | ← | ← | ← |
13=0= blue/black | bit3(2²) | bit2(21) | bit1(2°) | No answer | ← | ← | ← | ← |
12=N= Yellow/black | bit4(2³) | bit3(2²) | bit2(21) | bit1(2°) | No answer | ← | ← | ← |
11=M= green/black | bit5(2⁴) | bit4(2³) | bit3(2²) | bit2(21) | bit1(2°) | No answer | ← | ← |
10=L= white/black | bit6(2⁵) | bit5(2⁴) | bit4(2³) | bit3(2²) | bit2(21) | bit1(2°) | No answer | ← |
9=K= powder | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) | bit4(2³) | bit3(2²) | bit2(21) | bit1(2°) | No answer |
8=I= gray | bit8(2⁷) | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) | bit4(2³) | bit3(2²) | bit2(21) | bit1(2°) |
7=H= blue | bit9(28) | bit8(2⁷) | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) | bit4(2³) | bit3(2²) | bit2(21) |
6=G= yellow | bit10(2⁹) | bit9(28) | bit8(2⁷) | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) | bit4(2³) | bit3(2²) |
5=F= green | bit11(210) | bit10(2⁹) | bit9(28) | bit8(2⁷) | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) | bit4(2³) |
4=E= white | bit12(211) | bit11(210) | bit10(2⁹) | bit9(28) | bit8(2⁷) | bit7(2⁶) | bit6(2⁵) | bit5(2⁴) |
3=D= brown | W(Externally controlled rotation direction: No answer is CCW; To connect oV is CW. | |||||||
2=C= Black | 0V | |||||||
1=B= red | DC5V&DC8-30V | |||||||
0=A= shielding | GND | |||||||

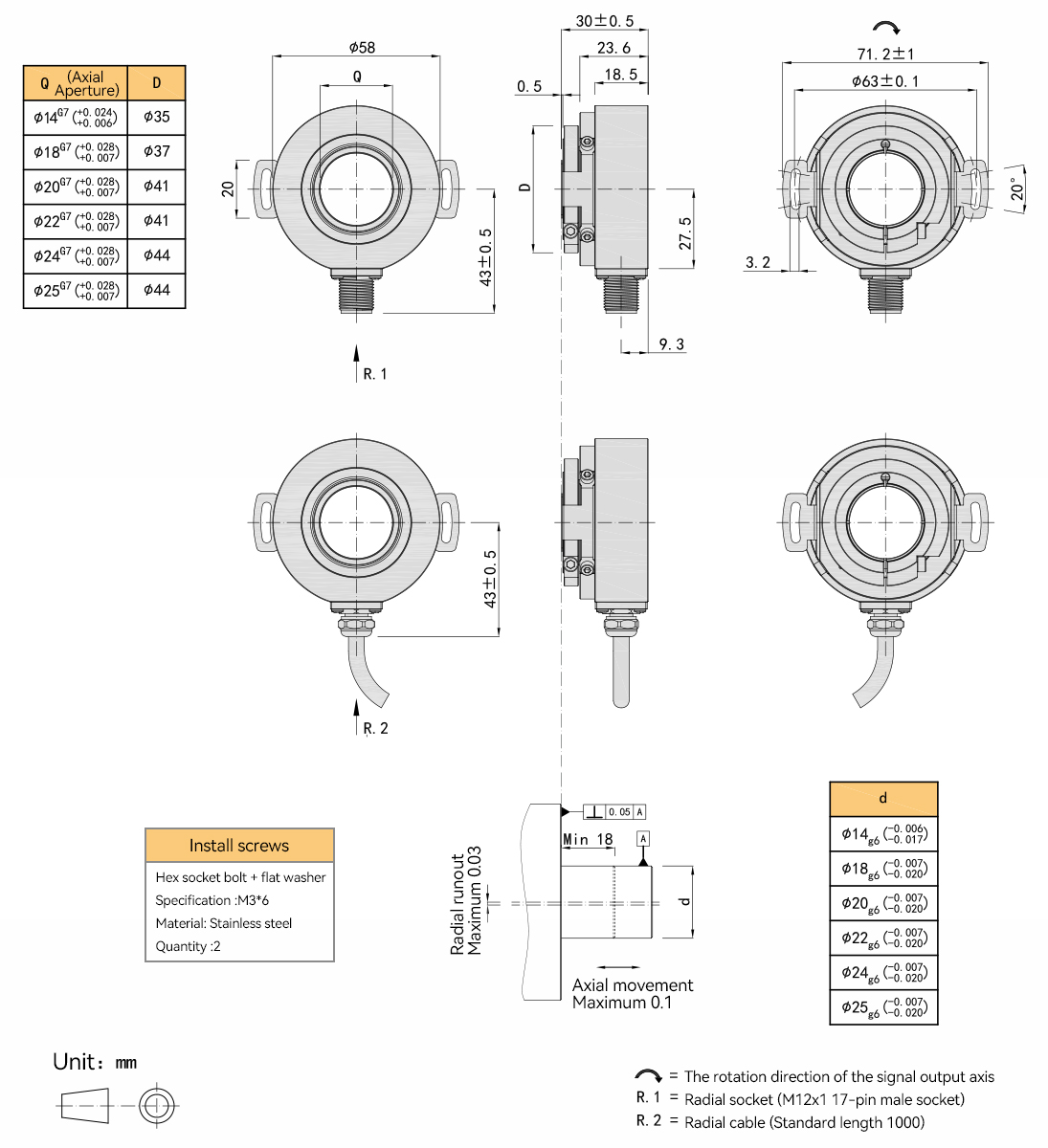

8. Basic dimensions and installation shaft specifications
9. Recommended attachment
Plugs and cables | Brief Description | Model | Order Number |
| C2C= Connection method A head: M12, 17-pin female plug straight head; | KJ58C2C | 44400022 |
C5C= Connection method A head: M12, 17-pin female plug straight head; | KJ58C5C | 44400023 | |
| C1= Connection method A head: M12, 17-pin female plug straight head; | KJ58C1 | 44400024 |
C2= Connection method A head: M12, 17-pin female plug straight head; | KJ58C2 | 44400025 | |
C5= Connection method A head: M12, 17-pin female plug straight head; | KJ58C5 | 44400026 | |
Product Display
High speed, high pulse, high precision,
resistance to high and low
temperatures, and high stability

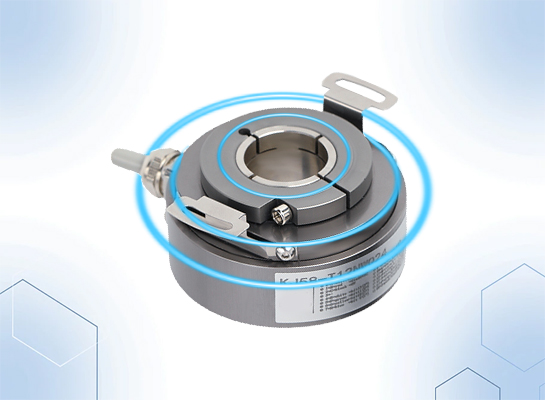

Compact structure: The overall layout is reasonable,
saving installation space

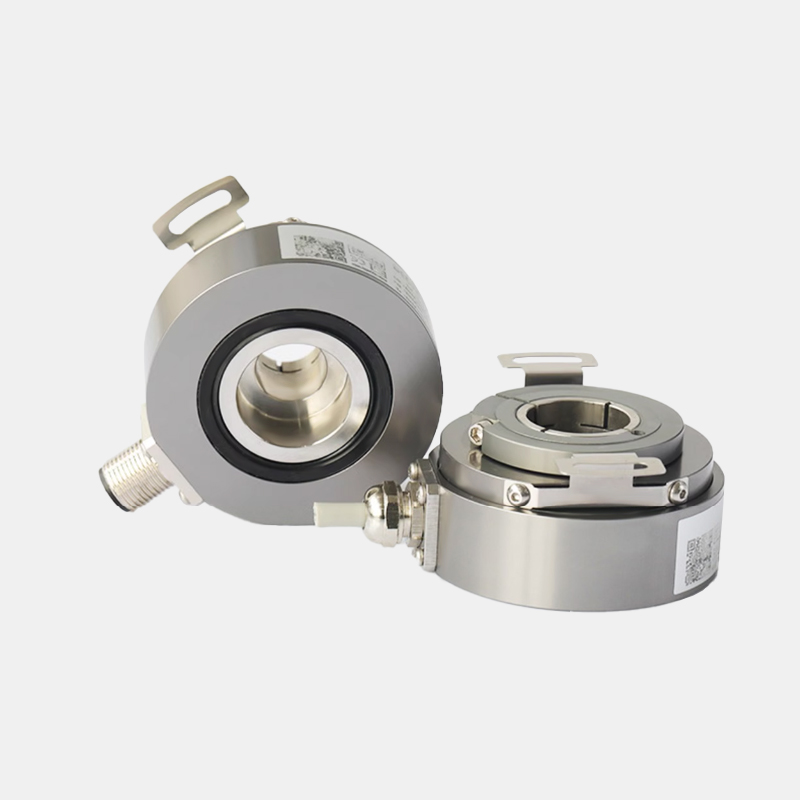

Unique design: It adopts a hollow
structure and can be directly slewed onto a rotating shaft
without occupying additional space
