Product Description

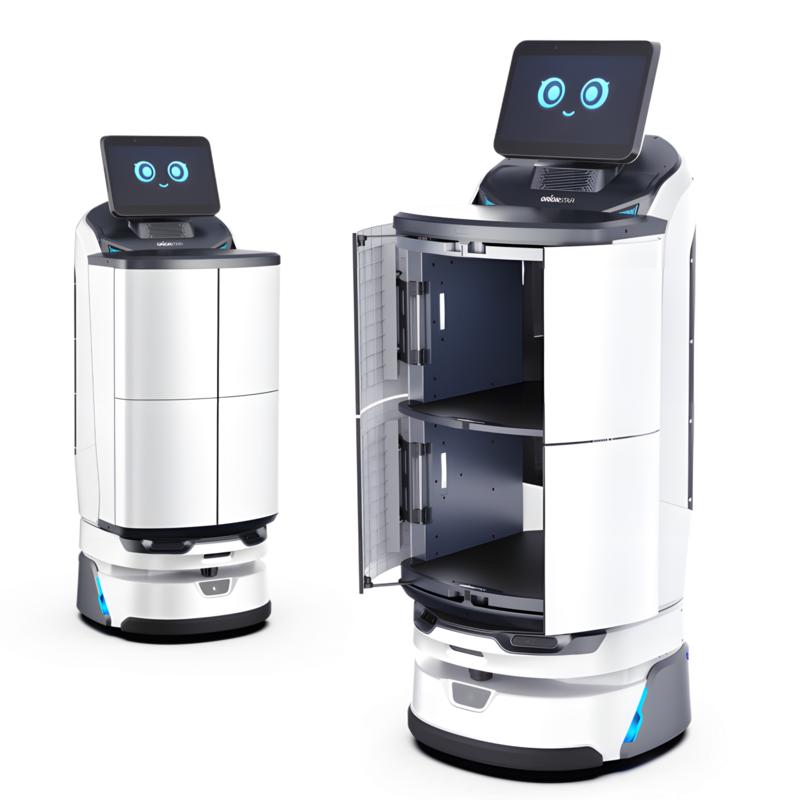

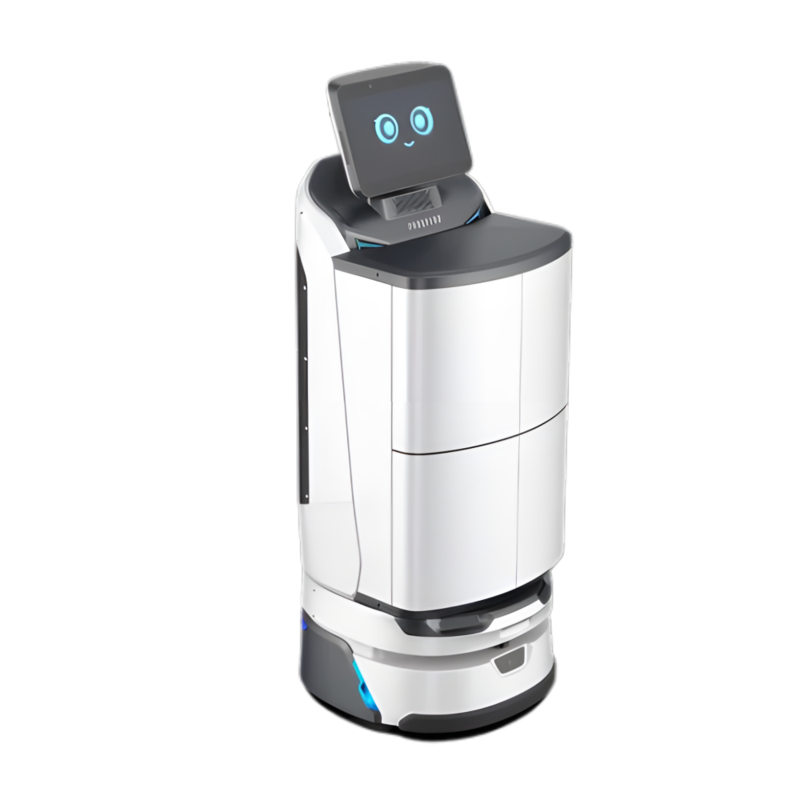

MediBOT-001 is a smart, autonomous service robot developed specifically for hospital environments to support medical staff, enhance operational efficiency, and improve patient care. Designed with safety, hygiene, and ease of use in mind, MediBOT-001 seamlessly navigates hospital corridors to deliver essential items such as medications, documents, lab samples, meals, and medical supplies.
Benefits:
Frees up healthcare staff for critical, patient-facing duties
Minimizes human contact, helping prevent infection transmission
Reduces operational delays with on-demand autonomous delivery
Operates 24/7 with minimal supervision
| Application Area | Task Description | Key Parameters | Benefits |
| Medication Delivery | Transporting prescribed drugs to patient wards or nurse stations | Compartment size: 3–5 lockable units Delivery time: ~5 min/round | Ensures timely delivery, reduces human error |
| Document Transport | Moving patient records, reports, or administrative files | Max load: Up to 15 kg Navigation speed: 1 m/s | Speeds up internal communication |
| Lab Sample Transfer | Moving blood, tissue, or other samples to the lab | Temperature-controlled option Secure compartment system | Maintains sample integrity, reduces staff burden |
| Meal Distribution | Delivering patient meals from kitchen to designated rooms | Food tray support Scheduled route programming | Improves efficiency, minimizes manual handling |
| Equipment Logistics | Delivering PPE, tools, or medical kits | Payload: Up to 15 kg Battery life: 10–12 hours | 24/7 availability, reduces nurse workload |
| Disinfection Support | Optional UV-C disinfection in corridors and isolation areas | UV-C module range: up to 3 meters Operation mode: autonomous | Enhances hygiene, supports infection control protocols |
Product Features
Autonomous Navigation: Uses advanced sensors, LiDAR, and real-time mapping to move safely through dynamic hospital environments.
Multi-Task Functionality: Capable of performing multiple support roles including delivery, disinfection, and communication tasks.
Touchscreen Interface: Easy-to-use interface for nurses and staff to assign tasks and monitor robot status.
Voice Interaction: Allows basic verbal communication with staff or patients, improving human-robot interaction.

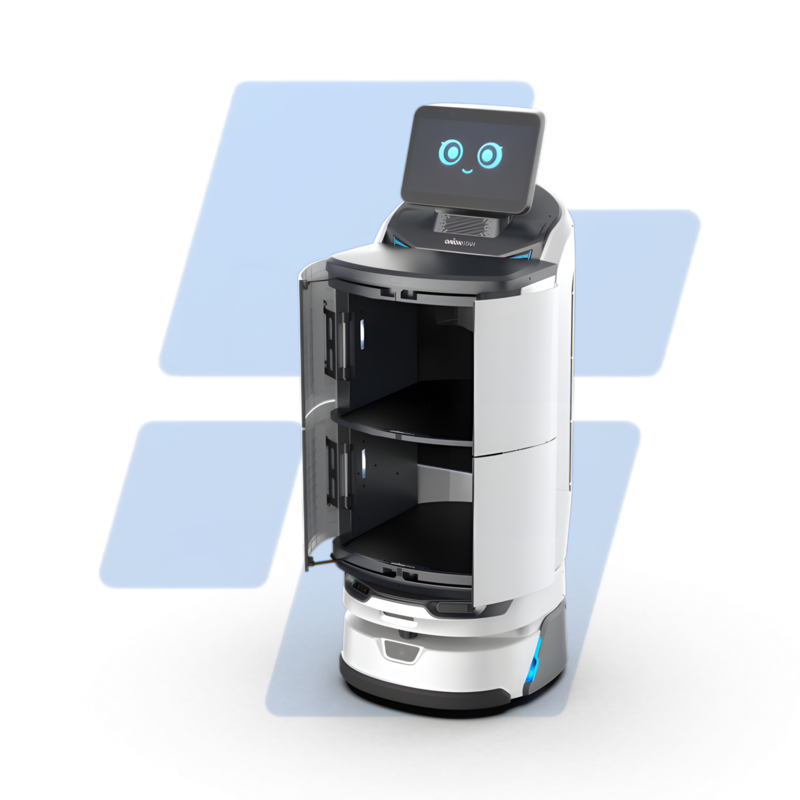

Secure Delivery System: Equipped with lockable compartments for secure transportation of sensitive or high-value items.
Contactless Operation: Reduces human contact and risk of infection spread, supporting hospital hygiene protocols.
Product parameters
| Parameter | Specification | Parameter | Specification |
| Robot Type | Autonomous Mobile Service Robot | Charging Time | 3–4 hours (Auto-docking capable) |
| Dimensions | Approx. 500 mm (W) × 500 mm (L) × 1200 mm (H) | Display | 10” Touchscreen LCD |
| Weight | ~50–70 kg (depending on configuration) | Communication Interfaces | Wi-Fi, Bluetooth, Cloud Connectivity |
| Payload Capacity | Up to 15 kg | Control Interface | Touchscreen, Web portal, Mobile App |
| Navigation System | LiDAR + SLAM (Simultaneous Localization and Mapping) | Safety Features | Obstacle detection, emergency stop, 360° sensors |
| Navigation Accuracy | ±10 mm | Compartment Design | 3–5 lockable compartments (customizable) |
| Movement Speed | Up to 1.0 m/s (adjustable) | Optional Modules | UV-C disinfection unit, temperature-controlled storage |
| Battery Type | Rechargeable Lithium-ion Battery | Operating Environment | Indoor, hospital-grade flooring |
| Battery Life | 10–12 hours continuous use | Operating Temperature | 10°C to 40°C (50°F to 104°F) |
Customer Case

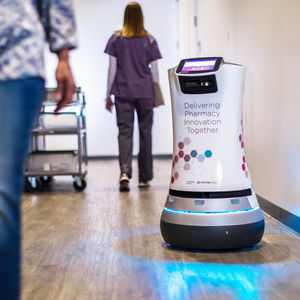

Medication Delivery to Wards
Lab Sample Transportation
Contactless Meal Delivery
FAQ
A: MediBOT-001 can deliver medications, lab samples, meals, documents, and medical supplies. It can also support disinfection with optional UV-C modules.
Q: Is MediBOT-001 safe to operate around patients and staff?
A: Yes, it is equipped with sensors and obstacle avoidance to safely navigate crowded hospital environments, and complies with hospital-grade safety standards.
Q: Can MediBOT-001 be integrated into existing hospital systems?
A: Yes, it supports Wi-Fi connectivity, cloud integration, and can be controlled via touchscreen, mobile app, or web interface.
Q: How long can the robot operate before needing a recharge?
A: MediBOT-001 operates for up to 12 hours on a single charge and can auto-dock for recharging in about 3–4 hours.
Q: Does the robot require special training to operate?
A: No. MediBOT-001 is designed for ease of use with an intuitive touchscreen and simple task assignment—minimal technical skills are needed.
