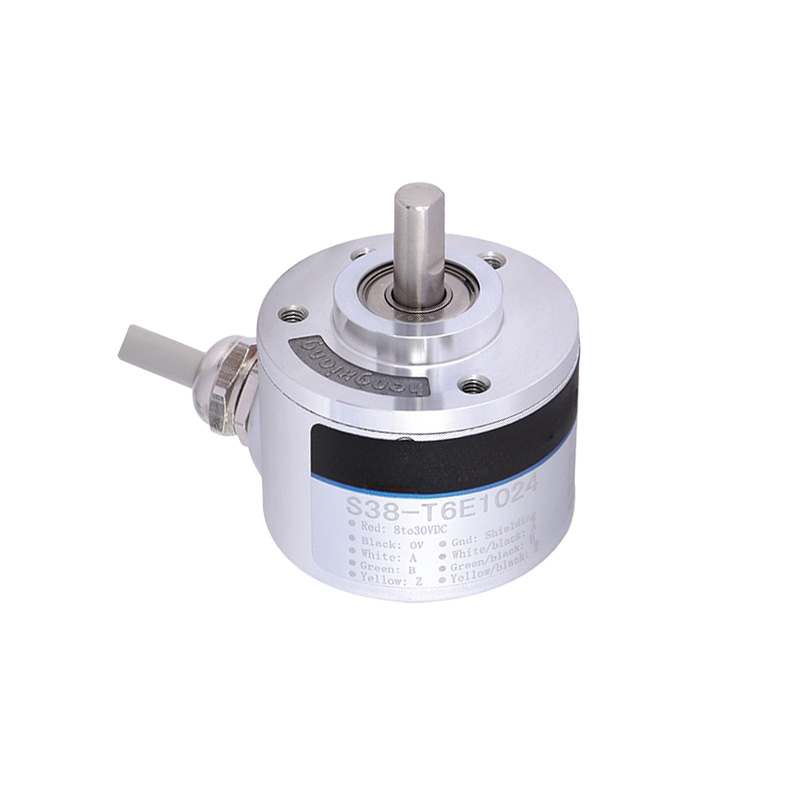

S38 incremental photoelectric encoder 38mm small solid shaft 6000rpm high speed control motor automation dedicated

S38 Incremental Solid Shaft Encoder | 32768PPR High Resolution | Reverse Polarity / Short Circuit Double Protection | 30N Radial Loading Capacity | Automation Equipment Selection

Output mode :
Differential TTL
Collector NPN
Pulse selection :
100P/R
300P/R
360P/R
600P/R
1000P/R
1024P/R
2000P/R
4096P/R
5000P/R
10000P/R

USD: 34

ablity:Monthly Output5000

contact shop

Product Description

S38 incremental photoelectric encoder (solid shaft) is a small economical general design with compact structure,

strong and high safety, widely used in industrial automation field.

Product Features
1.1 Features

Encoder diameter Φ38mm, thickness 28mm, standard shaft diameter Φ6mm;
Adopts non-contact photoelectric principle;
With reverse polarity protection and short circuit protection;
A variety of electrical interfaces are available;
The resolution can reach up to 32768PPR per week.
1.2 Application Scope
Automation control fields such as textiles, packaging, motors, elevators, and CNC.

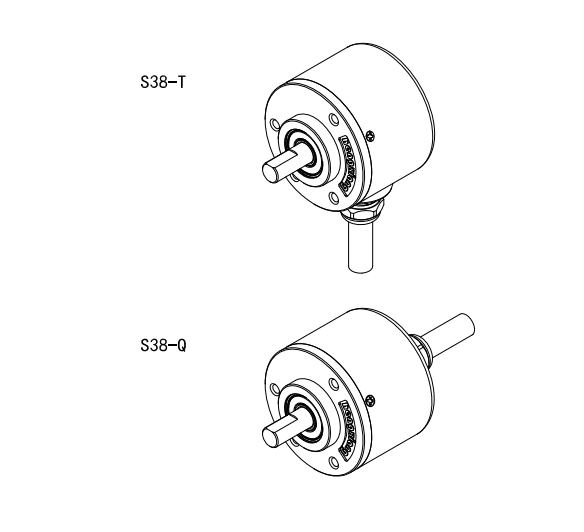

1.3 Connection
Radial cable (standard length 1M)
Axial cable (standard length 1M)
1.4 Protection level

IP50 & IP65
1.5 Weight
Approximately 120g

Product parameters

Project

Parameter

Dimensions

Outer diameter: 38mm

Thickness: 28mmm

Shaft diameter: 6mm

Pulse

50;60;66;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;
1024;1200;2000;2048;2500;5000;8192;10000;16384;20000;28800;32000;32768;

Reverse polarity protection

Short circuit protection

Output phase

Phase A,B,Z,A-,B-,Z-

Output mode

Radial Cable & Axial Cable

Protection level

IP50 & IP65

Output type

N - Open Collector (NPN)

V - voltage output

F-Push-pull output

P(PNP)

TTL

HTL

Current consumption

100mA max

120mA max

Maximum response frequency

100KHZ

200KHZ

300KHZ

Starting torque

4.4x10-3N·m or less

Moment of inertia

1.5x 10-6kg·m2 or less

Axis allowable force

Radial force 30N; axial force 20N

Maximum allowable speed

≤6000RPM,IP65≤4000RPM

Ambient temperature

Working: -20 to +90°; Storage: -25 to +95°

Ambient humidity

35-85%RH (no condensation) during operation and storage

Vibration (durability)

Amplitude 0.75mm, 5-55Hz, 1 hour in each of three directions

Impact (durability)

49m/s2

Casing

Die-cast aluminum alloy

Line length

1000mm

Packing method

Paper Box

Weight

120g

Certificate

CE/ ISO9001

Instructions

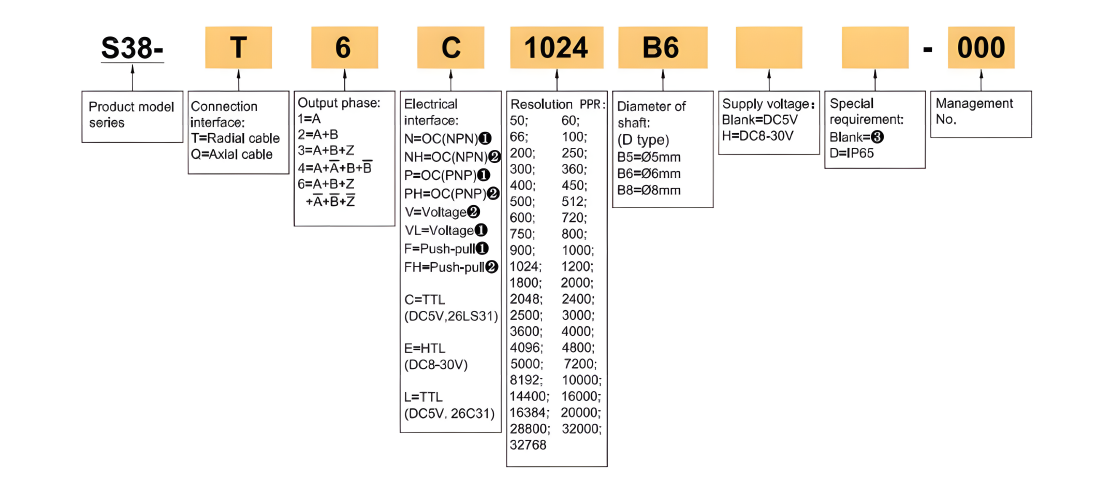

1. Selection guide

Model composition (selection parameters)

Note:

①. The Z phase signal is valid at low level.

②. The Z phase signal is valid at high level.

③. None means IP50, cable length 1M, if you need to change the length, C+number (up to 100M, such as C100)

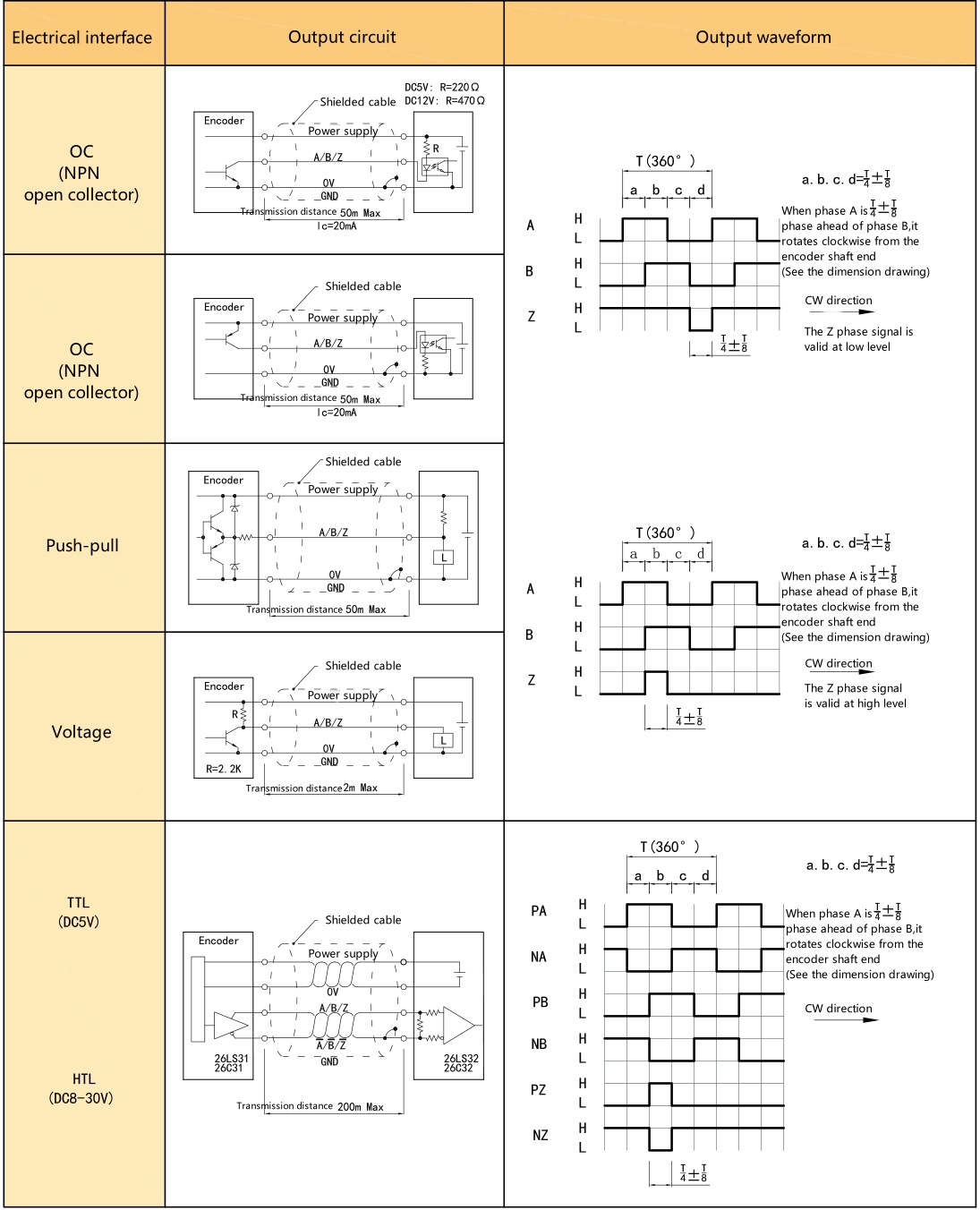

2. Output mode

3. Electrical parameters

Project

Output method

OC

Voltage

Push-pull

TTL

HTL

HTL

Supply voltage

DC+5V±5% ; DC8-30V±5%

DC+5V±5%

DC8-30V±5%

Current consumption

100mA Max

120mA Max

Allowable ripple

≤3% rms

Maximum response frequency

100KHz

300KHz

500KHz

Output capacity

Output
current

Inflow

≤30mA

Load resistance 2.2K

≤30mA

≤±20mA

≤±50mA

Outflow

≤10mA

Output
voltage

"H"

≥[(power supply voltage)-2.5V]

≥2.5V

≥Vcc-3 VDC

"L"

≤0.4V

≤0.7V(20mA or less)

≤0.4V(30mA)

≤0.5V

≤1 VDC

Load voltage

≤DC30V

Rise and fall time

2us or less (wire length: 2m)

≤100ns 1μs or less (wire length: 2m)

Insulation withstand voltage

AC500V/60s

Insulation impedance

10MΩ

Duty cycle

45%~55%

Reverse polarity protection

Short circuit protection

A.B Phase Difference

90°±10° (at low frequency)

90°±20° (at high frequency))

Shielded wire

Encoder body not connected

Note: ① Short circuit with another cable or GND, the maximum allowed time is 30 seconds

4. Mechanical specifications

Project

Parameter

Shaft diameter

Φ5mm, Φ6mm, Φ8mm (D-shaped port, stainless steel)

Starting torque

4.4×10³ N・m or less

Moment of inertia

1.5×10⁻⁶ kg・m² or less

Allowable shaft force

Radial 30N; Axial 20N

Maximum allowable speed

≤6000 rpm (IP50);
≤4000 rpm (IP65)

Bearing life

Rated load 1.5×10, 100,000 hours at 2500RPW

Housing

Aluminum alloy

Weight

Approx. 120g

5. Environmental parameters

Project

Parameter

Ambient temperature

Operating: -20~+90°C (repeated bending cable: -10°C); Storage: -25~+95°C

Ambient humidity

Operating/Storage: 35~85% RH (non-condensing)

Vibration (durability)

Amplitude 0.75mm, 5~55Hz, 2h each in three axes

Shock (durability)

490m/s², 11ms, 3 times each in X/Y/Z directions

Protection level

IP50 & IP65

6. Wiring table

6.1 OC/Voltage/Push-Pull (Wiring diagram for cable connection)


Supply voltage

Incremental signal

Line color

Red

Black

White

Green

Yellow

Function

Up

OV

A

B

Z

6.2 TTL/HTL (wiring table for cable connection)

Supply voltage

Incremental signal

Line color

Red

Black

White

White / Black

Green

Green/Black

Yellow

Yellow/Black

Function

Up

OV

A+

A-

B+

B-

Z+

Z-

Twisted Pair

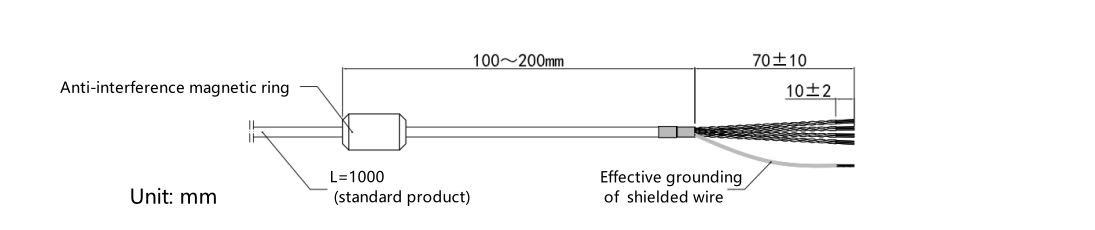

6.3 Cable Connection

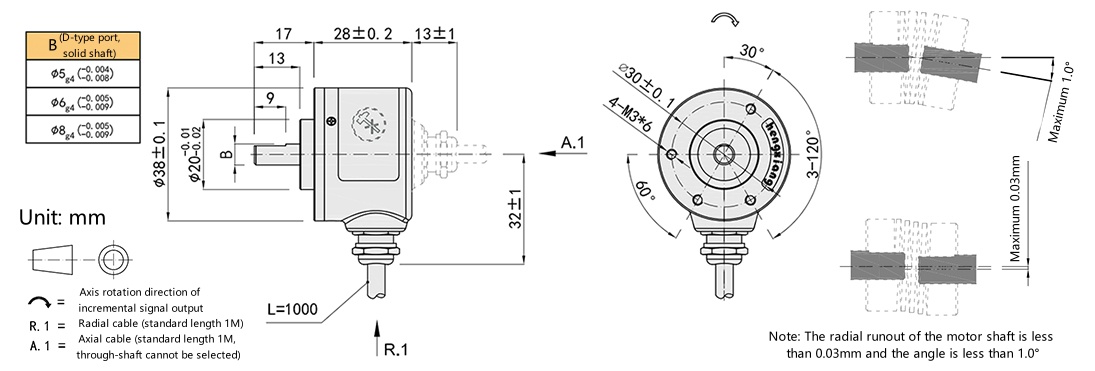

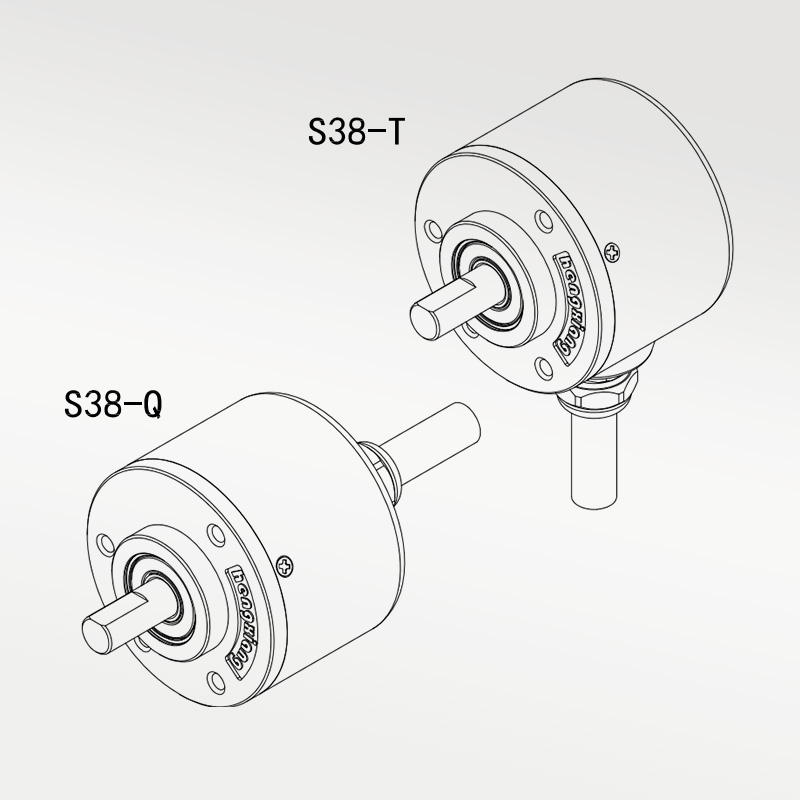

7. Basic dimensions and installation requirements

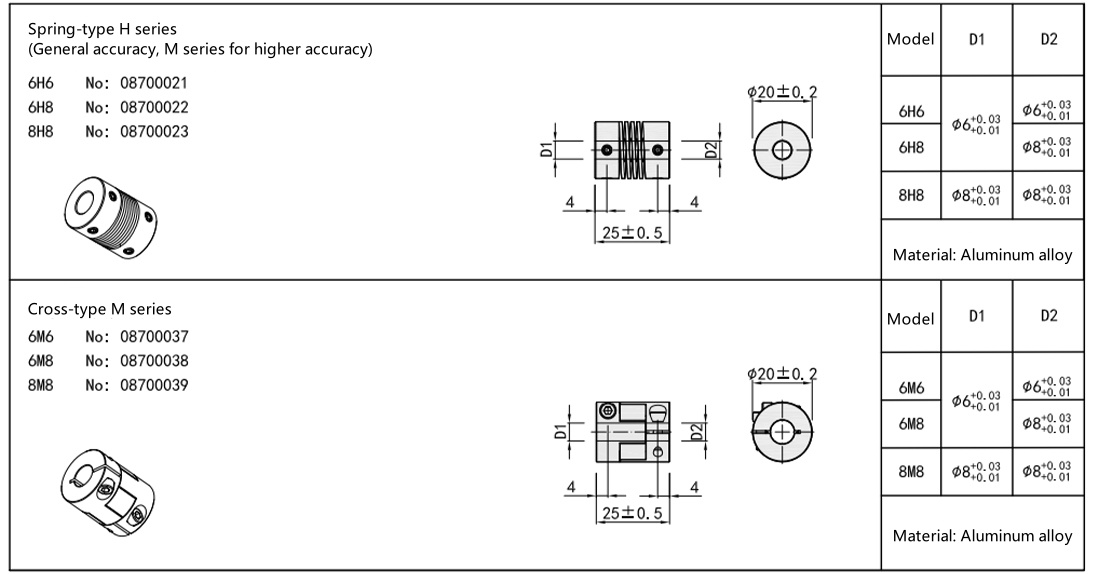

8. Accessories (recommended)

9. Precautions

9.1Regarding vibration

The vibration added to the rotary encoder often causes pulse errors, so you should pay attention to the installation location. The more pulses per revolution, the narrower the slot interval of the grating, and the more susceptible it is to vibration. When rotating at low speed or stopping, the vibration added to the shaft or body causes the grating to shake, which may cause pulse errors.

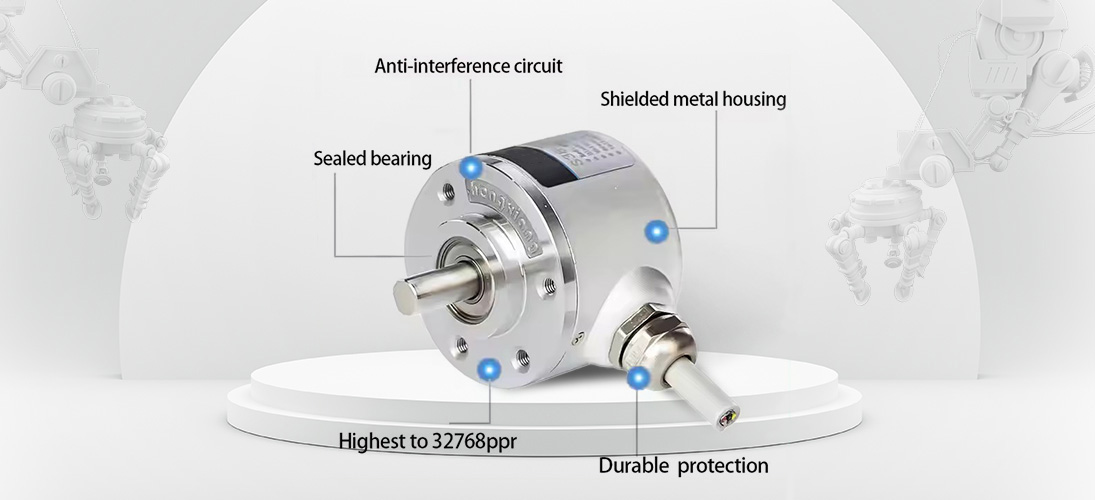

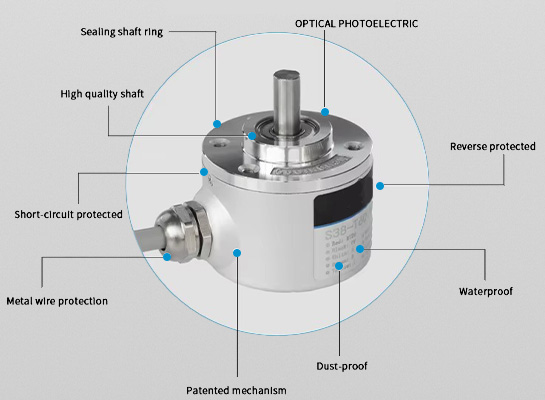

Product Display





Strong anti-interference ability: equipped with anti-interference circuit, shielded metal shell


High speed operation: maximum speed reaches 32768 rpm


Good durability: sealed bearings, durable protection





Unique mechanical structure


Photoelectric induction type


Stable duty cycle, reducing the influence of temperature and transmitting tube attenuation


Adjusting bearing clearance, the shaft is not easy to pull out


Wide voltage, anti-interference, reverse connection protection, short circuit protection

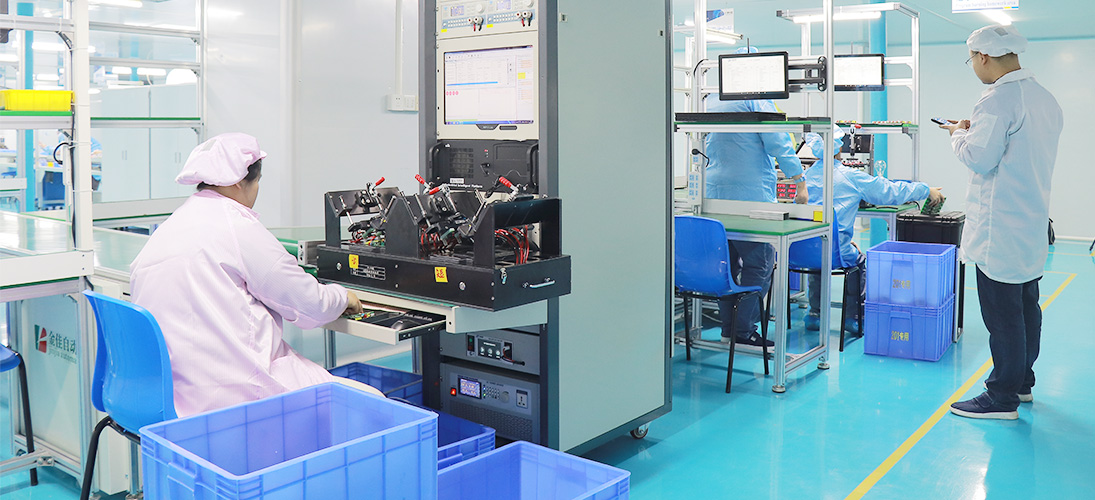

Quality Control

The quality of encoders is directly related to the stability and reliability of industrial automation systems. We have built a full-process quality control system, strictly screening suppliers from raw material procurement to ensure that the performance of core components meets standards; in the production process, we use high-precision equipment and standardized processes, and cooperate with online detection technology for real-time monitoring; in the finished product stage, we conduct rigorous tests such as high and low temperature, electromagnetic compatibility, and life aging to eliminate performance risks. Each encoder has passed multiple quality inspection levels, and its excellent quality has laid a solid foundation for intelligent manufacturing, providing customers with long-term and stable use guarantees.

Application Cases

With its small size, light weight, easy installation and stable performance, the S38 series encoders are widely used in industrial automation (compatible with PLC, MCU and other systems, used for servo motor feedback, CNC machine tool positioning, motor angle/speed control and high-precision tool movement), light industrial printing and packaging (precise control of equipment running speed and position) and small instruments, micro motor automation control (providing position detection data support) and other scenarios.


Service

I.  Precautions for using the encoder

Places where the ambient temperature does not exceed the storage temperature; places where the relative humidity does not exceed the storage humidity; places where the temperature changes sharply and fogging occurs; places close to corrosive gases and flammable gases; places away from dust, salt, and metal powder; places where water, oil, and medicines are used; places where excessive vibration and impact will be transmitted to the body


II. Precautions for installing the encoder

Electrical components must not be subjected to overvoltage and other phenomena. Please conduct an electrostatic assessment of the setting environment, etc. Do not bring the motor power line close to the encoder; the FG line of the motor and the FG of the mechanical device must be reliably grounded; due to shielding The wire is not connected to the encoder body. Please make sure that the shielded wire is effectively connected to the ground at the user end.


III. Precautions on wiring

When used under the specified power supply voltage, please pay attention to the power supply voltage amplitude drop caused by the long wiring; please do not use the encoder wire and other power wires in the same pipe or bundle them in parallel; please use twisted pair wires for the signal wire and power wire of the encoder wire; please do not apply excessive force to the encoder harness, there will be a risk of disconnection


IV. About encoder warranty

Within twelve months after purchasing our company's products, users can get free warranty when they use them correctly according to the instructions,warning signs and other precautions and cause failures.

The following situations will be charged even during the warranty period: (freight is at your own expense)

1. Failures and damages caused by the user falling to the ground during transportation and handling, improper installation;

2. Failures of this product caused by the machine connected to it;

3. Failures and damages caused by fire, salt water, corrosive gas, abnormal voltage and other natural disasters such as earthquakes, thunder, wind, floods, etc.;

4. Repairs, adjustments, and modifications without the permission of our company (labels are not there or the outer cover is disassembled by yourself).

5. Failures that occur when the product is not used in accordance with the instructions and precautions in the instruction manual.

6. Except when other agreements are signed with the customer.
