Product Description

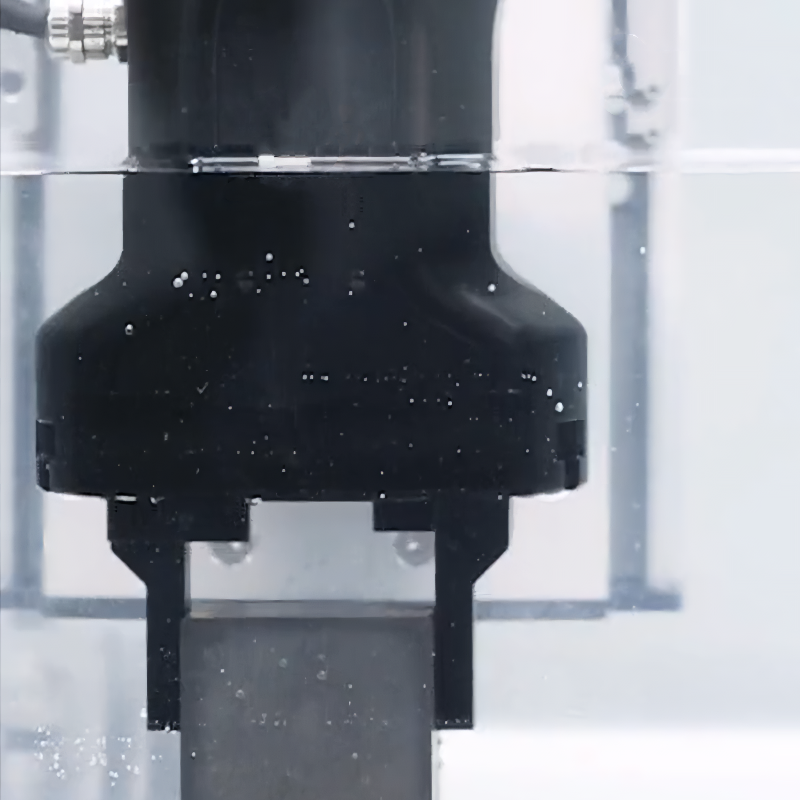

   Extra Large Stroke           Precise Control            IP65 Protection            Level  Drop Detection        Grab Feedback      Power Failure Self-Locking

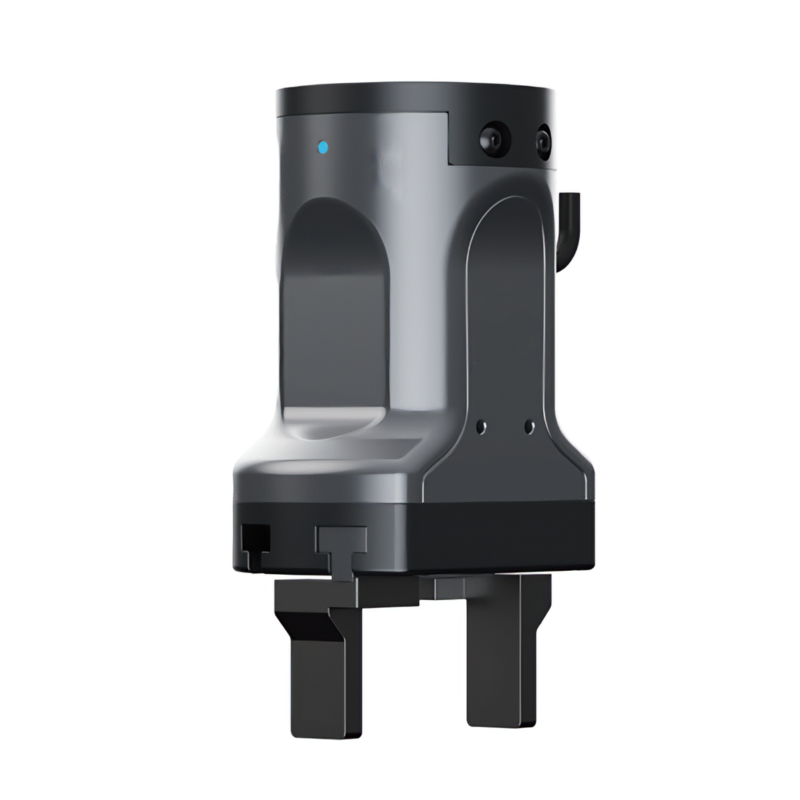

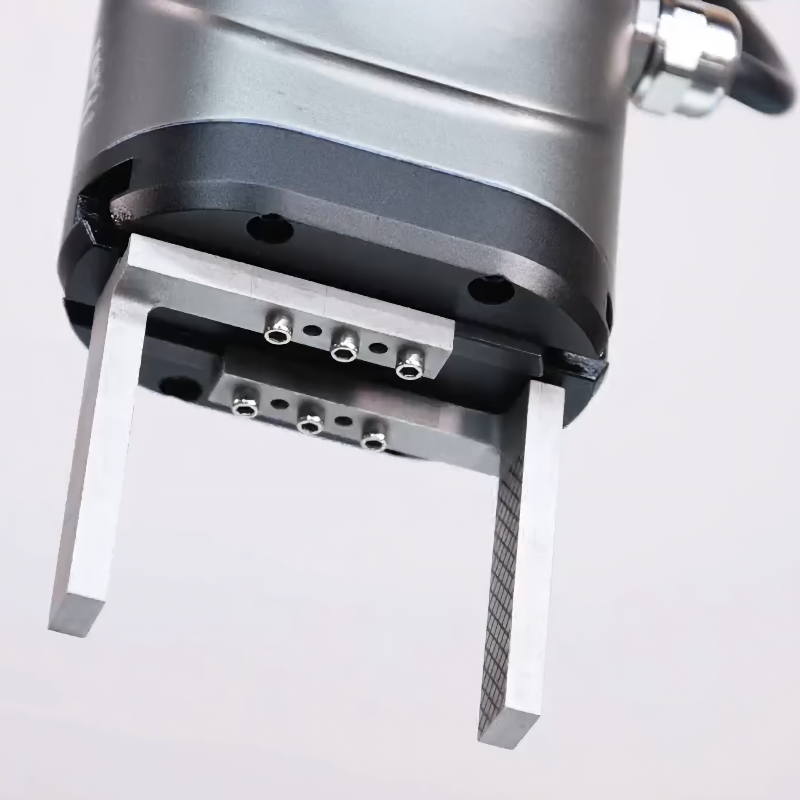

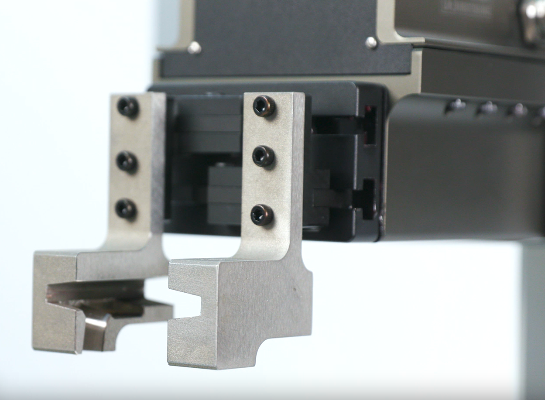

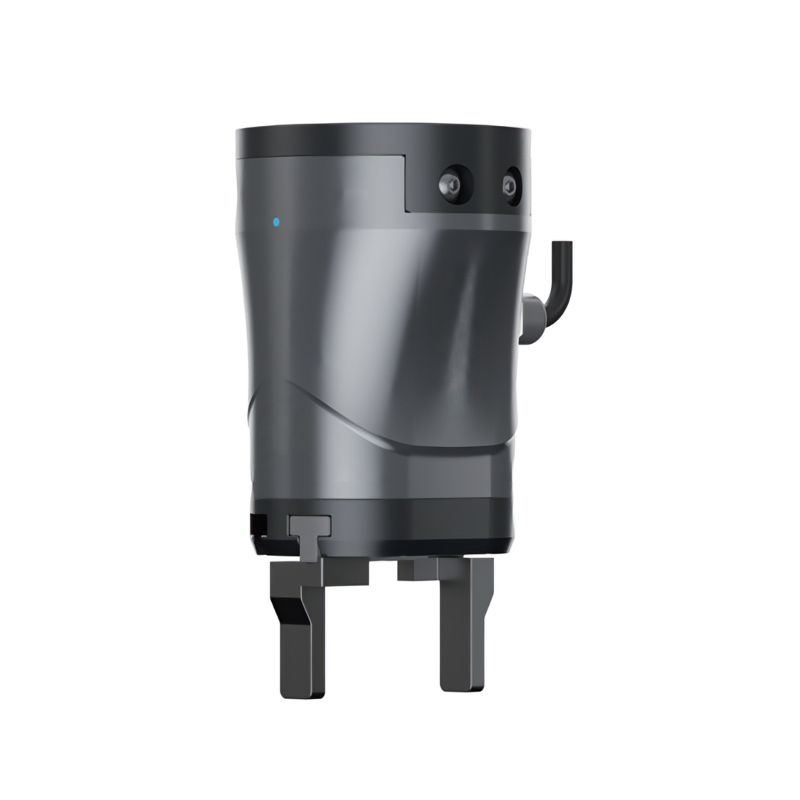

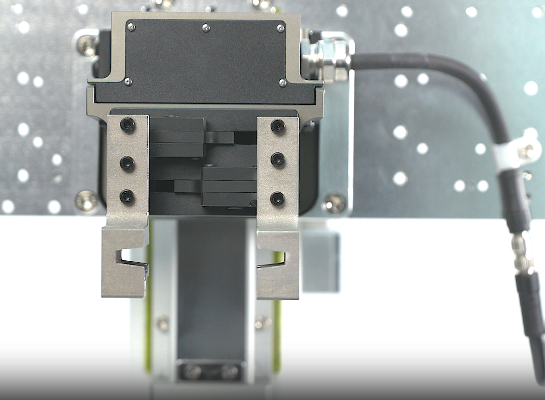

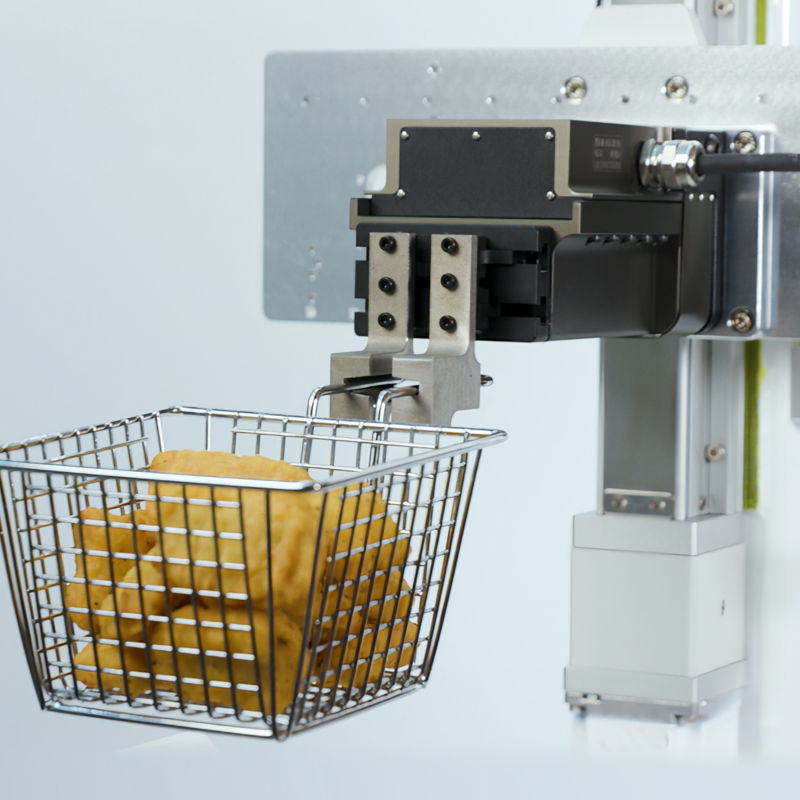

RG series robot electric grippers are designed for collaborative manipulators, with advantages such as high protection level, plug and play, and large load. The product adopts standard interface, supports adjustable and controllable force and position, and has power-off retention, gripping feedback and drop detection functions. It perfectly integrates precision force control technology with industrial aesthetics, helping flexible automation operations to be more efficient and reliable.

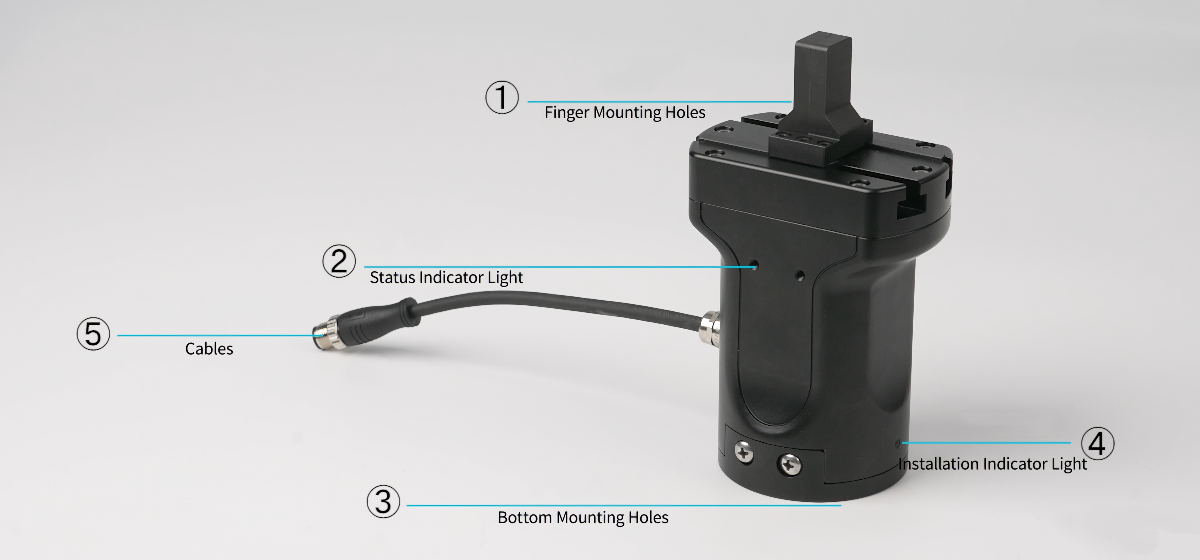

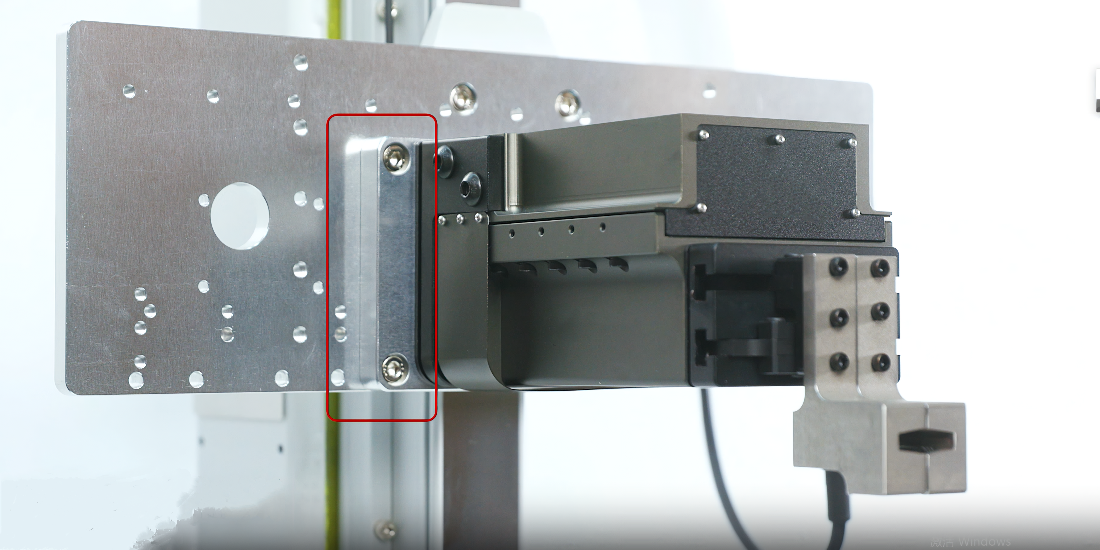

Strong compatibility   Easy installation

Adjustable stroke 0-75mm

Single finger gripping force 2-300N

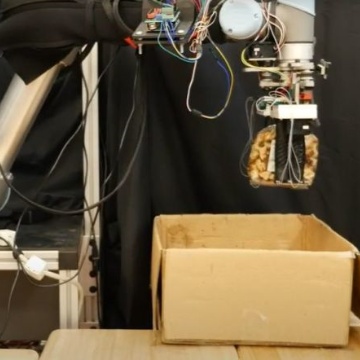

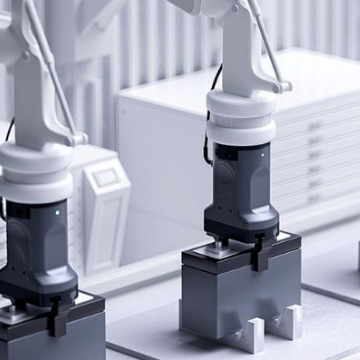

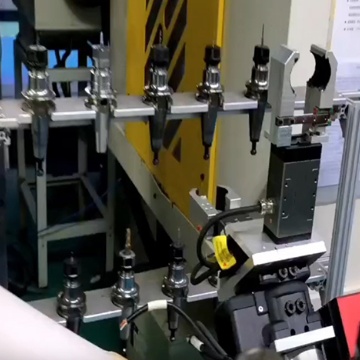

Application

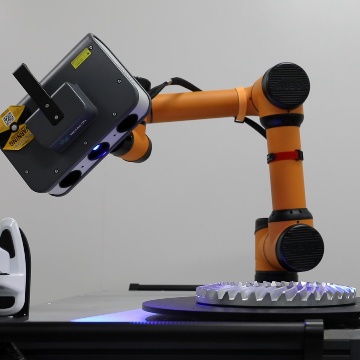

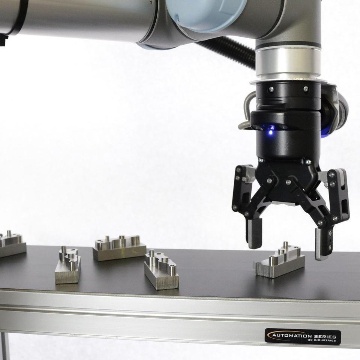

INSPECTION

PACKAGING

LOADING AND UNLOADING

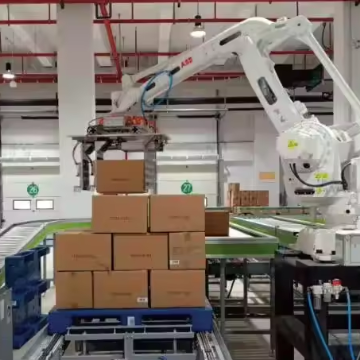

STACKING

FLIEXIBLE ASSEMBLY

PROCESS CONVERSION

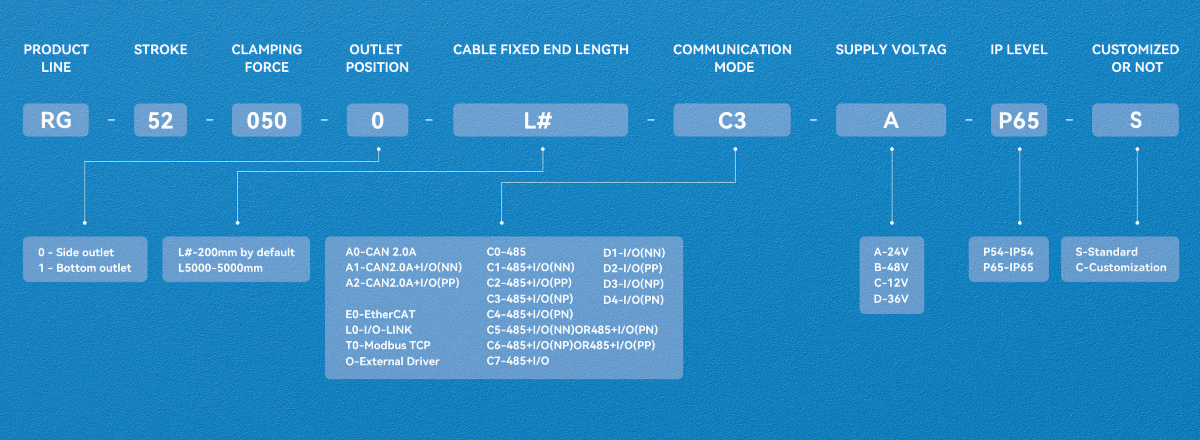

Selection Method

Product parameters

Model	RG52-050	RG75-300
Adjustable stroke	0-52mm	0-75mm
Single finger gripping force	2-50N	40-300N
Opening/closing time	0.65s	0.55s
Position repetition accuracy	±0.02mm	±0.02mm
*Maximum recommended load	1Kg	6kg
Drop detection	support	support
Power outage maintenance	support	support
Usage environment	5-40 ℃, below 85% RH	5-40 ℃, below 85% RH
Running noise	＜40dB	＜40dB
Body weight	0.75Kg	1.5Kg
IP level	IP54	IP65
Rated voltage	DC 24V±10%	DC 24V±10%
Maximum current	0.8A	1.5A
Rated current	0.5A	0.55A
communication protocol	Modbus RTU(RS 485) Digital I/O	Modbus RTU(RS 485)
Compliant with international standards	CE、RoHS	CE、RoHS
Vertical allowable static load Fz	200N	400 N
Permissible static moment of slider Mx	2.5N.m	8 N·m
The allowable static moment of the slider My	2N.m	8 N·m
The allowable static moment Mz of the slider	2.8N.m	8 N·m

Note: This product does not include finger clips

Drawing

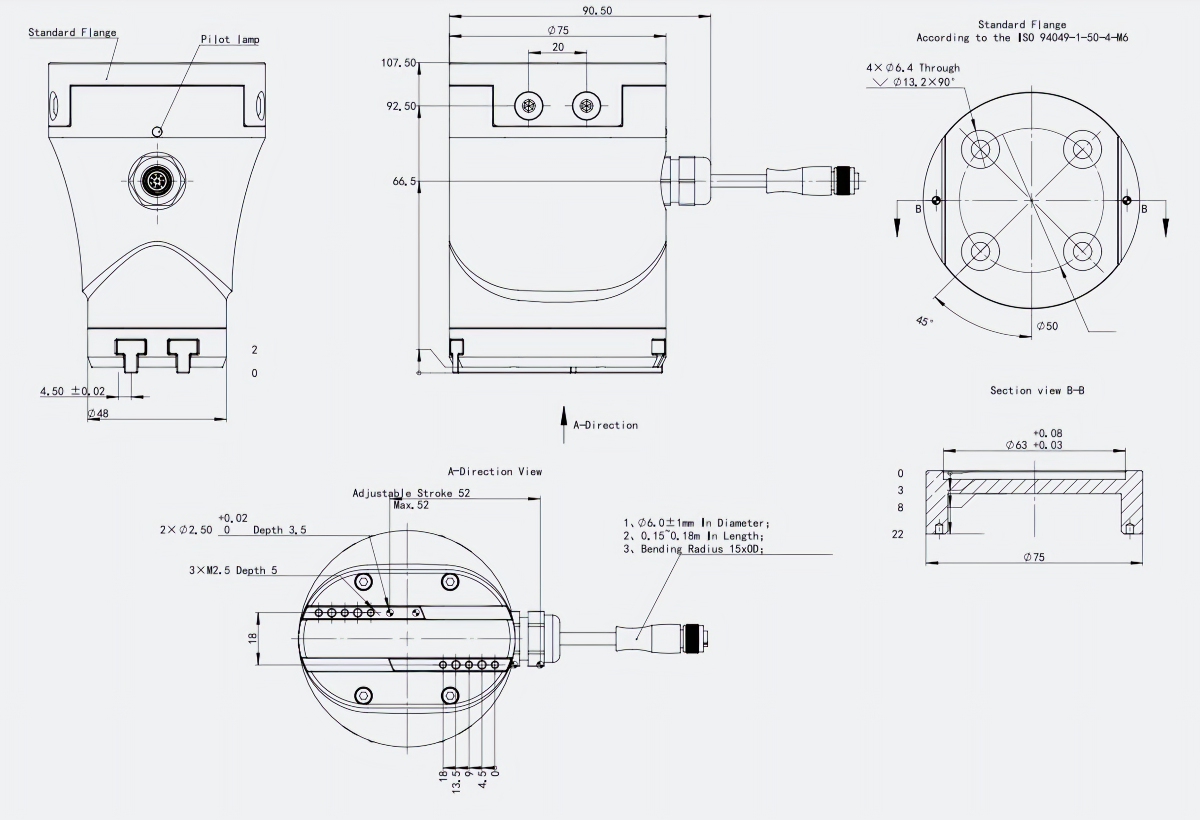

RG52-050

---

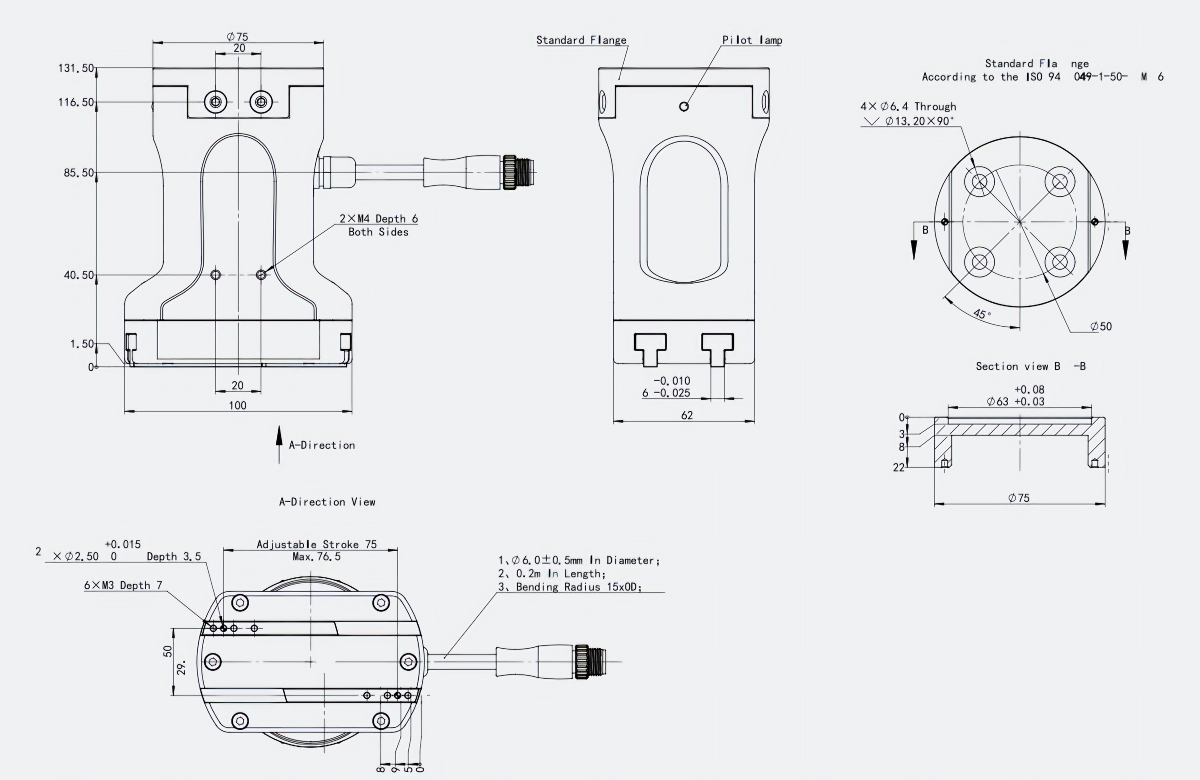

RG75-300

Wiring Diagram

RG75-300 for reference

Service

1. Warranty commitment

-Provide 12 months warranty (from the date of leaving the factory or delivery)

-During the warranty period, non-human damage can be replaced/repaired free of charge

2. Remote technical support

-Provide English technical support (email, video, remote debugging)

-Response time can be promised within 24 hours

3. Complete technical information

-Provide complete product manuals, installation instructions, wiring diagrams, debugging guides

-Some products can be attached with 3D models (STEP), electrical interface protocols, communication sample codes.
