Product Description

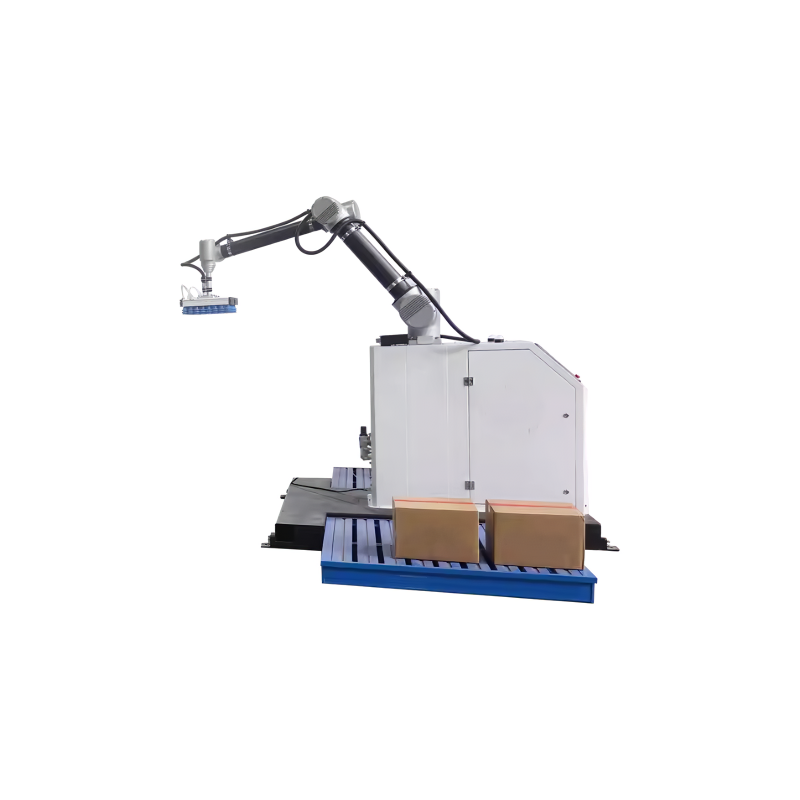

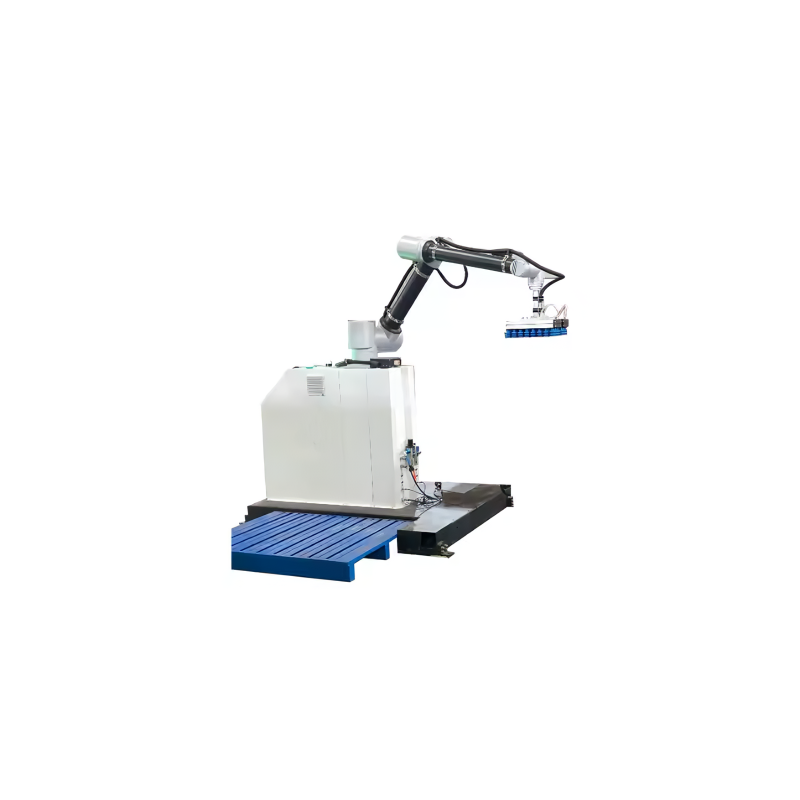

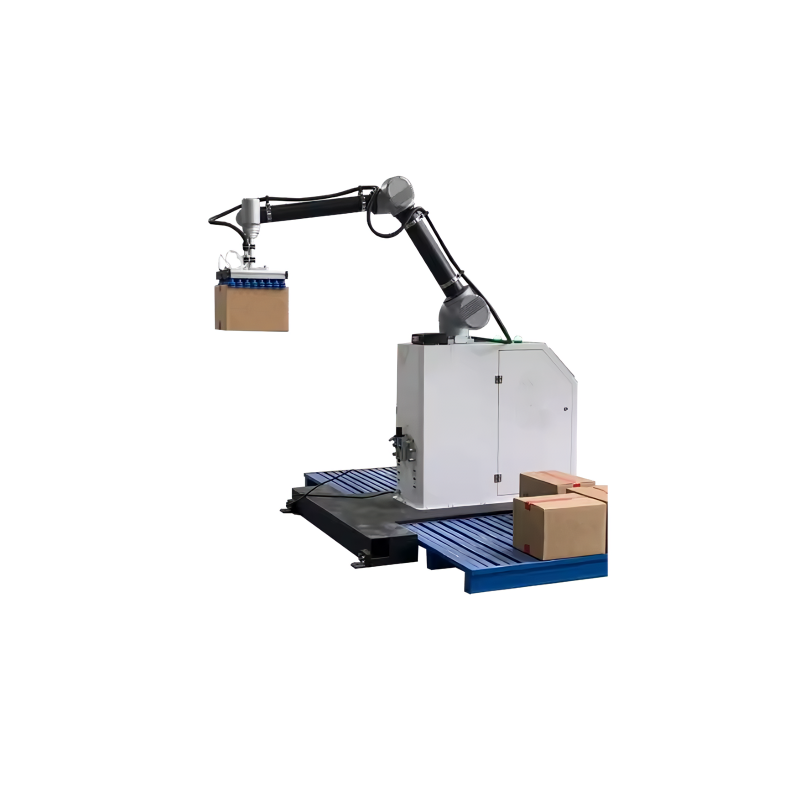

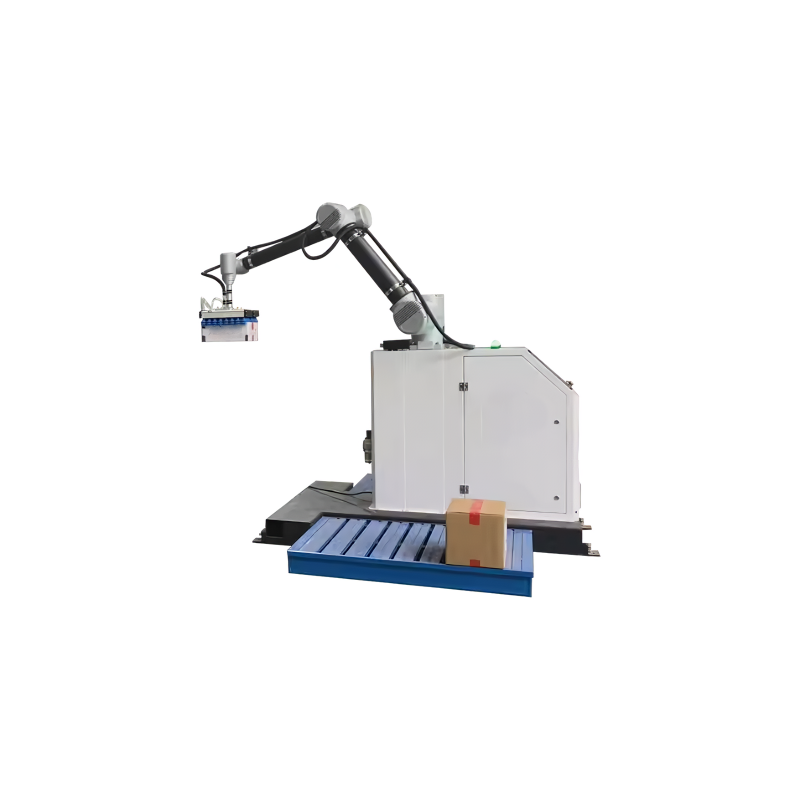

High-performance automatic palletizing robot designed for pick-and-place operations of cartons, bags, and box cases. This intelligent stacking system increases packaging efficiency, reduces manual labor, and ensures consistent, precise arrangement on pallets. Ideal for manufacturing, logistics, and warehouse automation.

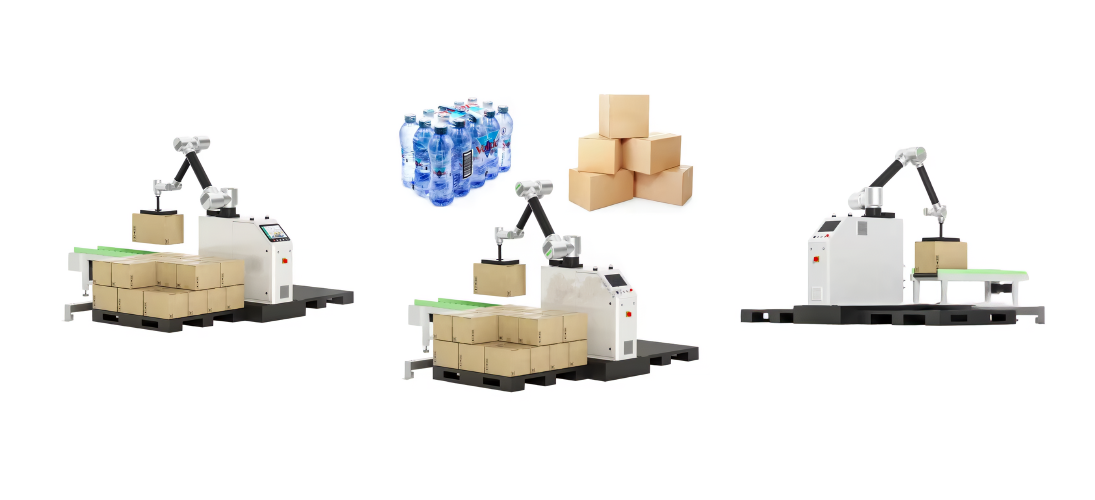

Collaborative palletizing robots are intelligent robots that work closely with human workers to increase productivity and flexibly adapt to different tasks. Safe equipped with sensors, can autonomously learn and sense the environment. Widely used in carton, medicine, food and other industries production line. Enhance production line automation to create a safer and more efficient working environment for staff.
Product Features

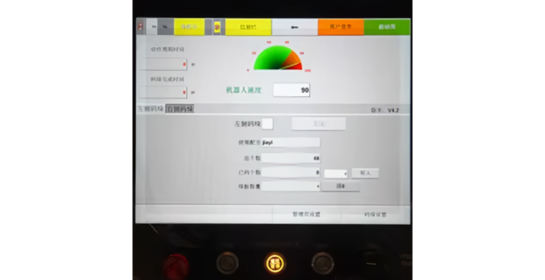

Control Panel with Emergency Stop Switch
Designed with operator safety and ease of use in mind, the control panel is equipped with an emergency stop switch that allows instant shutdown in critical situations. This enhances operational safety while maintaining convenient access to all machine functions.

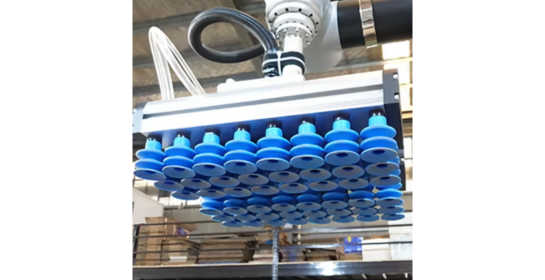

Silicone Suction Cup
Crafted from high-quality silicone material, the suction cup ensures stable and secure gripping of cartons, bags, or irregularly shaped items. Customizable suction cups or end-effectors are available to suit specific applications and product types.

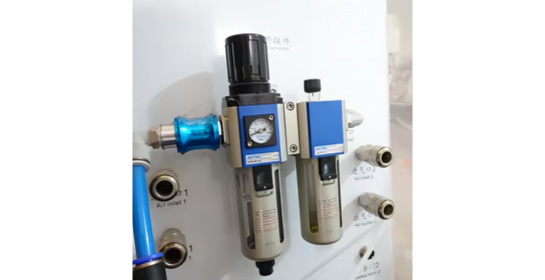

Filter Regulator Unit
Ensures consistent and clean air pressure to the pneumatic system. The built-in filter removes moisture and particulates, while the regulator delivers a stable pressure output—enhancing the reliability and lifespan of the equipment.

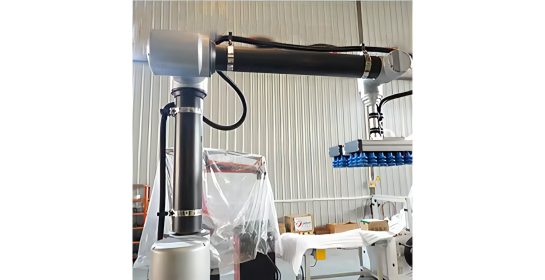

Adjustable Li Column
The robotic arm features an integrated lifting column that can be adjusted in height to meet various stacking requirements. This flexible design allows for smooth adaptation to different pallet heights, improving productivity and versatility on the production floor.
Product parameters
Product model | JY-MD25S |
load | 25kg |
Working radius | 1600mm |
Horizontal distance | Horizontal coverage radius of palletizing robot :1600mm Maximum allowable application size of pallet :1200*1200*100mm |
Vertical distance | Elevating H2=2100mm |
Palletizing speed | ≤6 boxes /min |
Repeated positioning accuracy | ±0.04mm |
Rated voltage | 220V |
Machine weight | ≈300KG |
Floor space | 1505*1716mm |
