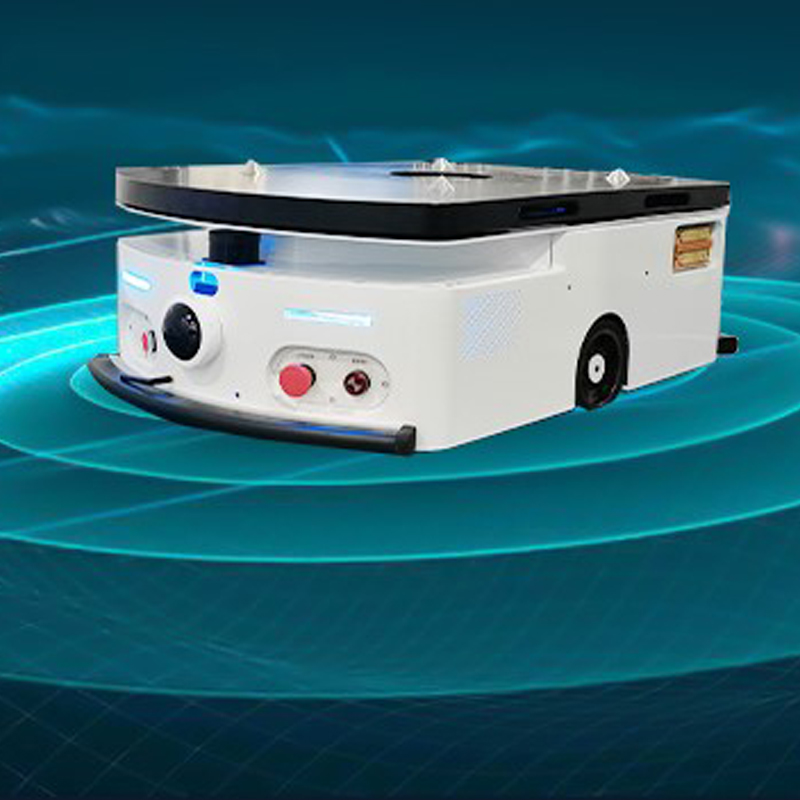

Lurking lifting AGV lifting series J-500CJ-STL
Wheeled trolley handling and lifting mechanism Industrial warehouse mobile logistics robot AGV
USD： 11088-14529
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

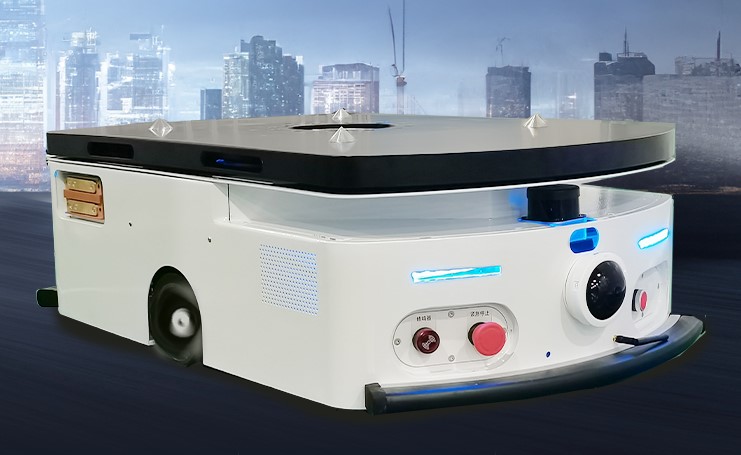

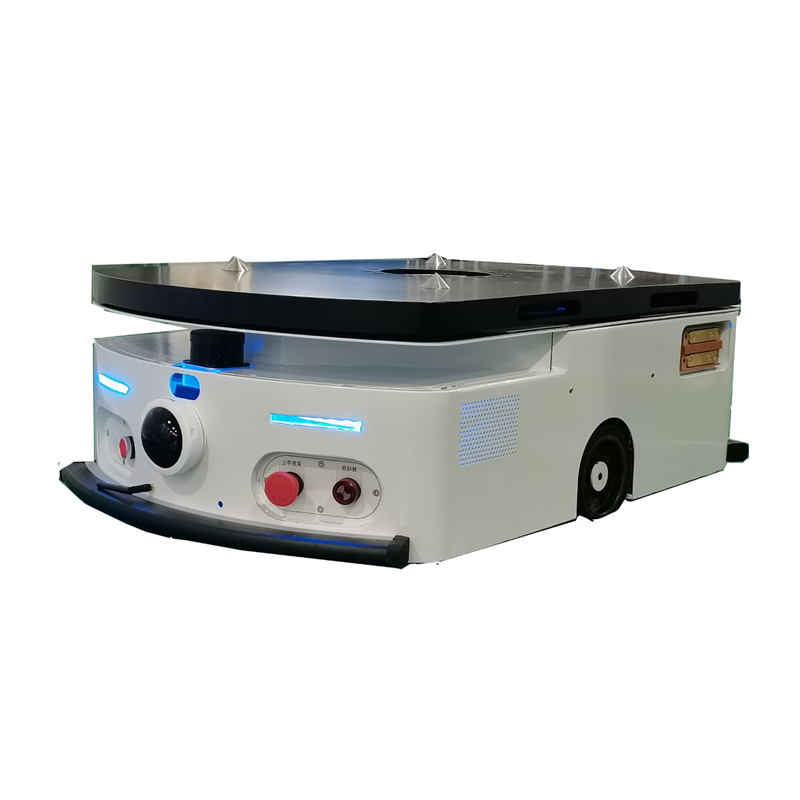

Lifting Series——J-500CJ-STL

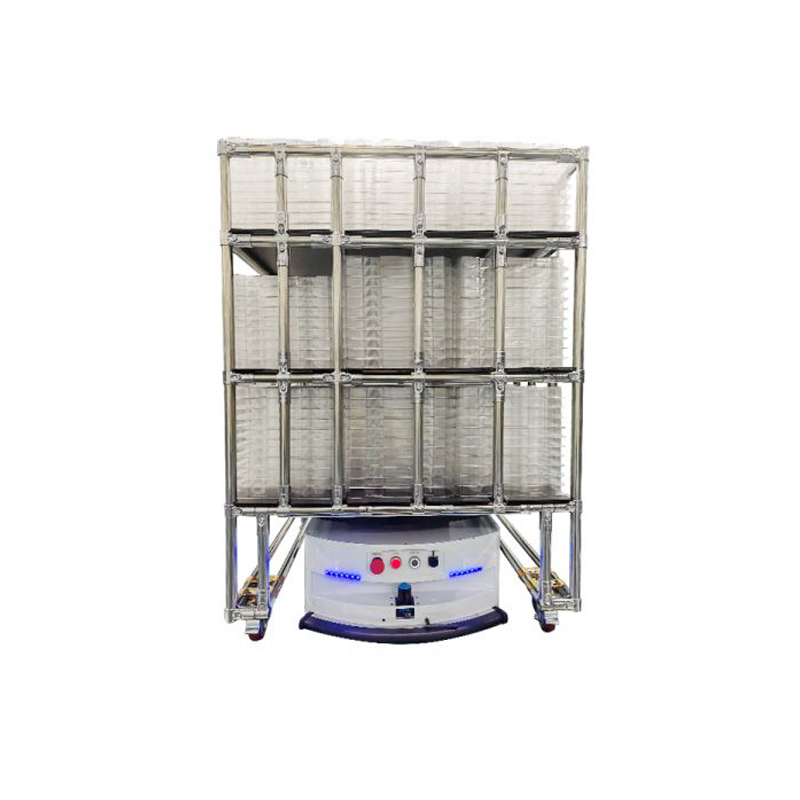

The J-500CJ-STL lifting AGV robot is a lurking lifting AGV specially designed according to the needs of many users. It has a small body but powerful skills. It not only has the two functions of lifting and carrying, but also the load can be adjusted at the same time, up to 500kg. It is widely used in the transportation of workshops, production lines and warehouses of thousands of households.

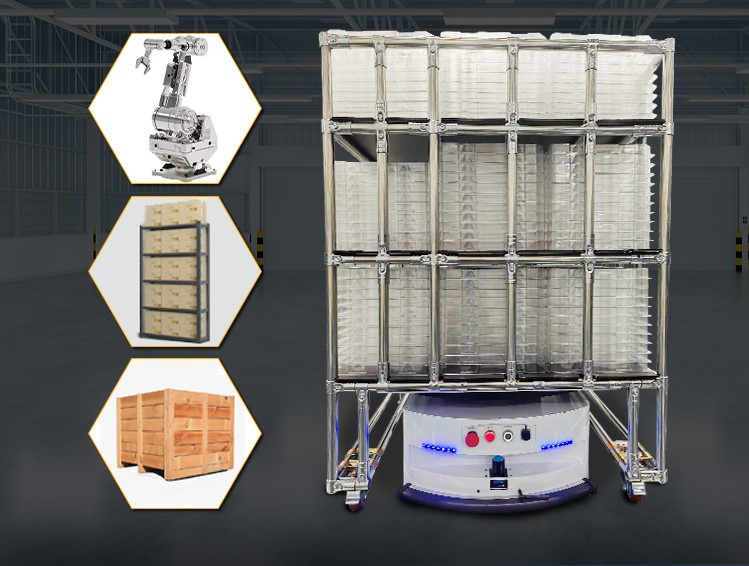

Maximum load capacity 500KG
500KG large load capacity to meet various load requirements

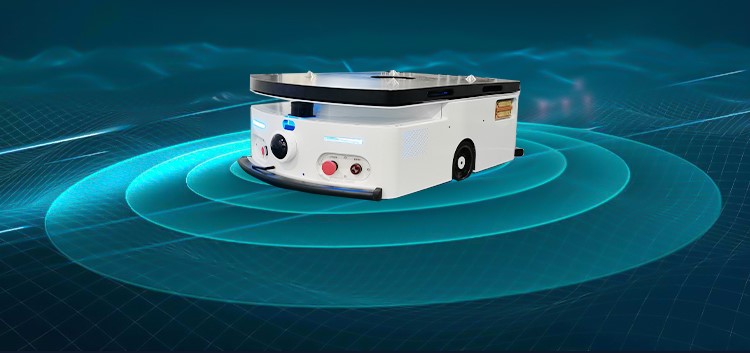

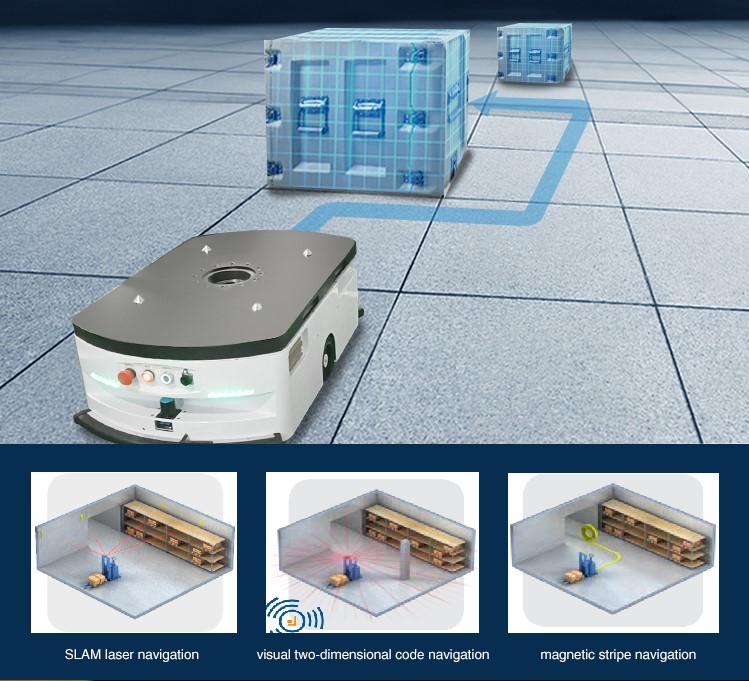

Three navigation modes (optional)
Our products have a variety of navigation methods, suitable for different application scenarios, for customersto choose the most suitable navigation methods for application in the actual site, the three navigation methodsare SLAM laser navigation, visual two-dimensional code navigation, magnetic stripe navigation.

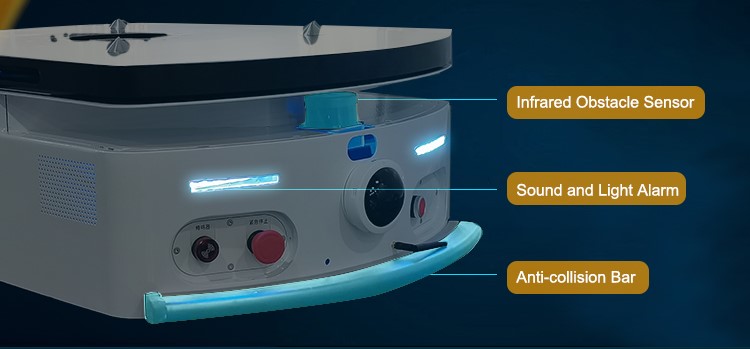

Muitiple Security Protection
Equipped with infrared obstacle sensor,anti-collision bar + sound and light alarm, safe operation is guaranteed.
Centimeter-level Precise composition
Using lidar sensors to scan the surrounding environment centimeter-level accurate map construction, visual
virtual wall editing,easy indoor autonomous Positioning and navigation
Product description
| Load | 500KG |
| Deadweight | 180KG |
| Size | L950mm*W600mm*H338mm |
| Lifting stroke | 50mm (without relative rotation) |
| Lifting method | Screw lifting |
| Accuracy | ±10mm |
| Speed | 40m/min |
| Battery Type | Lithium battery 48V 40AH (lithium iron phosphate) |
| Battery life | 8 hours |
| Security | Photoelectric + sound and light + edge touch |
| Communication method | WIFI/optical communication/433 (optional) |
| Power supply | Automatic charging/battery replacement/wireless charging (optional) |
| Navigation | Magnetic navigation/QR code navigation/laser navigation (optional, different navigation systems have different appearances) |
| HMI | 4.3-inch touch screen |
| Usage Environment | Indoors, the ground is oil-free, water-free, and has no slope |
| Motor function | Forward, backward, rotate on the spot (magnetic navigation can make arc turns) |
| Drive mode | Dual wheel differential |
| Hill-crossing capability | ≤3° |
| Wheel Material | Polyurethane |
