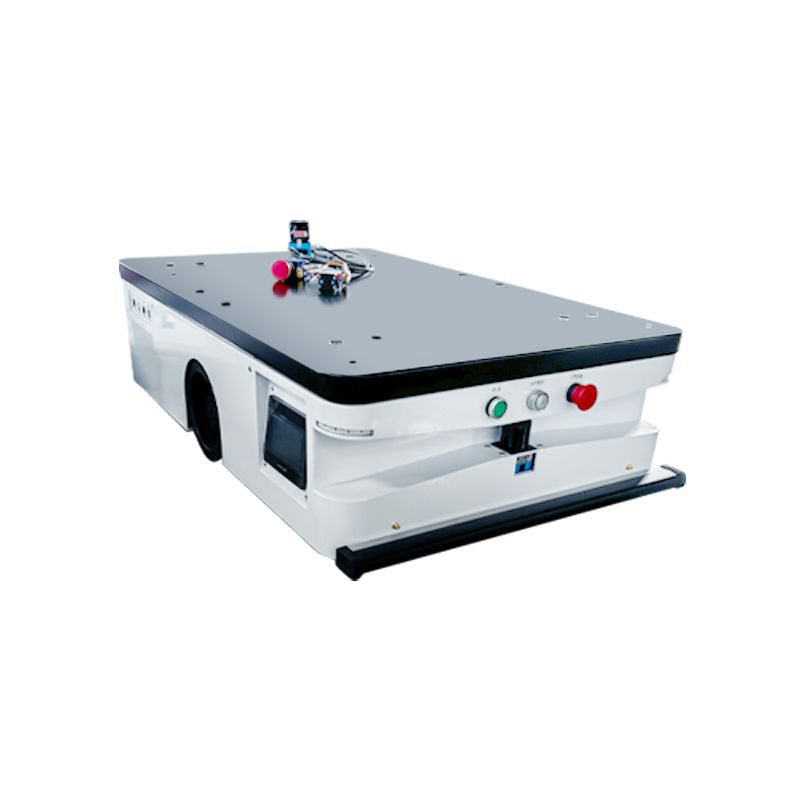

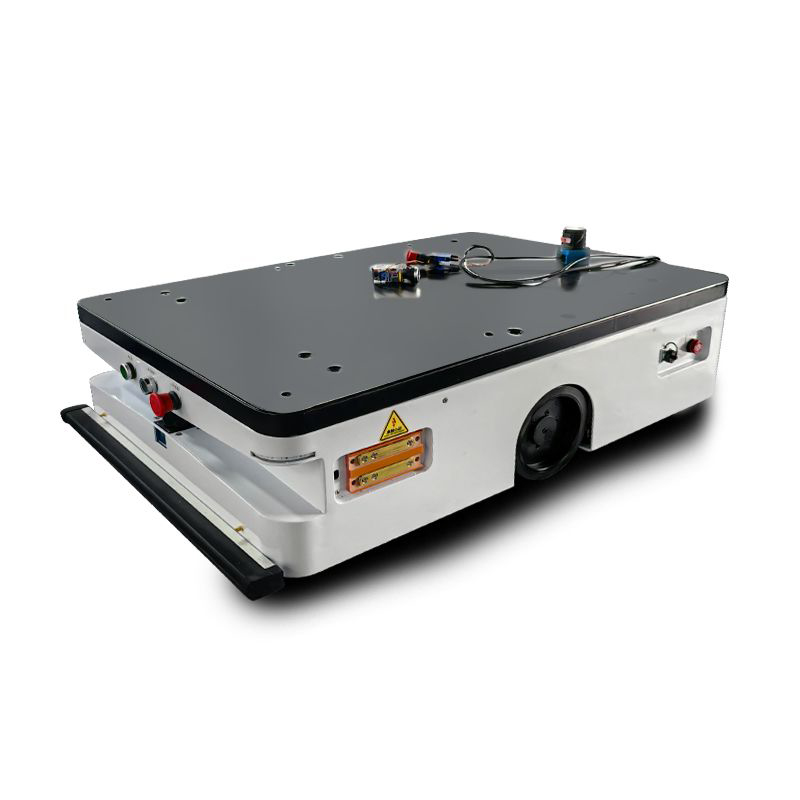

Backpack AGV——B-800E-XW
B-800E-XW Cost-effective Industrial Warehouse Mobile Forklift Pallet AGV Robot System Chassis
USD： 11279-14911
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
Backpack Series——B-800E-XW
Two-way carrying AGV, small size, can realize forward, backward, turn around, situ rotation, RFlD card docking mode.

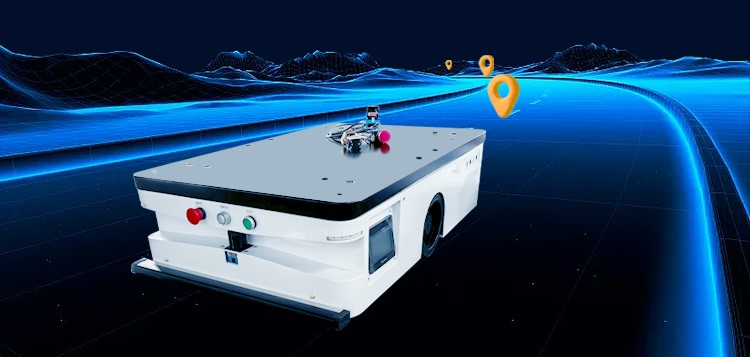

Autonomous path planning
——
Log in to the background of the robot through the human PC, perform position calibration, and automatically plan the driving route.

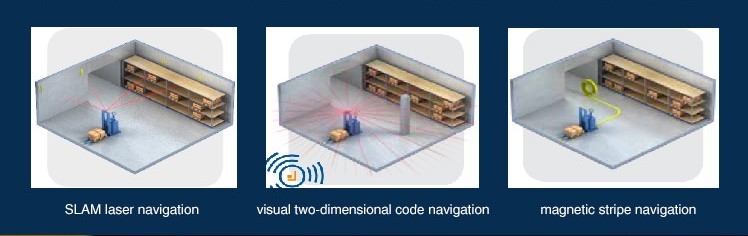

Three Navigate Modes
——
Our products have a variety of navigation methods, suitable for different application scenarios, for customers to choose the most suitable navigation methods for application in the actual site, the three naviaation methods are SLAM laser navigation, visual two-dimensional code navigation, magnetic stripe navigation.

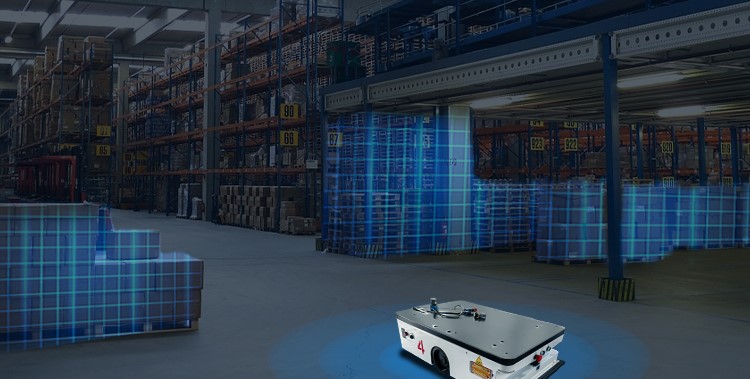

Autonomous Obstacle Avoidance
——
Equipped with infrared obstacle sensor,anti-collision bar and sound and light alarm, safe operation is guaranteed.

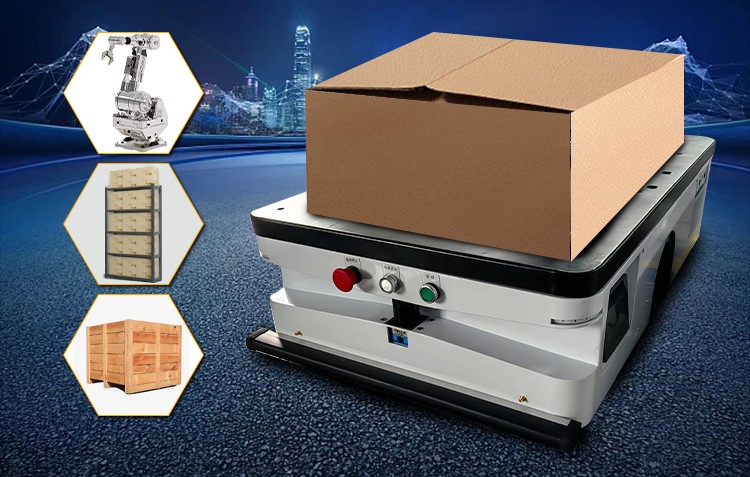

Large Carrying Capacity
——
800KG Super Load-bearing Capacity to Meet a Variety of Load Requirements

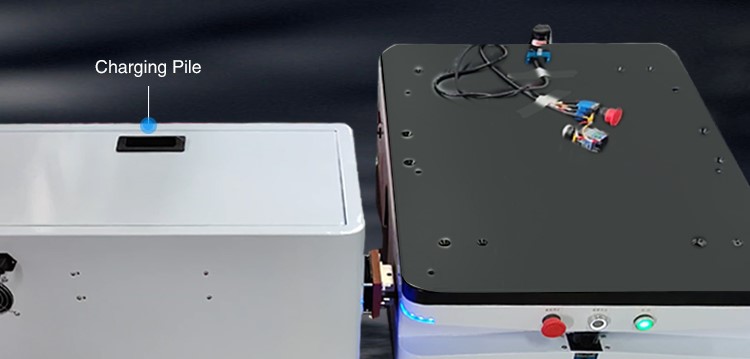

Automatic Recharge
——
Automatically Return to Charging without Manual Intervention
Product Parameters
——
| Load | 800KG |
| Deadweight | 200KG |
| Size | L1000mm*W650mm*H280mm |
| Battery Type | Lithium battery 48/36AH (lithium iron phosphate) |
| Accuracy | ±10mm |
| Speed | 40m/min |
| Battery life | 8 hours |
| Security | Photoelectric + sound and light + edge touch |
| Communication method | WIFI/optical communication/433 (optional) |
| Power supply | Automatic charging/battery replacement/wireless charging (optional) |
| Navigation | Magnetic navigation/QR code navigation/laser navigation (optional) |
| HMI | 4.3-inch touch screen |
| Usage Environment | Indoors, the ground is oil-free, water-free, and has no slope |
| Motor function | Forward Backward Rotate in place (magnetic strip navigation can move in arcs) |
| Drive mode | Dual wheel differential |
| Hill-crossing capability | ≤3° |
| Wheel Material | Polyurethane |
