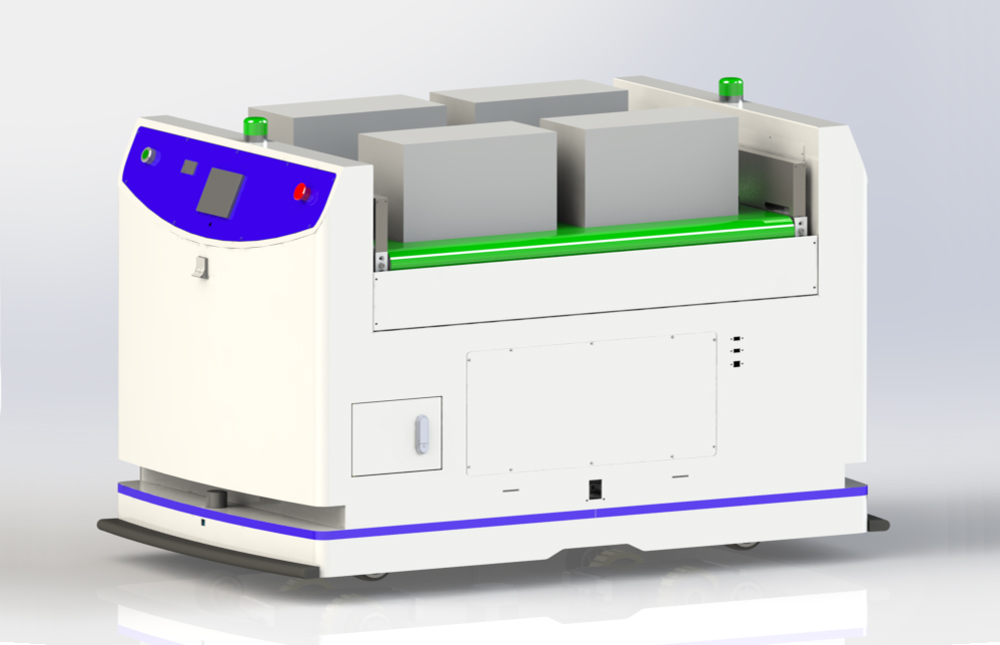

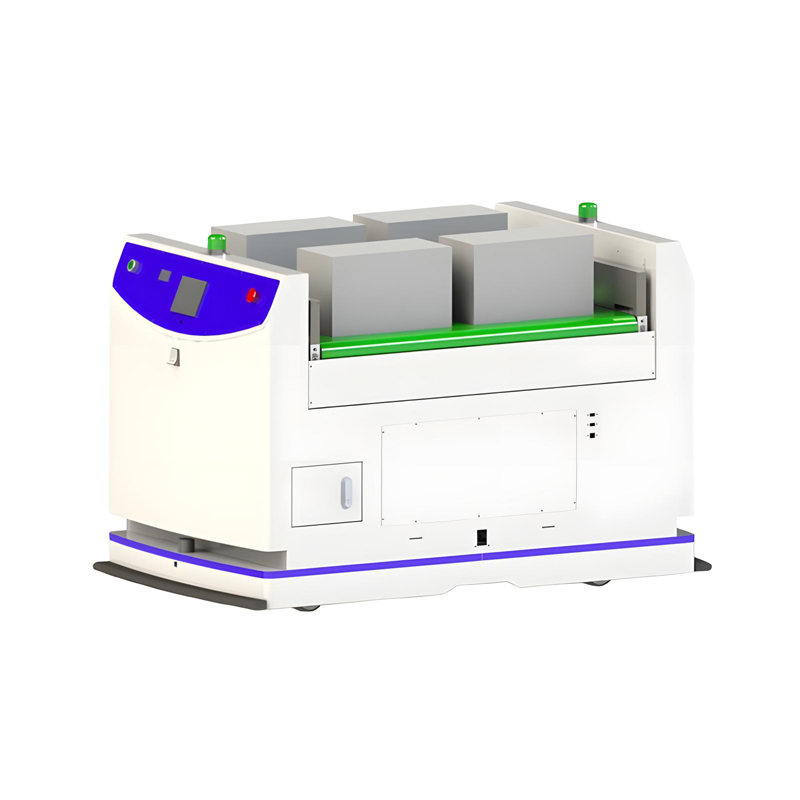

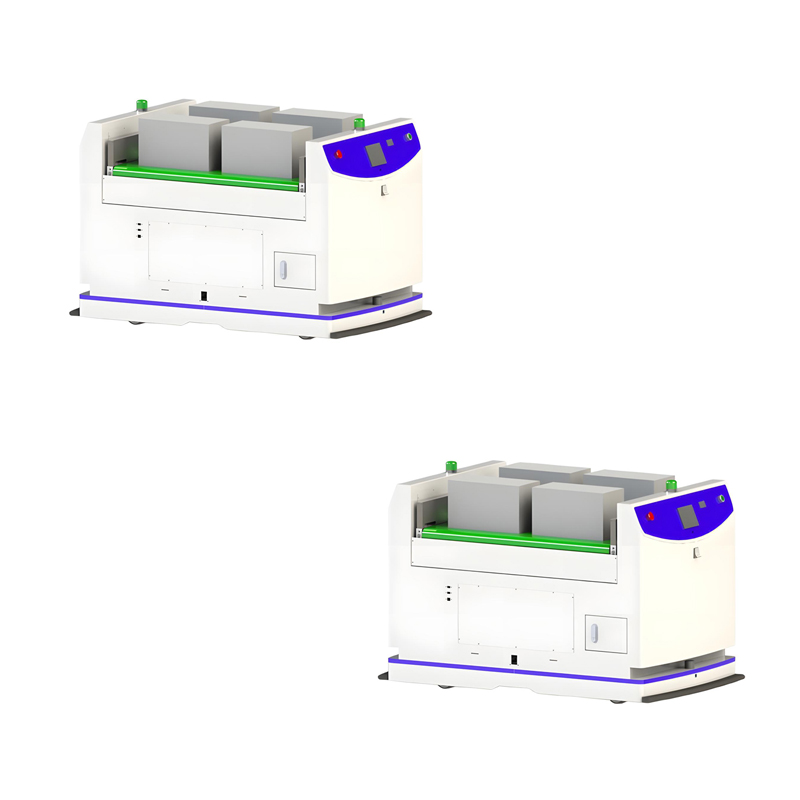

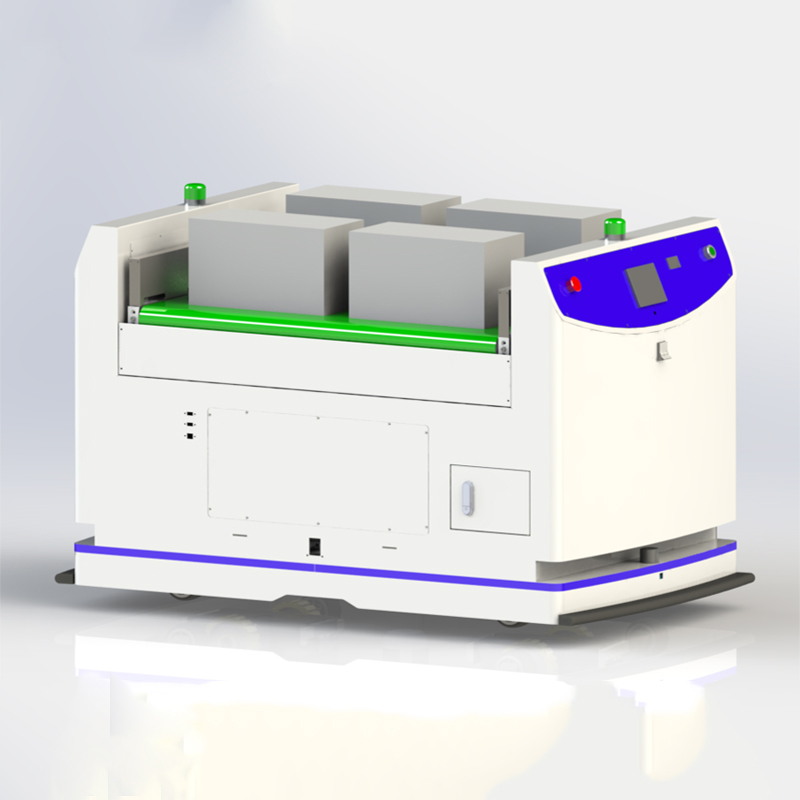

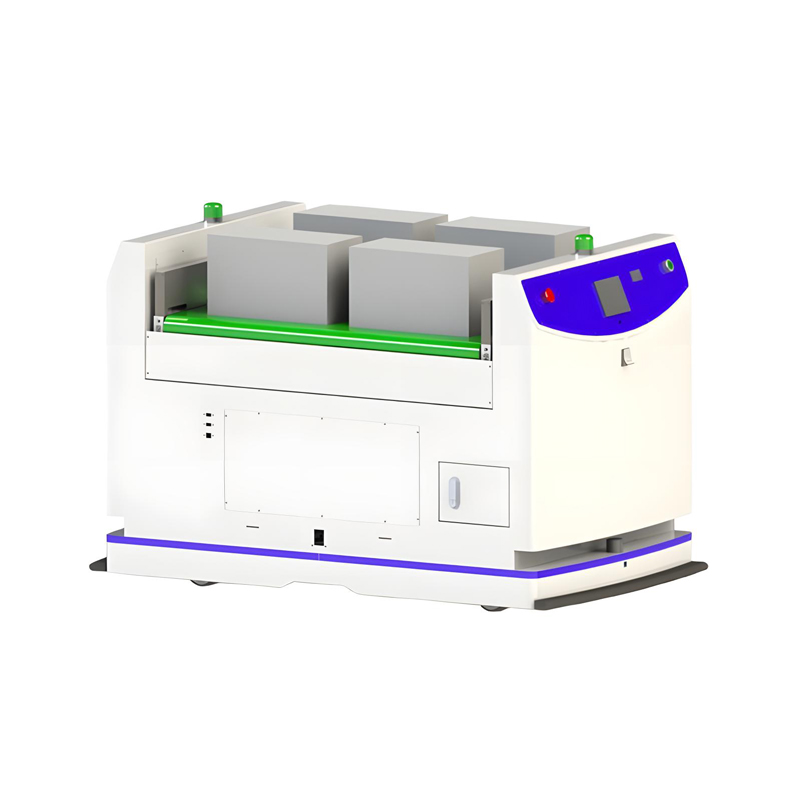

Transplanting Series AGV——Y-60CC-LY
High performance transplantable AGV logistics warehouse robot mobile robot magnetic navigation
USD： 11088-13764
ablity：Monthly Output200
- Paglalarawan ng Produkto
- Product Params
Paglalarawan ng Produkto
Transplanting Series AGV——Y-60CC-LY
Product description
| Load | 50KG |
| Deadweight | 150KG |
| Size | L1530mm*W860mm*H1005mm |
| Transplanting mechanism | Roller belt + chain + electric roller |
| Accuracy | ±10mm |
| Speed | 40m/min |
| Battery Type | Lithium battery 48V 18AH (lithium iron phosphate) |
| Battery life | 8 hours |
| Security | Photoelectric + sound and light + edge touch |
| Communication method | WIFI/optical communication/433 (optional) |
| Power supply | Automatic charging/battery replacement/wireless charging (optional) |
| Navigation | Magnetic navigation |
| HMI | 4.3-inch touch screen |
| Usage Environment | Indoors, the ground is oil-free, water-free, and has no slope |
| Motor function | Forward Backward Turn (magnetic navigation can make arc turns) |
| Drive mode | Dual wheel differential |
| Gradeability | ≤3° |
| Wheel Material | Polyurethane |
Security
Operation safety: laser safety sensor + mechanical anti-collision strip + sound and light alarm
· Laser obstacle avoidance (detection range 0~270 degrees, detection distance 0~3m adjustable) is used to form a safety protection device to ensure safe operation. The AGV brakes and stops when an obstacle is detected within 0.2~0.5 meters. When an obstacle is detected entering the safety warning area, the AGV slows down and issues a warning sound; when an obstacle is detected entering the danger zone, the AGV automatically stops and automatically resumes operation after the obstacle is removed.
· There is a contact sensor in front of the AGV - the anti-collision strip. When the anti-collision strip collides with an obstacle, the AGV will stop for protection, and the AGV will automatically resume operation after the obstacle is removed.
· The AGV has the functions of offline protection and automatic correction when it deviates from the track.
 |  |
Laser sensing range diagram
The laser is a single-line laser, which only scans the plane. If it is above or below the laser sensing range, the laser cannot recognize it.
