Dongguan Xinghua Robot Automation Technology Co., Ltd.
T1
7 Years

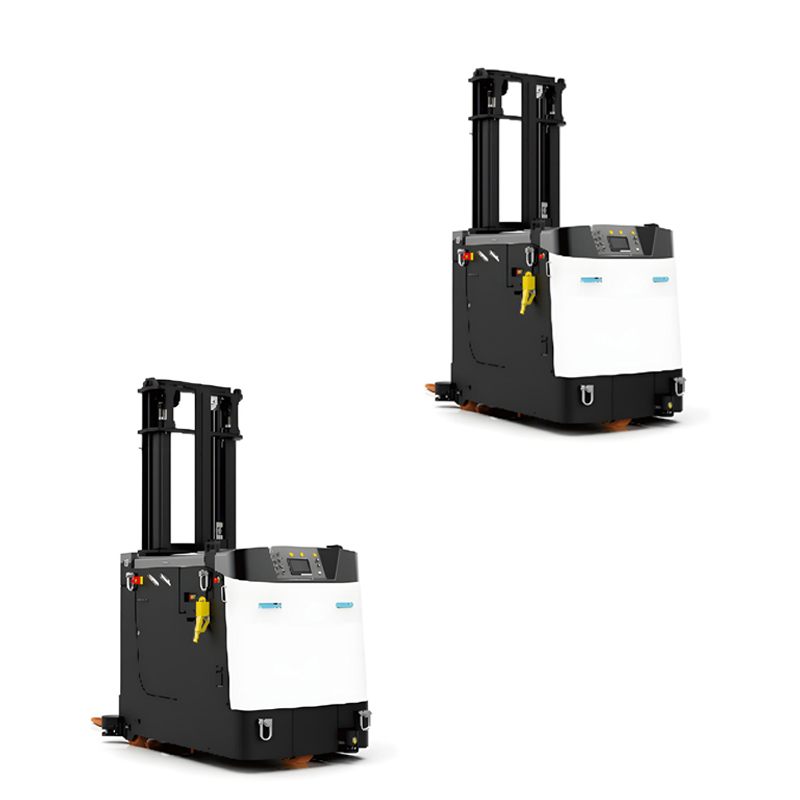

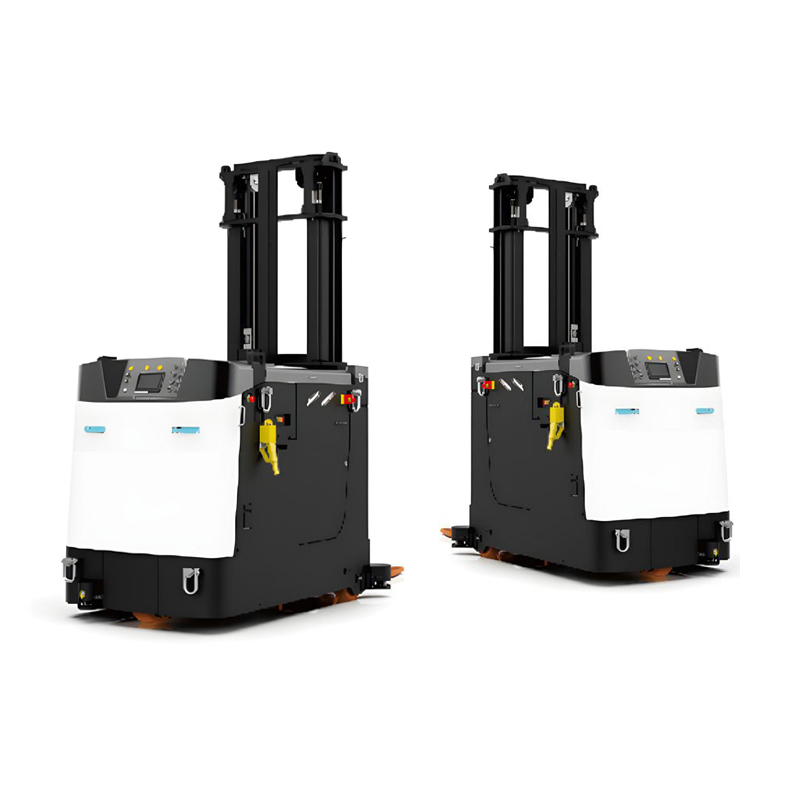

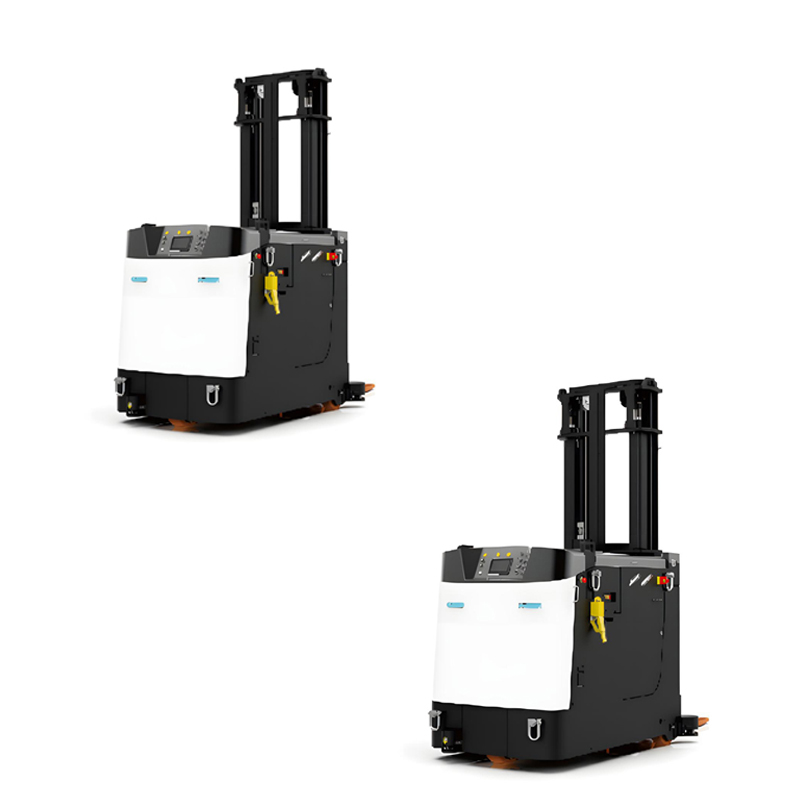

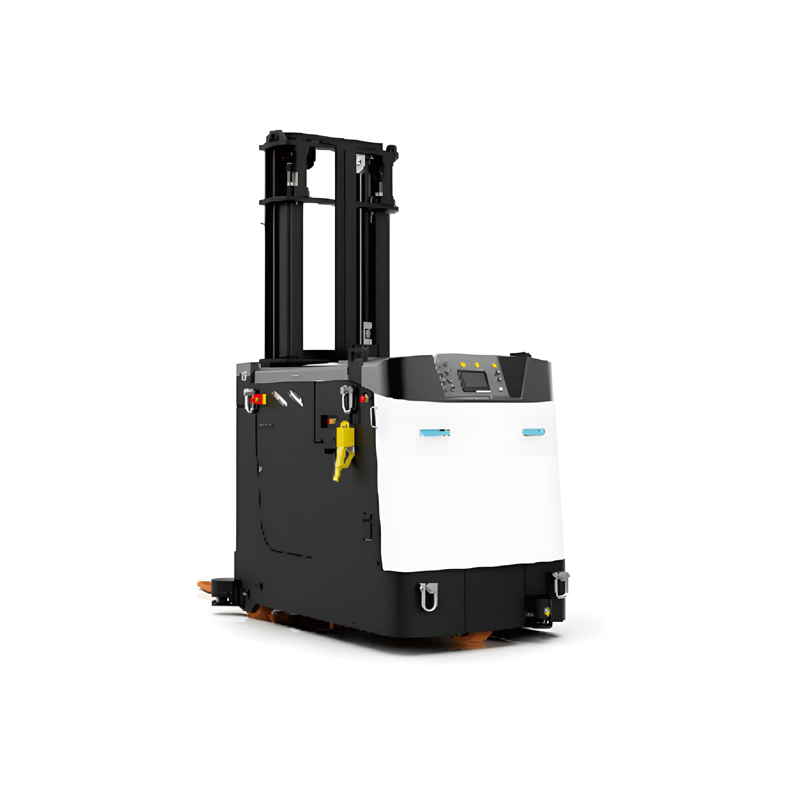

AGV unmanned forklift——AE20
Intelligent handling robot fully electric stacker AGV forklift
- Vehicle size (mm)：L3120*W1390*H2690
- Fork size (mm)：L1150*W120*45
- Minimum turning radius (mm)：2210
- Loading capacity(KG)：2500
- Speed (min/m)：45
- Battery life：6-8 hours
USD： 99999
ablity：Monthly Output200
- Product Description
- Product Params
Product Description
AGV unmanned forklift——AE20
Product Parameters
| Vehicle size (mm) | L3120*W1390*H2690 |
| Fork size (mm) | L1150*W120*45 |
| Minimum turning radius (mm) | 2210 |
| Right angle stacking channel width (mm) | 3370 |
| Loading capacity(KG) | 2500 |
| Lifting height(mm) | 4500 |
| Speed (min/m) | 45 |
| Charging method | Automatic charging/replacement of batteries |
| Accuracy(mm) | ±10 |
| Applicable environment | Indoor |
| Battery | Lithium battery 48V 300AH |
| Communication | Wifi/433/optical communication (optional) |
| Slope | ≤3° |
| Navigation | Slam |
| HMI | 4.3-inch touch screen |
| Security | Laser+acousto-optic+edge touch |
| Battery life | 6-8 hours |
| Traveling mode | Forward, backward, turn |
| Drive mode | Steering Wheel |

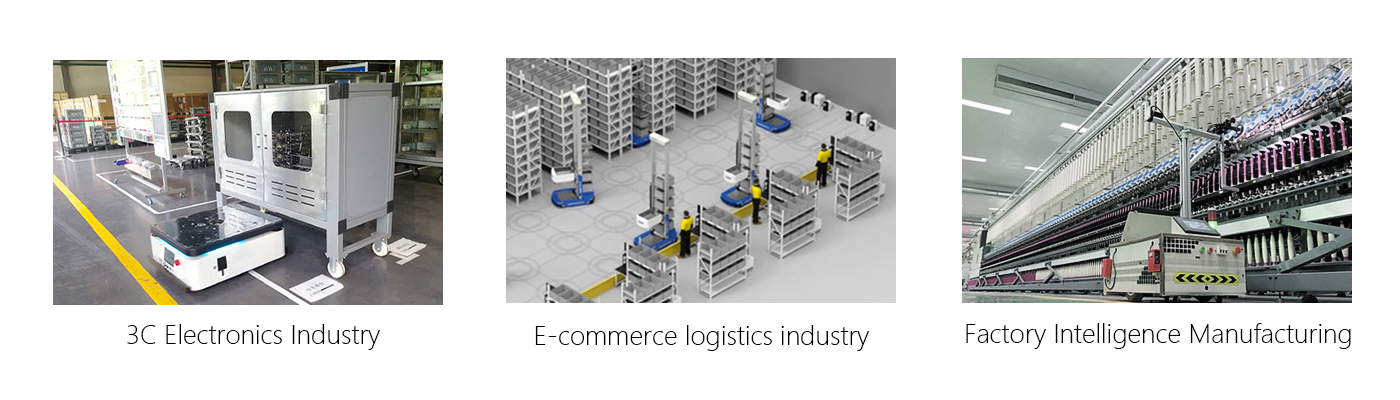

Application
