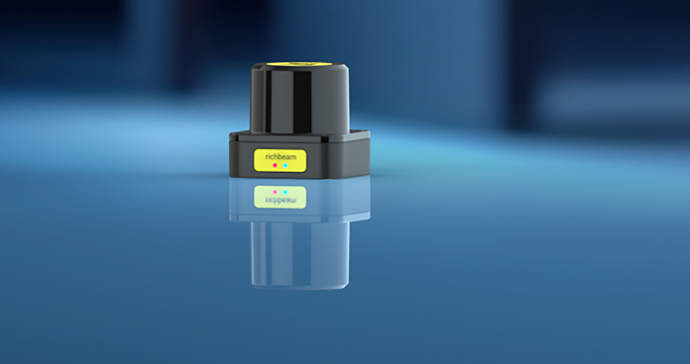

Product Introduction:

The KoraBeam series is the latest generation of obstacle avoidance LiDAR released by Ruichi Zhiguang. The detection distance is 0-50m, meeting the application requirements of industrial robots such as AGVs and electric flatcars, as well as industrial automation. Unlike other single line LiDARs, the KoraBeam series can output switch information through I/O, making it easy for users to quickly get started and us

The farthest detection distance of 50m
270 ° horizontal field of view angle
2cm measurement accuracy

Product features:

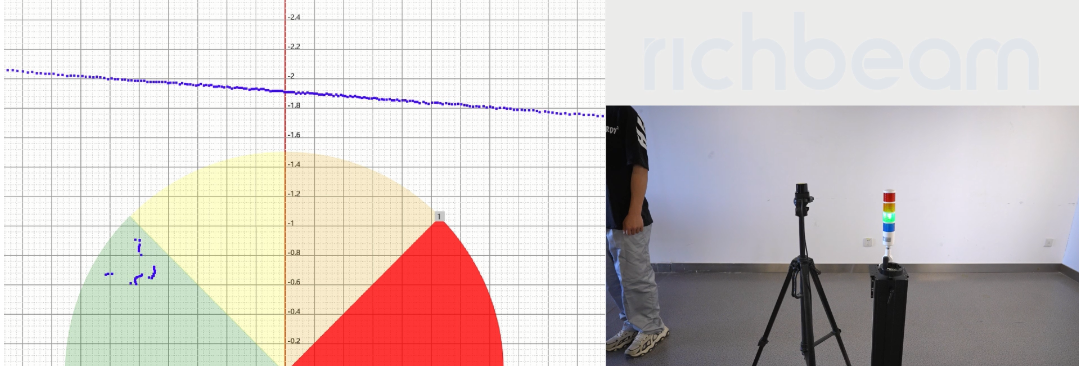

Point cloud testing: Users can freely set different alarm areas according to their actual usage environment, and excellent data sampling and point cloud performance can provide very reliable data support for collision warning

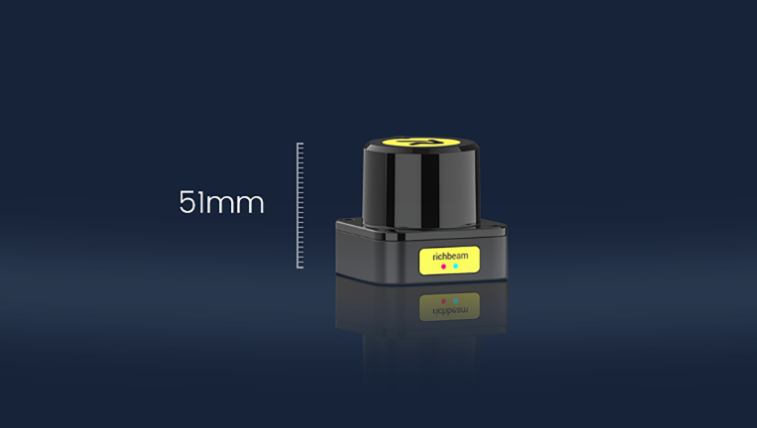

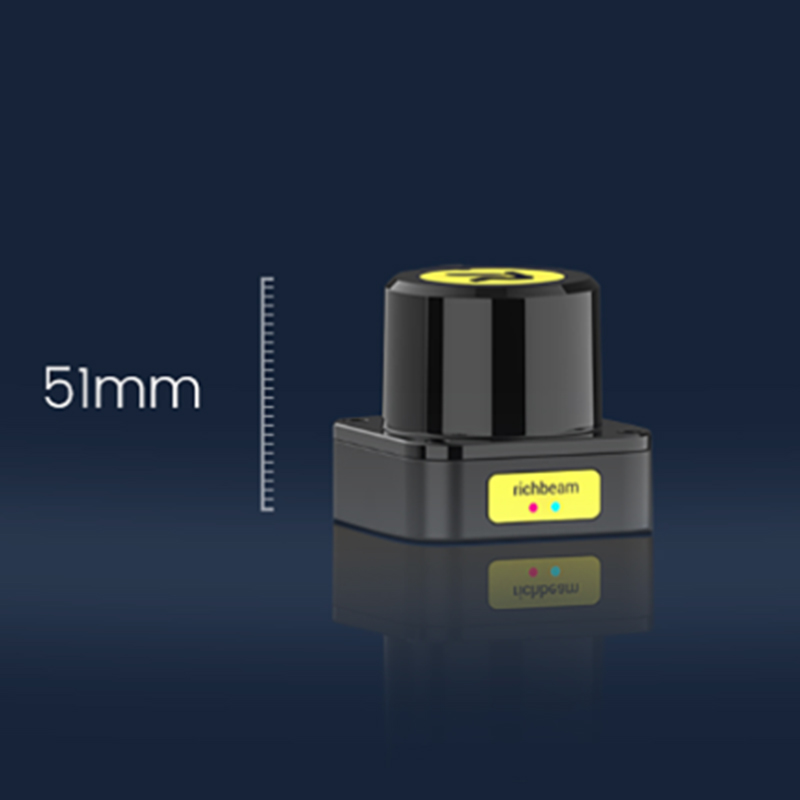

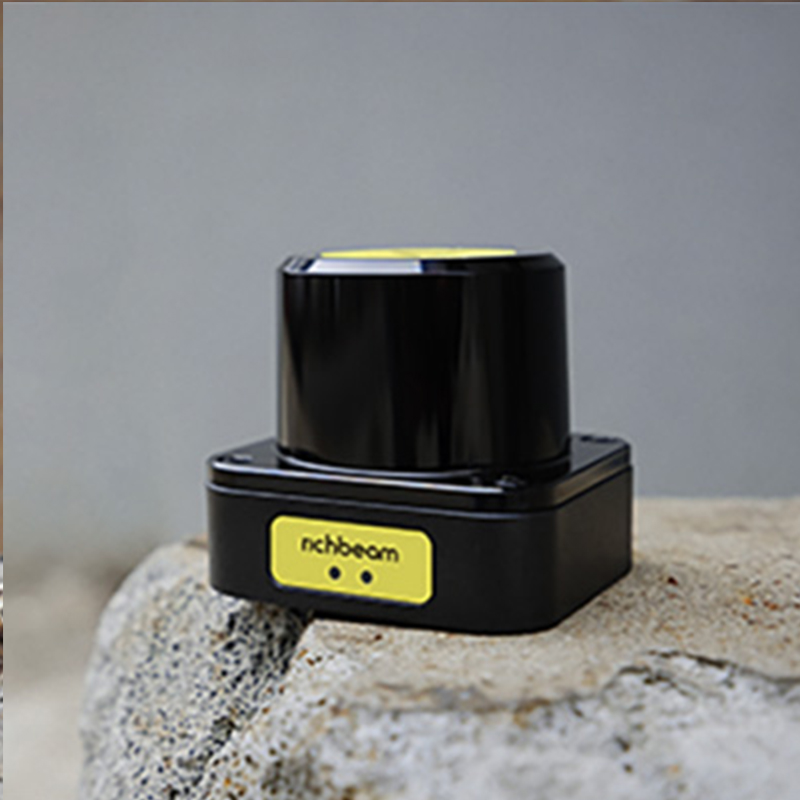

Compact and lightweight body:

The internal structure is compact and cleverly designed. Compared with the Lakibeam series, the Korabeam has reduced in size by 45% and weighs 85g, only the size of an egg, making it easy for users to install it internally.

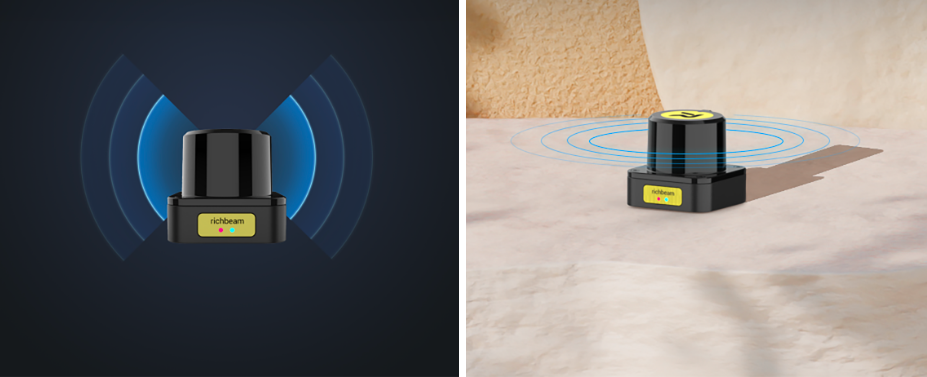

Soft and hard balance

Support RS485 MODBUS protocol, users can connect to PLC to adjust radar parameters; Supports Bluetooth/wireless connection, allowing users to directly configure radar obstacle avoidance areas without the need for wiring.

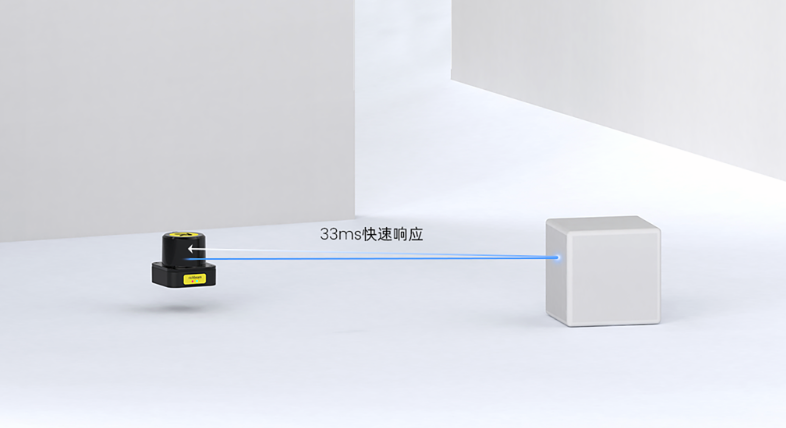

Quick response:
With a scanning speed of up to 30Hz, it can quickly provide feedback on obstacles in the area within 33ms and make timely alarm actions.

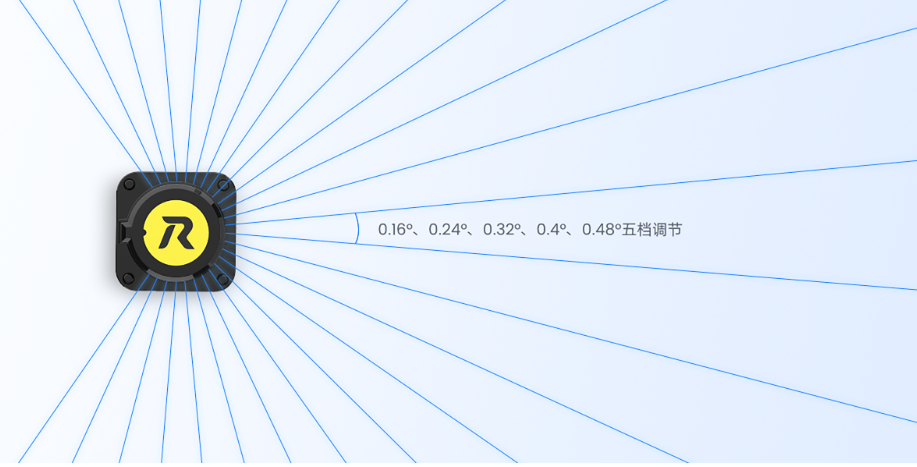

Five adjustable angular resolution levels

Low false alarm rate
Built in self-developed core filtering algorithm to minimize false alarms caused by factors such as light, weather, temperature, etc

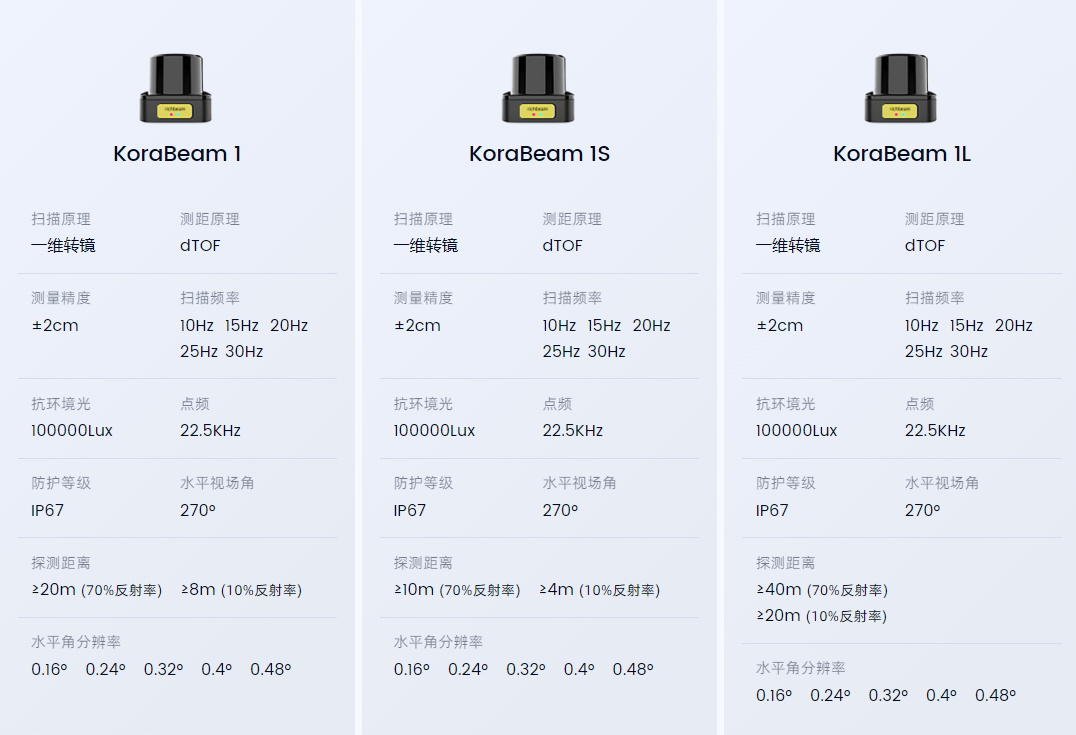

Product parameters
