YA-80 high precision sensor encoder
High-precision and high-speed electromagnetic induction encoder
- Resolution：10—23
- Repeatability：±1
- Positioning accuracy：±30
- Maximum speed：30000
USD： 838
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
YA-80 high precision sensor encoder

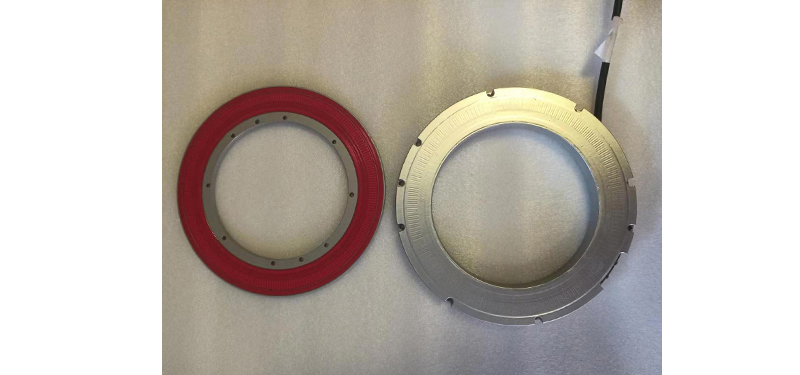

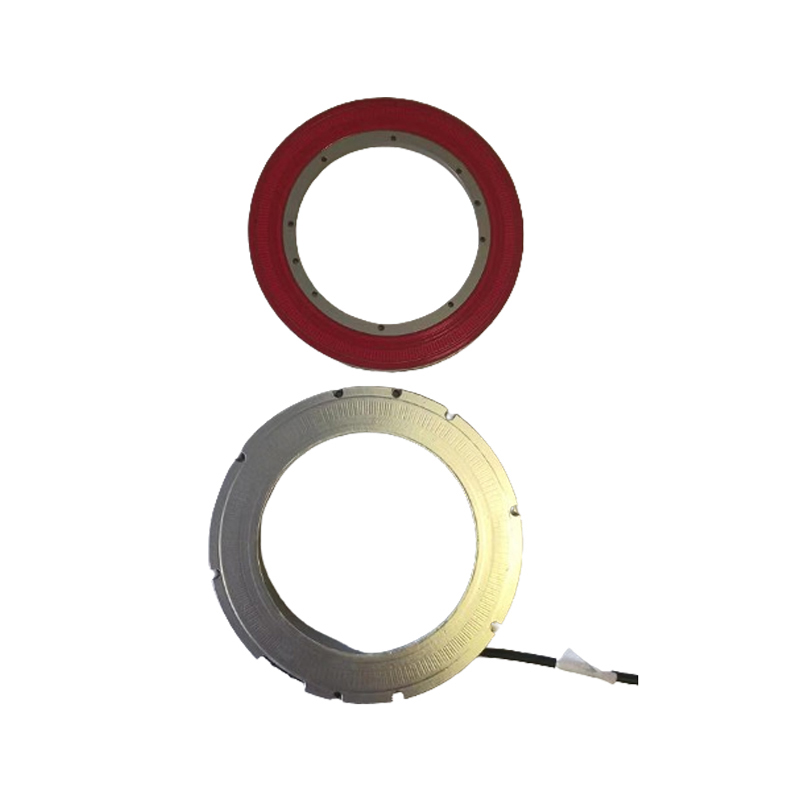

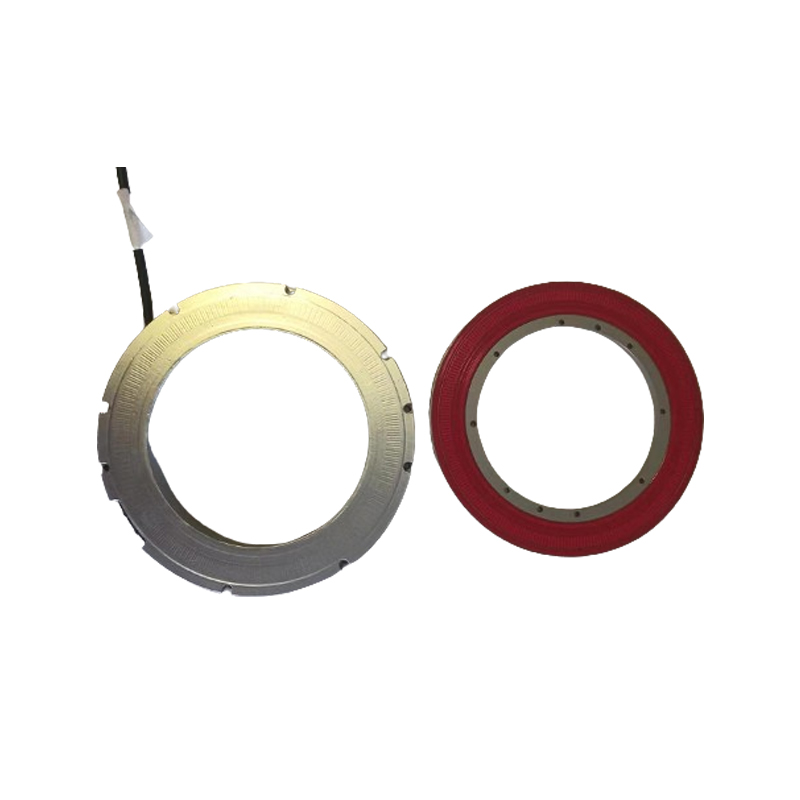

YA series sensor encoder is based on the principle of electromagnetic induction detection and consists of a stator and a rotor. Compared with photoelectric encoders, it has higher anti-pollution and anti-impact capabilities.
Its structure can be understood as a "planar rotary transformer", and the current-carrying wires are distributed on the surface of the stator and rotor in the form of planar wires.
It has an absolute value detection code channel, and the absolute position of the encoder can be calculated when it is turned on.
It has strong environmental adaptability and can work normally when immersed in water.

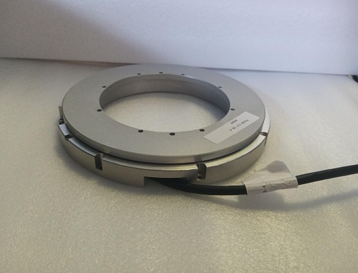

The wire outlet method is flexible and can be outlet from the side or bottom of the stator.
Features
| ·Electromagnetic induction principle ·High precision ·High speed ·High reliability ·Absolute value ·Split type ·Easy to install ·Super strong environmental adaptability ·IP67 |  |
Size Chart
Mechanical Dimensions

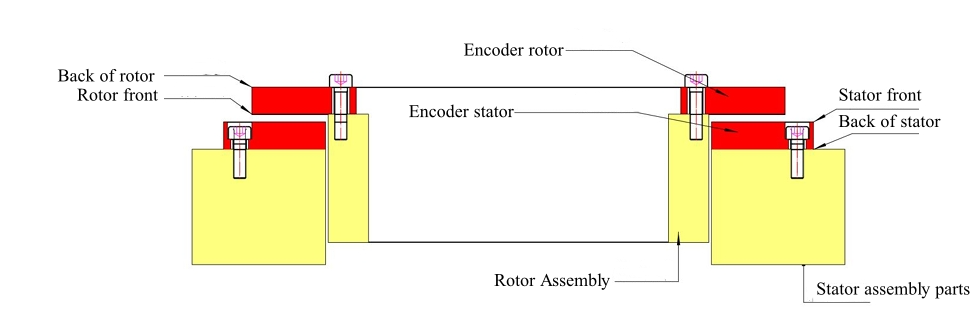

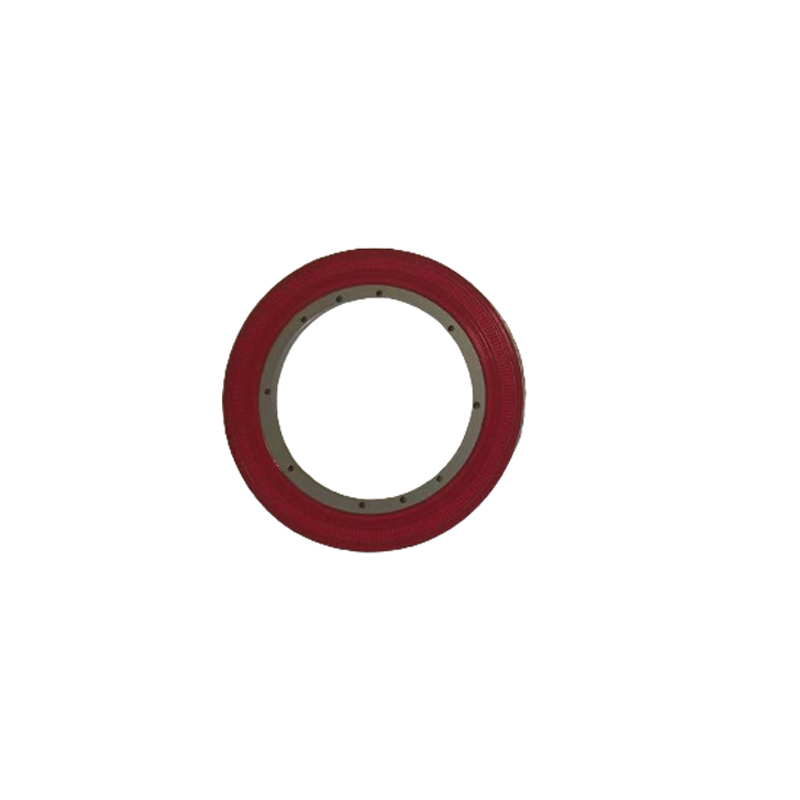

Rotor Dimensions

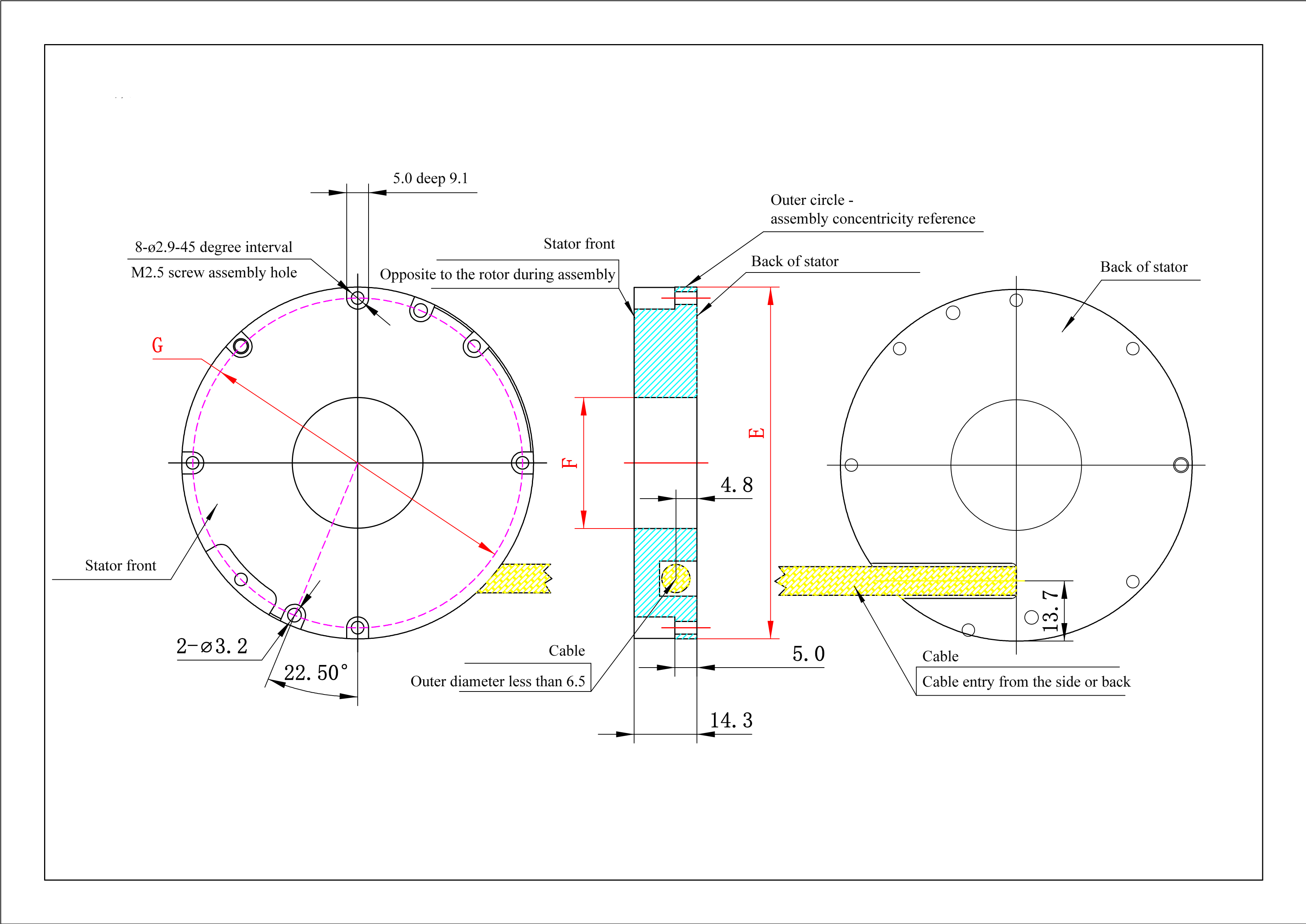

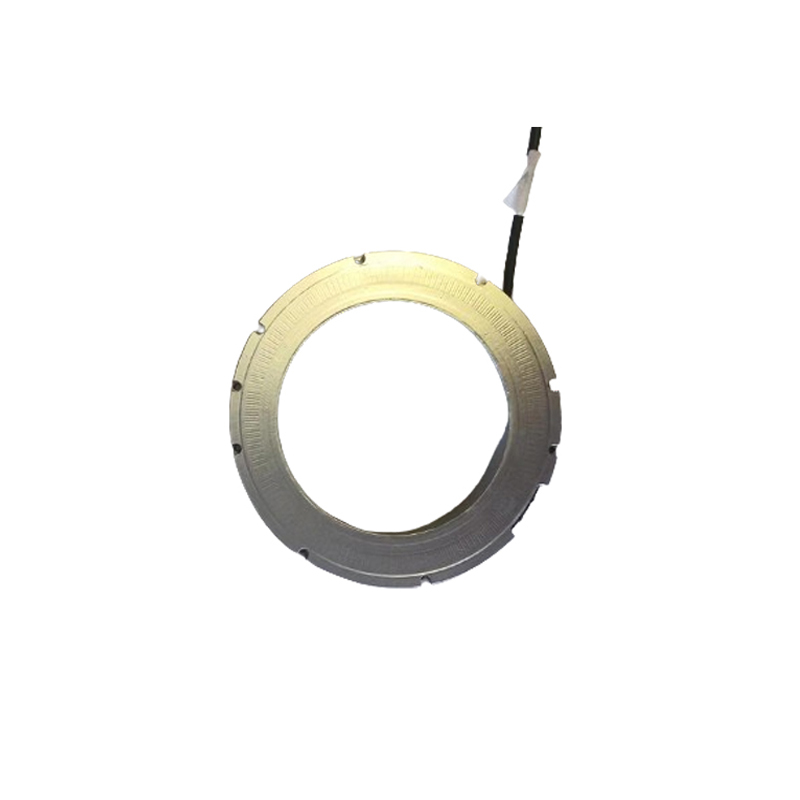

Stator Dimensions
Performance Parameters
| EMC Electromagnetic Radiation | Complies with IEC 61000-6-4—suitable for use near EMI-sensitive equipment | |
| Absolute value | √ | |
| Resolution | 10—23 | |
| Repeatability | ±1 | LSB |
| Positioning accuracy | ±30 | Arc seconds |
| Internal location update cycle | ＜0.01 | ms |
| Maximum speed | 30000 | r/min |
| Communication interface protocol | SSI\BISS-C\UART serial port (all three interfaces are based on RS422 hardware standard) | |
| Supply voltage | 5-12 or 12-30 available | V |
| Current consumption | <0.25 | A |
| Reverse power protection | The maximum reverse protection voltage of the power supply is the maximum value of the nominal supply voltage | |
| Operating temperature | -40—80 | ℃ |
| Protection level | IP67 | |
| Data validity time after power up | <1 (Data is valid 1s after the encoder is powered on. Please make sure the encoder does not rotate within 1s) | S |
| Assault | IEC 60068-2-27 100g for 11ms—axial and radial | |
| Pulsation | IEC 60068-2-6 20g for 10-2000Hz—axial and radial | |
| EMC electromagnetic compatibility | Compliant with IEC 61000-6-2 standard—suitable for harsh EMC environments |
