Traction AGV——Q-200CE-YW
Industrial material handling robot autonomous navigation traction AGV
USD： 9176-13764
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

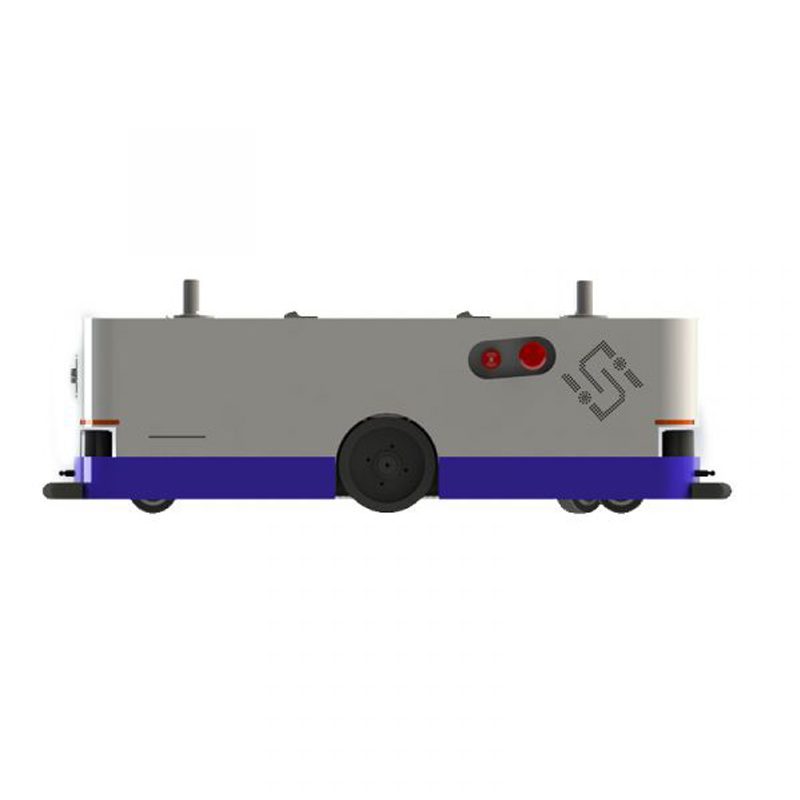

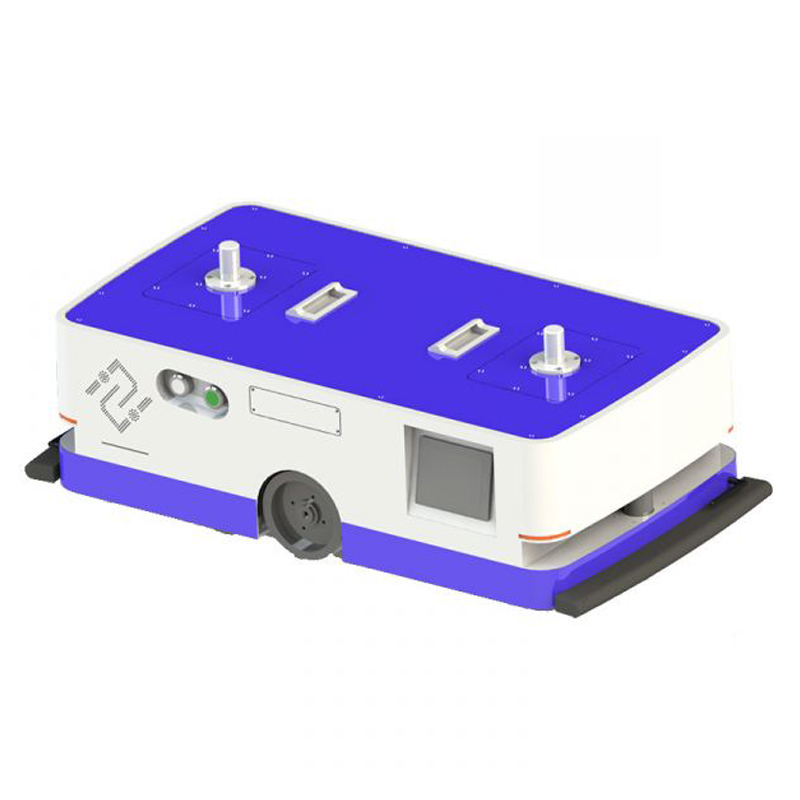

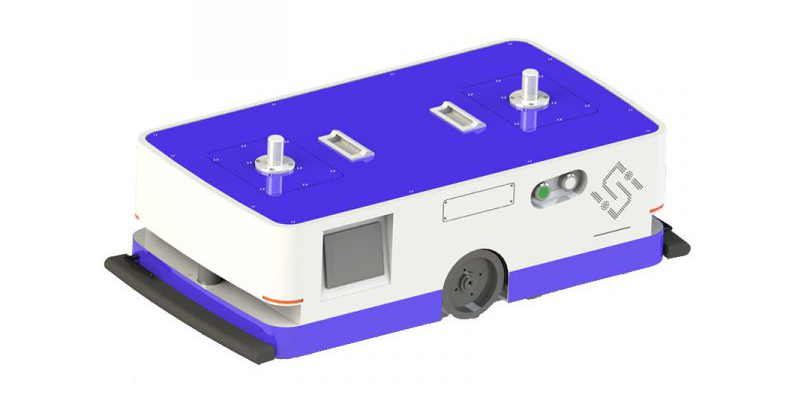

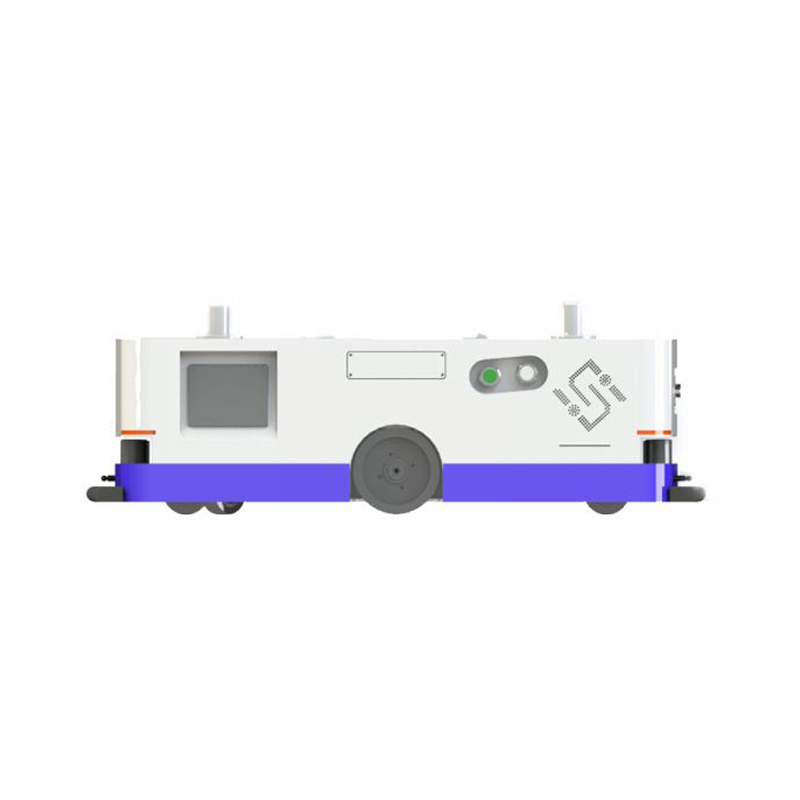

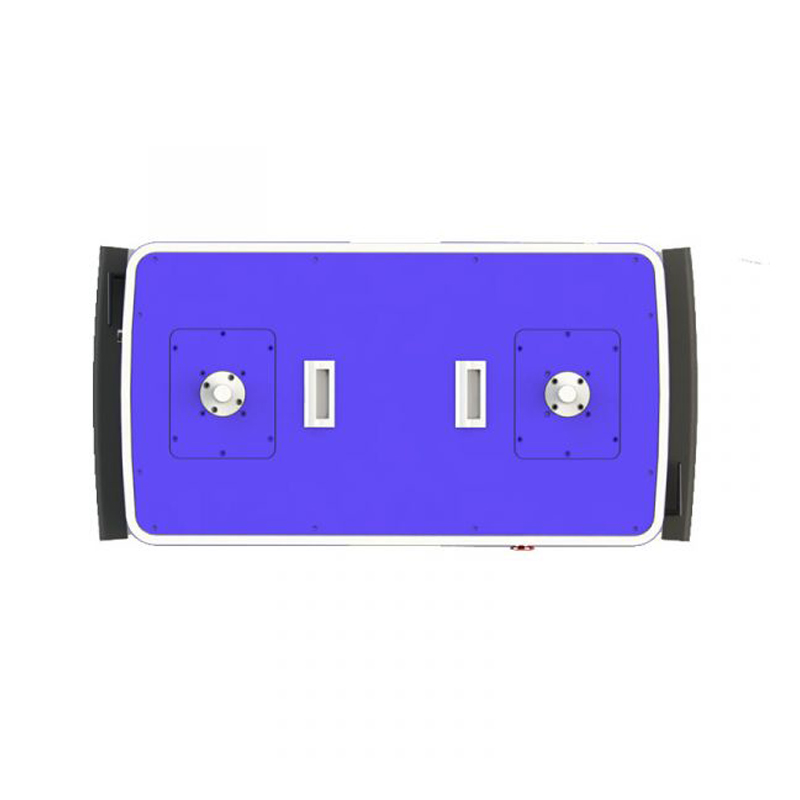

Traction AGV——Q-200CE-YW
The traction AGV - Q-200CE-YW uses magnetic navigation to realize automatic forward and reverse movement of the AGV, and is equipped with a variety of safety protection measures such as infrared obstacle avoidance, mechanical anti-collision design, and emergency stop button to prevent collisions between multiple AGVs and between the AGV and the external environment.

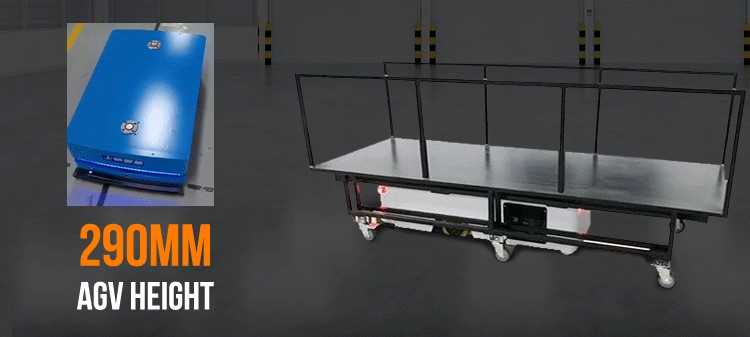

Low Body Height
—— -
It is beneficial for this AGV to lurk to the bottom of the shelf and drive to the destination point with the shelf.The traction load capacity of this model is 200kg. lt can apply for usual environment. And the speed can reach 45m/min.

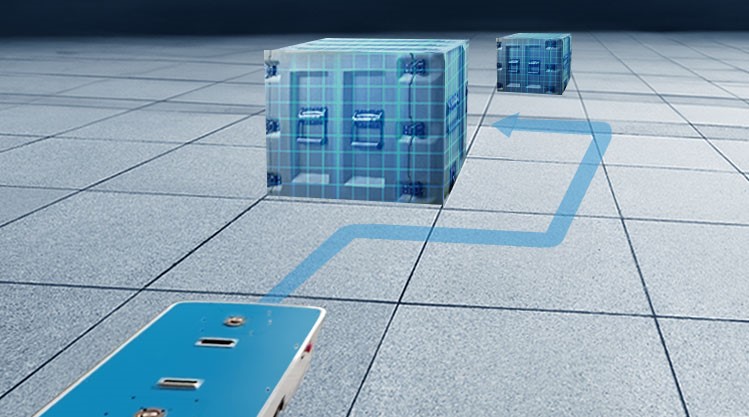

Three Navigate Modes
—— -

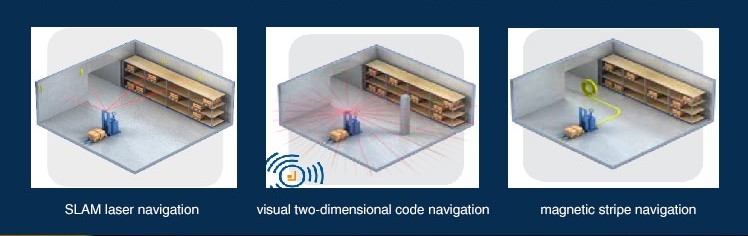

Our products have a variety of navigation methods, suitable for different application scenarios, for customers to choose the most suitable navigation methods for application in the actual site, the three navigation methods are SLAM laser navigation, visual two-dimensional code navigation, magnetic stripe navigation.

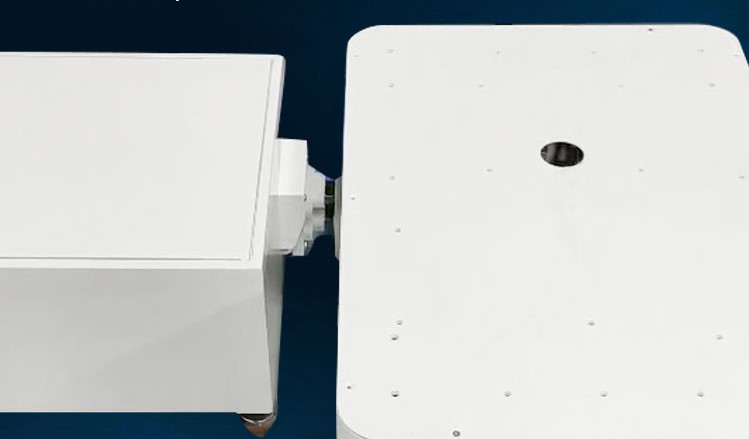

Auto Charging
—— -
Can achieve complete automation of the battery charging process. lt has the features of easy maintenance and easy to use.
Product Parameters
—— -
| Dimensions (mm) | L1000*W500*H290 |
| Loading capacity (KG) | 200 |
| Speed (min/m) | 45 |
| Charging method | Automatic charging |
| Accuracy (mm) | ±10 |
| Applicable environment | Indoor |
| Battery | Lithium battery |
| Newsletter | Wifi/433/optical communication (optional) |
| Slope | ≤3° |
| Navigation | QR code/Slam (optional) |
| HMI | 4.3-inch touch screen |
| Security | Laser + sound and light + edge touch |
| Battery life | 8 hours |
| Traveling mode | Forward, backward, rotate on the spot |
| Drive mode | Dual wheel differential |

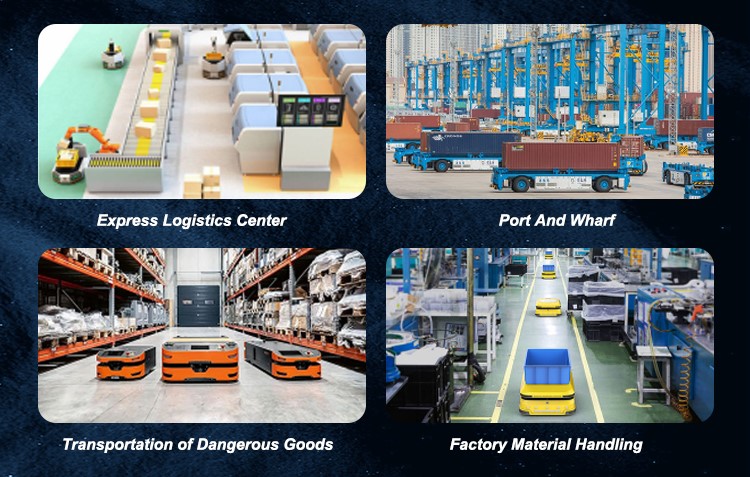

Application
—— -
