T1
11 Years
Latent jacking AGV-500KG
Warehouse logistics 500KGSLAM laser-guided automatic transportation robot AGVs
- Basic dimension：900*600*300mm
- Maximum load：500KG
- Maximum speed：0-60m/min
- Climbing ability：≤3°
USD： 10000-30000
ablity：Monthly Output500
- Product Description
- Product Params
Product Description

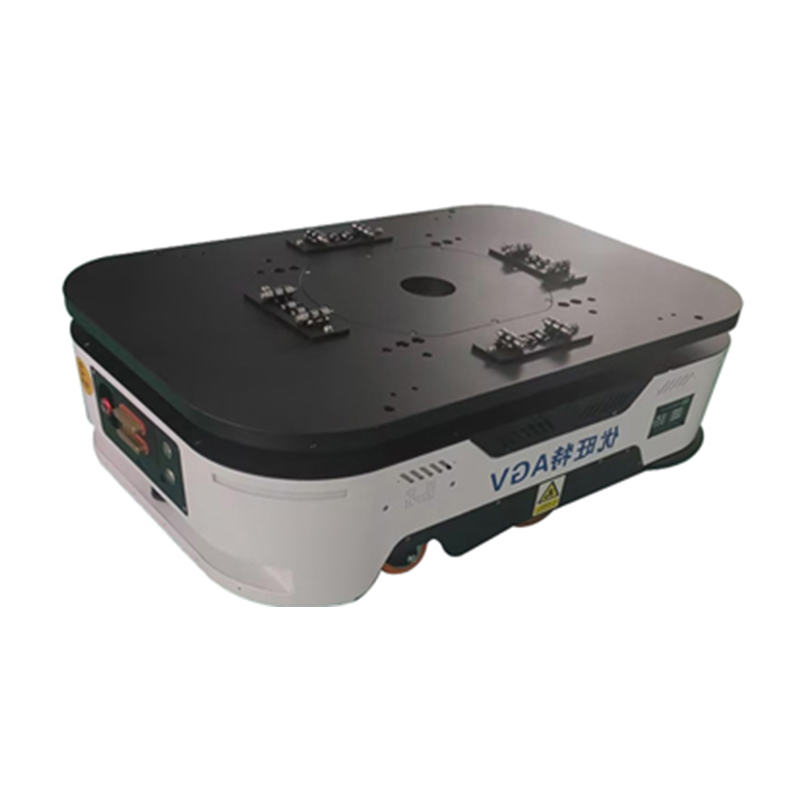

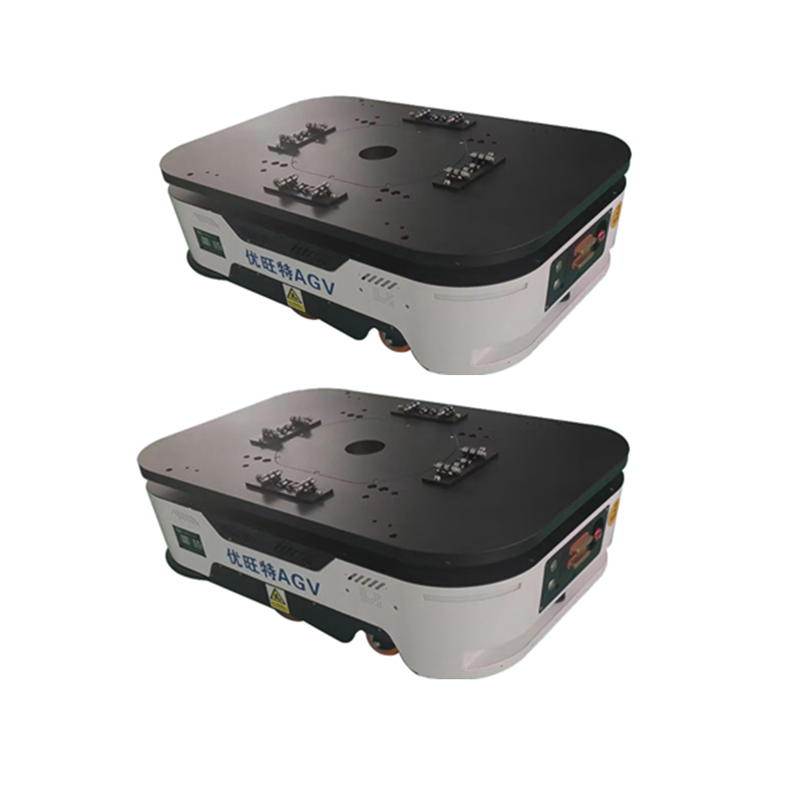

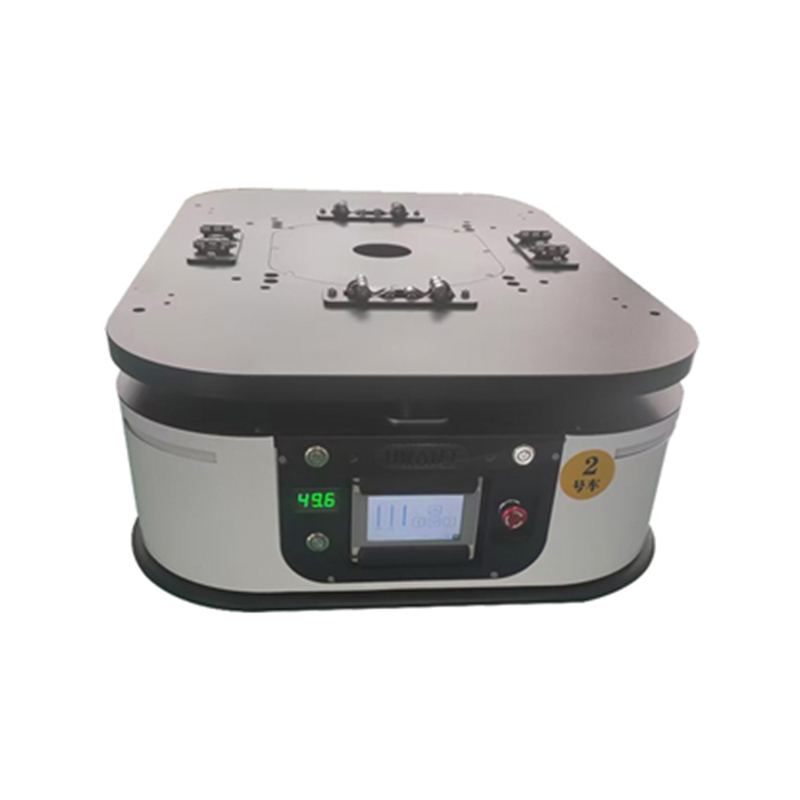

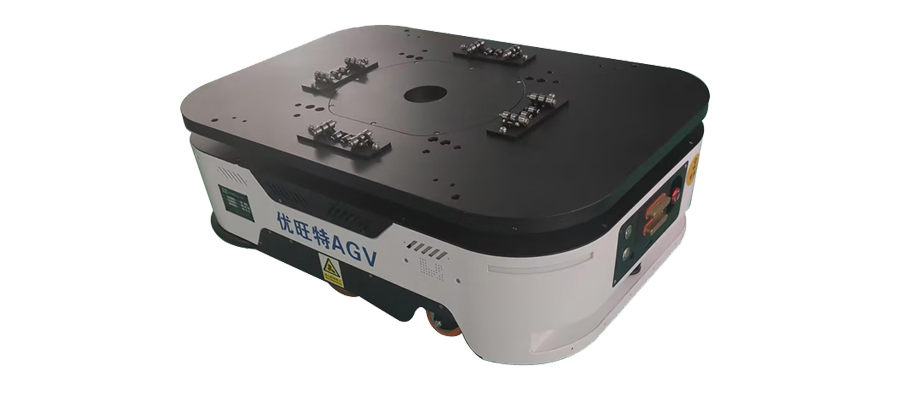

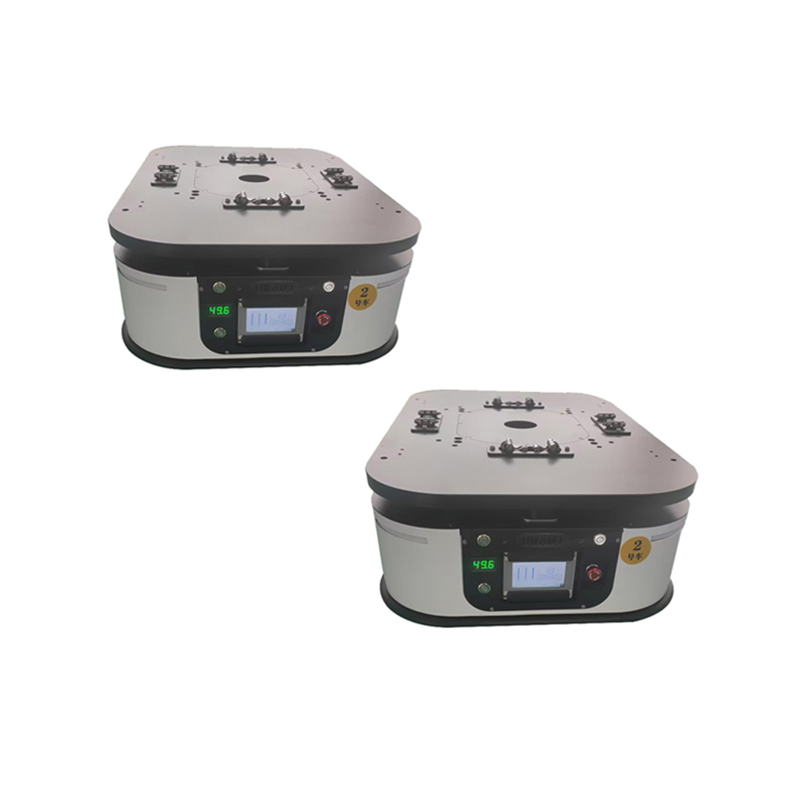

Latent jacking AGV-500KG
Apply to workshop handling, turnover cache, automation supporting, etc.;
Lift the material truck shelves and pallets, improve the transportation efficiency, reduce labor.
Combined with the system and scheduling system, to realize the site production logistics automatic transfer, to achieve intelligent and fully automatic transportation.
Product Features
Features 90-degree turns and arc turns With in-situ 90-degree turn and arc turn function, can also be forward and backward, can be applied to a variety of narrow space environment. | Applicable to a variety of scenes Applicable to a variety of industry application scenarios, a variety of environmental factors, a variety of driving surfaces, strong adaptability. | Adjustable speed of movement Adopt double wheel differential drive, speed adjustable, speed (0-60m/min). |
Synchronized autonomous operation of multiple equipment With multiple AGVs running synchronously, autonomous operation according to the scheduling instructions, set control procedures, no manual intervention in the production process. | Fault self-test recovery function With perfect fault self-test function, and with remote fault diagnosis and recovery function. | Equipped with radar detection sensor Equipped with radar obstacle detection sensor, mechanical collision avoidance device and sound and light alarm system to ensure safe operation. |
Product Parameters
| Product name | Latent jacking AGV | |

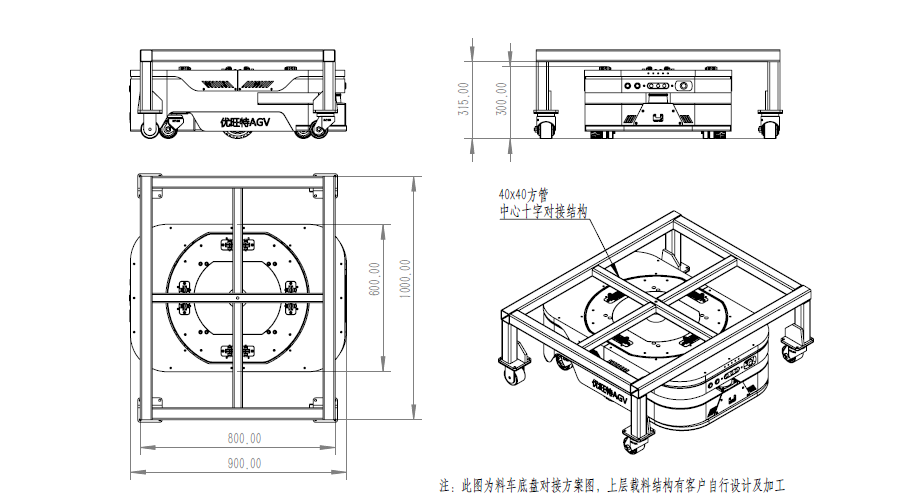

| Basic dimension | 900*600*300mm | |
| Navigation Methods | SLAM laser navigation | SLAM mapping |
| Control method | All-in-one controller | |
| Drive motor | Servo motor (W) | 200*2 |
| Driving method | Dual-wheel differential | |
| Load method | Jacking Racks | |
| Maximum load | 500KG | |
| Running direction | Bi-directionality | Forward + Arc Turn |
| Maximum speed | 0-60m/min | Straight and level running |
| Turning radius | 700mm | |
| Safety protection | Front and rear laser obstacle avoidance | Machine Mechanical Collision Avoidance + Emergency Stop |
| Nodal recognition | SLAM | |
| Climbing ability | ≤3° | |
| Stopping accuracy | ±20mm |
Application scenario
· Application scenarios: production line material handling, intelligent storage and transportation, etc;
· Application industry: intelligent transformation of electronic factories, warehouse logistics, general workshops, etc;
Recommended products
AGV car load 500KG
Automatic handling robot unmanned transport latent traction skip agv car
collect：0
Automatic loading and unloading agv car
Intelligent warehouse automatic loading and unloading agv car 12 storage positions handling turnover cache express sorting scheme
collect：0
Macram wheel lift transporter
Macram wheel lift transport intelligent automatic agv carrier chassis AGV car manufacturer Youwant
collect：0

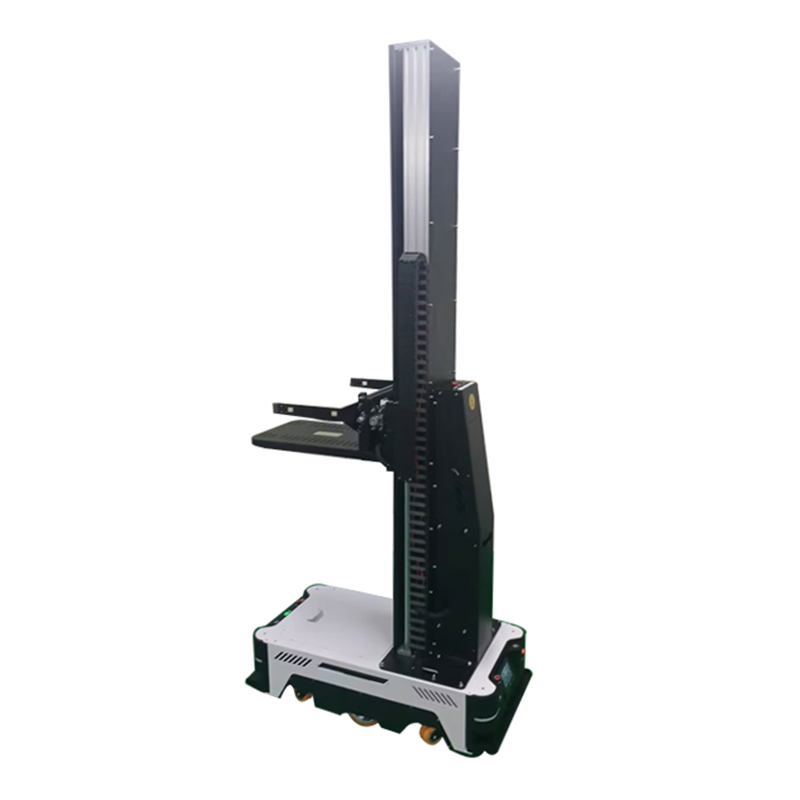

Loading and unloading forklift AGV-30KG
