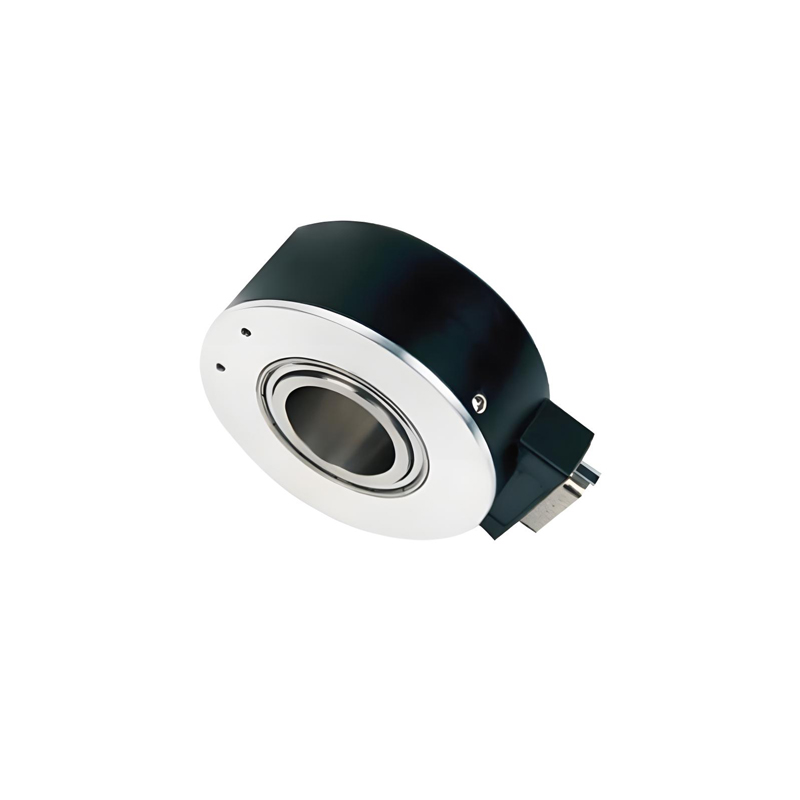

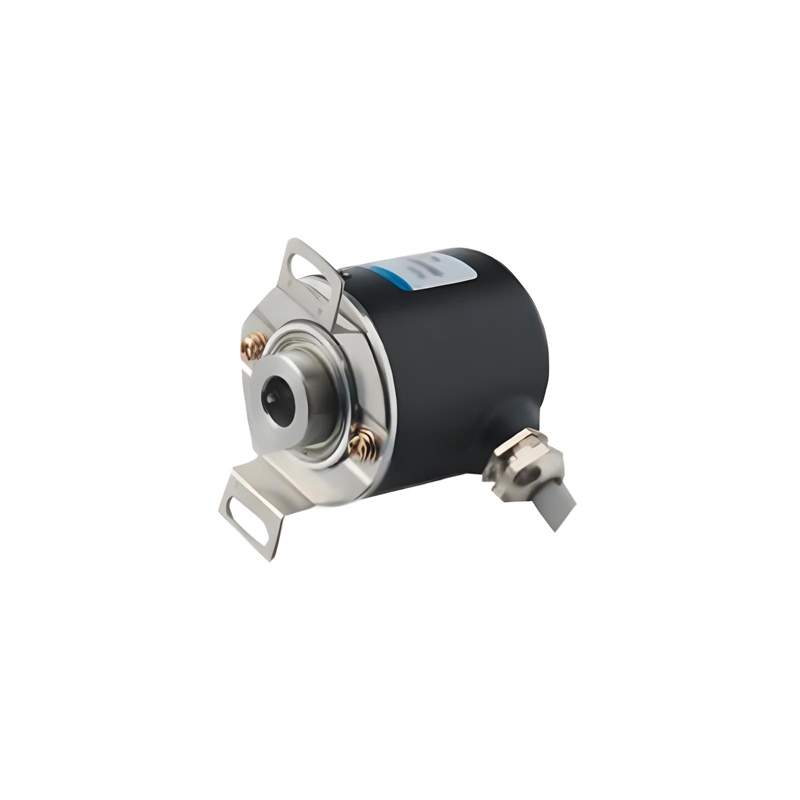

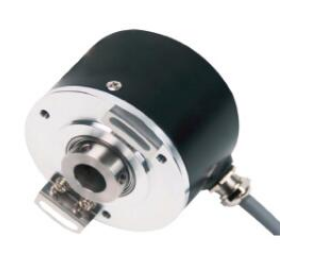

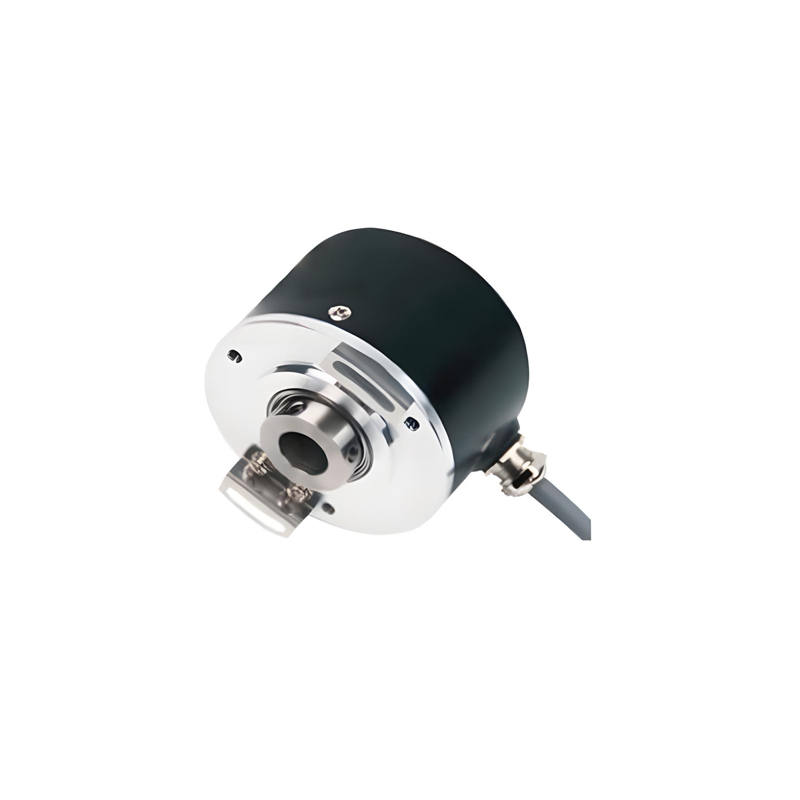

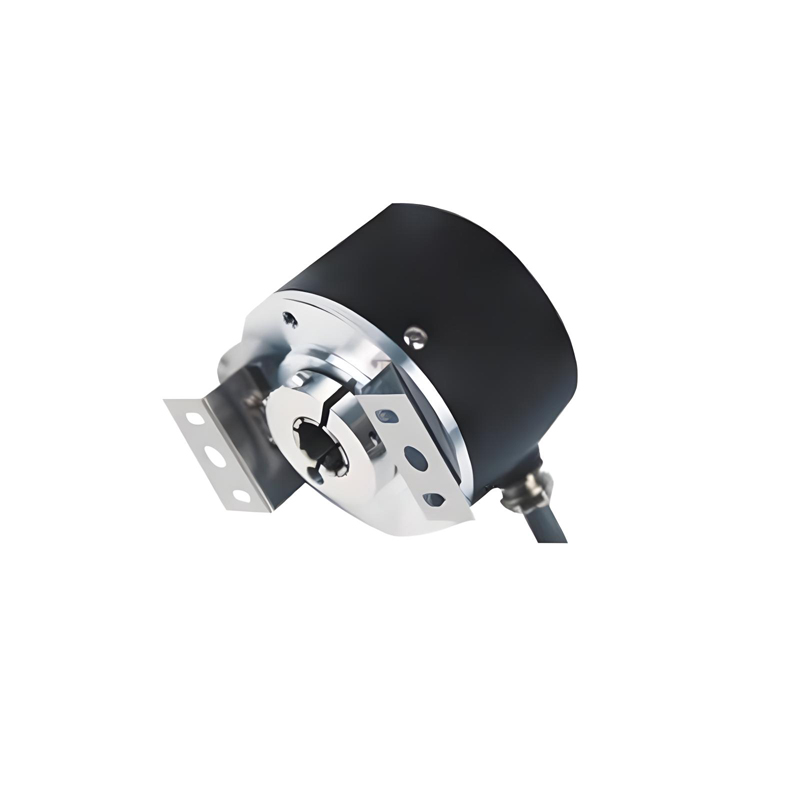

Incremental encoder
Incremental encoder shaft type blind hole type high reliability long life strong anti-interference ability
- Maximum speed：6000r/min
- Maximum radial load：40N
- Protection level：IP65
- Maximum frequency：100KHz
- Supply voltage：5V, 5V~30V, 10V~30V
- Shock resistance：1000m/s2,6ms
USD： 152-305
ablity：Monthly Output1000
- คำอธิบายสินค้า
- Product Params
คำอธิบายสินค้า
Incremental encoder
 |  |  |  |
Product Parameters
Mechanical parameters Electrical parameters Maximum speed: 6000r/min Supply voltage: 5V, 5V~30V, 10V~30V Maximum radial load: 40N Output mode: HTL, TTL, open collector, push-pull complementary, RS422 long line drive Maximum axial load: 20N Pulse number: 100 lines ~ 20000 lines Protection level: IP65 Maximum frequency: 100KHz Starting torque: 8 (1.2) × 10-2 N.m Max Working temperature: -40°C~80°C Working temperature: -10°C~70°C Storage temperature: -40°C~80°C Shock resistance: 1000m/s2,6ms Protection level: standard IP54, IP64, up to IP68 Vibration resistance: 100m/s2, 10...200Hz Maximum speed: 3000max Appearance structure: ∅24, ∅38, ∅50, ∅58, ∅80, ∅66, ∅90mm Appearance and structure: solid shaft, blind hole shaft, through hole, square flange Connection method: 1 meter shielded cable, pin (cable extension or other specifications can be customized)

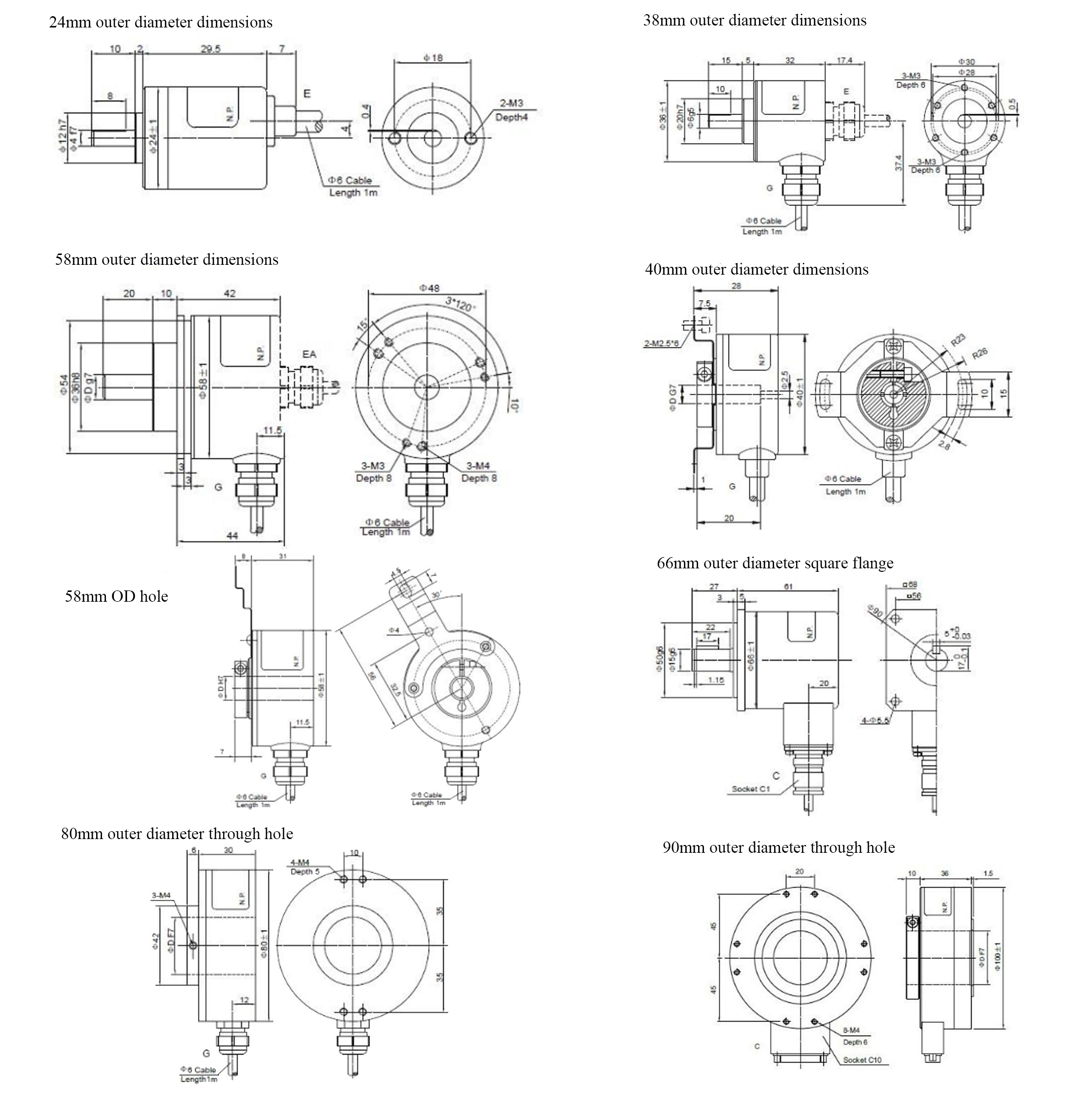

Mechanical Dimensions
