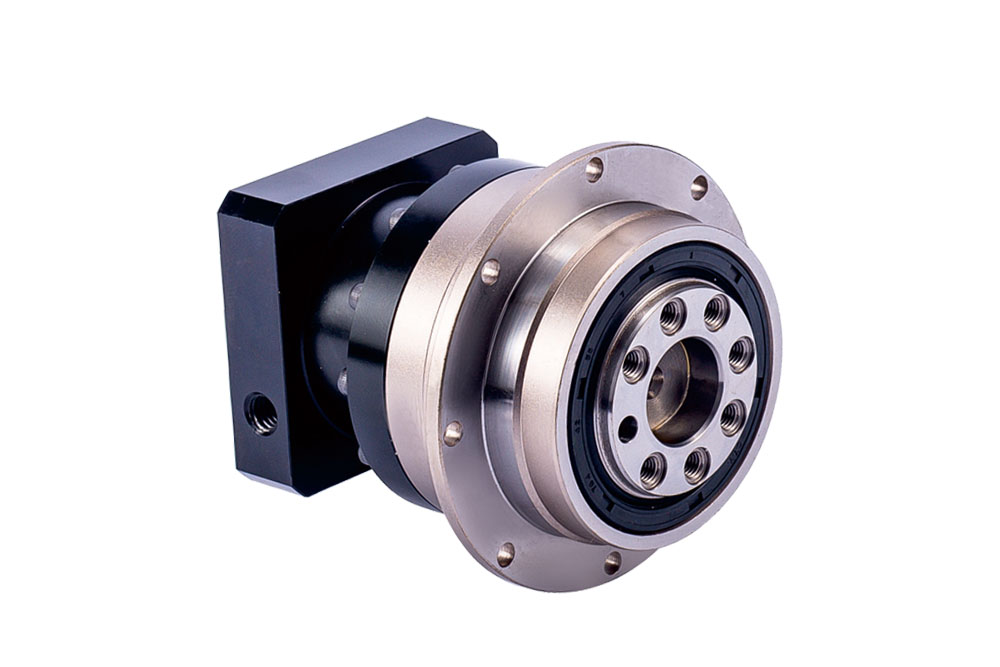

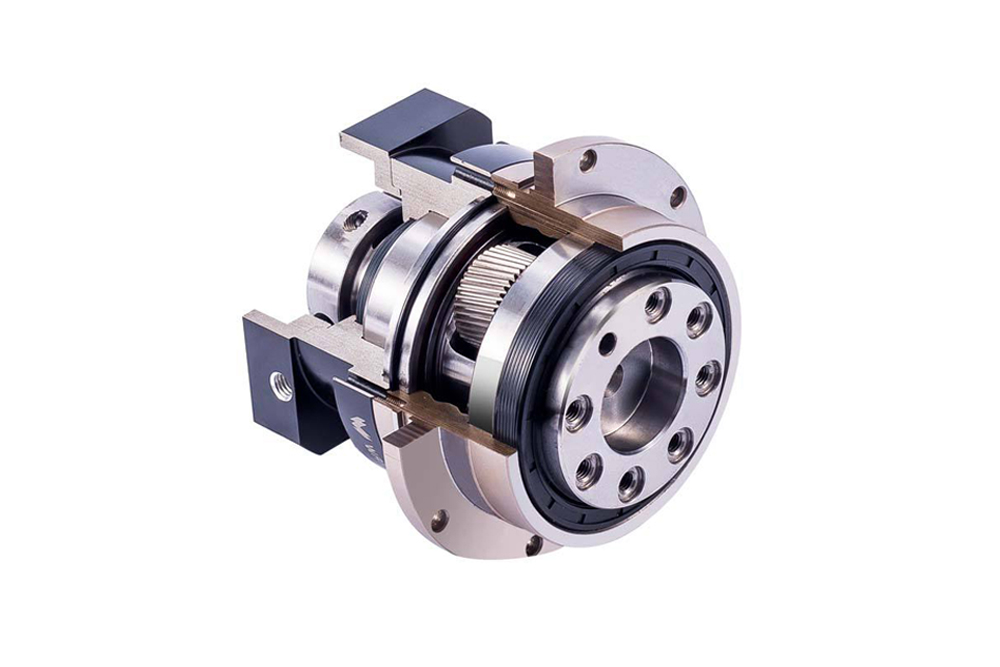

WAD Series Planetary Gearbox
WANSHSIN precision planetary reducer high precision helical gear small gearbox
- Brand：WANSHSIN
- Material：Aluminum Alloy
- Efficiency：94%~97%
- Working environment：-10℃~+40℃, humidity <90%
USD： 60-3000
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
Features
High efficiency: transmission efficiency is over 97%
Low noise: exquisite design, precision manufacturing, noise less than 63dB(A)
High input speed: Maximum input speed can reach 10000rpm
Low backlash: less than 2 arc minutes for single section and less than 3 arc minutes for double section
High reduction ratio: modular design, planetary gearboxes can be connected to each other with high speed ratio
Product details

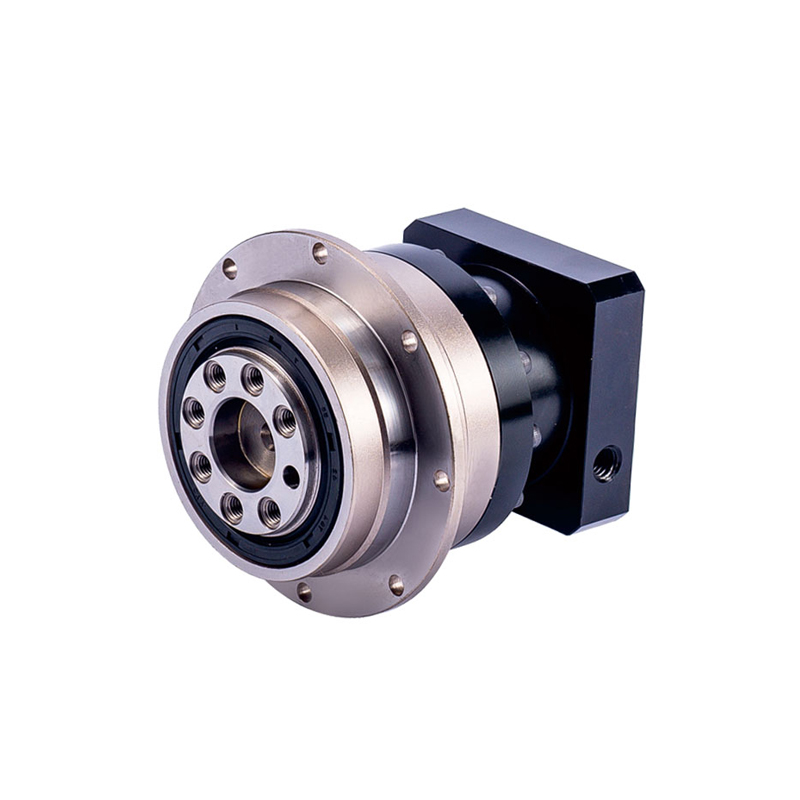

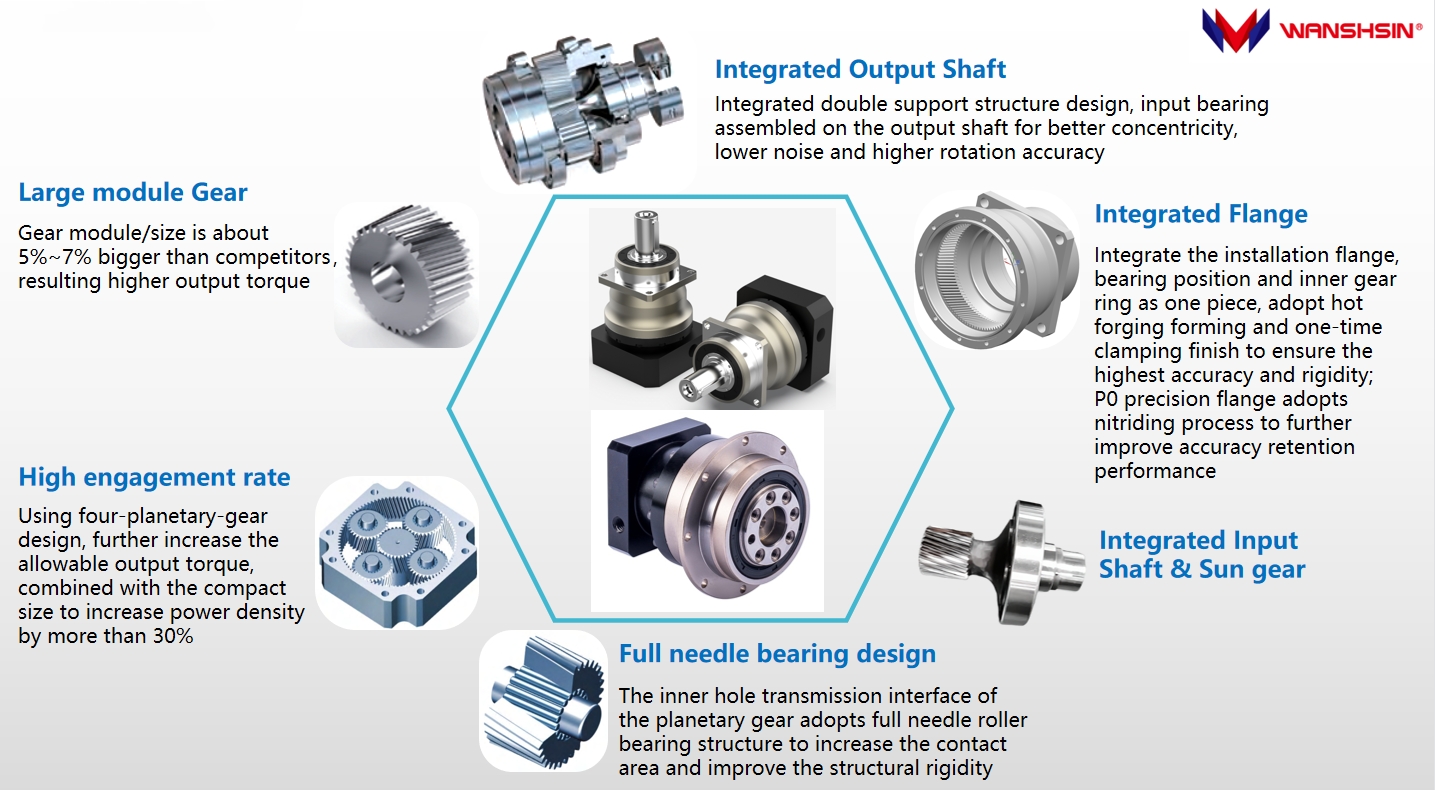

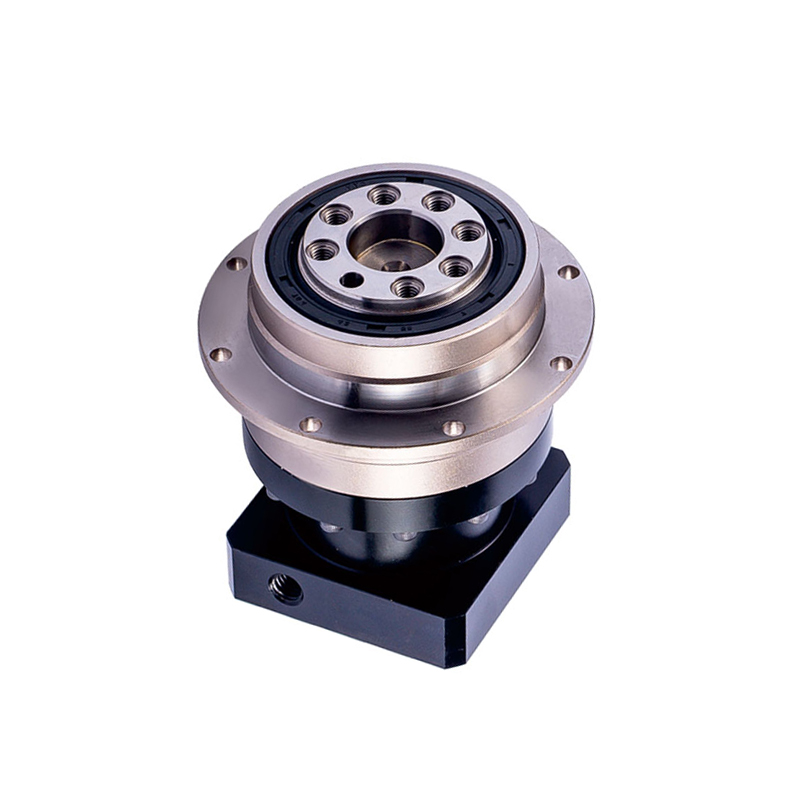

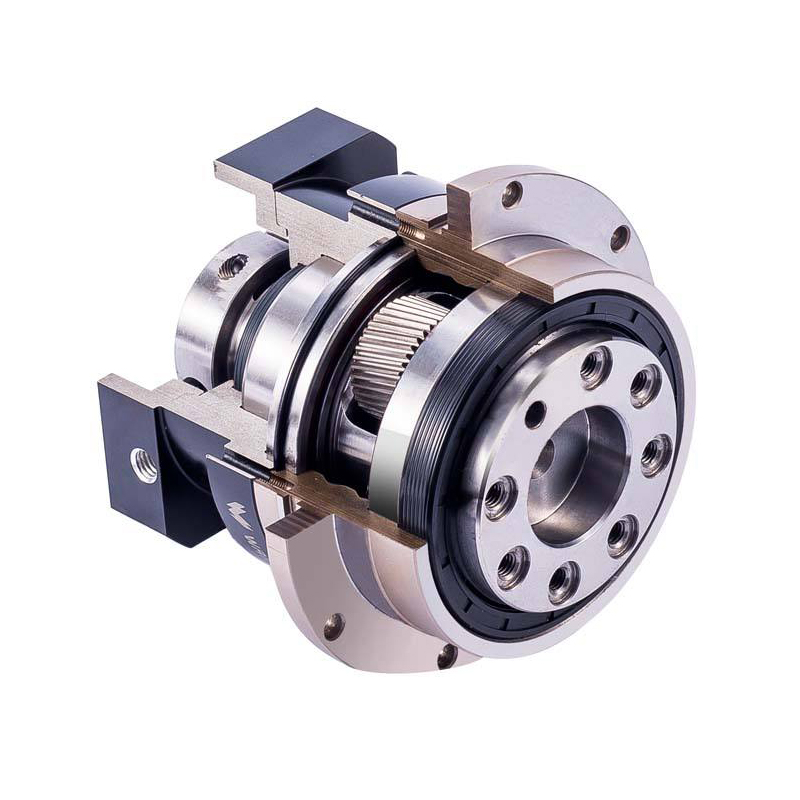

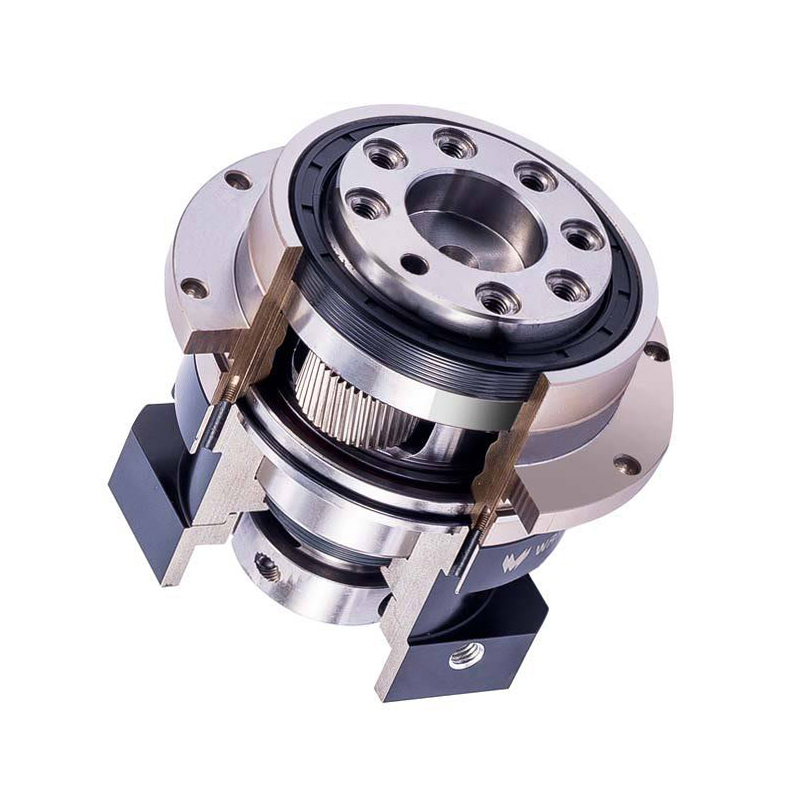

Structure Advantage
Product Parameters

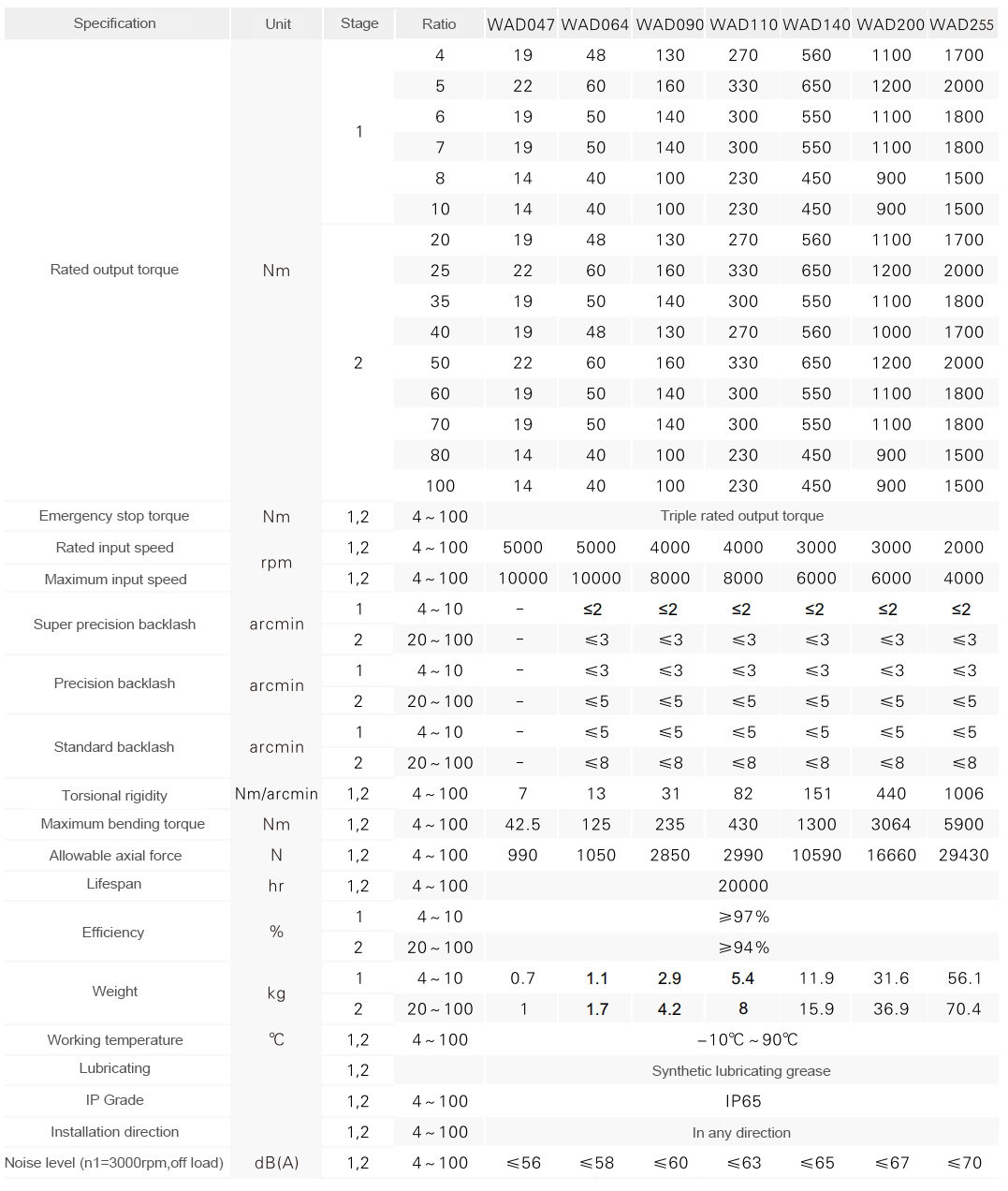

Reducer performance

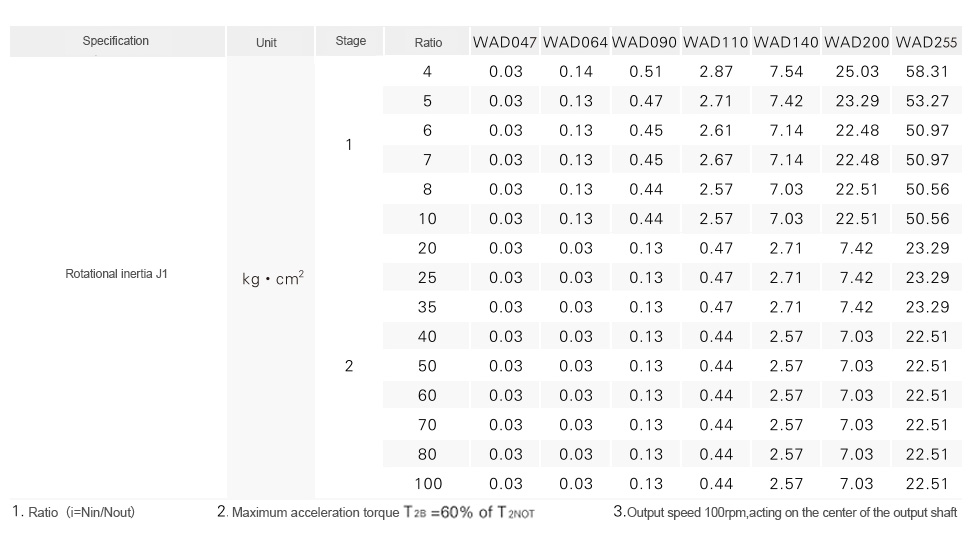

Reducer moment of inertia

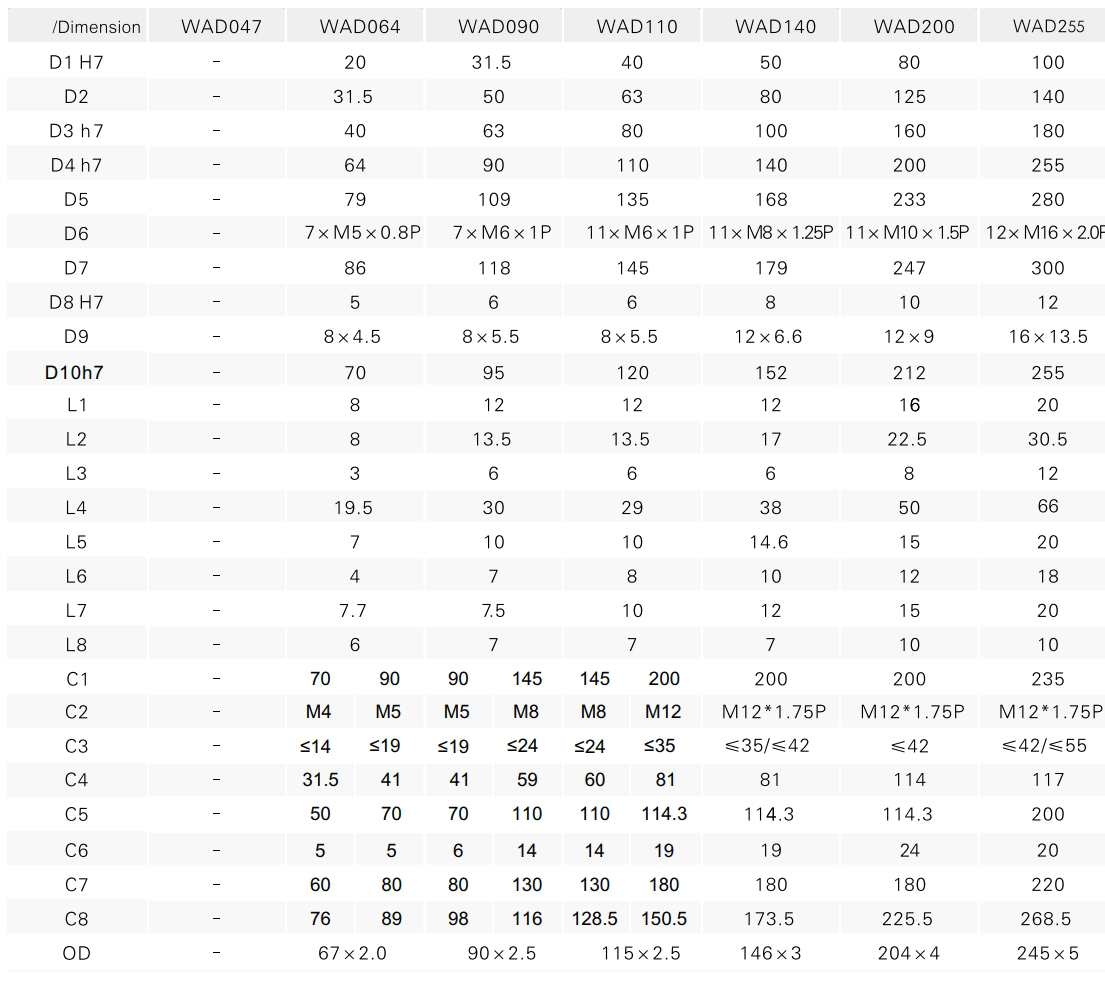

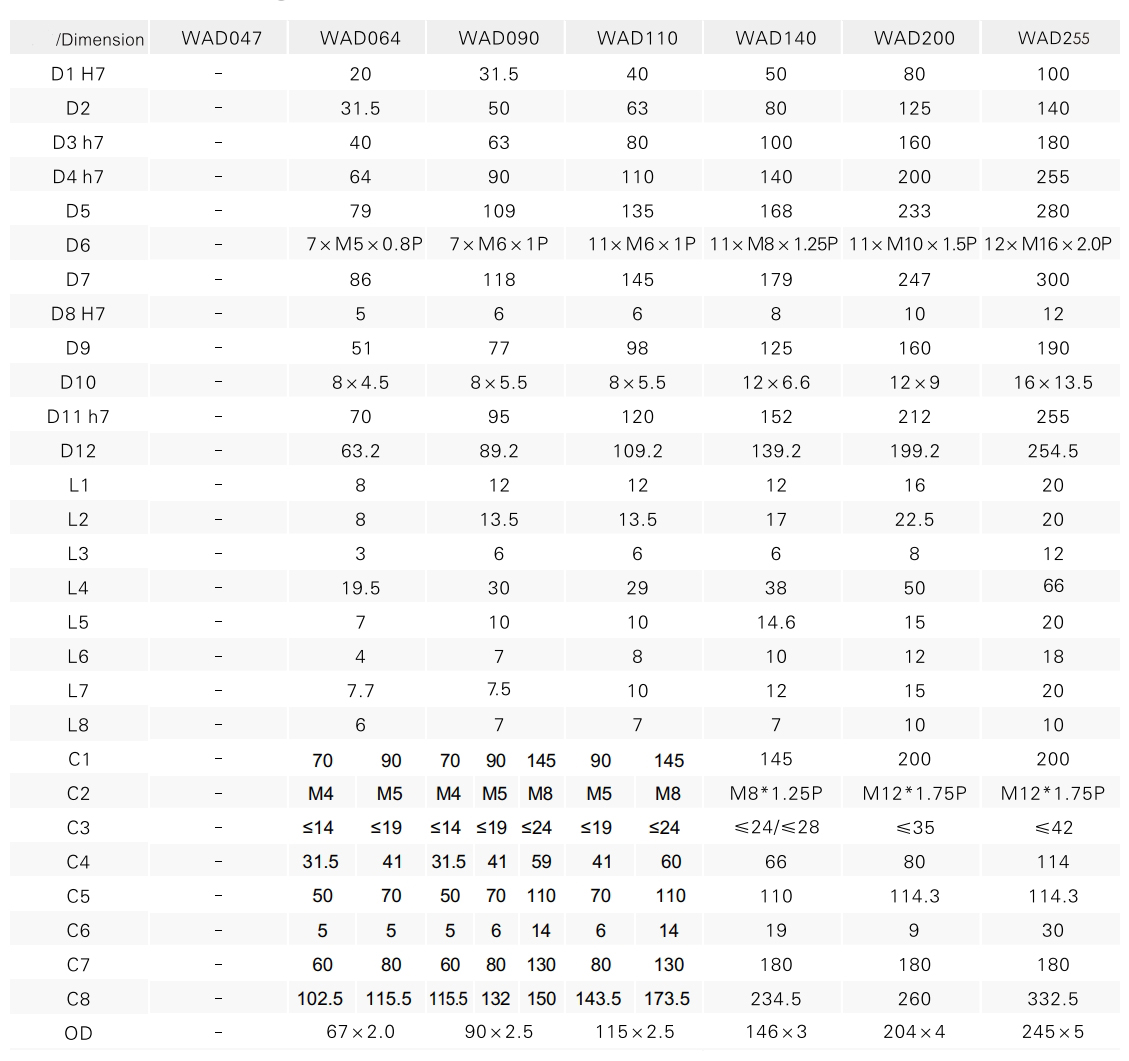

Size (single section, reduction ratio i=4~10)
Size (double section, reduction ratio i=20~100)

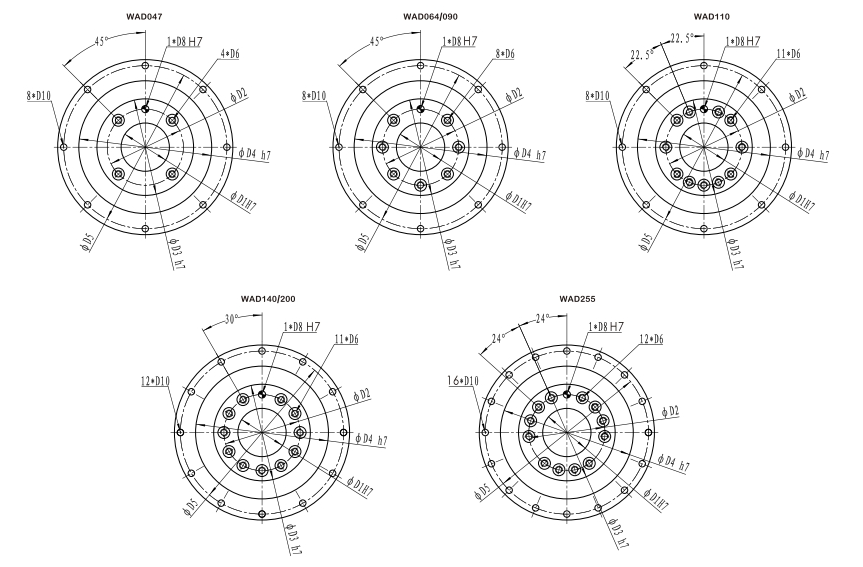

Output shaft disc size
| Size | WAD047 | WAD064 | WAD090 | WAD110 | WAD140 | WAD200 | WAD255 |
| D1 H7 | 12 | 20 | 31.5 | 40 | 50 | 80 | 100 |
| D2 | 20 | 31.5 | 50 | 63 | 80 | 125 | 140 |
| D3 h7 | 28 | 40 | 63 | 80 | 100 | 160 | 180 |
| D4 h7 | 47 | 64 | 90 | 110 | 140 | 200 | 255 |
| D5 | 67 | 79 | 109 | 135 | 168 | 233 | 280 |
| D6 | M3*0.5P | M5*0.8P | M6*1.0P | M6*1.0P | M8*1.25P | M10*1.5P | M16*2.0P |
| D8 H7 | 3 | 5 | 6 | 6 | 8 | 10 | 12 |
| D10 | 3.4 | 4.5 | 5.5 | 5.5 | 6.8 | 9 | 13.5 |
