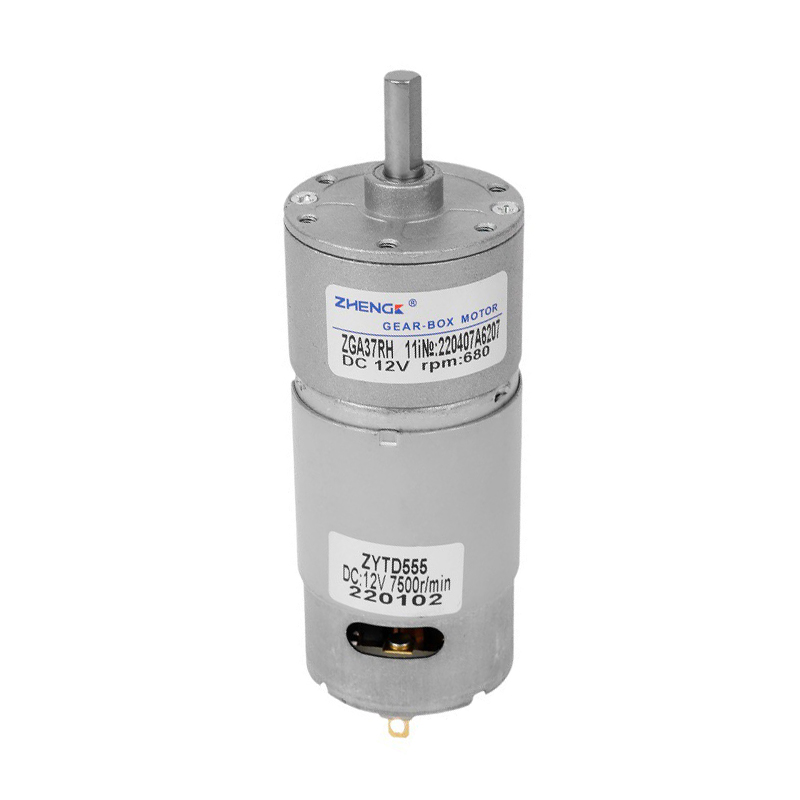

ZGA37RH DC reduction motor
ZHENGK ZGA37RH micro motor 555 forward and reverse DC reduction motor center shaft 12V 24V
- model：ZGA37RH
- rated power：15（W）
- product type：Brushed DC Motor
- Rated voltage：6（V）
- Rated current：190（A）
- Dimensions：37（mm）
USD： 8
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
Permanent Magnet DC Gear Motor
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
Product Parameters
ZGA37RH
| Shell material | Metal |
| Output bearing type | Oil-retaining bearings |
| Radial force | ≤ 1 kgf |
| Axial force | ≤ 0.7 kgf |
| Maximum spindle pressure | ≤ 5 kgf |
| Radial clearance | ≤ 0.1 mm |
| Axial clearance | ≤ 0.5 mm |

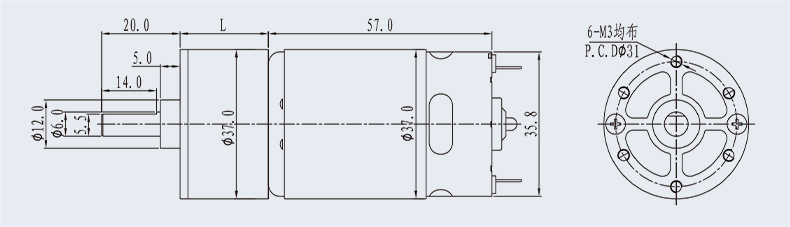

Gearbox dimensions

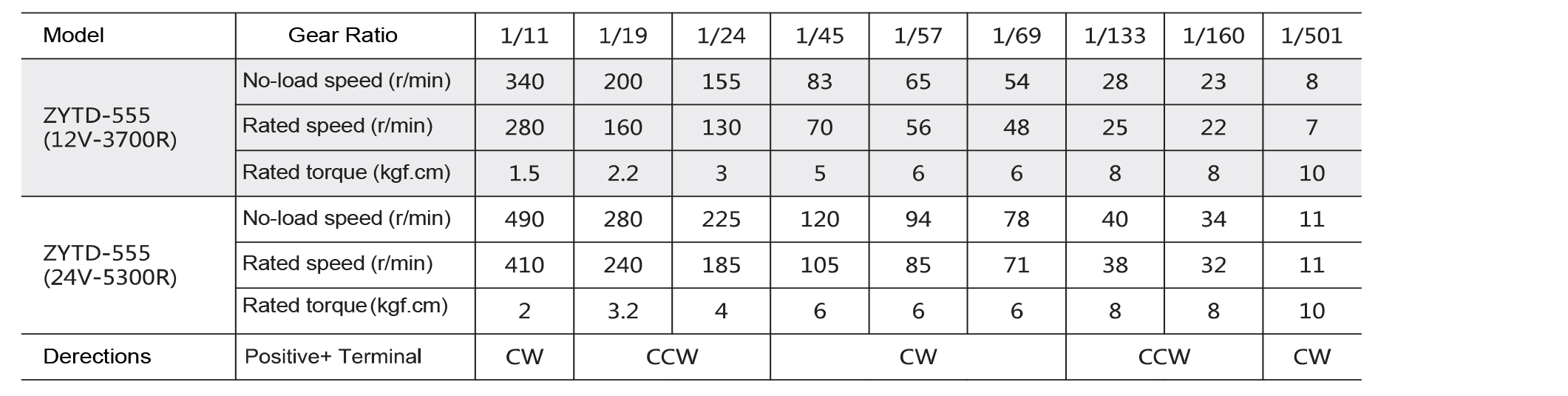

Gearbox motor (rated torque/speed list)
Gearbox specifications
| Reduction ratio | L | Number of steps | Rated torque | |
| mm | mN.m | kgf.cm | ||
| 1/11 | 25.5 | 3 | 245 | 2.5 |
| 1/19~1/24 | 27.5 | 4 | 392 | 4 |
| 1/45~1/69 | 29.5 | 5 | 588 | 6 |
| 1/133~1/160 | 32.5 | 6 | 784 | 8 |
| 1/245.4~1/501 | 33.5 | 7 | 980 | 10 |

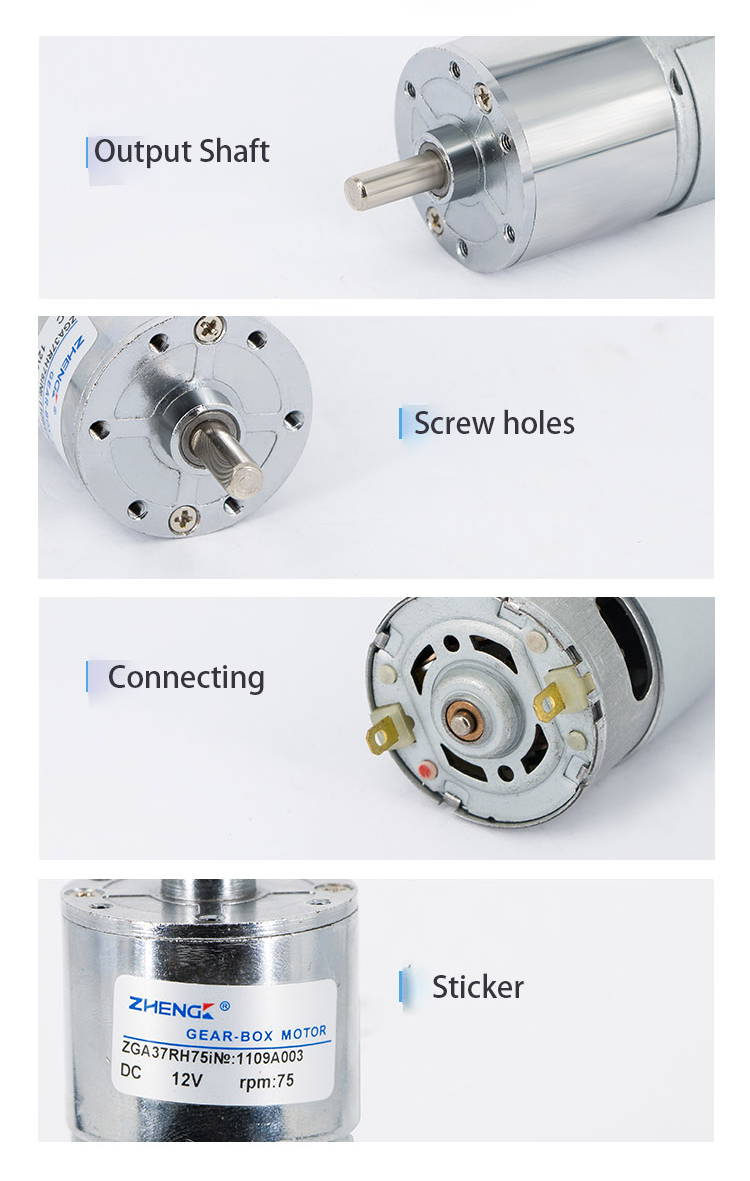

Detailed image
