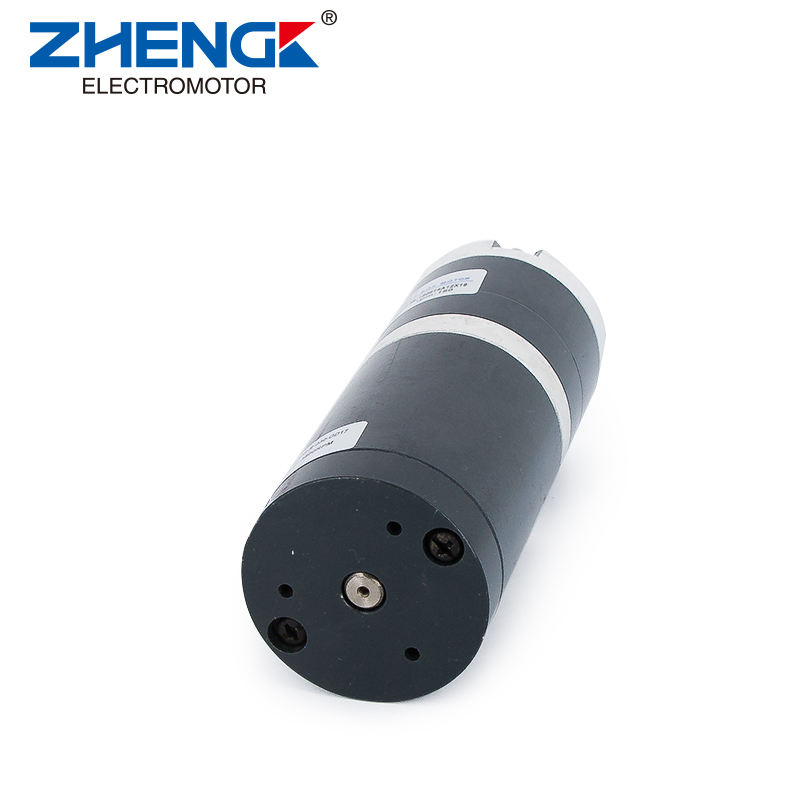

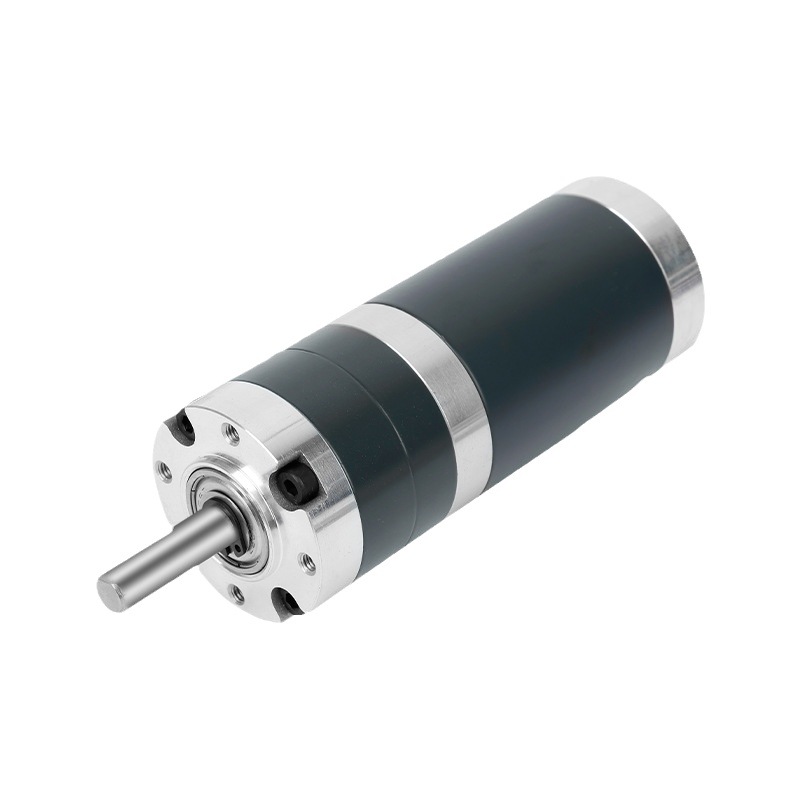

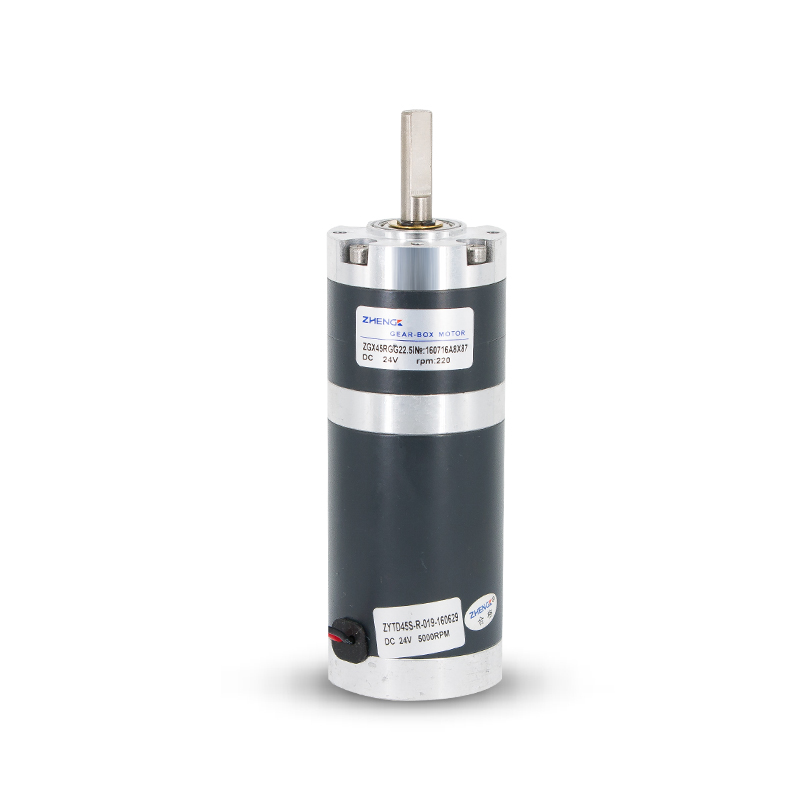

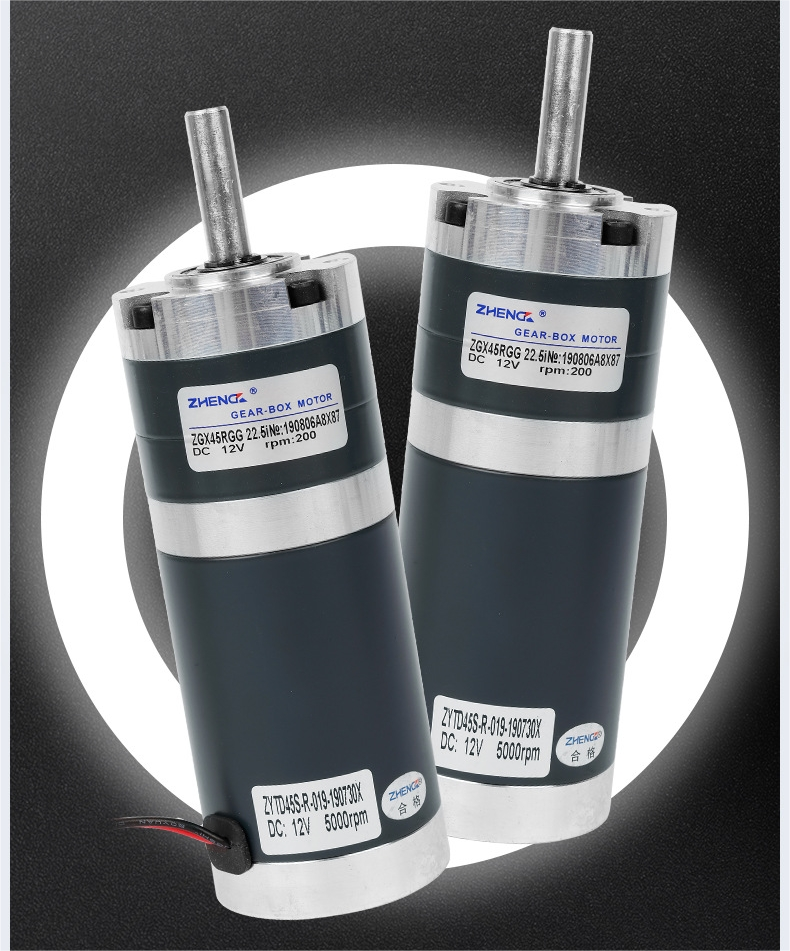

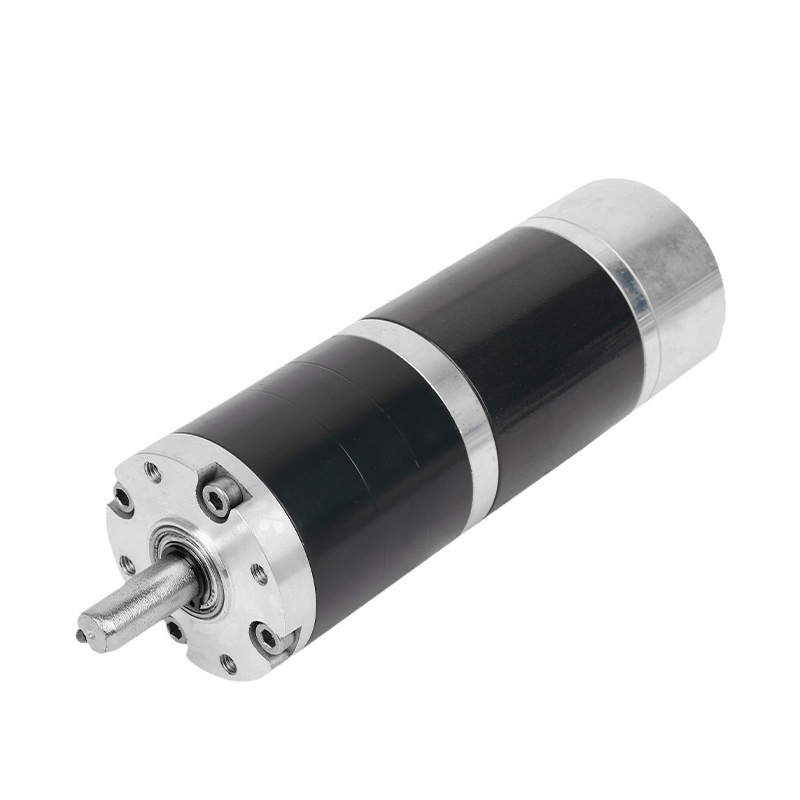

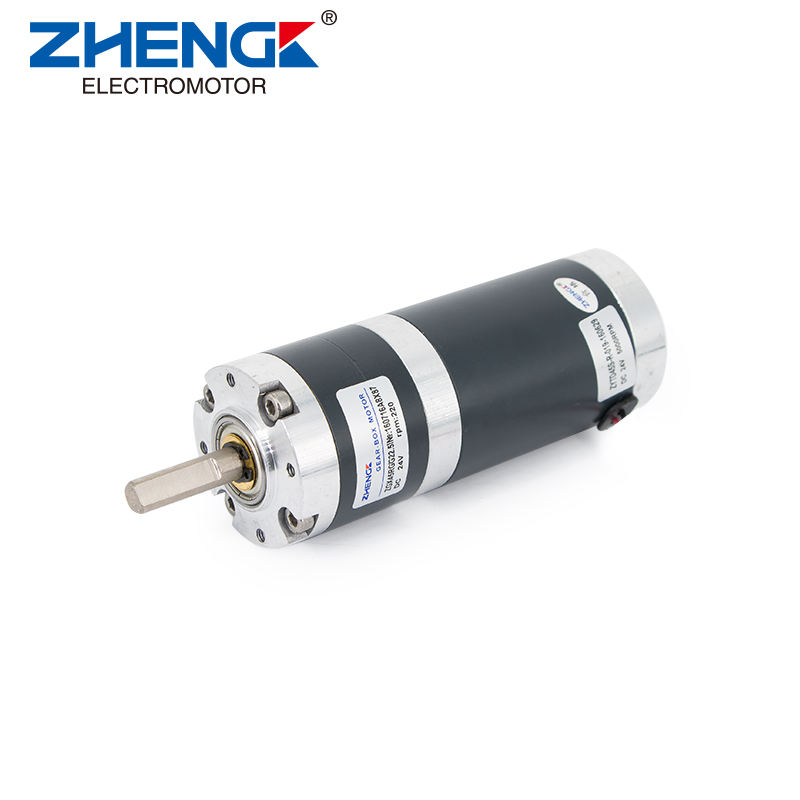

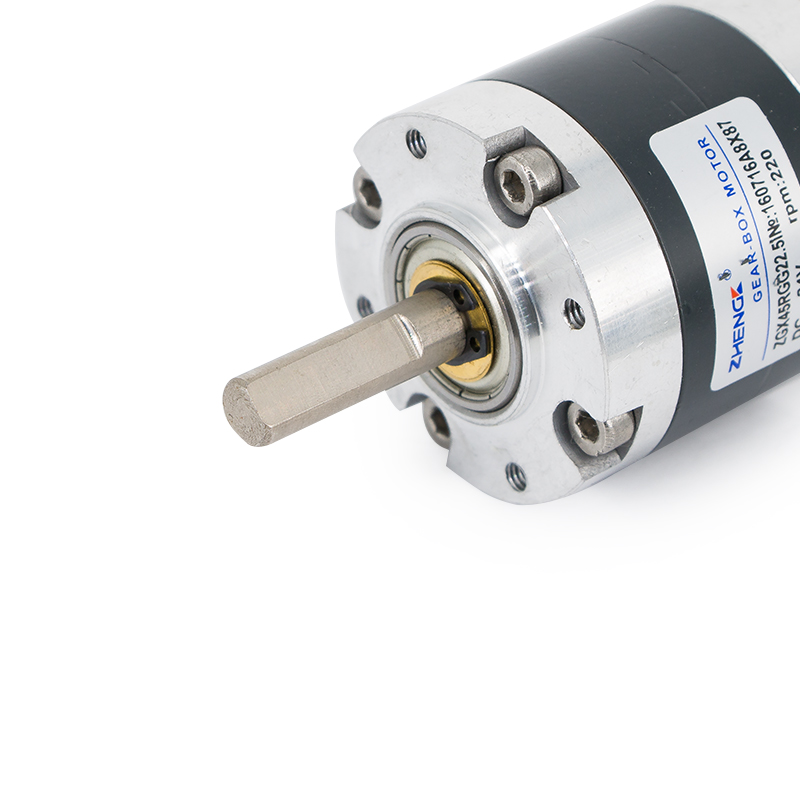

ZGX45RGG planetary reduction motor
ZHENGK ZGX45RGG adjustable speed forward and reverse planetary reduction motor center shaft 12V 24V
- model：ZGX45RGG
- rated power：0.08（W）
- product type：Brushed DC Motor
- Rated voltage：12（V）
- Rated current：5（A）
- Rated speed：530-0.65（rpm）
USD： 45
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
Planetary DC gear motor
ZGX45RGG
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
Product Parameters
ZGX45RGG
|  |

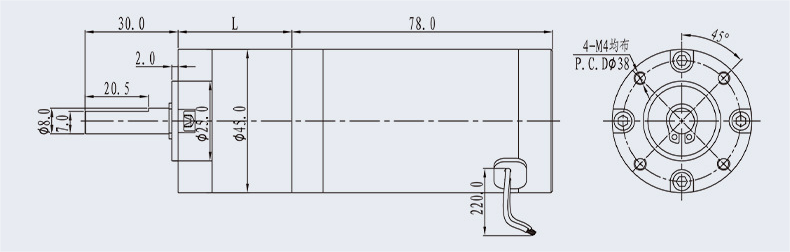

Gearbox dimensions

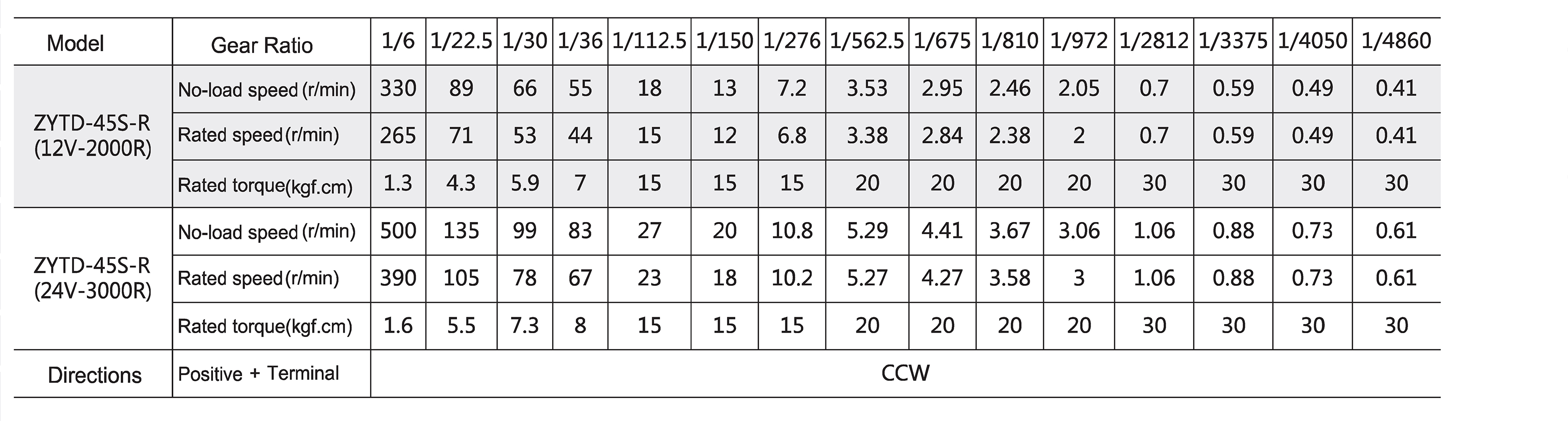

Gearbox motor (rated torque/speed list)
Gearbox specifications
| Reduction ratio | L | Number of segments | Rated torque | |
| mm | mN.m | kgf.cm | ||
| 1/6 | 26.7 | 1 | 392 | 4 |
| 1/22.5~1/36 | 36.7 | 2 | 784 | 8 |
| 1/112.5~1/276 | 46.7 | 3 | 1470 | 15 |
| 1/562.5~1/972 | 56.7 | 4 | 1960 | 20 |
| 1/2812~1/4860 | 66.7 | 5 | 2940 | 30 |

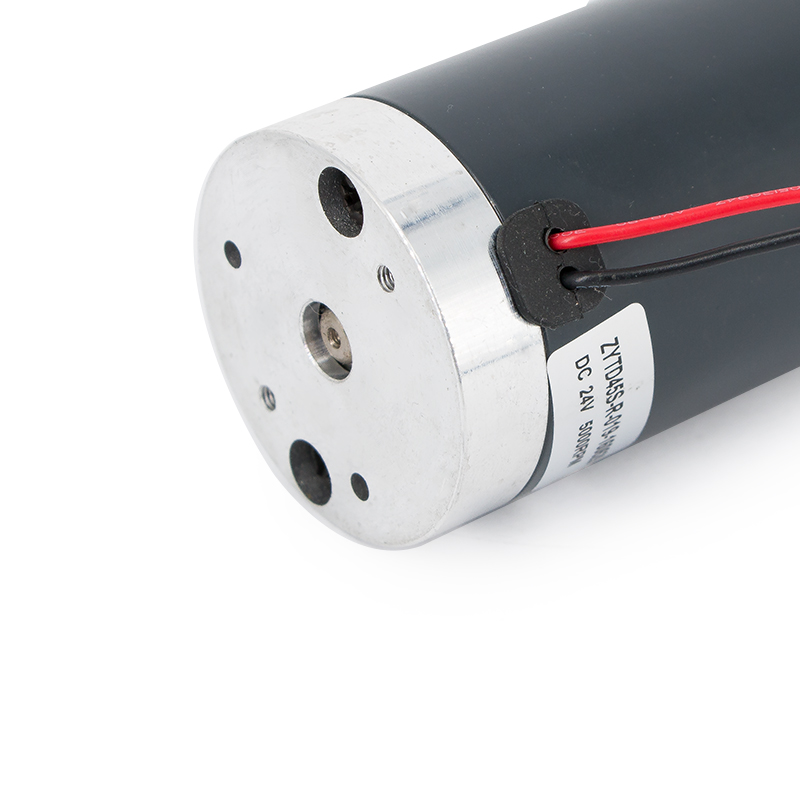

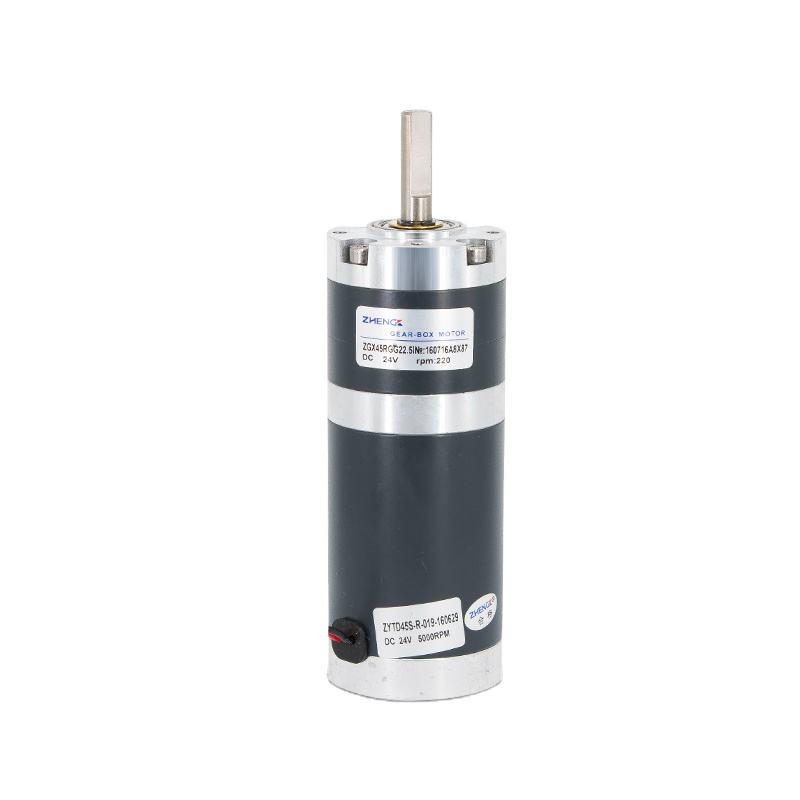

Detailed Images
 |  |
Applicable scene
Recommended products

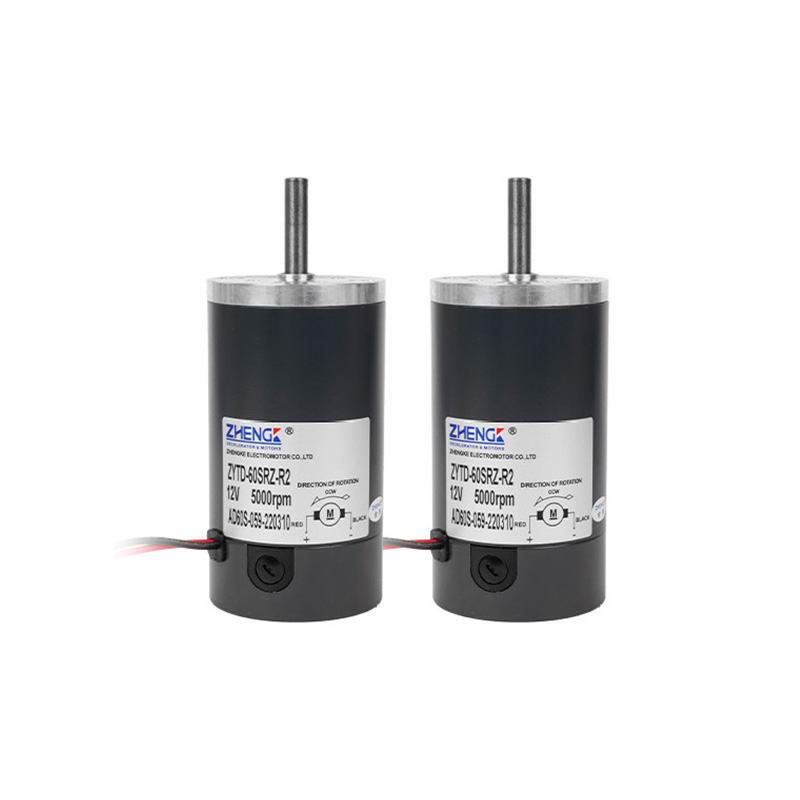

ZYTD-60SRZ permanent magnet DC reduction motor
