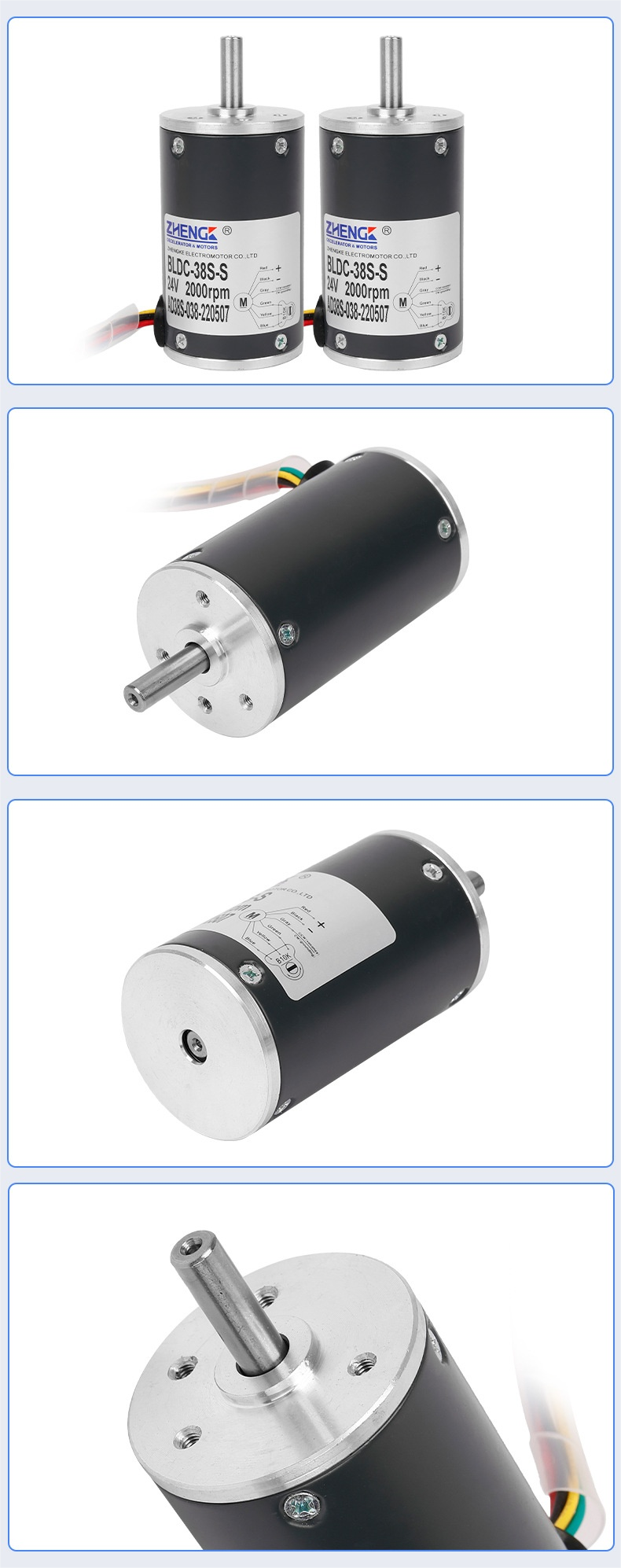

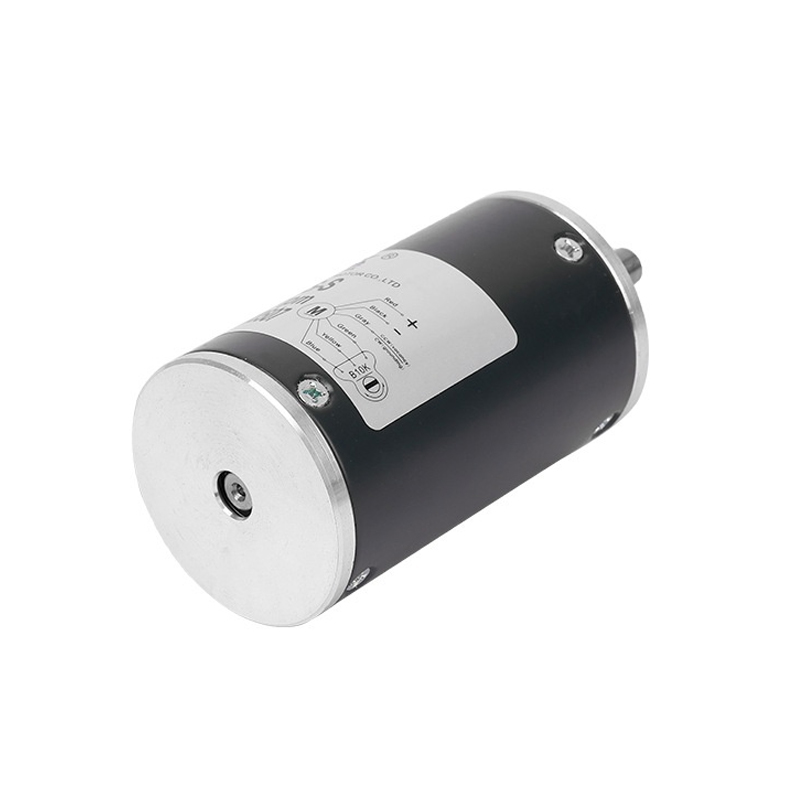

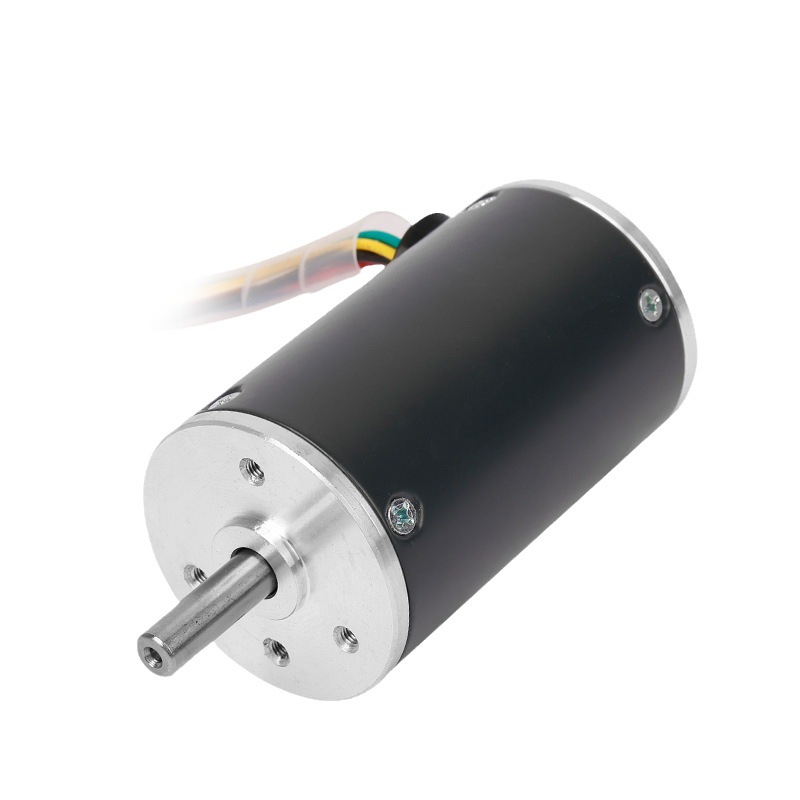

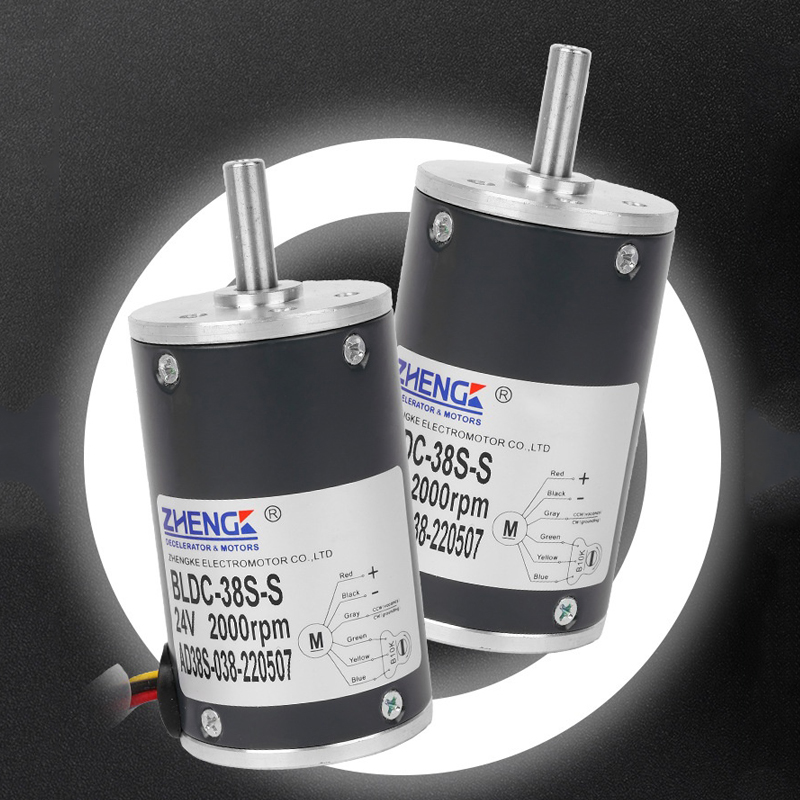

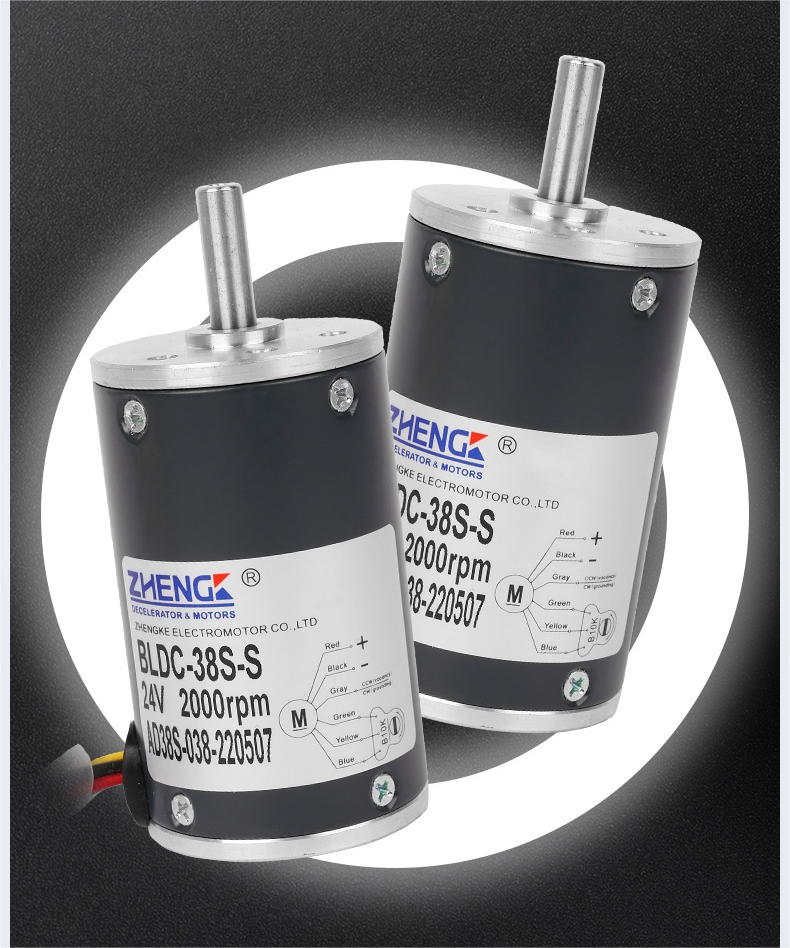

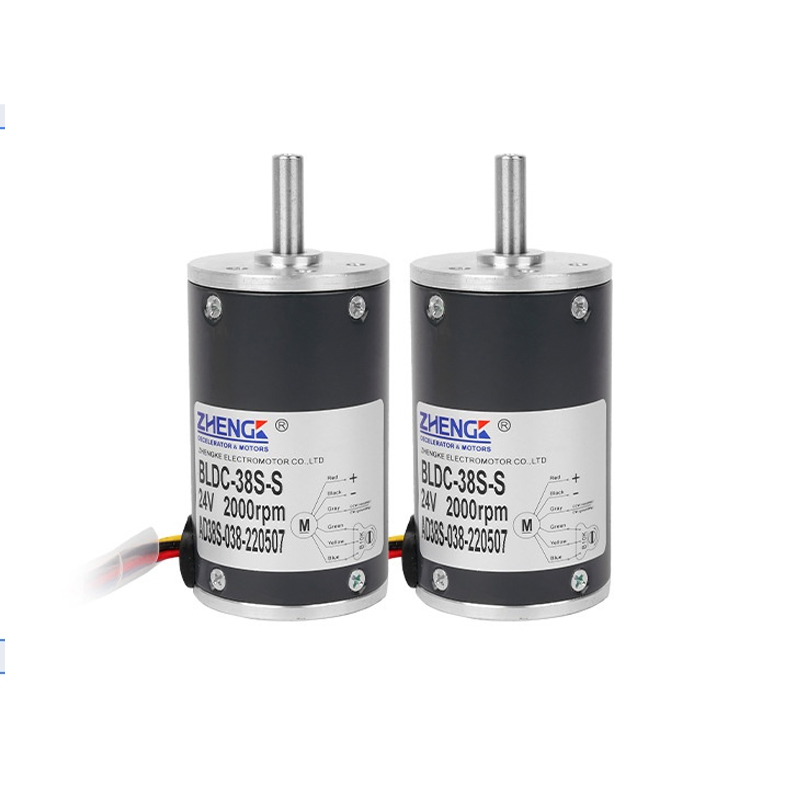

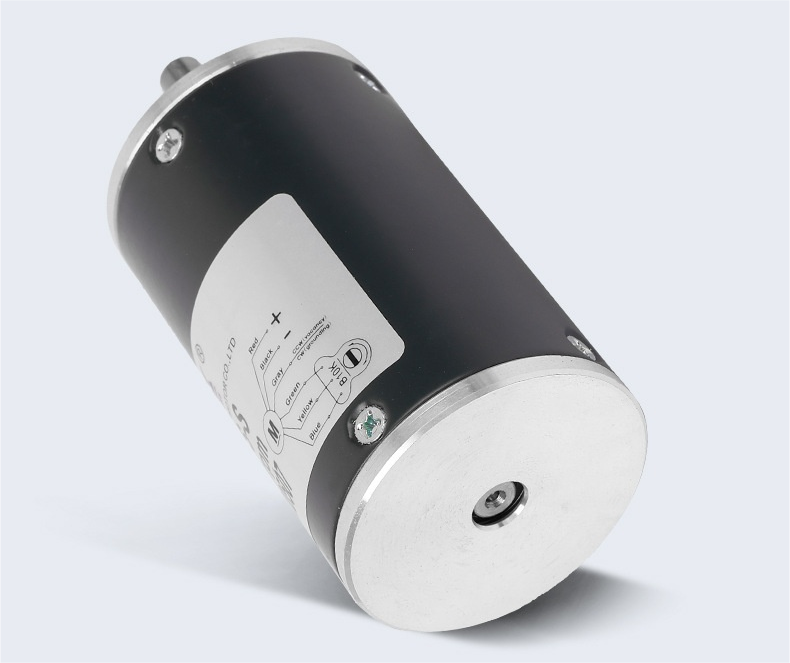

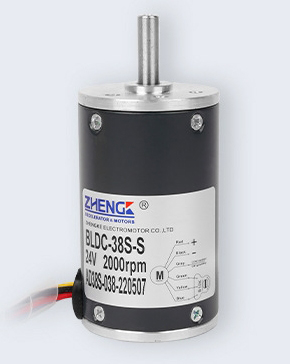

BLDC-38SRZ-S Brushless Gear Motor
ZHENGK BLDC-38SRZ-S adjustable speed brushless motor center shaft 12V 24V
- brand：ZHENGKE
- model：BLDC-38SRZ-S
- product type：Brushless DC Motor
- rated power：15（W）
- Rated voltage：24（V）
- Rated current：420（A）
USD： 28
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
Adjustable brushless DC motor
BLDC-38SRZ
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| metal shell | Pure copper wire core | Quality Assurance |
Product Parameters
BLDC-38SRZ
The main purpose Vending machines, rearview mirror adjustment, scanners, central locking, smart homes, office automation, home automation, production automation, medical equipment, financial machinery, game machinery, smart window openers, shredders, electric safes, electronic door locks, and high-end toys. |  |

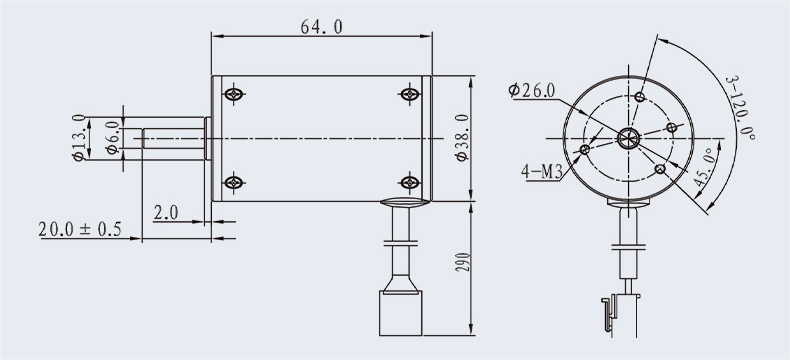

Gearbox dimensions
Motor and electrical performance
| Model Name | Voltage | No load | Load | Rotation direction | Quality | |||
| D.C | Current (mA) | Speed (r/min) | Torque (gf.cm) | Current (mA) | Speed (r/min) | (g) | ||
| BLDC-38S | 12V | 190 | 3000 | 200 | 600 | 2500 | CCW | 290 |
| BLDC-38S | 12V | 260 | 4000 | 300 | 1200 | 3200 | CCW | 290 |
| BLDC-38S | 24V | 200 | 5000 | 500 | 1300 | 4000 | CCW | 290 |
| BLDC-38S | 24V | 220 | 6000 | 500 | 1700 | 5000 | CCW | 290 |
Products
Features
Made of all metal Durable, corrosion-resistant and durable |  |

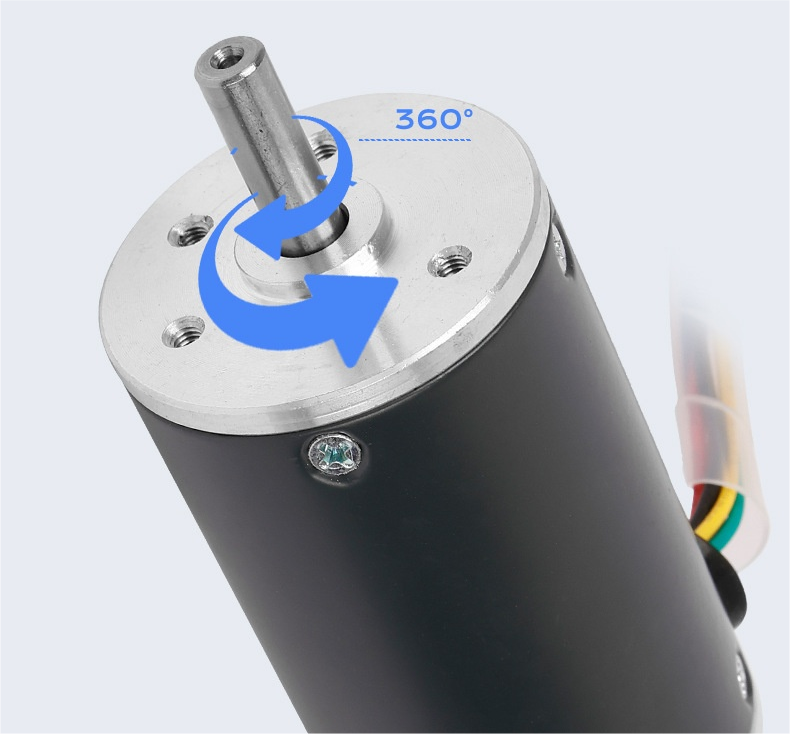

 | Positive and negative rotation 360° rotation, ingenious design |
Applicable scene
