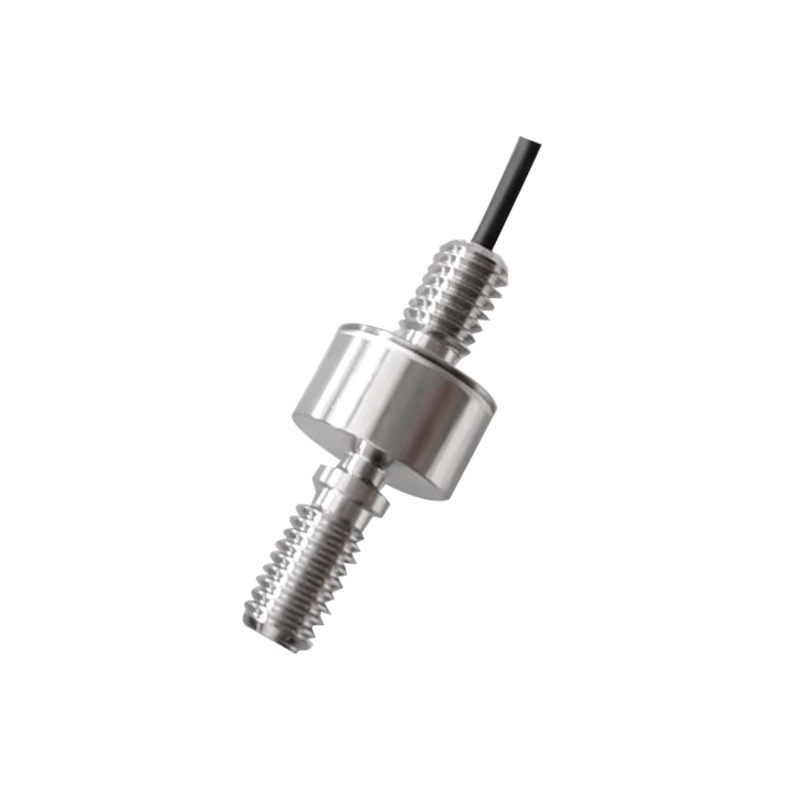

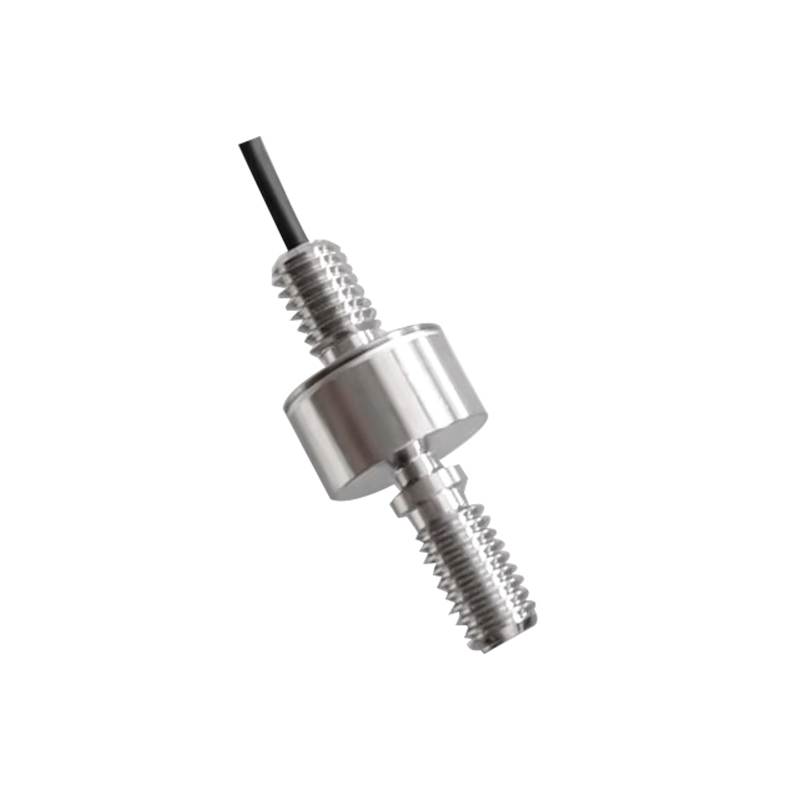

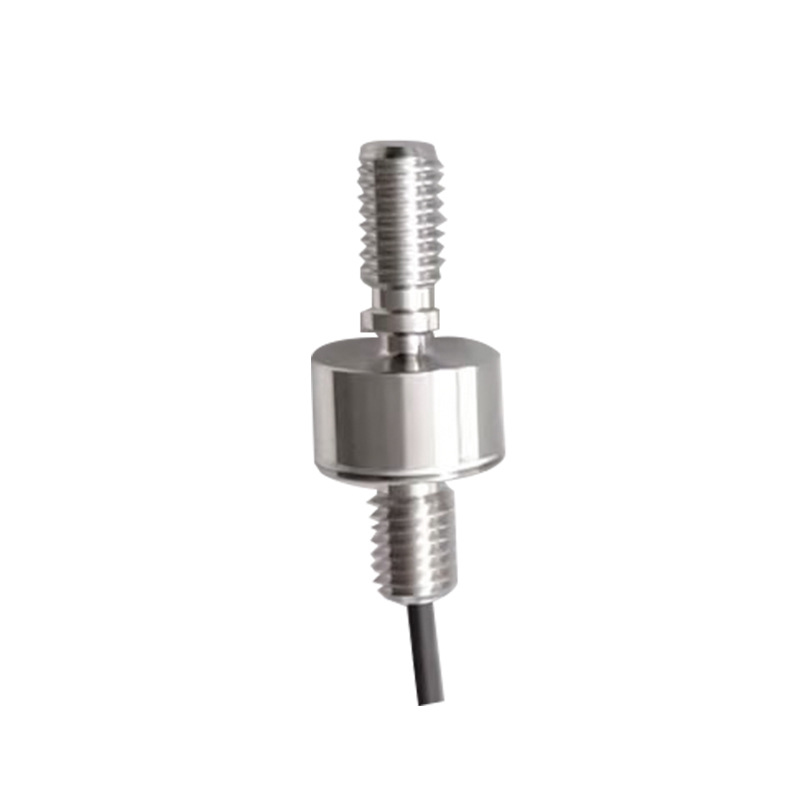

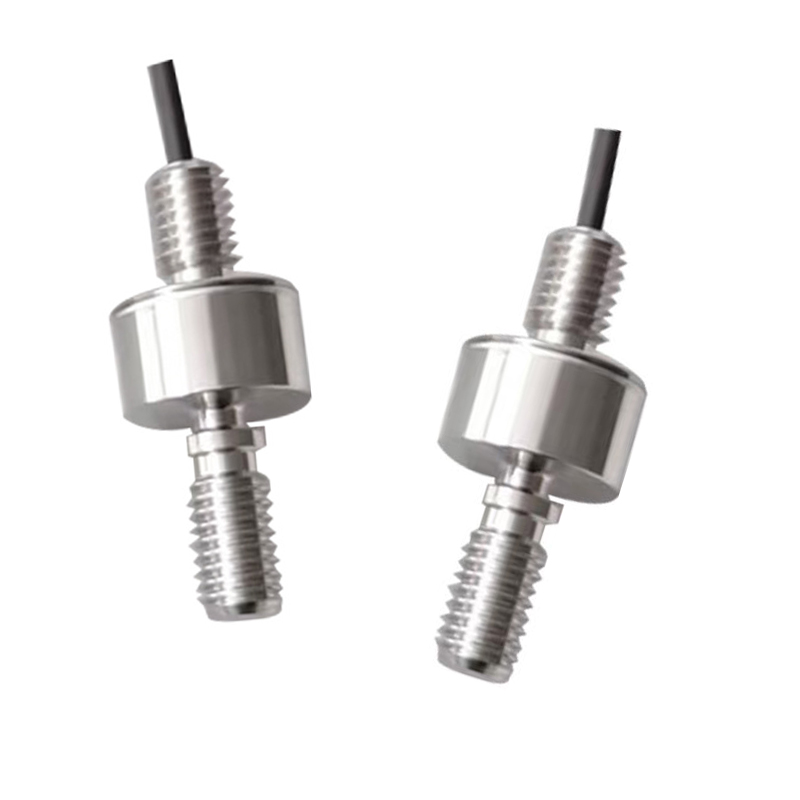

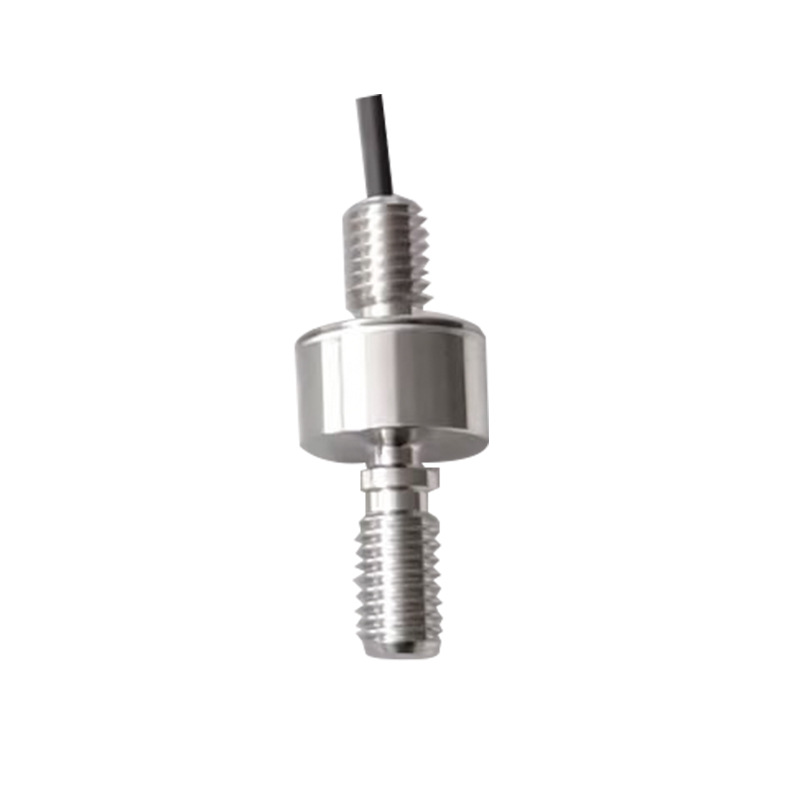

LCZ-203H Micro Tension and Pressure Sensor

Longlv LCZ-203H micro tension pressure sensor weighing force sensor industrial automation push-pull dual-purpose

  • Rated load：0~500KG
  • Sensitivity：1.0±20%mV/V
  • Output resistance：350±5Ω
  • Input Resistance：350/500/1000Ω
  • Insulation resistance：≥5000MΩ/100VDC
  • Response frequency：10kHz

USD： 56

ablity：Monthly Output1000

contact shop
  • Product Description
  • Product Params

Product Description

The tension and pressure sensor has compact structure, high comprehensive accuracy, good long-term stability, high dynamic response frequency, and high-quality stainless steel material. It is used in automotive press-fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, automation equipment and testing fields.

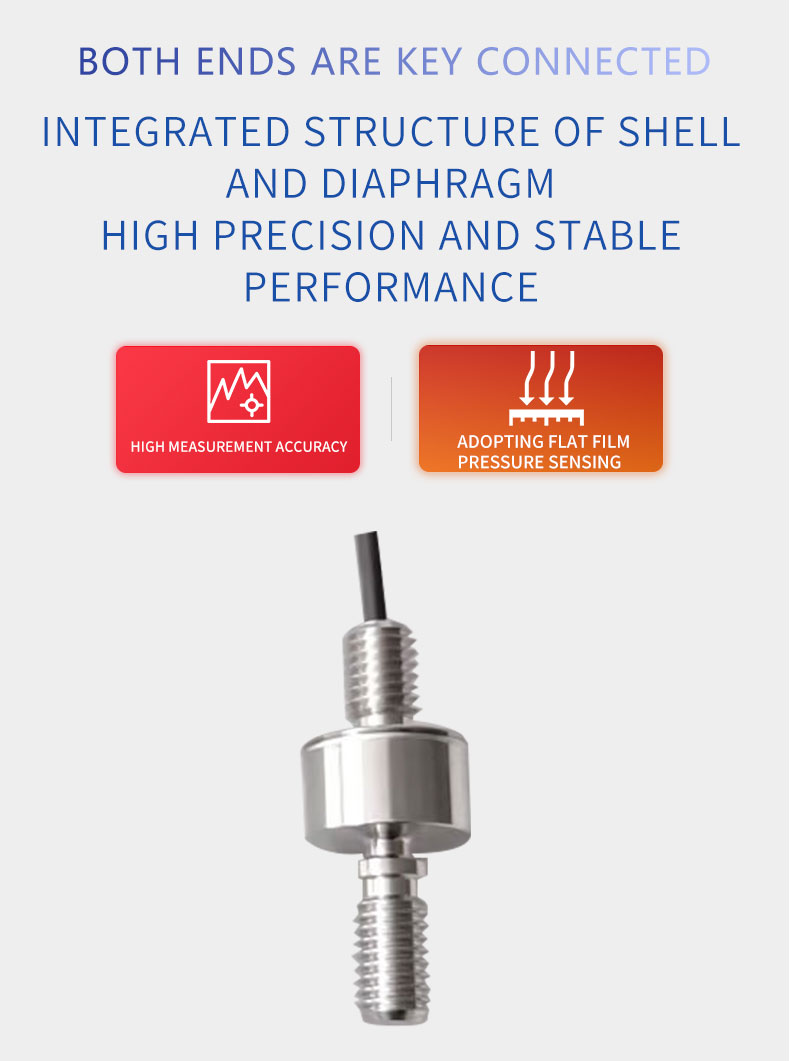

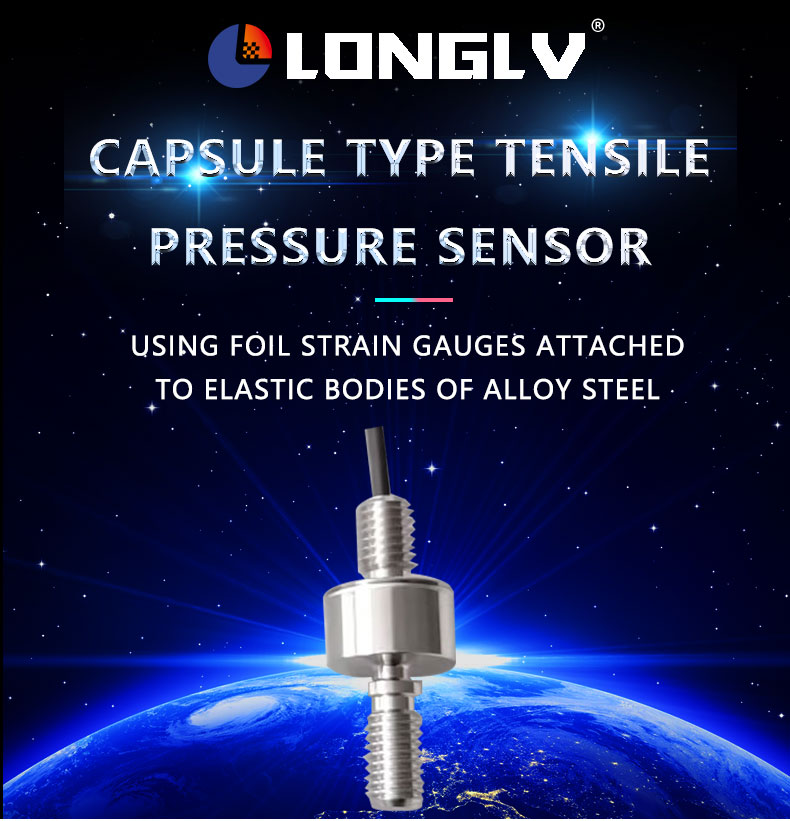

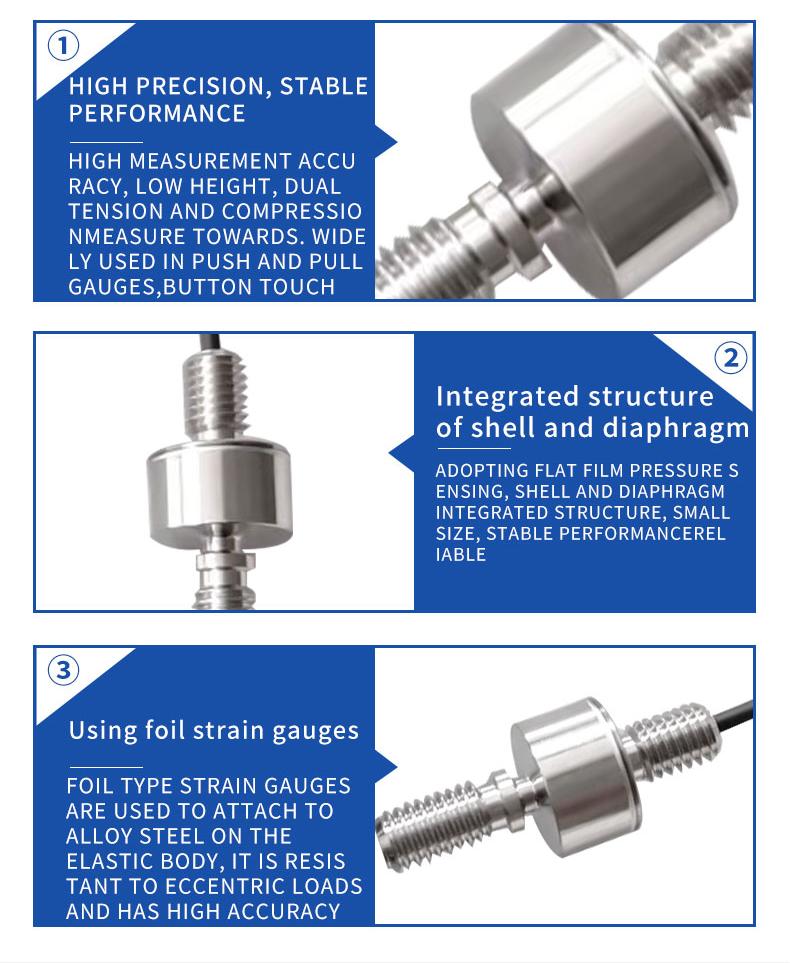

Product Overview

—— -


Tension pressure sensor



Sensor made of stainless steel

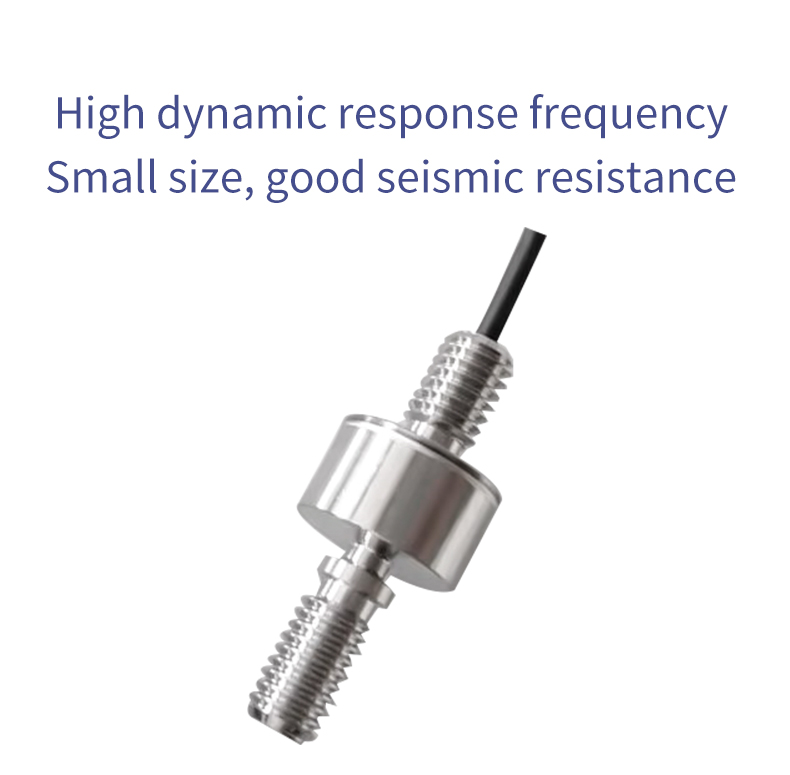

High dynamic response frequency

High precision and sensitive response

Product Details

—— -

Parameter specification

—— -

Rated load
0~500KG
Sensitivity
1.0±20%mV/V
Nonlinear
±5%F.S.
Hysteresis error
0.5%F.S.
Hysteresis error
0.5%F.S.
Creep
0.1%F.S.
Zero temperature
0.2%F.S./10°C
Sensitivity temperature coefficient
0.2%F.S./10°C
Input Resistance
350/500/1000Ω
Output resistance
350±5Ω
Operating temperature range
-20~80°C
Safe Overload
150%F·S
Insulation resistance
≥5000MΩ/100VDC
Recommended excitation voltage
5~10V
Response frequency
10kHz
Material quality
Stainless steel
Cable
Φ2x2m

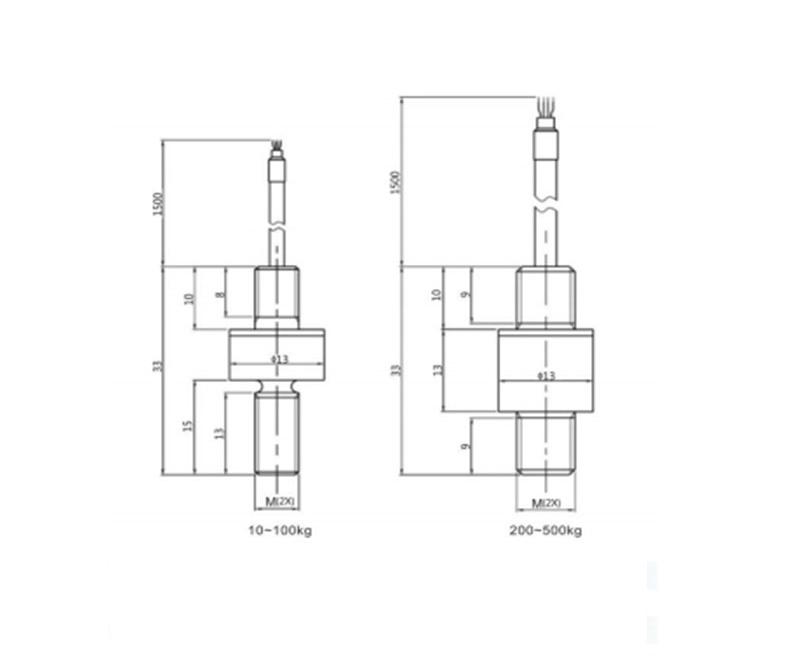

Product dimensions

—— -

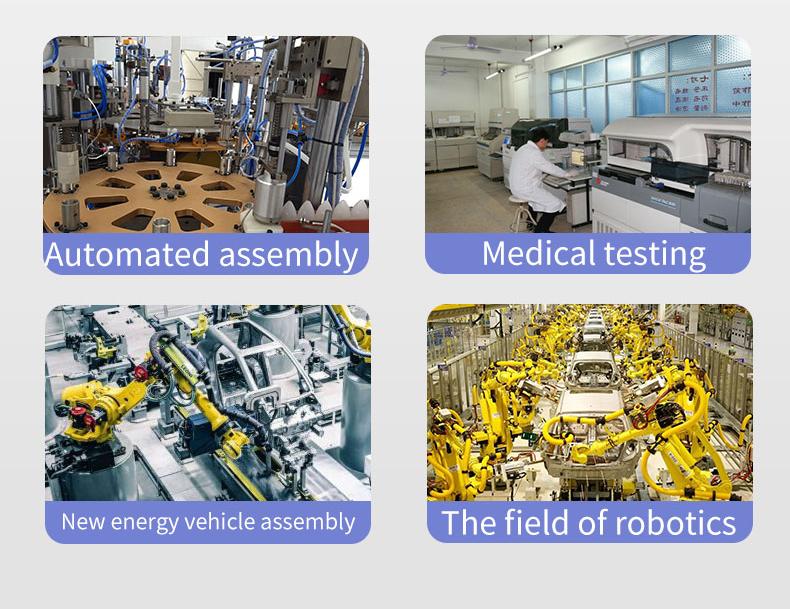

Application Areas

—— -
