Product Description
20km image transmission distance, 30km data transmission distance
Using a Hall joystick, the service life can reach 30 years
Dual redundancy in transmission and reception
25 hour battery life
Product specifications
Controller data
| Model | T12 |
|---|---|
| Working voltage | 3.7v(1S Li-ion) |
| Channels | 12 |
| Working current | 130mA |
| Frequency | 2.400-2.4833GHz |
| Modulation | New FHSS |
| Firmware | APP online |
| Weight | 560g |
| Dimension | 225*123*35mm |
| Battery capacitor | 4000mA |
| Duration | 25h |
| Charge port | MICRO-USB |
| Application | Helicopter,Fixed wing,Qaudcopter,car,boat |
Product parameters
Receiver data
| Model | R12 |
|---|---|
| Channels | 12 |
| Working voltage | 4.5-5.5v |
| Working current | 140mA@5V |
| Dimension | 51*41*13mm |
| Weight | 14g |

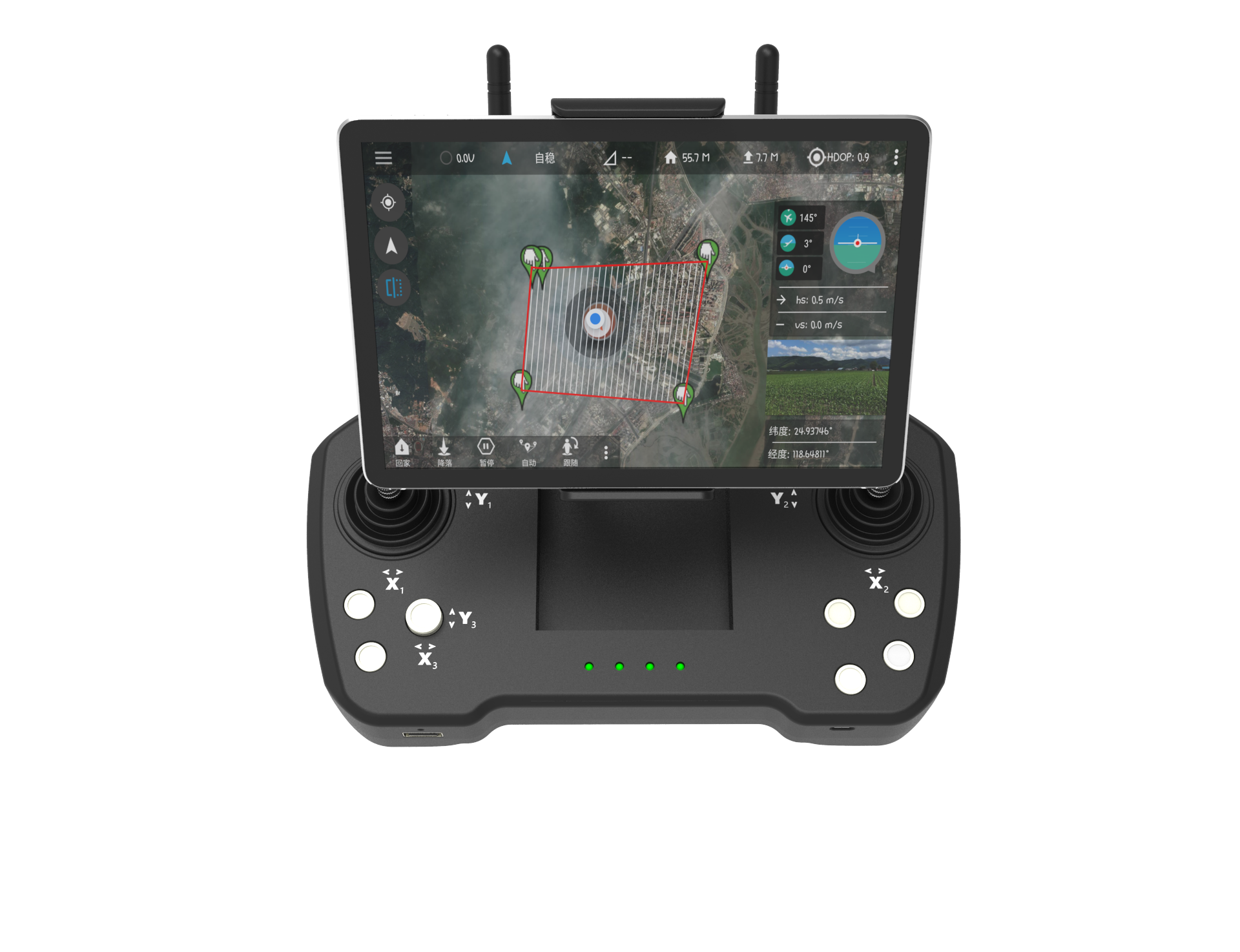

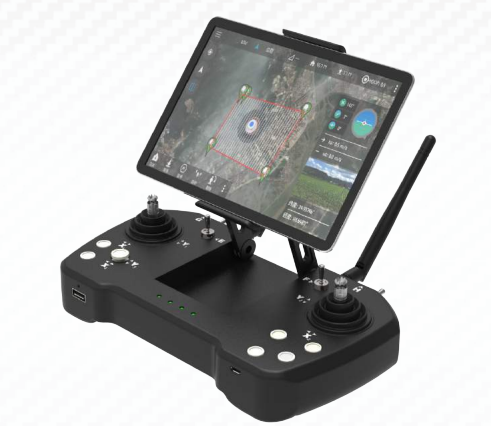

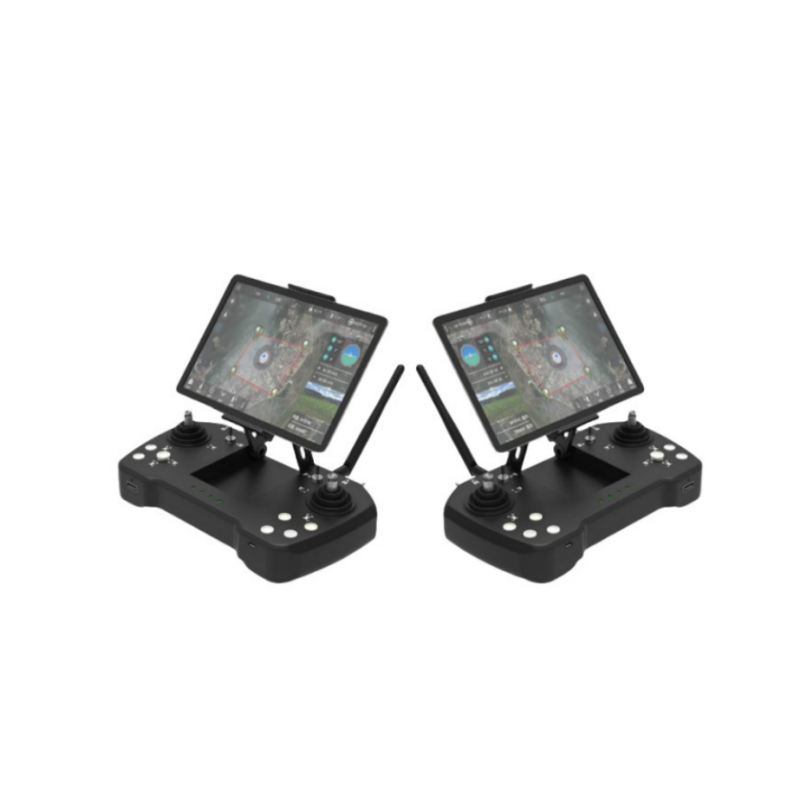

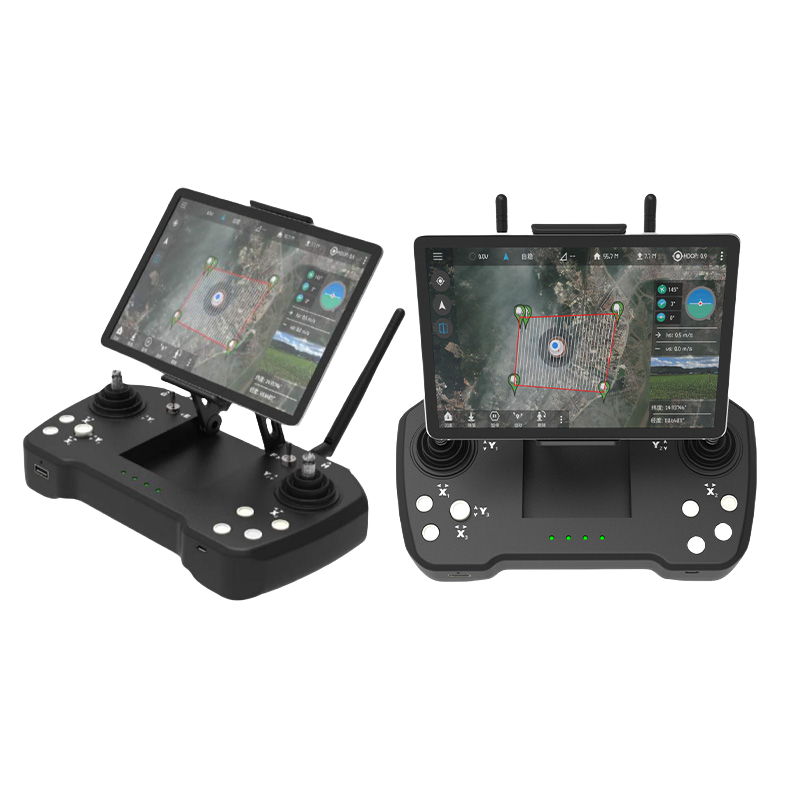

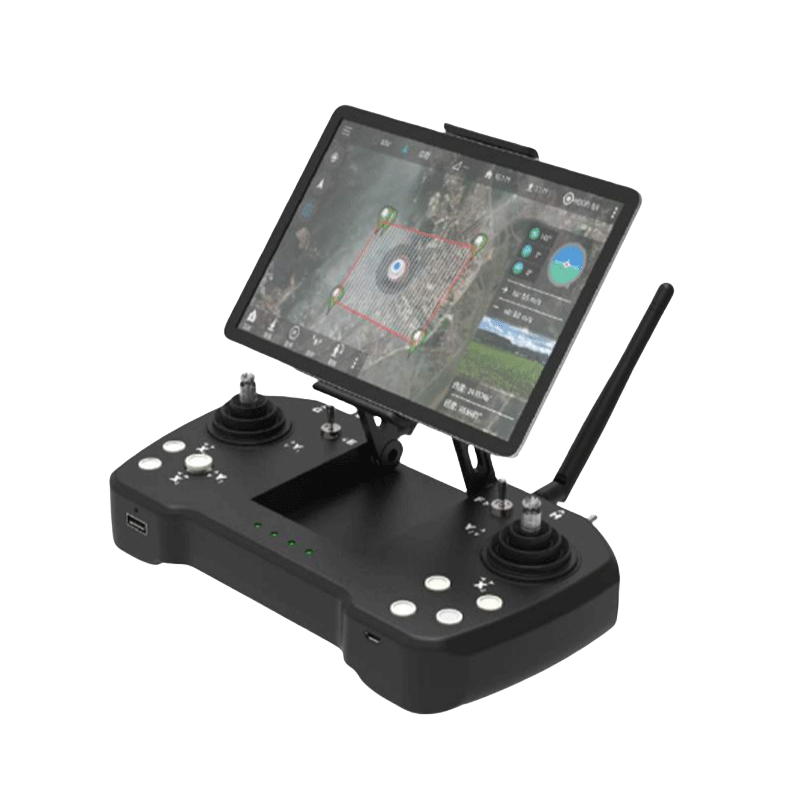

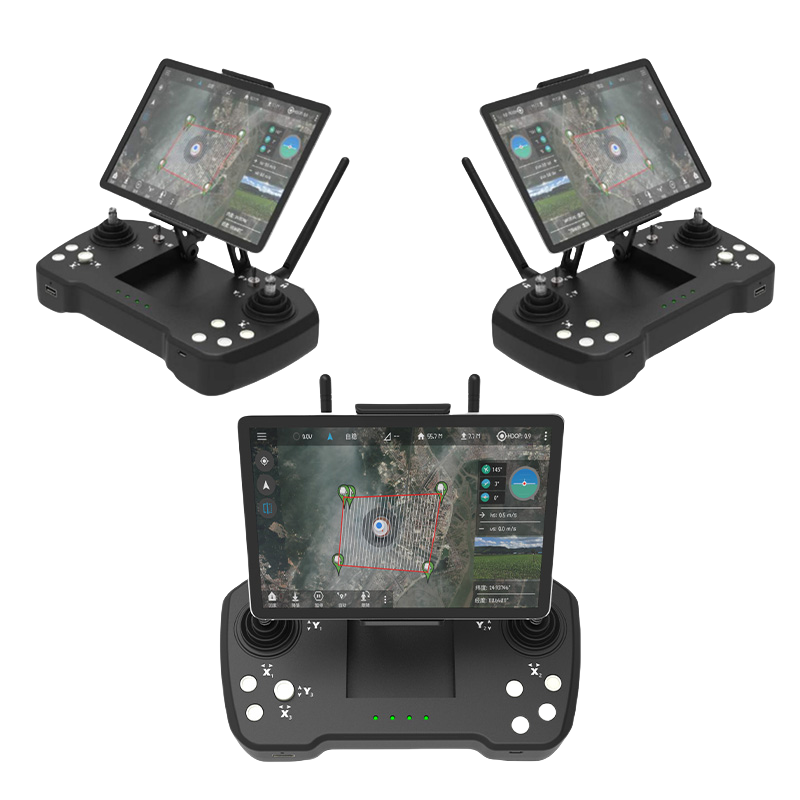

Product Display
T12 Advantage Analysis
1. Built in digital image transmission with ultra long distance strong diffraction energy and low delay, making flight visual and safe
2. Built in intelligent data transmission radio, greatly increasing the remote control data transmission distance and stability
3. Dual antenna and dual module design, imported from the United States with phase-locked spread spectrum hopping technology, can reach a maximum distance of 20 kilometers, allowing the plant protection machine to bid farewell to losing control
4. Disruptive use of Hall rocker and permanent magnet sensors, with a lifespan of over 30 years
5. Military grade, ultra-thin dust-proof protection design
Built in intelligent data transmission with strong adaptability。
The remote control integrates a powerful data transmission radio station internally, integrates technology to the greatest extent, and optimizes it specifically, greatly increasing the remote control data transmission distance and stability. Paired with mobile app tuning software, set parameters anytime and anywhere.

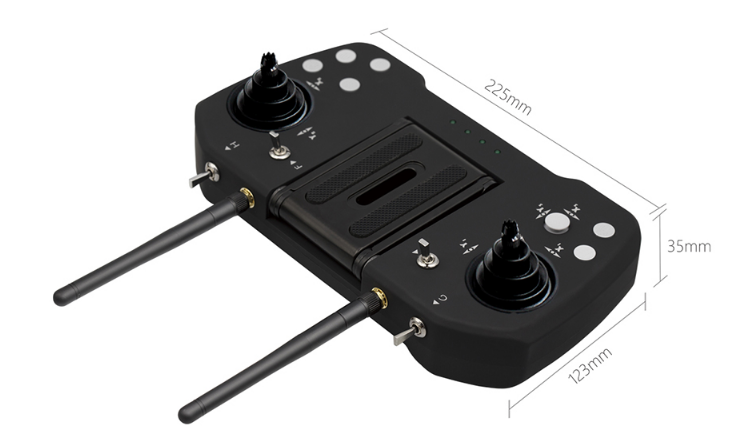

Size & Interface
Application Cases
Wheeled industrial chassis transportation
The remote control remotely controls the heavy-duty chassis through the 2.4GHz frequency band, and is equipped with a laser radar to achieve autonomous navigation and obstacle avoidance. It supports multi-equipment group transportation and is widely used in automation scenarios such as warehousing logistics and factory material handling.
