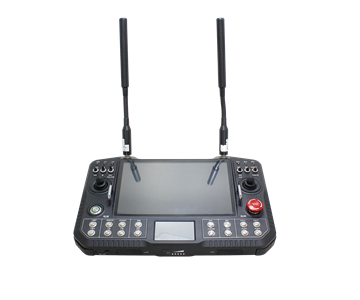

Product Description
RC-5 is a waterproof industrial grade remote control based on embedded operating systems, supporting customer customized communication and control protocols. The communication method adopts self-organized network communication, and point-to-point communication can reach 1.5 kilometers in complex environments. It supports 64 devices online simultaneously, fully solving the problem of mutual interference among multiple devices. And it supports public 4G/5G transmission, as well as 1-8 video transmission and network monitoring. Control practical requirements such as data feedback. This remote control features a slightly tilted screen, an upright antenna, and a silicone wrap around the handshake part, providing a user-friendly touch and human-machine interface, fully leveraging the optimal performance of the device.
Product parameters
Display parameters
| Item | parameters |
|---|---|
| Screen size | 10.1 |
| Resolution | 1280*800px |
| Brightness | 1000cd/m2 |
| Video output | Support 1-8 videos displays |
| Data dsplay | 3.2 inch touch screen |
RF parameters
| Item | Argument |
|---|---|
| Working frequency band | 1.4GHz（300MHz-3.8GHz customizable） |
| Working bandwidth | 5/10/20/40MHz，20MHz（typical） |
| RF Channel | 2T2R |
| Transmission power | 4W |
Interface parameters
| Item | Argument |
|---|---|
| Radio Frequency Interface | TNC*2，SMA*1 |
| Network Interface | Waterproof RJ45 interface |
| Intercom interface | Waterproof K-head microphone interface |
| Power interface | Waterproof DC head |
Network parameters
| Item | Argument |
|---|---|
| Networking capability | The number of hops in the self-organized network shall not be less than 9, and the number of nodes in the self-organized network shall not be less than 64 |
| Transmission distance | Ground to ground distance greater than 1.5km |
| Throughput rate | 82Mbps |
| Encryption algorithm | AES256 |
| Public network | 4G/5G |
Physical/Environmental
| Item | Argument |
|---|---|
| Size | 373*241.5*57mm |
| Weight | 2.9kg (including batteries) |
| Operation temperature | -20℃〜+60℃ |
| Protection grade | IP67 |
Electrical characteristics
| Item | Argument |
|---|---|
| Power supply | 12v |
| Battery capacity | 12Ah |
| Consumption | The average power consumption of the entire machine is less than |

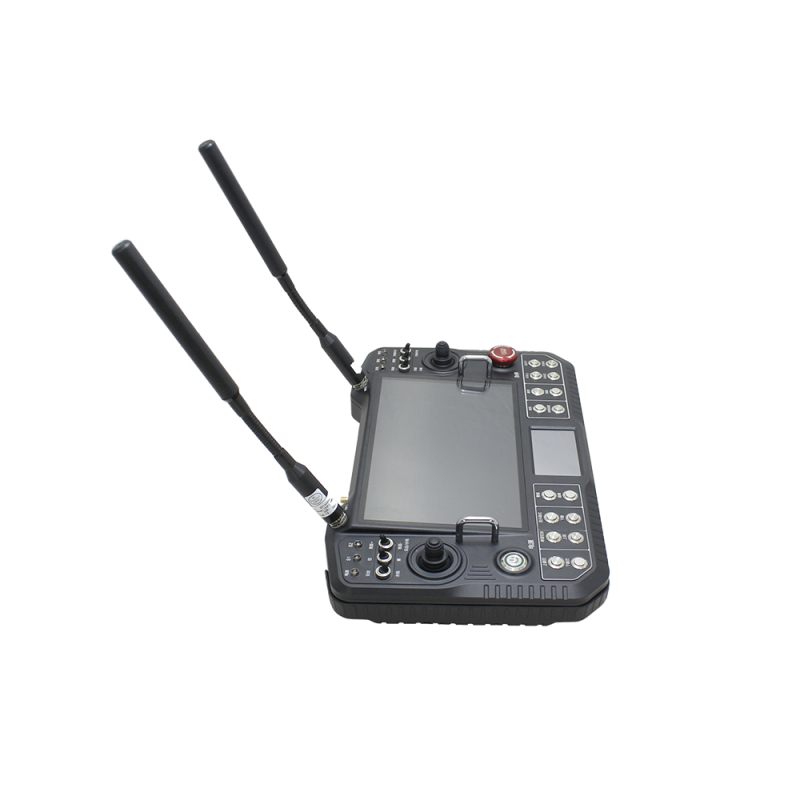

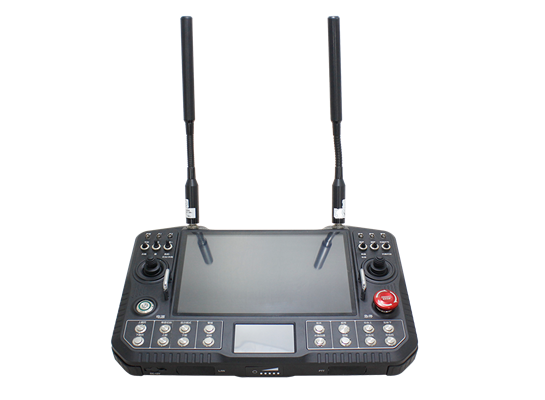

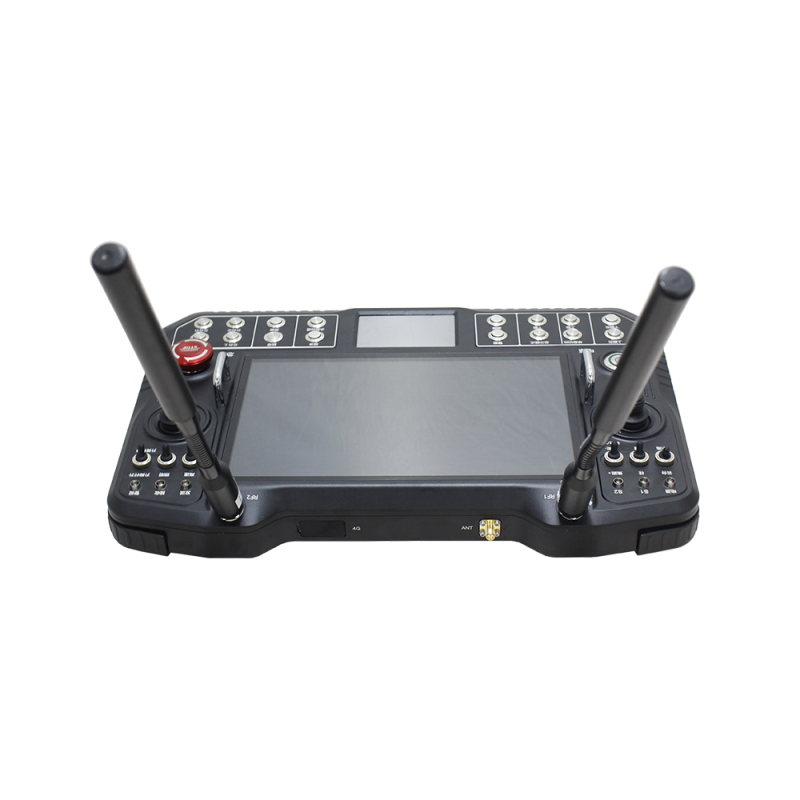

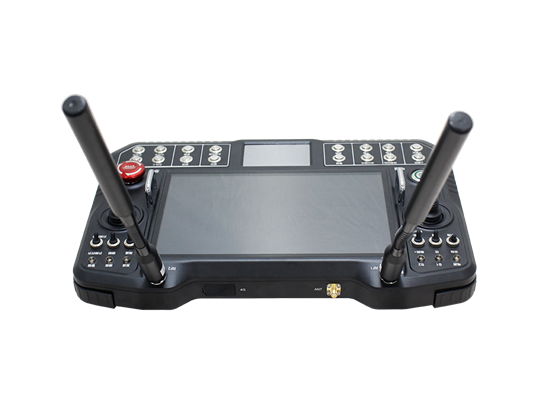

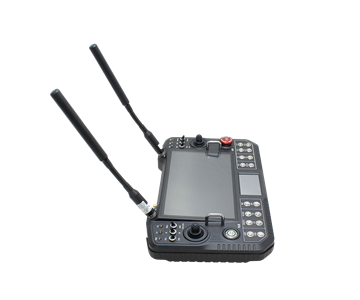

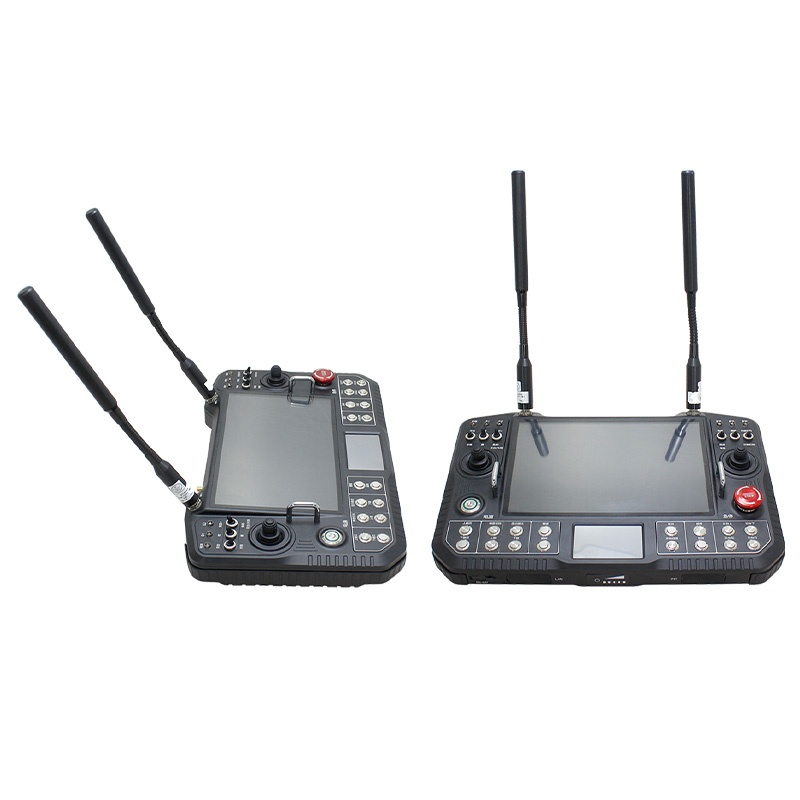

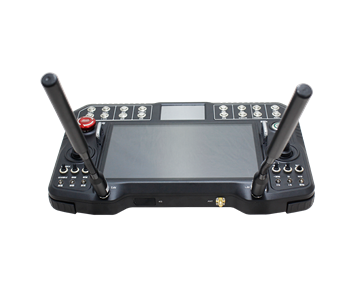

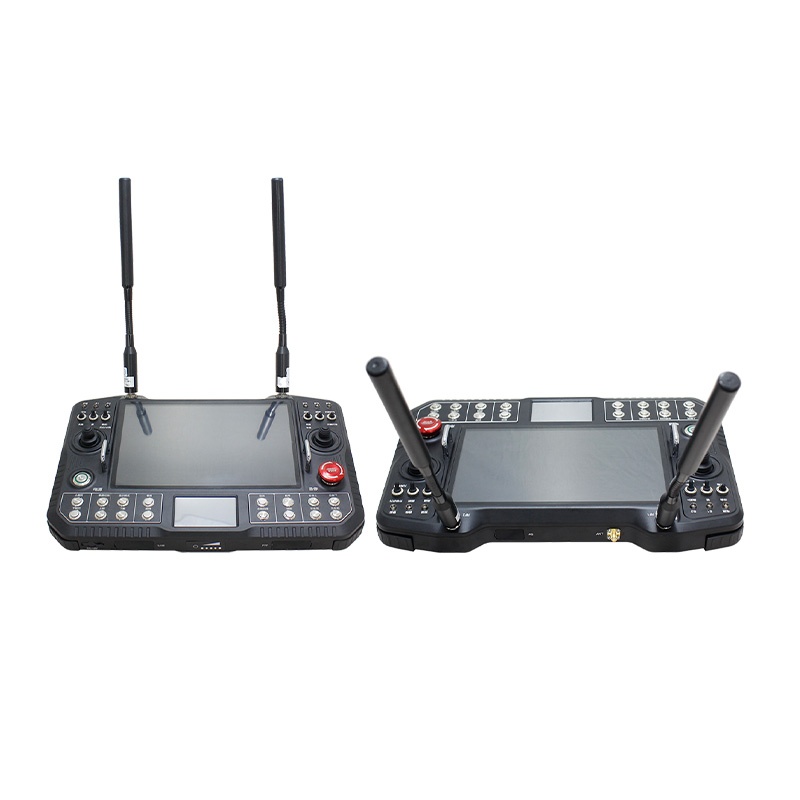

Product Display
Aluminum alloy shell: Strong heat dissipation, silicone wrapped around the handshake part, and equipped with a strap for easy operation.
High definition and high brightness screen: It adopts a 10.1-inch high-definition and high brightness screen that can be seen in sunlight. The simulated video image delay does not exceed 0.3 seconds, and the network camera delay does not exceed 0.4 seconds. The data feedback from the front end is visible in real time.
Bidirectional transmission: The images and information collected by the front-end are transmitted to the back-end robot remote controller through the front-end trigger. The back-end robot remote controller can send control instructions to the robot, achieving bidirectional data transmission of the robot intelligent communication system.
Long transmission distance: The ground to ground line of sight transmission distance can reach 1.5 kilometers. By adding MESH relay stations, the distance between the MESH remote control and the MESH onboard radar can be transmitted further.
Easy to operate: can have voice intercom, set multiple joysticks, switches, and buttons, easy to operate in emergency situations.
Networking function: MESH self-organizing network, with no less than 9 relay hops and no less than 64 networking nodes.
Long working hours: Built in battery, with a battery life of up to 4-5 hours, can work for long periods of time in emergency situations.

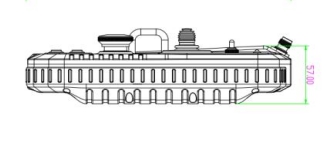

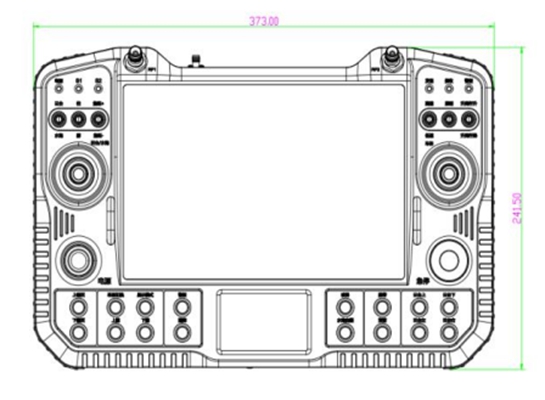

Size & Interface
Application Cases
Multi-rotor drone mapping
The handheld remote control uses high-precision GPS and attitude sensors to control the drone to complete terrain mapping and 3D modeling. It supports route planning and real-time image transmission, and with the automatic obstacle avoidance function, it is suitable for outdoor operation scenarios such as power inspection and post-disaster assessment.
