Product Description
This solar mounting system offers a simple, secure installation for 585–735W solar panels on tile roofs, metal roofs, or ground structures. Ideal for home, off-grid, and small commercial projects, the all-in-one kit includes rails, brackets, clamps, and grounding clips for a straightforward setup.
Built with corrosion-resistant anodized aluminum and stainless steel, its pre-assembled design cuts installation time and labor costs. Integrated grounding clips ensure electrical safety, while the reinforced frame withstands wind loads up to 2400Pa and snow loads up to 5400Pa.
Key Advantages
1. Quick & Easy Setup
Pre-assembled components minimize installation time and lower setup costs.
2. Built for All Weather
Corrosion-resistant anodized aluminum and stainless steel ensure reliable, long-term outdoor use.
3. Exceptional Structural Strength
Engineered to safely withstand high wind loads up to 2400Pa and heavy snow loads up to 5400Pa.
4. Wide Panel Compatibility
Designed to seamlessly fit most standard framed solar panels within the 585–735W power range.
5. Integrated Safety Grounding
Built-in grounding clips deliver immediate electrical protection and system safety compliance.
Product parameters
Model | M585 | M650 (Recommand Model) | M735 |
Conversion Efficiency | 22.6% | 24.1% | 23.66% |
Maximum Power | 585W | 650W | 735W |
Number of Cells | 144 | 144 | 132 |
Dimensions (mm) | 2278*1134*30 | 2382*1134*30 | 2384*1303*33 |
Module Weight (KG) | 31.8 | 28.5 | 37.5 |
Current at Maximum Power Point(A) | 13.3 | 14.59 | 17.83 |
Operating Temperature | -40℃~+85℃ | ||
How to Choose the Right Model for Your Needs
1.M585 (585W) — Best for Standard Residential Use
Ideal Scenario: Grid-tied residential rooftops and standard home energy setups.
2.M650 (650W) — Best Overall Balance
Ideal Scenario: Off-grid cabins, tiny homes, modular living, and independent power systems.
3.M735 (735W) — Maximum Power for Limited Space
Ideal Scenario: High-energy demand sites, small commercial setups, or roofs with limited installation.

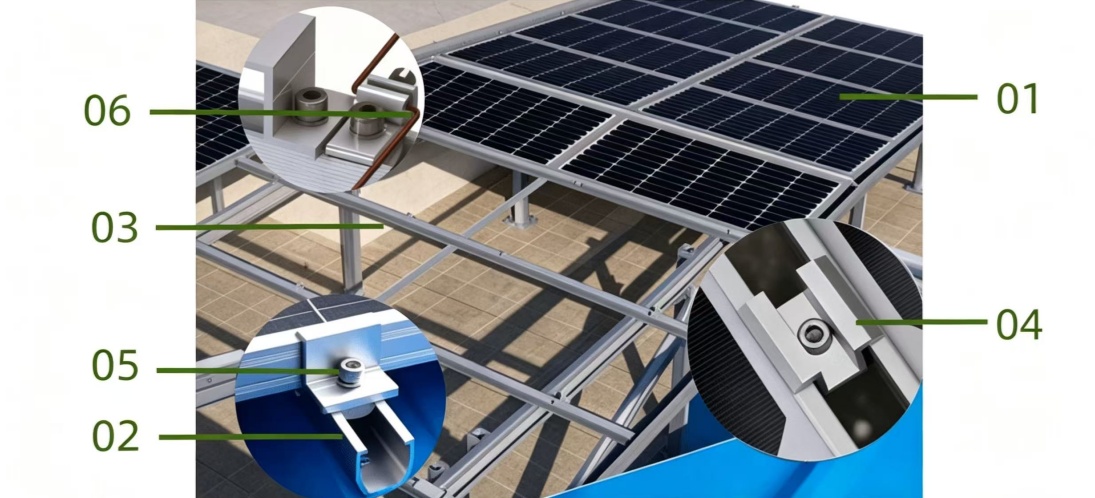

System Components
01 Solar PV Panels
High-efficiency mono solar panels with stable output and long lifespan.
02 Mounting Rails
Lightweight yet strong aluminum rails for panel support.
03 Mounting Brackets

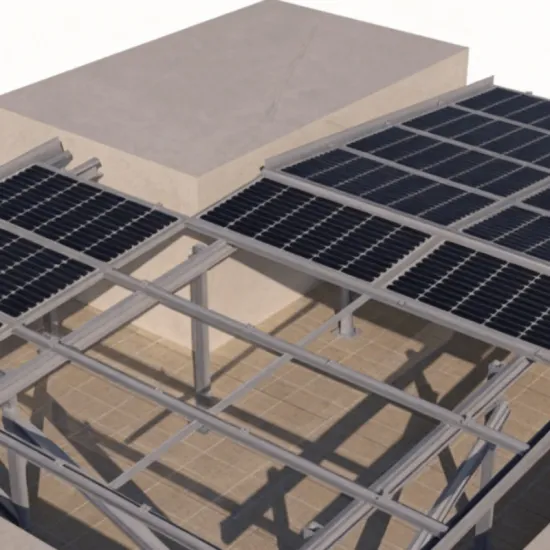

Designed for roof or ground installation with strong load resistance.

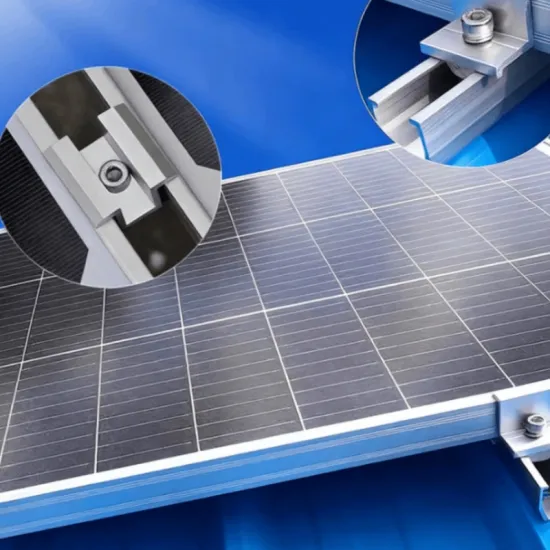

04 Mid Clamps
Used between panels to secure and align modules.

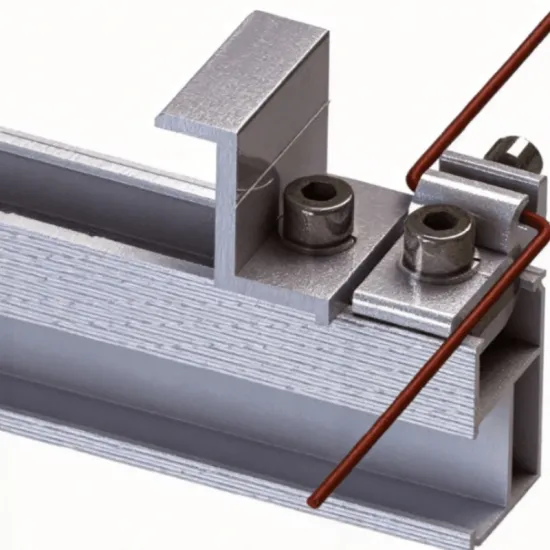

05 End Clamps
Used at the edge of panels for firm fixation.
06 Grounding Clips
Ensure electrical continuity and system safety.

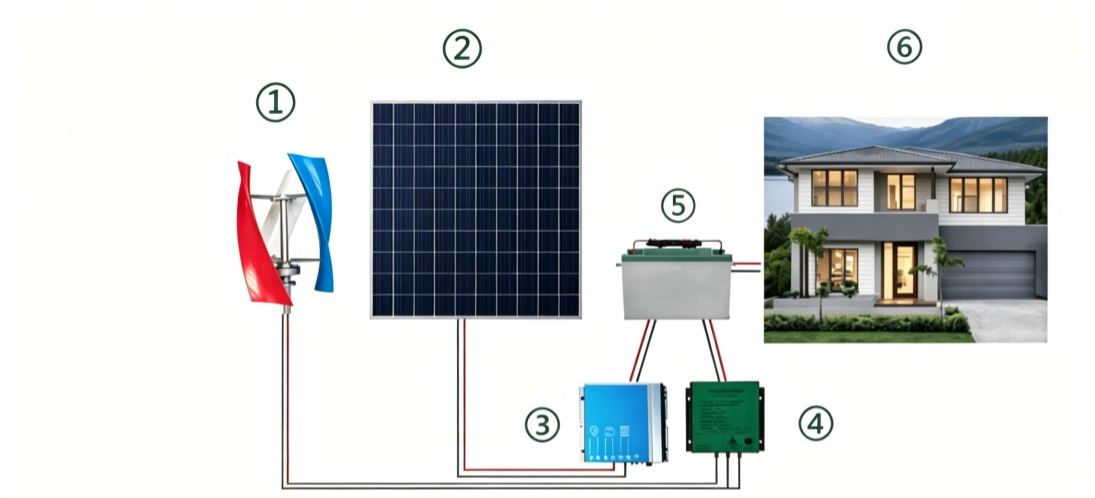

Schematic Diagram
① Wind Turbine ② Solar Panel ③ Photovoltaic Controller
④ Wind turbine Controller ⑤ Battery Bank
⑥ Various Home Appliances For Prefabricated Villas
Application Cases

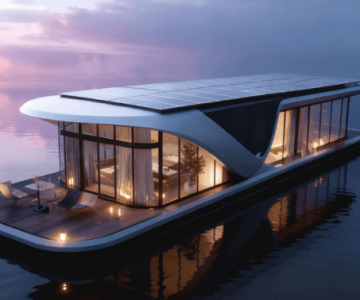

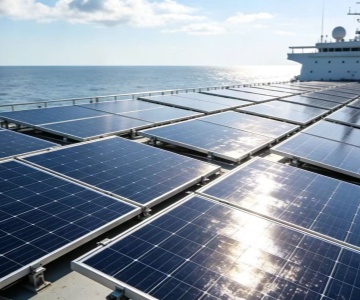

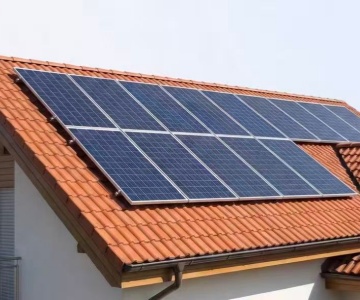

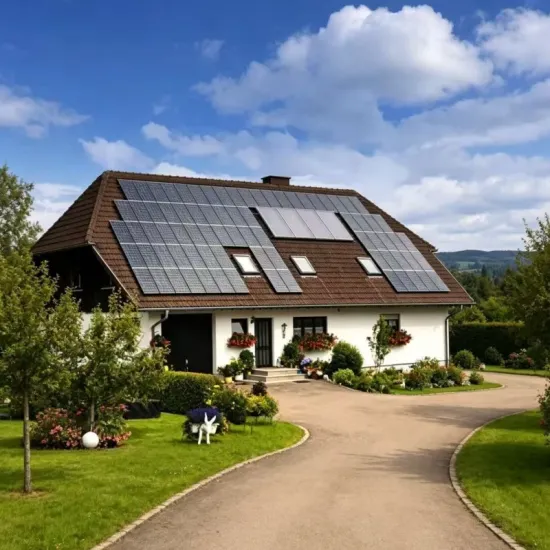

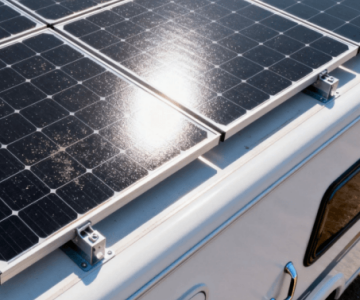

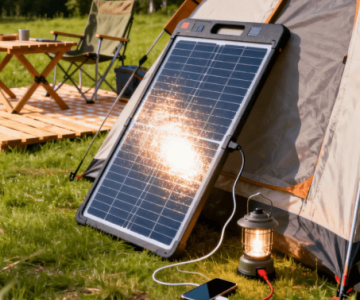

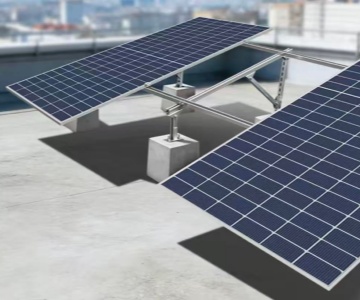

Monocrystalline solar panels are widely used in residential, off-grid, agricultural, and integrated energy systems, including modular homes, camping setups, RVs, and houseboats, delivering efficient and reliable power across diverse application scenarios.
Installation Guide
Basic Steps:
1.Install mounting brackets on roof or ground
2.Fix aluminum rails onto brackets
3.Place solar panels on rails
4.Secure with mid clamps and end clamps
5.Install grounding clips for safety
