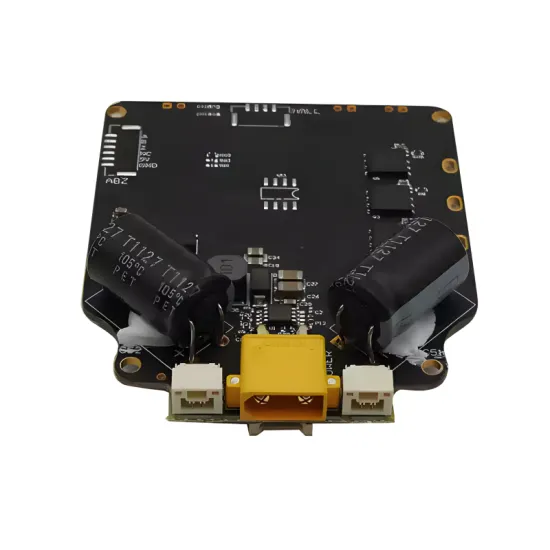

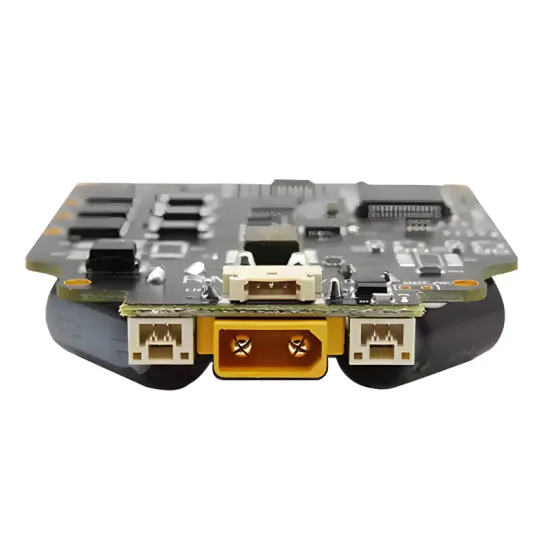

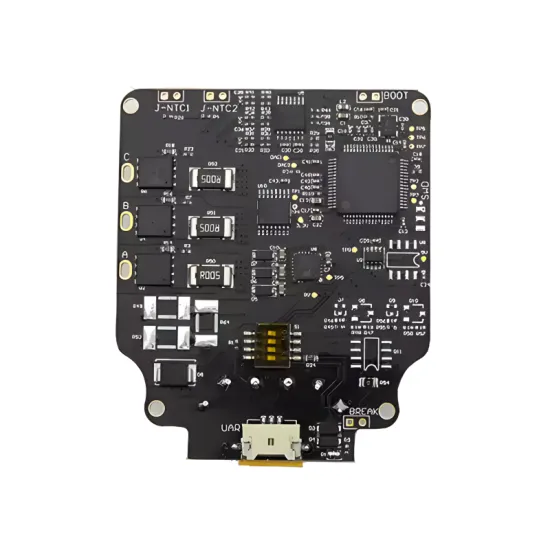

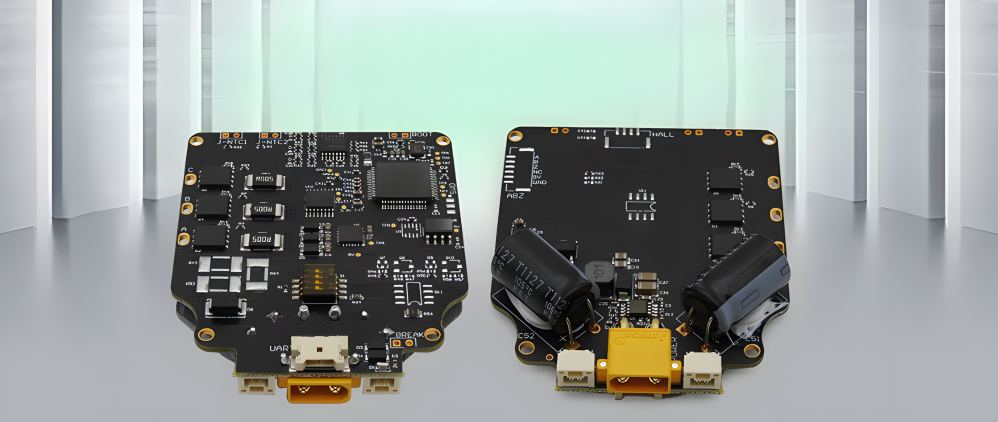

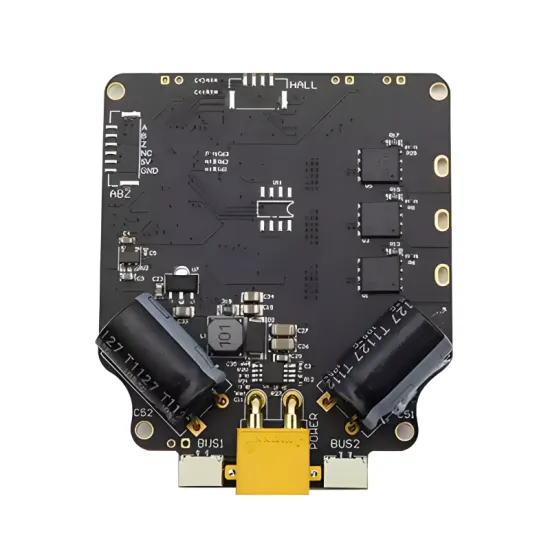

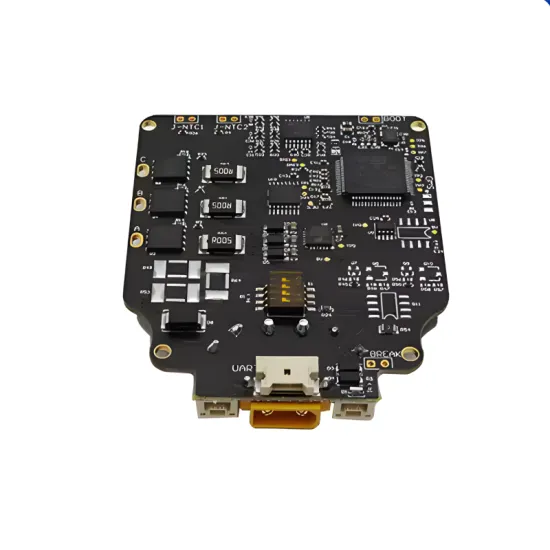

DG80 R7 (RS485) C7 (CAN)
MG Series Motor Drives
Introduction
● High-precision, low-drift gold-resistor current sensing; supports precise current measurement at voltages up to 60V
● CAN or RS485 bus communication; supports direct control via PC, MCU, PLC, industrial PC, Raspberry Pi, or Arduino
● High-performance ARM main controller featuring a 32-bit Cortex-M4 core clocked at 180MHz
● Real-time motor temperature monitoring
● Three-phase full-bridge driver using all N-channel MOSFETs; features low internal resistance and high current capability
● 18-bit single-turn absolute magnetic encoder; requires only one-time calibration, with zero-point retention guaranteed
Product Features
Multiple control modes
| Closed-loop torque control mode | Closed-loop position control mode 2 (Multi-turn position mode & Direction + Speed) |
| Closed-loop speed control mode | Closed-loop position control mode 3 (Single-turn position mode & Direction) |
Closed-loop position control mode 1 (Multi-turn position mode & direction) | Closed-loop position control mode 4 (Single-turn position mode & Direction + Speed) |
Multiple control commands
| Read status command | Parameter modification command |

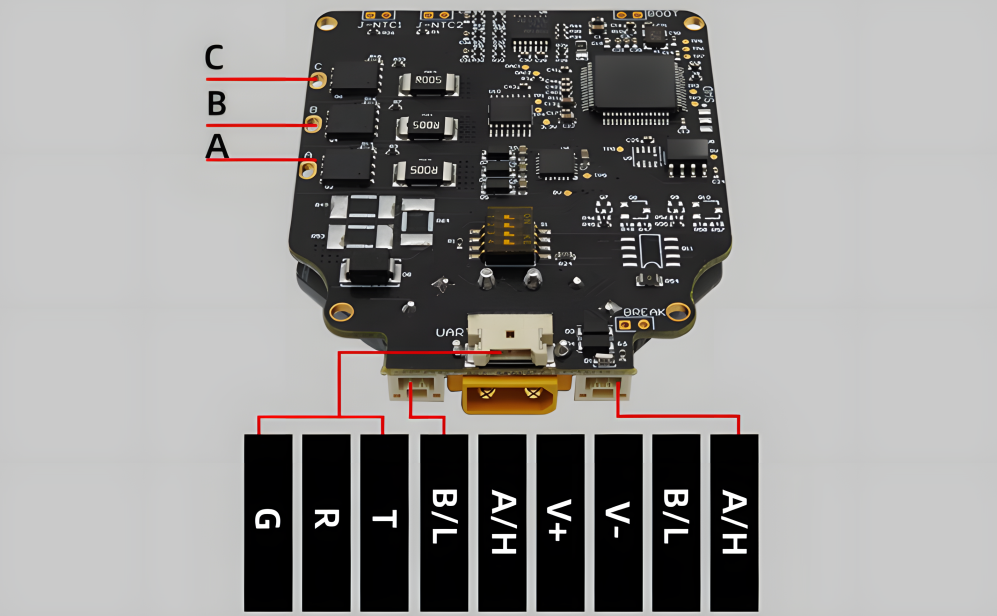

Driver Interface
| Interface | Note |
| A/H | RS485-A or CAN-H |
| B/L | RS485-B or CAN-L |
| V- | Negative Power Supply |
| V+ | Positive Power Supply |
| A/H | RS485-A or CAN-H |
| B/L | RS485-B or CAN-L |
| T | UART Transmitter |
| R | UART Receiver |
| G | Signal GND |
Communication Features
Bus Type: RS485 or CAN
Bus Interface Chip: MAX485 / TCAN334DCNR
RS485 Baud Rate: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800 / 1 Mbps / 2 Mbps
CAN Baud Rate: 1 Mbps

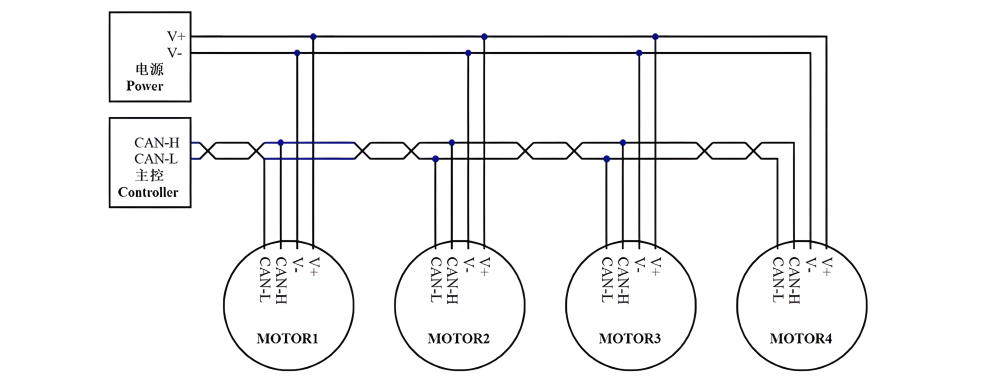

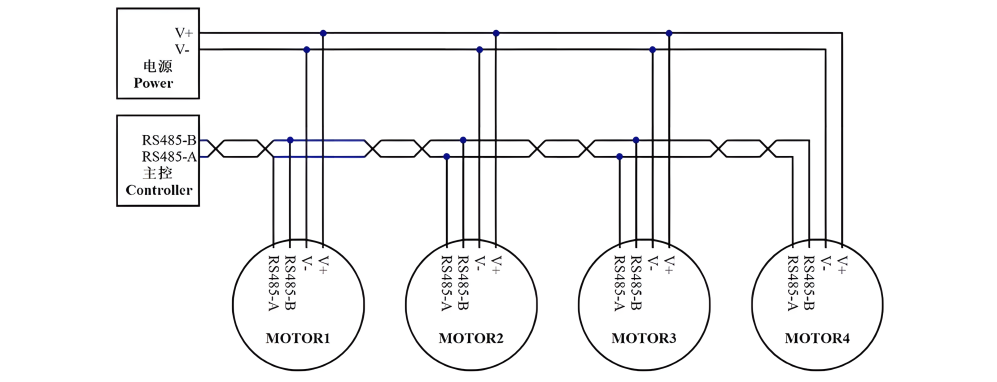

Wiring Diagram
Connect 120Ω termination resistors at both ends of the bus.

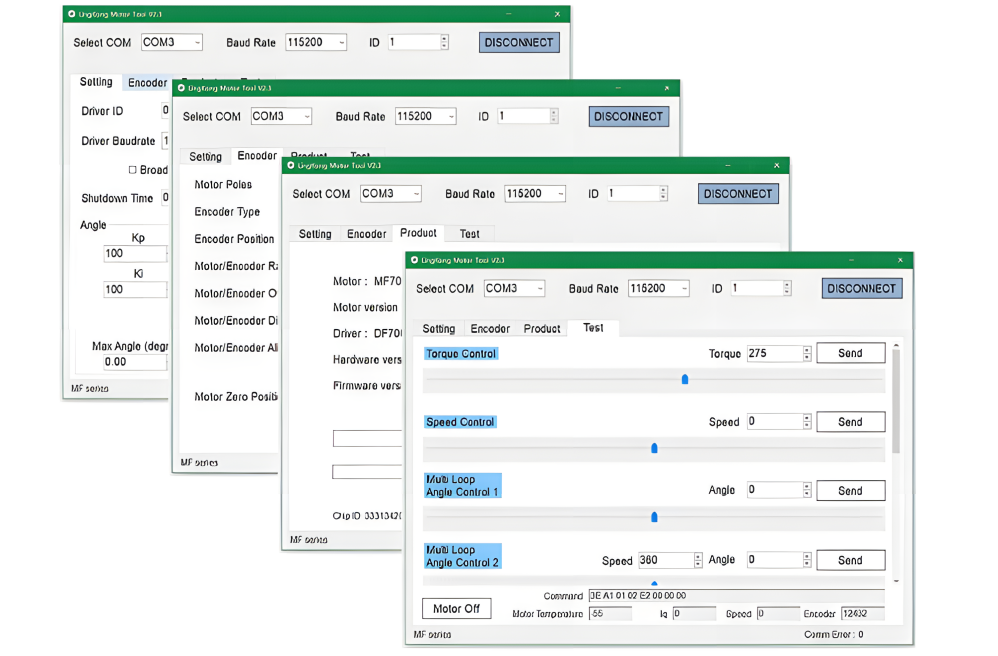

Supports host-side parameter tuning, testing, and firmware upgrades
Supports direct control via PC, MCU, PLC, industrial PC, or Raspberry Pi

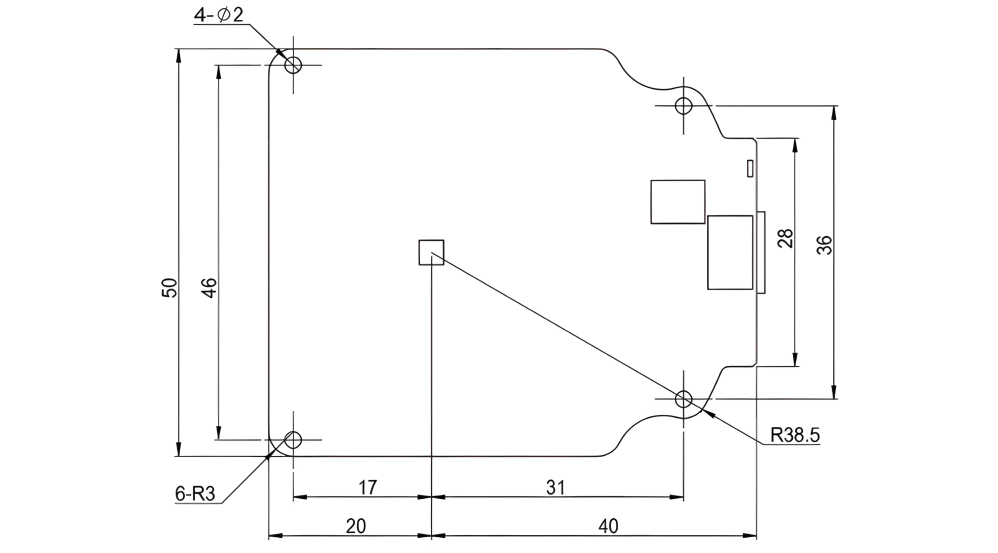

Product Size
Product Parameters
| Input Voltage | 12-60V |
| Rated Output Current | 14A |
| 3-Phase Inverter | 6 N-MOSFETs |
| Motor Current Sensing | 3 Shunt Sampling |
| Encoder Resolution | 18 bits |
| Connector Type | ZH1.5-6Pin |
| Communication Interface | CAN OR RS485 |
