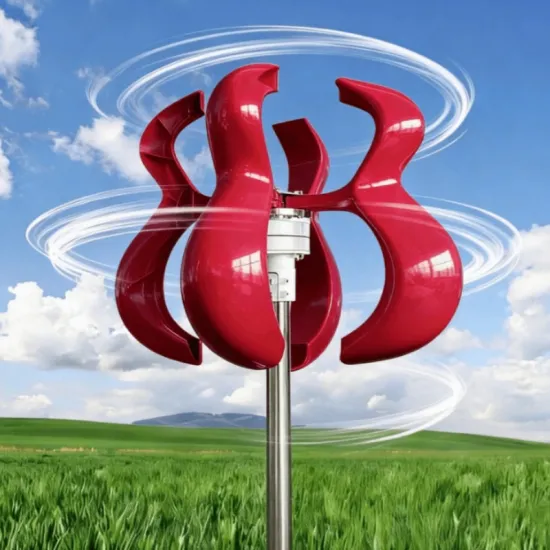

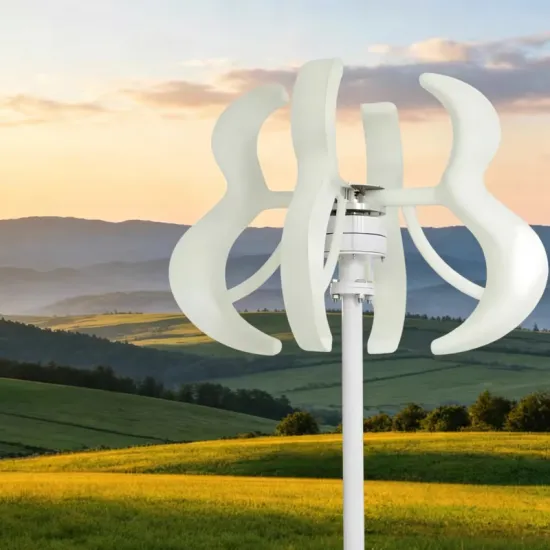

Product Description
The VL series vertical axis wind turbine adopts three-phase AC permanent magnet generator with magnetic levitation technology, delivering low cut-in wind speed and stable reliable performance.Its vertical-axis design automatically adapts to wind from all directions with no manual wind alignment required.
Equipped with integrated generator assembly, it can power lighting loads, battery energy storage systems and small domestic appliances.It serves as a trusted solution for residential distributed wind power, off-grid projects and outdoor campsite power supply.
Key Advantage
1. Ultra-quiet operation, perfect for home and outdoor use
2. Starts power generation at low wind speeds with high efficiency
3. Aerodynamic design maximizes wind energy capture
4. Built with aluminum alloy & carbon steel. Triple-layer anti-corrosion and anti-leakage protection
5. Auto wind tracking maintains steady power output
6. Waterproof & dustproof, easy to install at homes and outdoor sites
Product parameters
Rated power | 300W | 400W | 450W | 600W | 800W | 1000W |
Max power | 350W | 350W | 500W | 650W | 850W | 1050W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V |
Start-up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 1.3m/s |
Rated wind speed | 12m/s | |||||
Survival wind speed | 45m/s | |||||
Net weight of main engine | 12kg | |||||
Number of blades | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 3 pieces |
Blades material | nylon fiber | |||||
Body material | nylon fiber | |||||
Generator | three phase AC permanent magnet generator/maglev generator | |||||
Control System | electromagnetic brake | |||||
Yaw Mode | automatic windward angle | |||||
Lubrication mode | self lubrication | |||||
Working temperature | -40℃-80℃ | |||||

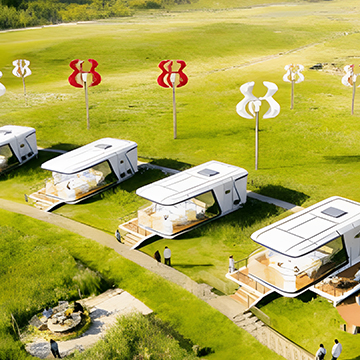

Application Cases

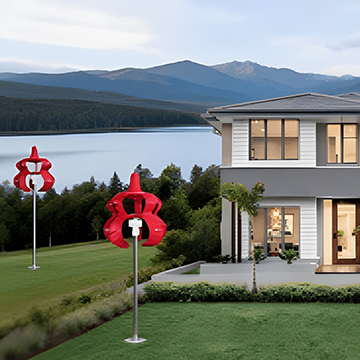

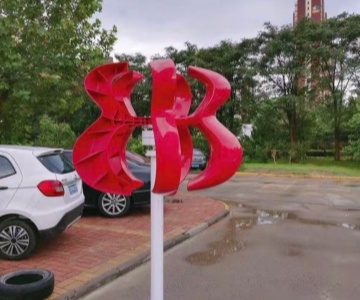

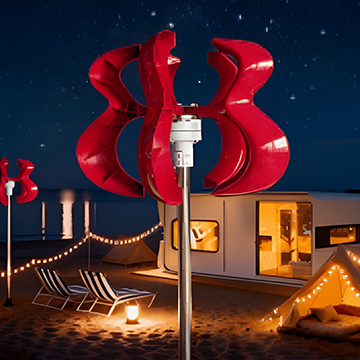

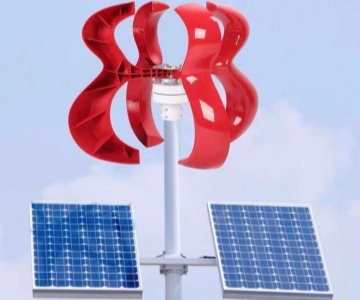

This product applies to camping power supply, residential backup power, off-grid dwellings, container houses, mobile homes and modular buildings. When integrated with solar power systems and battery storage units, it provides a one-stop clean energy power solution for buildings, satisfying lighting and basic domestic power demands.
Product Detail

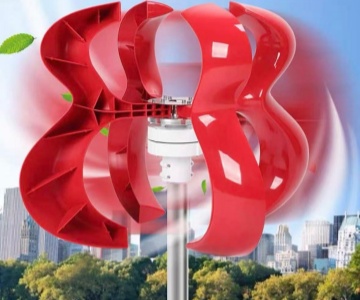

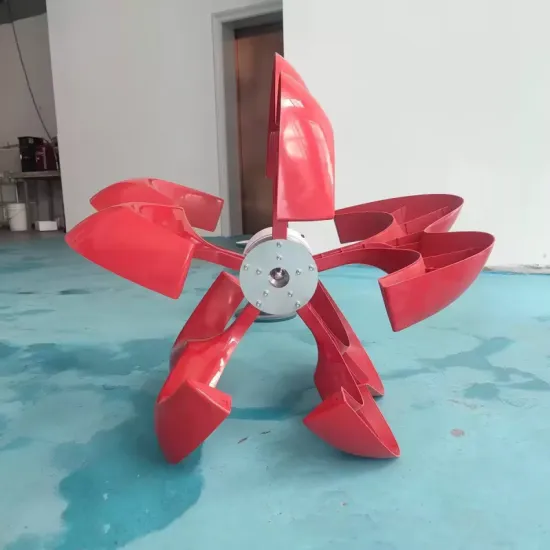

1. Efficient & Compact Design
The compact turbine structure maximizes wind energy capture while taking up minimal installation space, making it ideal for residential and small-scale applications.

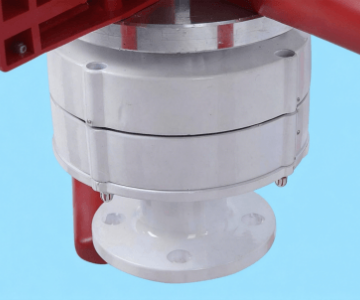

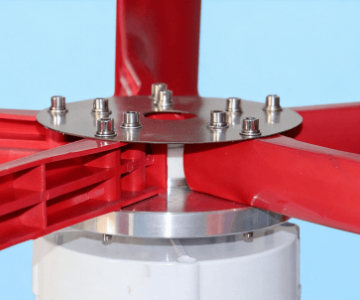

2. Durable & Protected Components
The enclosed design provides better protection for key internal components against dust, moisture, and outdoor conditions, helping improve durability and service life.

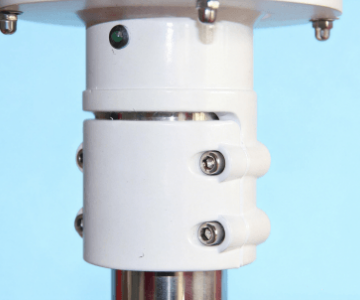

3. Stable & Secure Connection
The reinforced mounting structure and multiple fixing points provide strong support and stability, ensuring reliable operation even in changing outdoor conditions.
