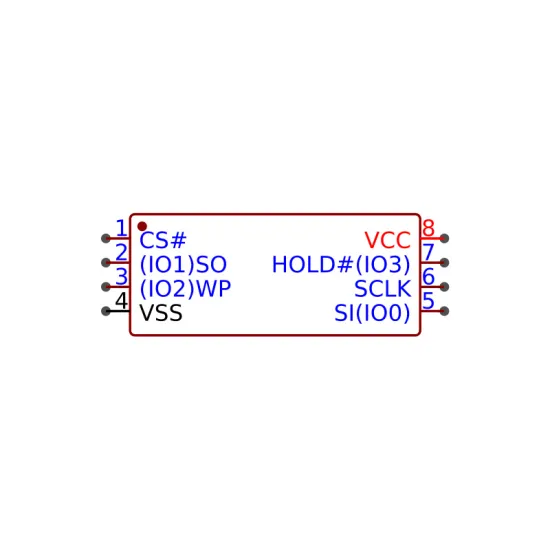

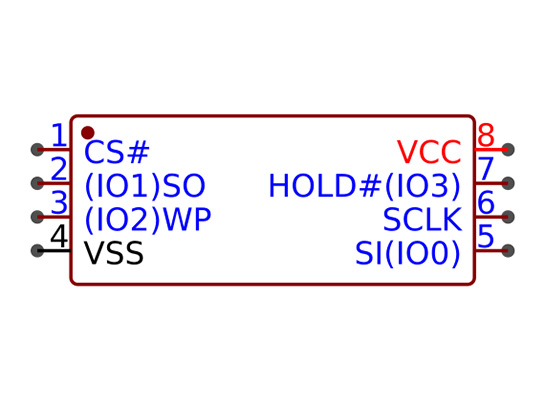

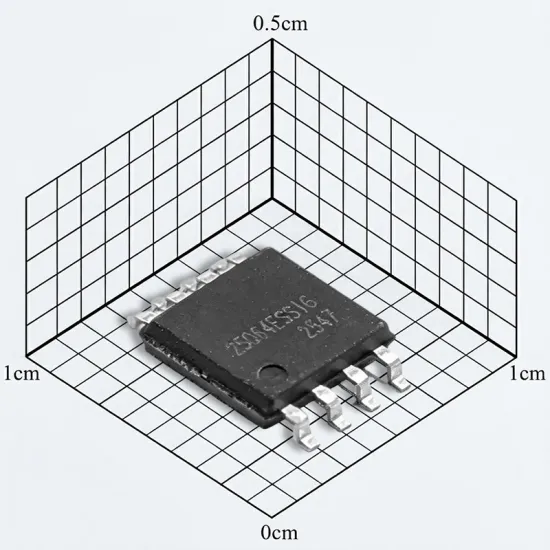

BY25Q64ESSIG(T)
Ideal for MCU code storage, BY25Q64ESSIG(T) supports Standard/Dual/Quad SPI, 4KB sector erase, 256-byte page program, and three 1024-byte security registers.
- Memory Density ：64Mbit
- Clock Frequency ：120MHz
- Operating Voltage ：2.7V~3.6V
- Standby Current ：0.7uA
- Page Program Time：450us

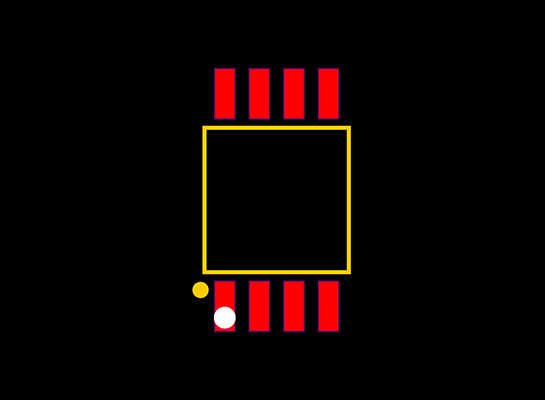

- Product packaging ：SOP-8-208mil
- Packaging Method ：Tube packing
- Gross weight of the product：1(g)
USD 0.898
26000
