Product Description
The E25 LiDAR is a compact and economical indoor and outdoor two-dimensional laser scanning radar developed by FaseLase. The main features of the product are fast measurement speed, small size, light weight, low power consumption and low cost. It is mainly used for large-screen touch interaction domain.
Product parameters
| Model number | E25 Large screen interactive special radar |
|---|---|
| Measuring distance | 0.15 to 25m@20%; 10m@10% |
| Angular range | 280° |
| Sweep frequency | 10Hz ~ 25Hz continuously adjustable, factory 15Hz |
| Angular resolution | 0.18°~ 0.45°，factory 0.27° |
| Measurement accuracy | ±3cm |
| Minimum range resolution | 1cm |
| Statistical error | σ≤2cm |
| Angle error | ≤0.06° |
| Communication and setup interface | Ethernet; |
| Laser source | Laser diode 905nm, luminous power ≤1mW; Comply with GB7247.1-2001I class laser eye safety requirements |
| Power supply | DC 12V~24V; Starting current >1A(12V); Power consumption < 4W |
| Start-up time | Within three seconds of the power being switched on |
| Display lamp | Steady green: The system is working properly. Blinking green: Work is suspended. Steady red: The device is faulty |
| Overall dimension | 62×62×82mm |
| Working environment illumination | Below 80,000lx |
| Ambient temperature and humidity | -10℃ -+ 50℃ below 85%RH, conditions: no condensation, no icing |
| Store ambient temperature and humidity | -20℃ -+ 70℃ below 85%RH, conditions: no condensation, no icing |
| Class of protection | IP65 |
| weight | 210g(without cable) |

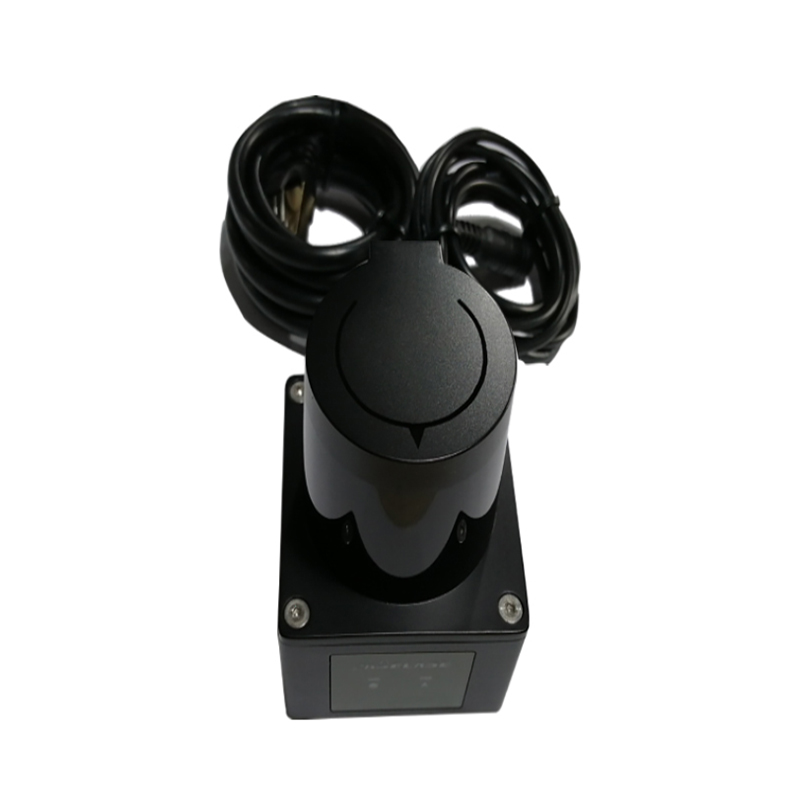

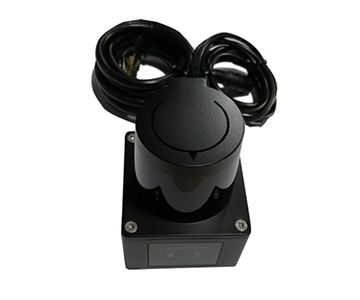

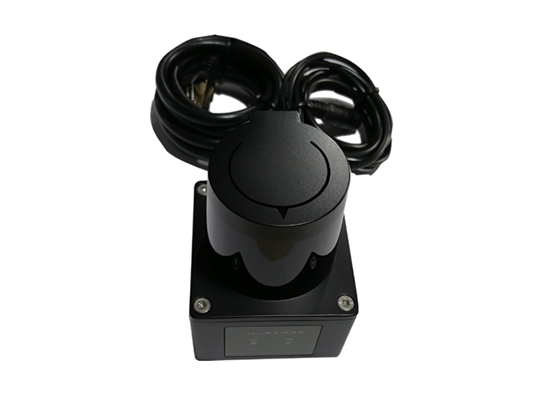

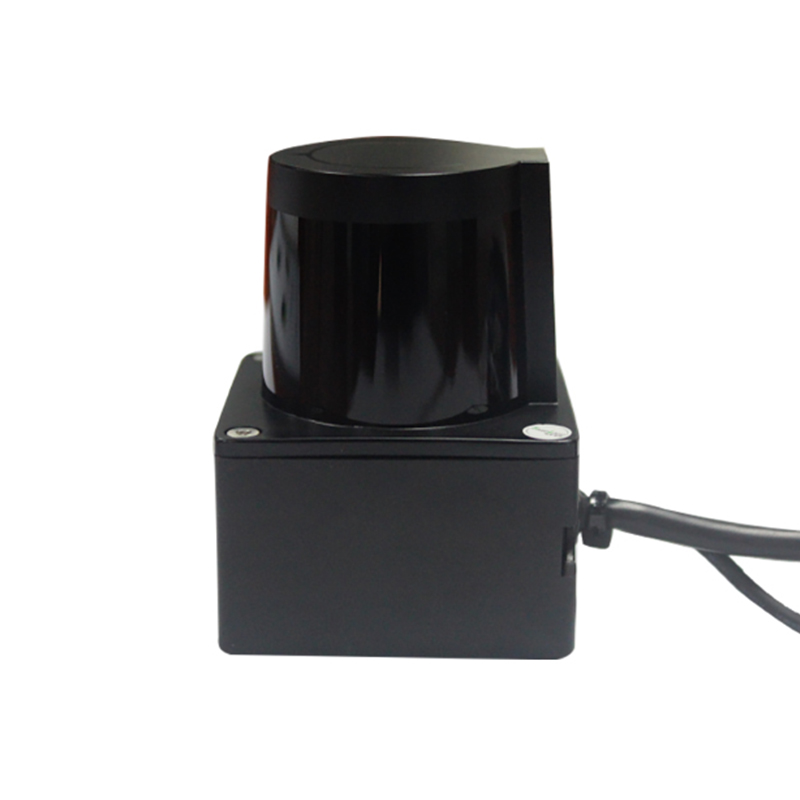

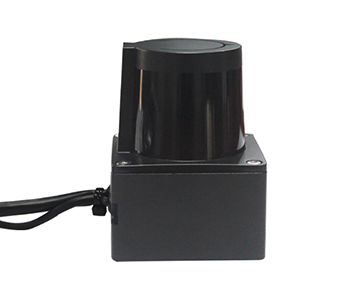

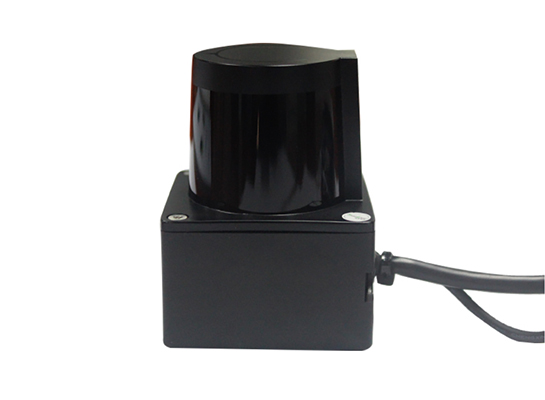

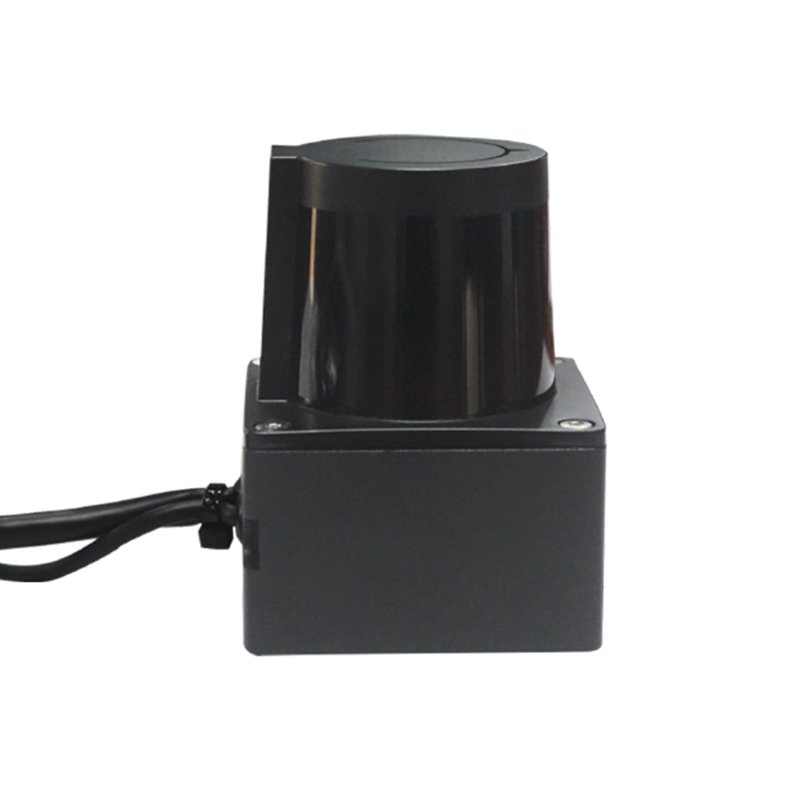

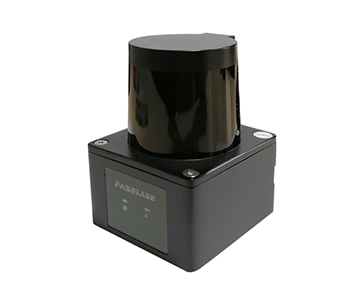

Product Display
● Based on TOF pulse measurement technology
● Super ranging ability, up to 25m
● Integrated rotation design, plane error ±0.08˚
● Light interference resistance: below 80000Lux
● The LCPA algorithm includes smoke filtering, particle filtering, mean filtering, median filtering and standard analysis algorithms
● Nano optical dust cover, extended service life, reduced maintenance time
● Japanese motor, long service life
● Convenient multi-layer security protection area setting
● Eye safety laser protection, in line with standards
● A variety of installation methods and rich accessories, easy to use, convenient for users to secondary development
● Support remote maintenance and upgrade
Laser point cloud data docking interactive system
Can see around 280 degrees range 25
Objects within a meter are larger than the field of view of bees, and can generate a plane point cloud map data network port in the space to transmit data
High transmission rate
Strong and durable, not easy to break the thick core, anti-interference

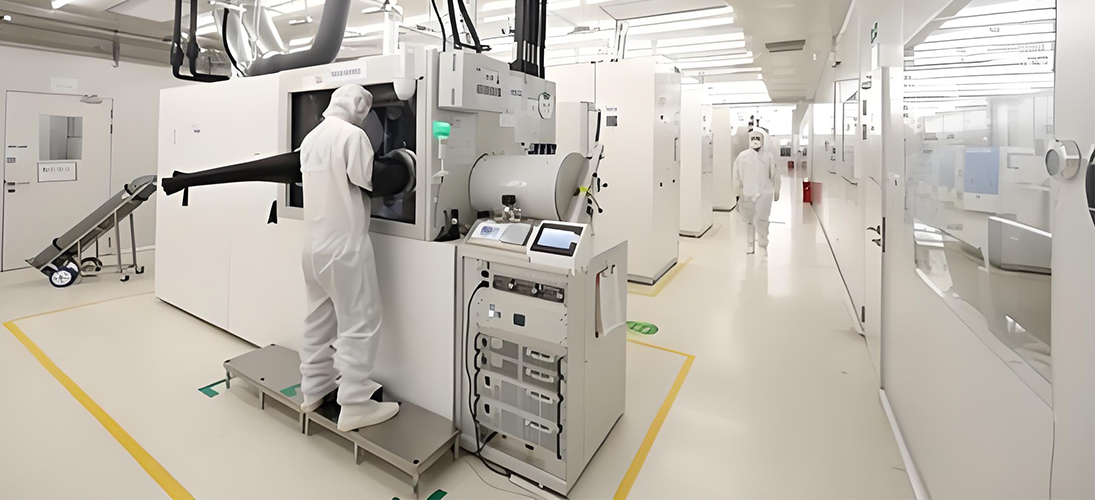

Quality Control
- Optical component
For the laser in the laser emission module, the parameters such as wavelength accuracy and output power stability need to be strictly tested. For example, the deviation of the wavelength may affect the accurate reception and resolution of the light reflected by the liDAR on the target object, and the wavelength deviation is generally required to be controlled within a very small range, such as ±5nm.
The quality of the optical lens is also crucial. The curvature accuracy of the lens, the surface flatness and the transmittance of different wavelengths of laser light are all carefully tested. Any small flaw, such as a scratch or uneven curvature on the lens surface, can cause the laser to scatter or focus inaccurately, thus affecting the detection accuracy of the liDAR. The transmittance is generally required to reach more than 90% in a specific band.
- Electronic components
The chip on the circuit board is the "brain" of the lidar, and when conducting quality control, it is necessary to ensure that the performance of the chip meets the design requirements. For example, to test whether its data processing speed can meet the needs of liDAR to acquire and process large amounts of point cloud data in real time. At the same time, it is also necessary to check the stability of the chip in different temperature environments, because the lidar may generate heat during the working process, and the chip performance must be stable within a certain temperature range (such as -40 ℃ -85 ℃).
The parameter accuracy of capacitors, resistors and other discrete components can not be ignored. The deviation range between the nominal value and the actual value of these components should be controlled within a certain limit, such as the resistance value deviation of the resistance does not exceed ±1%, to ensure the normal operation of the circuit and the accuracy of signal transmission.
