Product Description
Key Features
1.Pure sine wave AC output, compatible with various loads and causes no damage to loads.
2. Intelligent MPPT boost regulation for wind turbine; MPPT intelligent solar charging with high charging efficiency.
3. LCD displays voltage, current and other data of battery, wind turbine, solar energy and load; partial parameters are configurable.
4. Adopts high-frequency transformer design, industrial grade with low loss, high efficiency, strong shock resistance, great load capacity and high stability.
5. Wide DC input voltage range, high precision and automatic voltage stabilization.
6. Intelligent battery management with overvoltage & undervoltage protection to extend battery service life.
7. Intelligent temperature control system, built-in temperature sensor; cooling system auto on/off for low power consumption and energy saving.
8. Comprehensive protection functions: overload, overcurrent, short circuit, undervoltage, overvoltage, over-temperature and reverse connection protection.
9. Unattended operation: After battery high/low voltage protection, the output will automatically resume once battery voltage or load returns to normal.
Product parameters
Battery Parameters (12V / 24V / 48V Systems) | ||||||
Battery Type | Overcharge (V) | Low Voltage | Low Voltage | Recovery | Overvoltage | Overvoltage |
Custom (b0) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 | 10.5 / 21.0 / 42.0 | 12.0 / 24.0 / 48.0 | 15.0 / 30.0 / 60.0 | 15.5 / 31.0 / 62.0 |
Lead-acid / Gel (b1) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 | 10.5 / 21.0 / 42.0 | 12.0 / 24.0 / 48.0 | 15.0 / 30.0 / 60.0 | 15.5 / 31.0 / 62.0 |
Li-ion (b2) | 12.6 / 25.2 / 54.6 | 9.5 / 19.0 / 39.0 | 10.0 / 20.0 / 41.0 | 11.0 / 22.0 / 48.0 | 15.0 / 30.0 / 60.0 | 15.5 / 31.0 / 62.0 |
Li-ion (b3) | 12.6 / 29.4 / 58.8 | 9.5 / 21.0 / 42.0 | 10.0 / 22.0 / 44.0 | 11.0 / 26.0 / 52.0 | 15.0 / 30.0 / 60.0 | 15.5 / 31.0 / 62.0 |
LiFePO4 (b4) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 | 10.5 / 21.0 / 42.0 | 12.0 / 24.0 / 48.0 | 15.0 / 30.0 / 60.0 | 15.5 / 31.0 / 62.0 |
Note: Default settings are for lead-acid batteries. Lithium or customized systems require confirmation before delivery. | ||||||
Hybrid Wind-Solar Inverter Controller Specifications | |
Item | Specification |
System Parameters | |
Rated System Voltage | 12V / 24V / 48V DC |
PV Input | |
Rated Power | 600W (12V) / 1200W (24V) / 2400W (48V) |
Max Input Voltage | ≤80VDC (12V/24V) / ≤130VDC (48V) |
Charging Mode | MPPT + PWM |
Wind Input | |
Rated Power | 300W (12V) / 800W (24V) / 1000W (48V) |
Max Input Voltage | ≤80VDC (12V/24V) / ≤130VDC (48V) |
Charging Mode | Boost MPPT + PWM |
Dump Load | External dump load resistor |
Inverter Output | |
Rated Power | 1000W / 2000W |
Peak Power | 2000W / 4000W |
Output Voltage | 110V / 220V AC ±3% |
Frequency | 50Hz / 60Hz ±1% |
Waveform | Pure Sine Wave |
THD | < 3% |
Efficiency | ≥ 90% |
Features | |
Soft Start | Yes |
USB Output | 5V / 2A |
Modulation | Center-aligned PWM |
Display | LCD + LED Indicators |
Cooling | Intelligent Fan Cooling |
Protection & Communication | |
Protection | Overcurrent, Overload, Short Circuit, Low Voltage, Overvoltage, Overtemperature, Reverse Polarity |
Communication | GPRS (Optional) / RS485 (Optional) |
Environment & Mechanical | |
Operating Temperature | -20°C ~ +55°C |
Humidity | 35% ~ 85% RH (Non-condensing) |
Net Weight | 8.5kg / 9.5kg |
Gross Weight | 9.5kg / 10.5kg |
Product Size | 354 × 350 × 107.4 mm |
Package Size | 490 × 420 × 190 mm |
Product Display

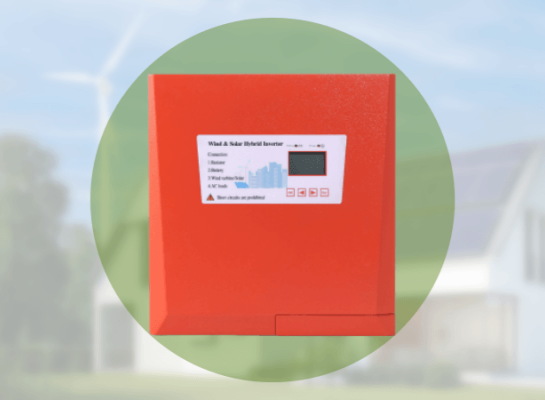

LCD Display
Real-Time System Monitoring
Onboard LCD provides live readings of voltage, current, and operating status — no external meter or software needed for on-site diagnostics. Enables faster fault detection and simplifies routine maintenance checks.

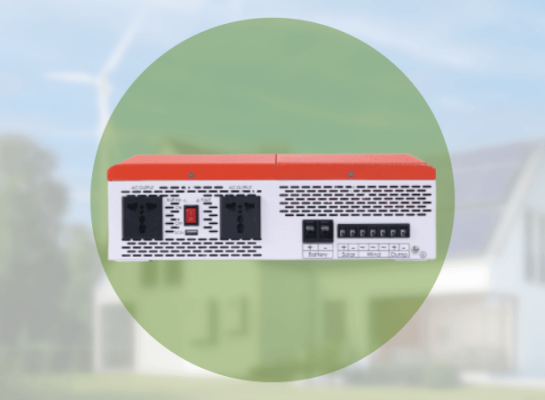

Dual Input Ports
Wind + Solar Dual-Input Compatibility
Independent input channels support simultaneous wind turbine and solar panel connection, letting the system draw from whichever source is generating — maximizing uptime in variable weather and reducing dependency on a single power source.

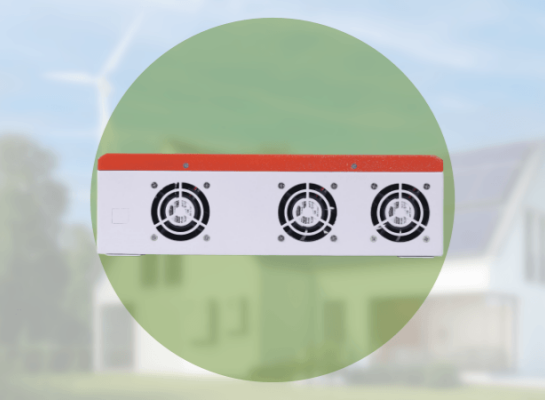

Smart Cooling System
Automatic Thermal Management
Integrated fan array activates based on internal temperature, keeping components within safe operating range under sustained load. Reduces thermal stress on power electronics and extends service life without manual intervention.

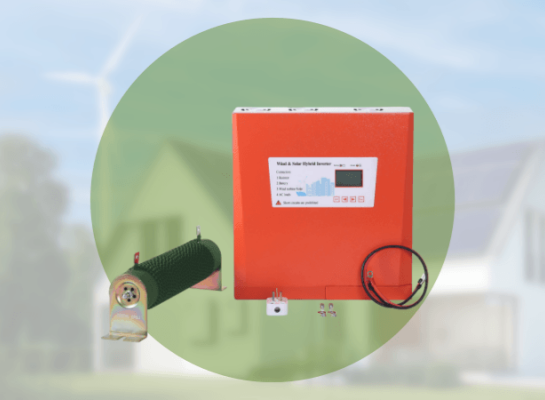

External Dump Load Port
Turbine Overspeed Protection
Dedicated external dump load connection diverts excess energy when battery banks reach capacity, preventing wind turbine overspeed and protecting the generator from damage during high-wind conditions.
Application Cases
This system is widely deployed for off-grid applications including islands, remote mountain regions, telecom base stations, surveillance systems, capsule houses, mobile homes and standalone residential power projects. It is particularly suited for locations with no stable grid power, delivering a reliable unattended power supply solution.
