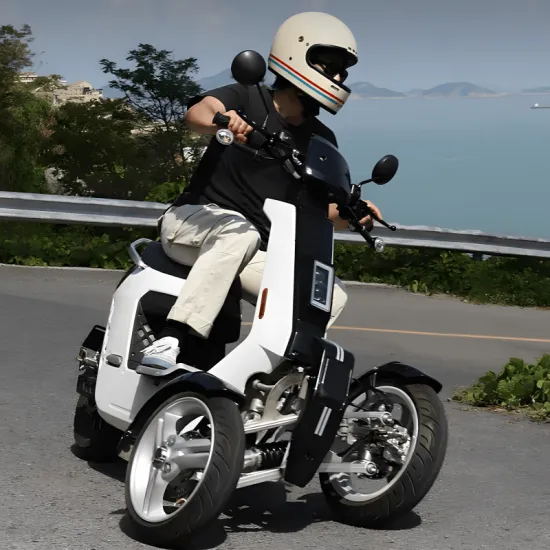

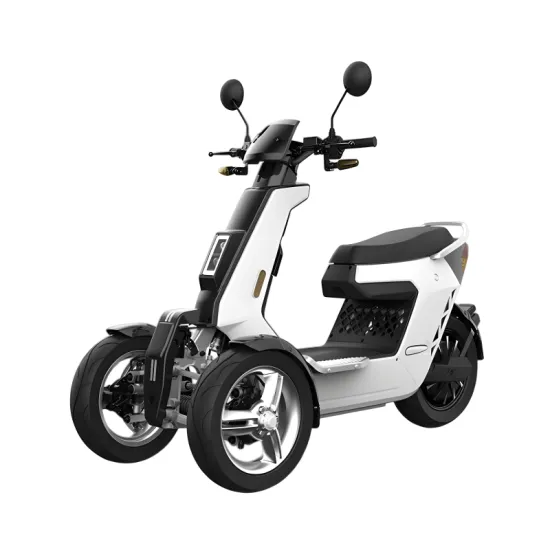

Product Overview

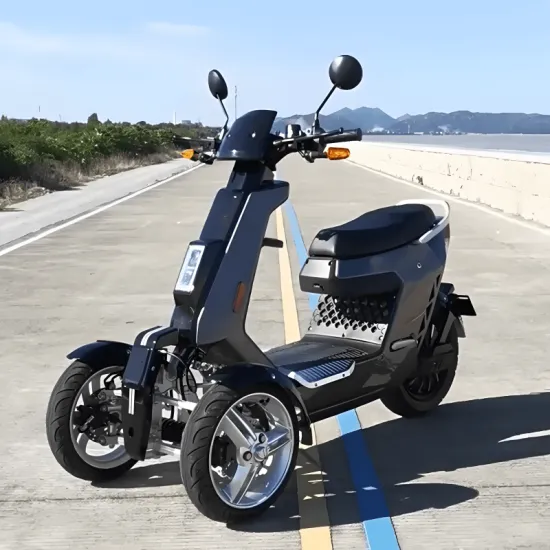

A high-performance electric tilting trike designed for outdoor recreation and riding experiences. It combines a powerful direct-drive hub motor, long-range battery, 12-inch vacuum tires, and a front tilting system for a responsive and comfortable riding experience.
Product Features
|
|
|

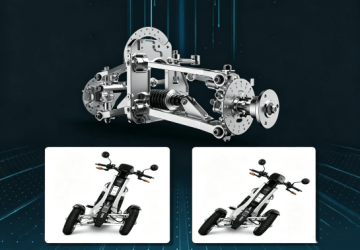

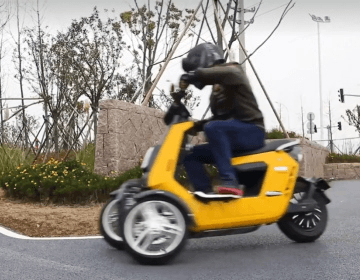

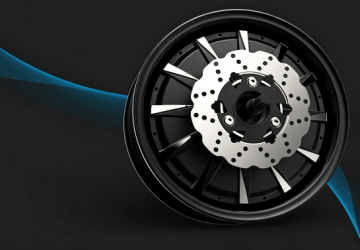

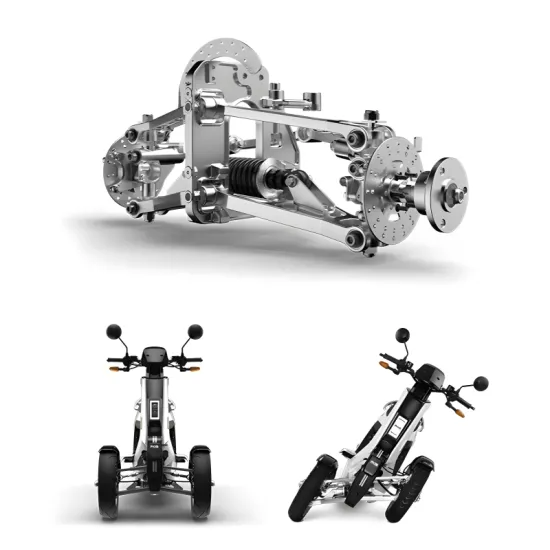

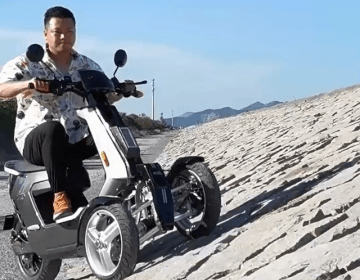

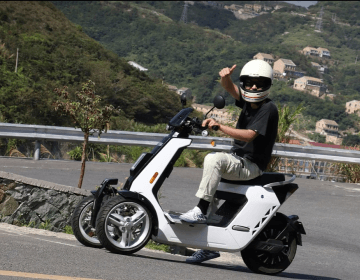

Powerful Direct-Drive Motor Equipped with a high-power direct-drive hub motor with a rated power of 3000W, providing strong and smooth power output. | MLS® Front Tilting System The front tilting system uses an aluminum casting structure to support parallel tilting, parallel steering, tilt locking, and independent suspension. The tilt angle can reach up to 40° when the parking handle is released, providing a more flexible riding experience. | High-Speed Performance The vehicle can reach a maximum speed of 75 km/h when operating in S Sport Mode. With a powerful motor and responsive front tilting system, it is designed for smooth handling and dynamic riding. |
|
|
|

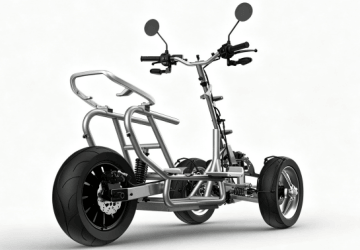

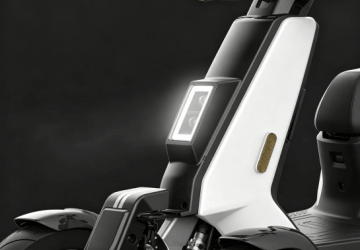

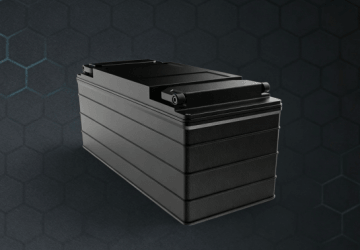

100 km Long Range Powered by a 72V 40Ah ternary lithium battery, providing up to 100 km of range under specified test conditions. *Actual range may vary depending on temperature, speed, load, slope, road conditions, tire pressure, wind speed, and other factors. The stated range is based on laboratory testing and is for reference only. | Integrated Lightweight Frame The frame is made of carbon steel with an integrated structure designed to maintain vehicle stability while reducing overall weight for a more comfortable riding experience. | Front Lighting The rectangular LED headlights provide high brightness and a wide illumination range. High / Low Beam Switching Front & Rear Turn Signals High-Brightness Hazard Lights Dual Rectangular LED Headlights |
|
|
|

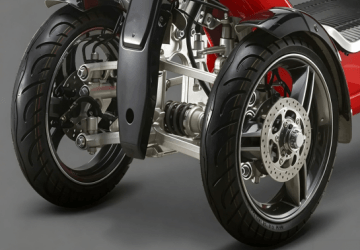

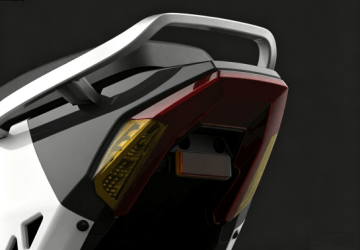

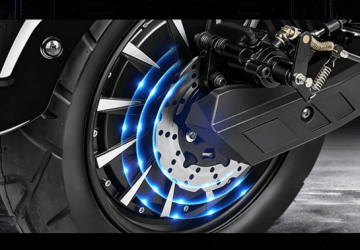

Rear Lighting The integrated wraparound LED taillight provides a larger visible lighting area and clearer nighttime riding signals. | 12-Inch Vacuum Tires Equipped with 12-inch reinforced anti-slip vacuum tires for stable handling and strong road grip. The tires provide good wear resistance and traction on different road surfaces. | Front & Rear Disc Brakes The front and rear disc brake system provides responsive braking performance and effective speed control. |
Product Details
|
|

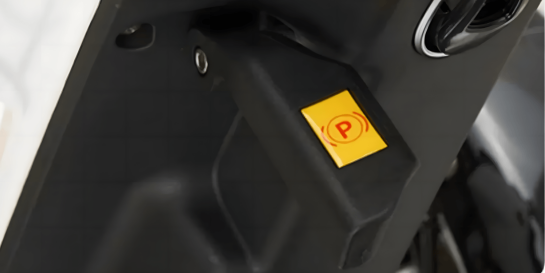

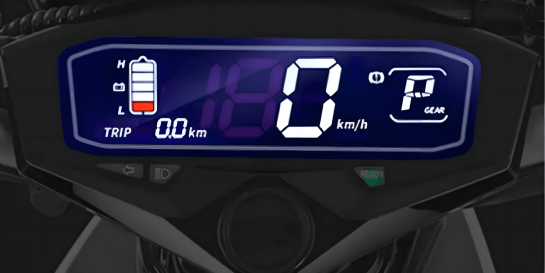

Large Display Instrument | Parking Handle |
|
|

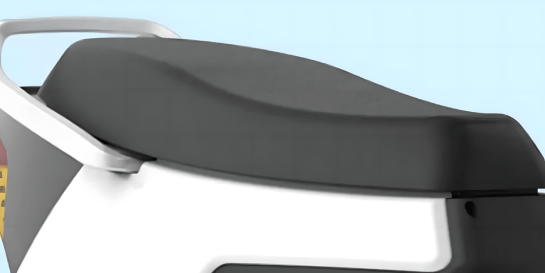

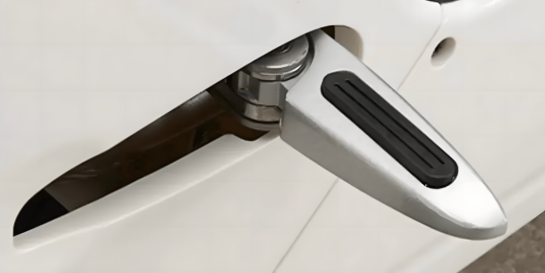

Comfortable Seat | Hidden Footrests |
Application

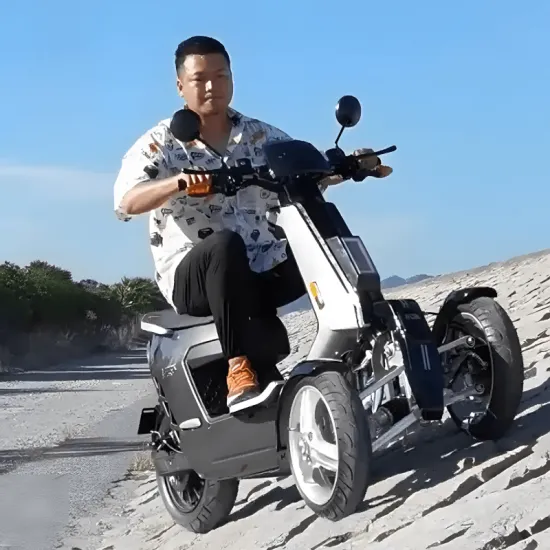

Suitable for outdoor recreation, leisure riding, personal riding experiences, tourism, resorts, outdoor venues, and recreational applications.
|
|
|
Battery Safety & Charging Instructions
Before Use
Please read the operating instructions carefully and keep the manual for future reference.
Do not modify the vehicle frame, cables, electrical components, battery, or other vehicle systems without authorization. Unauthorized modifications may affect vehicle performance, cause electrical failures, shorten service life, or create safety risks.
Battery Use
Avoid regularly discharging the battery below 20%.
Recharge the battery when the remaining capacity is around 20%.
Use the specified charger.
Disconnect the charger after charging is complete.
Do not overcharge the battery.
If the vehicle is not used for an extended period, recharge the battery regularly according to the battery manufacturer's instructions.
Charging Safety
Use only the supplied or specified charger.
Charge in a dry, well-ventilated and supervised area.
Do not charge in bedrooms, living rooms, or other residential areas.
Keep the battery away from heat sources, open flames, and flammable materials.
Do not charge under direct sunlight or in excessively hot conditions.
Do not charge when the battery is wet or exposed to water.
Do not leave the battery charging unattended.
Stop charging immediately if abnormal heat, odor, smoke, leakage, or other unusual conditions occur.
Operating Temperature
Recommended Operating Temperature: 10°C–40°C
Recommended Charging Temperature: 0°C–35°C
Maximum Charging Time: 11 hours
Actual charging time may vary depending on battery condition, charger specifications, temperature, and other factors.
Battery Protection
Do not disassemble the battery.
Do not cut, modify, or replace battery wiring without authorization.
Do not short-circuit the battery terminals.
Do not connect conductive objects directly to the positive and negative terminals.
Keep the battery away from water and excessive heat.
Do not use a damaged or deformed battery.
Range Note
The stated range is based on laboratory testing. Actual range may vary depending on temperature, speed, load, slope, road conditions, tire pressure, wind speed, and other factors.
