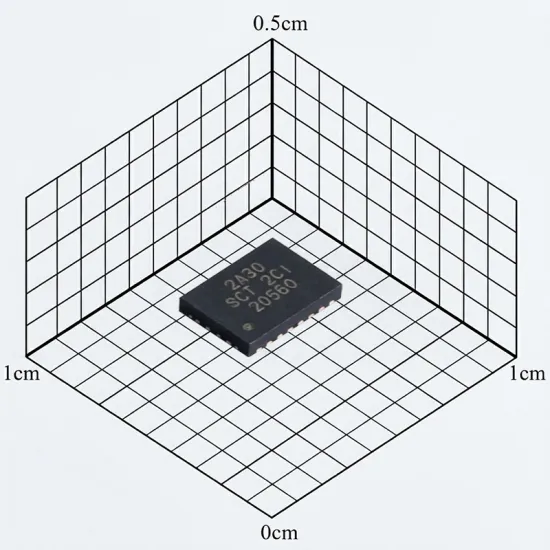

SCT82A30DHKR
Ideal for 48V direct step-down designs, SCT82A30DHKR offers 6V-100V input, near-100% duty cycle, configurable soft-start, power-good monitor, hiccup OCP, and thermal shutdown.
- Operating Voltage ：5.5V~100V
- Output Voltage ：800mV~60V
- Output Current ：2.3A; 3.5A
- Switching Frequency ：780kHz
- Operating Temperature ：-40°C~+150°C@(TJ)
- Quiescent Current：1.5mA

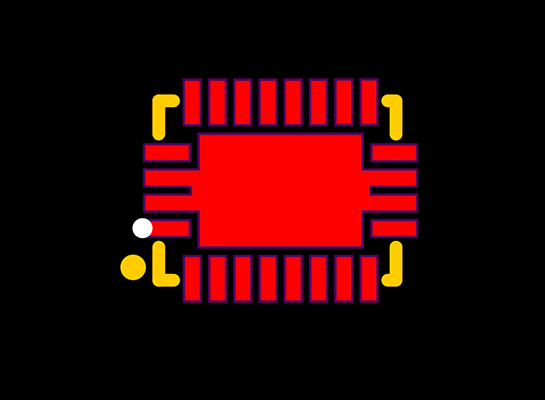

- Product Package ：QFN-20L(3.5X4.5)
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.1819(g)
USD 2.161
