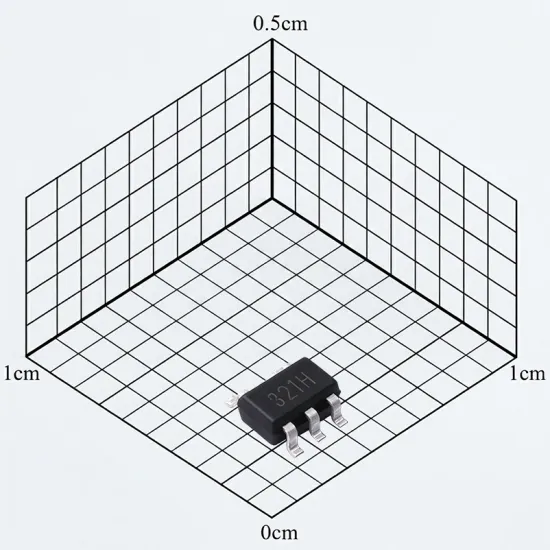

LM321SN3T1G
This operational amplifier supports single or dual supply operation with 3V-36V differential, requiring VCC at least 1.5V above common-mode input.
- Quiescent current：700uA
- Input offset voltage (Vos) ：5mV
- Input offset voltage temperature drift (Vos TC) ：7uV/℃
- Output current：40mA
- Input bias current (Ib) ：250nA
- Input offset current (Ios)：2nA
- Product Package ：SOT-23-5
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.037(g)
USD 0.1109
19000
Supplier Information
Email：[email protected]
Tel：15670610275
