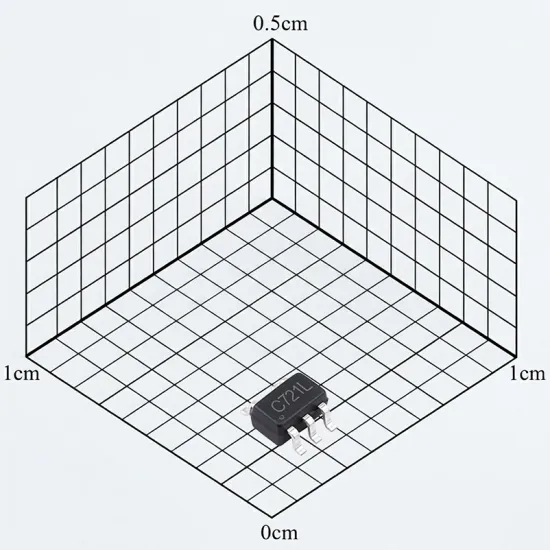

TPV721LC5
This low-voltage op-amp offers excellent speed/power ratio, unit-gain stability, low input bias current, and rail-to-rail I/O for optimal performance.
- Gain-bandwidth product (GBW) ：8MHz
- Input offset voltage (Vos) ：2.5mV
- Input offset voltage temperature drift (Vos TC) ：600nV/°C
- Slew rate (SR) ：6V/us
- Input bias current (Ib) ：10pA
- Input offset current (Ios)：5pA
- Product Package ：SOT-353
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.0301(g)
USD 0.196
19000
Supplier Information
Email：[email protected]
Tel：15670610275
