Product Description
Exquisite & Simple

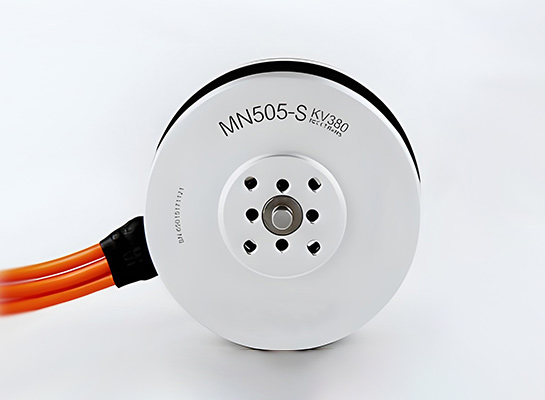

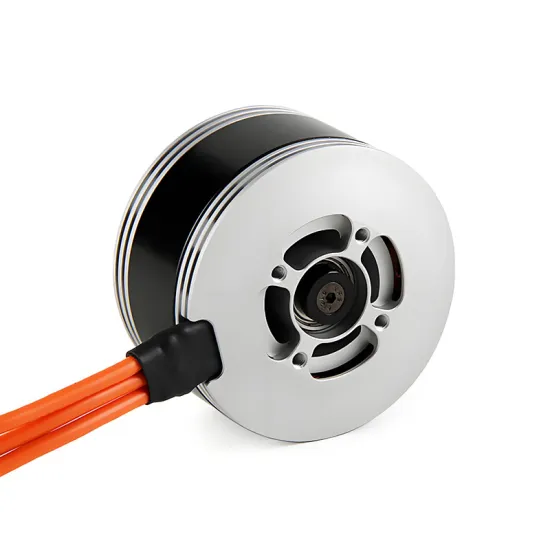

MN505S
MN505-S multirotor motor delivers over 6.6kg thrust. Featuring stable and reliable performance, high safety, drop resistance and IP45 dustproof & waterproof, it adapts to complex field environments for industrial UAVs.
Functional Features
Excellent cooling performance
Anti-high temperature
Anti-overload

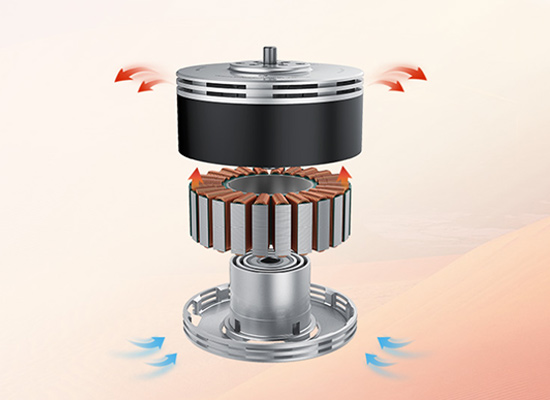

Cooling Design
Soaring in the hot sky
Centrifugal fan design of bell cap actively cools the motor.
Heat dissipation performs10% better thanordinary motors.
Manual winding with special varnished wires of high temperature resistance.
Magnets of high temperature resistance are employed for motor heat and overload resistance.

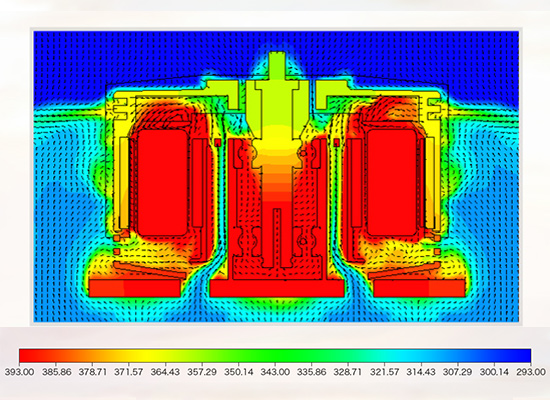

Motor Air Flow Simulated Analyses
Temperature (K)
Sectional drawing 1: Contour line
Sectional drawing 2: Contour line
Contour surface 1

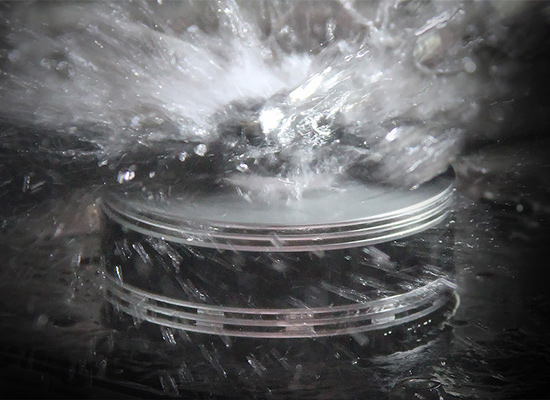

Waterproof
Dust-resistant
Anti-corrosion
IP45
Enjoy flying regardless environment
Grid-shaped structure of bell cap allows efficient ventilation while protects motors from dust and other debris;Keeps motor away from > 1mm foreign objects even when motors are mounted upside down.
Special Alloy shaft, customized bearing, Special varnished wires, silicon steel sheet, magnets and bell are treated with the latest anti-rust and ant-corrosion technology.It grants the motor parts remarkable protection.
Double Security
Locking Method
Safe flying with MN505S

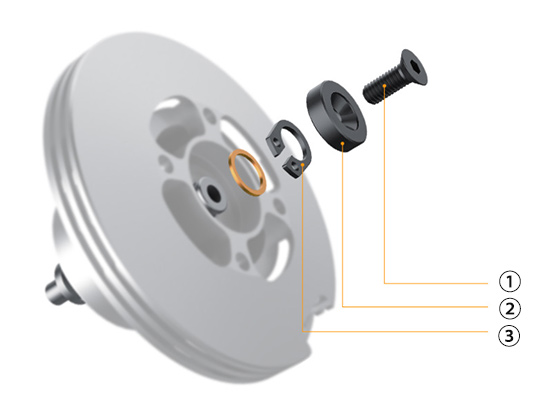

T shape shaft secured with a circlip and a screw ensures safety and reliability under high RPM and power without rotor looseness.
①Screw
②Washer
③Circlip
Operation System
Big thrust, long lifespan

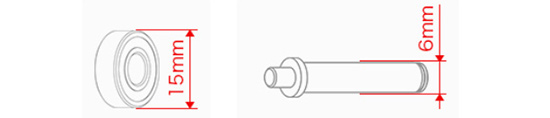

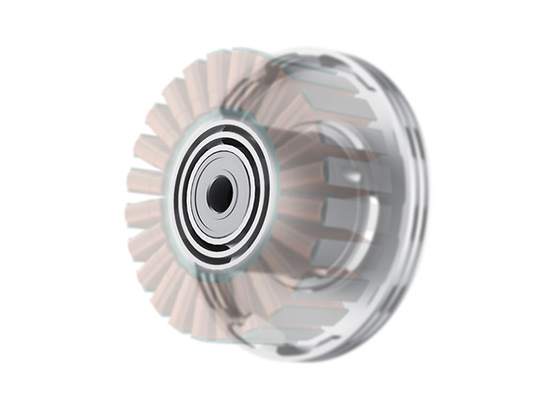

MN505S use 6mm steel shaft and 15mm big bearing which renders outstanding impact resistance,stability and lifetime.
bearing steel shaft
Performance Optimization
We value every gram

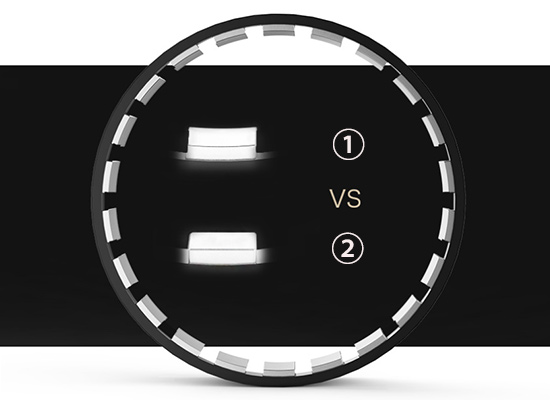

Anti-high temperature curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit helps improve motor performance by 5%+.
①Curved magnet
②Ordinary magnet

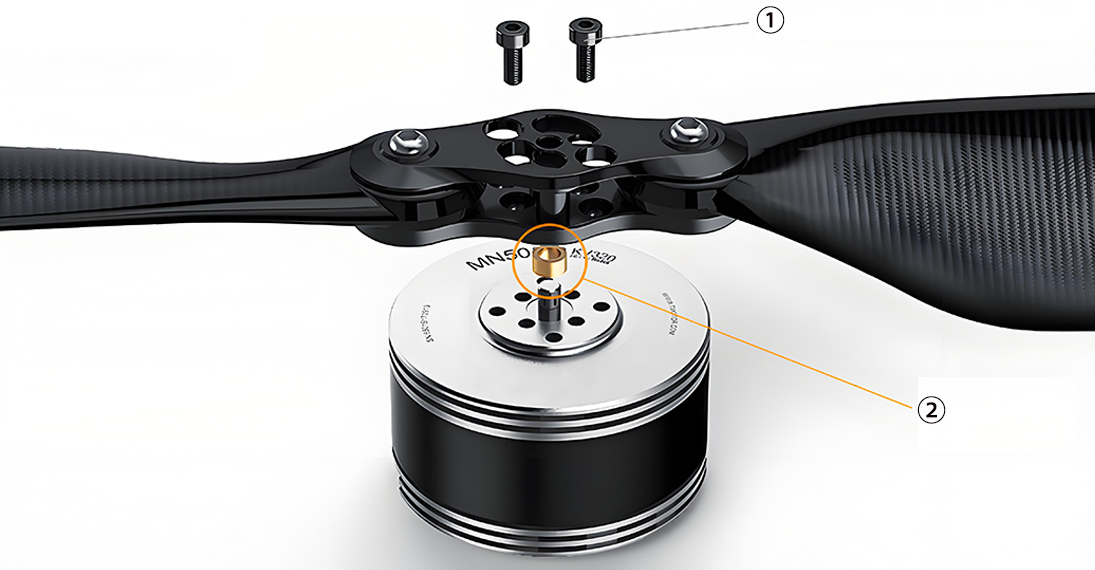

Mounting Method

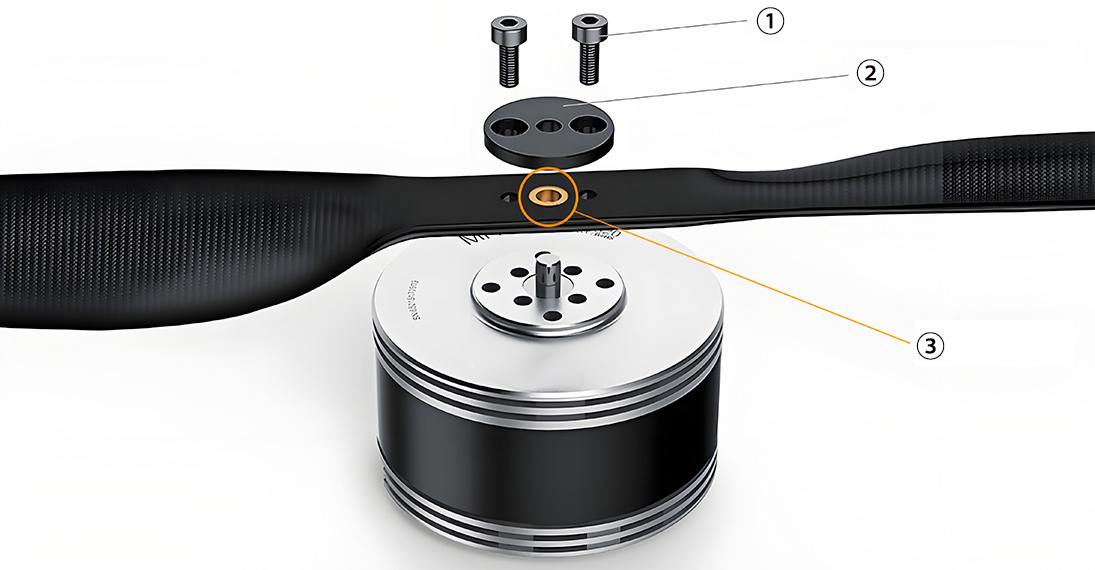

Integrated Prop
14”-22”

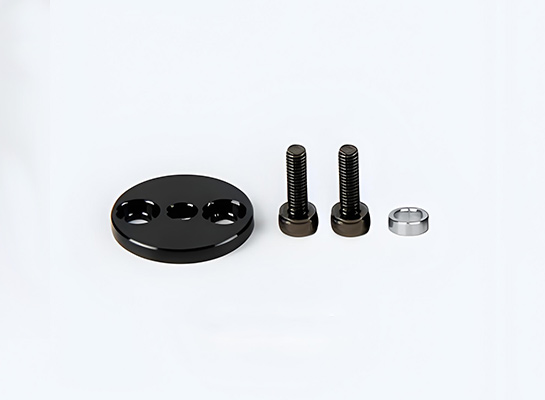

①M3*1Omm Mounting Screw*2 ②Φ20*2.4mm Cover*1 ③Copper adapter 6mm*4mm*1

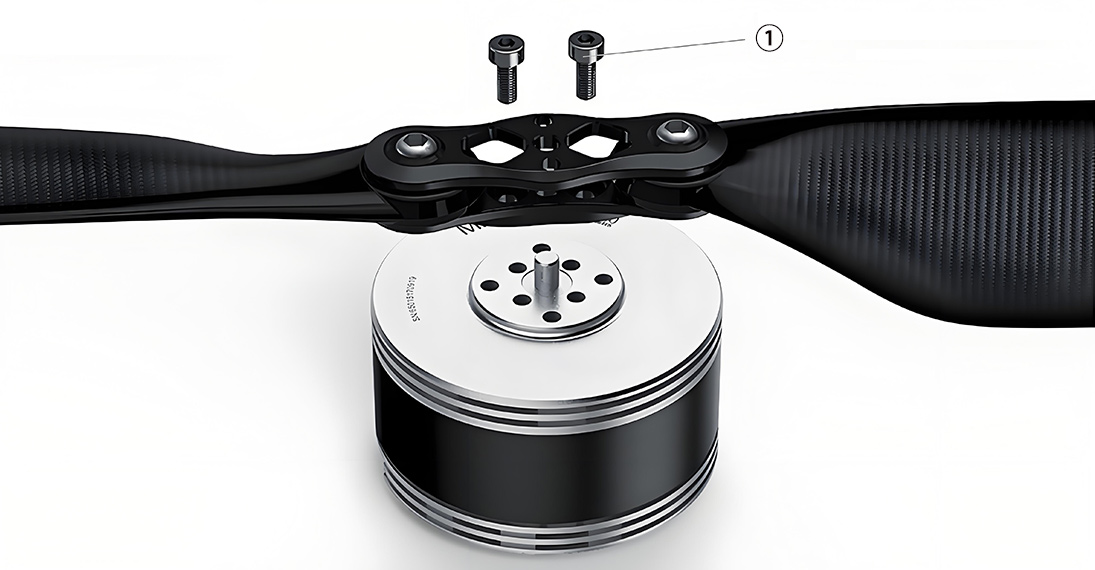

Foldable Prop
14”-18”
①M3*1Omm Mounting Screw*2
Foldable Prop
20”－22”
①M3*1Omm Mounting Screw*2 ②Copper adapter 6mm²4mm*1

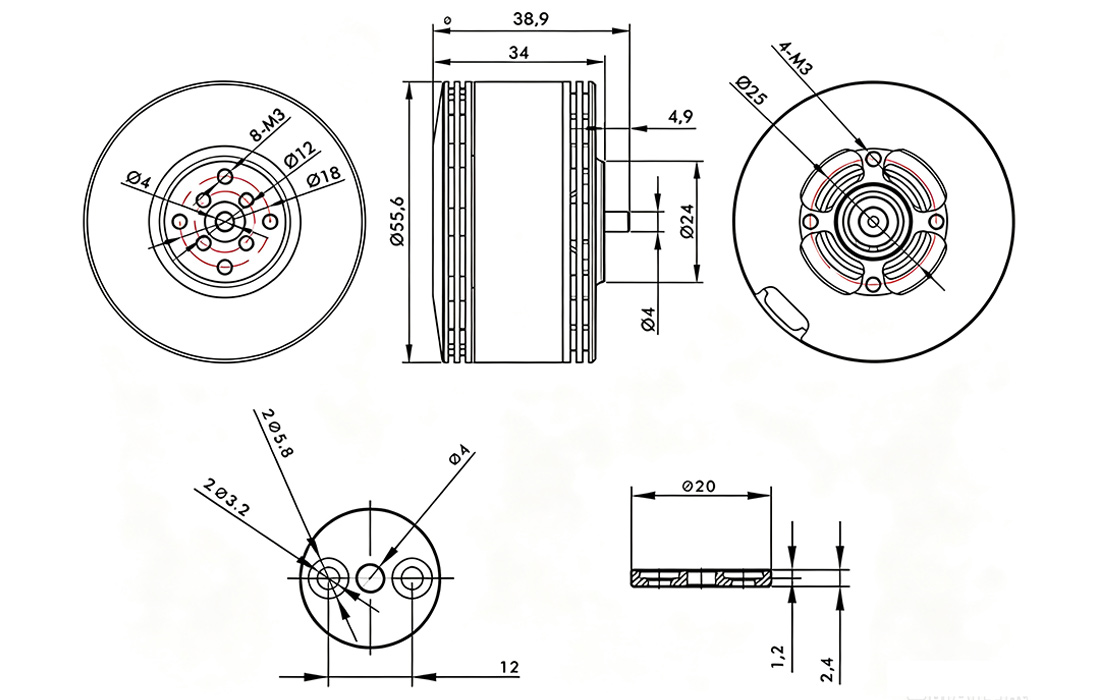

Dimensional Drawin
Product parameters
Specifications | |
Motor Size | Φ55.6*38.9mm |
Stator | Imported silicon steel sheet;Anti-rust treatment;150°C high temperature-resisting coatings |
Configuration | 24N28P |
Shaft Diameter | IN:6mm,OUT:4mm |
Bearing | Imported 696ZZ |
Magnet Level | 180°C high temperature resistance |
Lead Cable | 16AWG*150mm |
Copper Wire | 220°C high temperature resistance:Level C |
Coil Insulation Test | 500V |
Centrifugal Cooling Design | YES |
Rotor Dynamic Balance Standard | ≤5Mg |
Motor Dynamic Balance Standard | ≤10Mg |
IP | IP45 |
KV | 320 | Rated Voltage(Lipo) | 6S |
Idle Current (15V) | 1.8A | ESC Recommendation | FLAME 60A 12S |
Peak Current (180s) | 55A | Propeller Recommendation | 20-22" |
Max. Power (180s) | 1300W | Motor Weight (Incl. Cable) | 225g |
Internal Resistance | 38mΩ | Package Weight | 400g |
KV | 380 | Rated Voltage(Lipo) | 6S |
Idle Current (15V) | 2.0A | ESC Recommendation | FLAME 60A 12S |
Peak Current (180s) | 50A | Propeller Recommendation | 17-18" |
Max. Power (180s) | 1200W | Motor Weight (Incl. Cable) | 225g |
Internal Resistance | 28mΩ | Package Weight | 400g |
Test Report | ||||||||||
Type | Propeller | Throttle | Voltage | Thrust | Torque | Current | RPM | Power | Efficiency | Operating |
MN505S | T-MOTOR | 40% | 24.08 | 1068 | 0.16 | 4.1 | 2729 | 99 | 10.83 | 65.3 |
42% | 24.07 | 1151 | 0.17 | 4.5 | 2828 | 109 | 10.59 | |||
44% | 24.08 | 1264 | 0.2 | 5.1 | 2947 | 122 | 10.36 | |||
46% | 24.07 | 1357 | 0.22 | 5.6 | 3069 | 135 | 10.03 | |||
48% | 24.07 | 1454 | 0.24 | 6.1 | 3189 | 148 | 9.83 | |||
50% | 24.07 | 1543 | 0.26 | 6.8 | 3286 | 164 | 9.42 | |||
52% | 24.06 | 1666 | 0.29 | 7.5 | 3410 | 181 | 9.19 | |||
54% | 24.06 | 1804 | 0.32 | 8.4 | 3559 | 201 | 8.97 | |||
56% | 24.05 | 1975 | 0.35 | 9.3 | 3705 | 224 | 8.82 | |||
58% | 24.06 | 2082 | 0.38 | 10.1 | 3818 | 242 | 8.6 | |||
60% | 24.05 | 2178 | 0.41 | 11 | 3938 | 264 | 8.24 | |||
62% | 24.05 | 2311 | 0.44 | 12 | 4050 | 289 | 8 | |||
64% | 24.05 | 2486 | 0.47 | 13 | 4151 | 313 | 7.96 | |||
66% | 24.04 | 2659 | 0.51 | 14.2 | 4308 | 342 | 7.77 | |||
68% | 24.04 | 2765 | 0.53 | 15.3 | 4407 | 367 | 7.53 | |||
70% | 24.03 | 2921 | 0.57 | 16.3 | 4611 | 393 | 7.44 | |||
75% | 24.02 | 3376 | 0.65 | 19.4 | 4973 | 466 | 7.25 | |||
80% | 24.01 | 3767 | 0.73 | 22.7 | 5230 | 544 | 6.92 | |||
90% | 23.99 | 4514 | 0.91 | 29.7 | 5698 | 713 | 6.33 | |||
100% | 23.96 | 5372 | 1.1 | 38.5 | 6276 | 921 | 5.83 | |||
Type | Propeller | Throttle | Voltage | Thrust | Torque | Current | RPM | Power | Efficiency | Operating |
MN505S | T-MOTOR | 40% | 24.01 | 1424 | 0.27 | 5.5 | 2573 | 132 | 10.83 | 88.5 |
42% | 24.02 | 1525 | 0.29 | 6.1 | 2668 | 145 | 10.49 | |||
44% | 24.01 | 1657 | 0.33 | 6.7 | 2770 | 162 | 10.24 | |||
46% | 24.01 | 1788 | 0.36 | 7.5 | 2873 | 180 | 9.95 | |||
48% | 24.01 | 1959 | 0.39 | 8.3 | 2990 | 200 | 9.79 | |||
50% | 24 | 2090 | 0.43 | 9.2 | 3197 | 221 | 9.46 | |||
52% | 24 | 2267 | 0.46 | 10.3 | 3312 | 246 | 9.2 | |||
54% | 24 | 2413 | 0.51 | 11.4 | 3439 | 272 | 8.86 | |||
56% | 24 | 2586 | 0.55 | 12.6 | 3565 | 301 | 8.59 | |||
58% | 23.99 | 2799 | 0.6 | 14 | 3689 | 335 | 8.36 | |||
60% | 23.99 | 2968 | 0.64 | 15.2 | 3790 | 364 | 8.15 | |||
62% | 23.99 | 3149 | 0.69 | 16.6 | 3888 | 398 | 7.9 | |||
64% | 23.98 | 3298 | 0.73 | 17.9 | 3980 | 429 | 7.69 | |||
66% | 23.97 | 3477 | 0.77 | 19.3 | 4071 | 464 | 7.5 | |||
68% | 23.97 | 3665 | 0.81 | 20.9 | 4182 | 500 | 7.33 | |||
70% | 23.96 | 3843 | 0.85 | 22.2 | 4375 | 533 | 7.21 | |||
75% | 23.95 | 4349 | 0.96 | 26.7 | 4623 | 640 | 6.8 | |||
80% | 23.94 | 4828 | 1.08 | 31 | 4936 | 743 | 6.5 | |||
90% | 23.9 | 5747 | 1.31 | 41.1 | 5346 | 983 | 5.85 | |||
100% | 23.87 | 6680 | 1.54 | 52.4 | 5625 | 1249 | 5.35 | |||
Type | Propeller | Throttle | Voltage | Thrust | Torque | Current | RPM | Power | Efficiency | Operating |
MN505S | T-MOTOR | 40% | 24.02 | 903 | 0.4 | 4.6 | 3287 | 110 | 8.2 | 66.5 |
42% | 24.01 | 987 | 0.42 | 5.1 | 3461 | 123 | 8.02 | |||
44% | 24.01 | 1076 | 0.44 | 5.7 | 3631 | 137 | 7.84 | |||
46% | 24.01 | 1153 | 0.46 | 6.3 | 3770 | 151 | 7.64 | |||
48% | 24.01 | 1245 | 0.48 | 6.9 | 3916 | 165 | 7.55 | |||
50% | 24 | 1386 | 0.44 | 7.7 | 4096 | 186 | 7.47 | |||
52% | 24 | 1504 | 0.48 | 8.6 | 4255 | 206 | 7.31 | |||
54% | 24 | 1628 | 0.48 | 9.4 | 4417 | 225 | 7.24 | |||
56% | 24 | 1745 | 0.5 | 10.2 | 4557 | 245 | 7.11 | |||
58% | 23.99 | 1877 | 0.52 | 11.2 | 4715 | 268 | 6.99 | |||
60% | 23.99 | 1975 | 0.55 | 12 | 4844 | 287 | 6.87 | |||
62% | 23.98 | 2122 | 0.57 | 13.1 | 4983 | 313 | 6.78 | |||
64% | 23.98 | 2224 | 0.58 | 14.1 | 5136 | 337 | 6.6 | |||
66% | 23.98 | 2344 | 0.61 | 15.2 | 5272 | 364 | 6.44 | |||
68% | 23.97 | 2481 | 0.63 | 16.4 | 5404 | 392 | 6.33 | |||
70% | 23.97 | 2590 | 0.65 | 17.4 | 5527 | 416 | 6.22 | |||
75% | 23.96 | 2916 | 0.71 | 20.2 | 5830 | 484 | 6.02 | |||
80% | 23.95 | 3176 | 0.76 | 23.4 | 6134 | 561 | 5.67 | |||
90% | 23.92 | 3860 | 0.88 | 31 | 6726 | 740 | 5.21 | |||
100% | 23.89 | 4550 | 1.01 | 39.8 | 7324 | 950 | 4.79 | |||
Type | Propeller | Throttle | Voltage | Thrust | Torque | Current | RPM | Power | Efficiency | Operating |
MN505S | T-MOTOR | 40% | 24.02 | 1071 | 0.05 | 5.3 | 3196 | 127 | 8.43 | 83.5 |
42% | 24.02 | 1160 | 0.08 | 5.9 | 3335 | 141 | 8.22 | |||
44% | 24.01 | 1287 | 0.1 | 6.6 | 3501 | 158 | 8.16 | |||
46% | 24 | 1414 | 0.12 | 7.4 | 3652 | 177 | 7.98 | |||
48% | 24.01 | 1545 | 0.15 | 8.2 | 3813 | 196 | 7.89 | |||
50% | 24 | 1676 | 0.18 | 9 | 3961 | 216 | 7.78 | |||
52% | 24 | 1843 | 0.21 | 10.1 | 4118 | 242 | 7.63 | |||
54% | 24 | 1985 | 0.24 | 11.2 | 4303 | 270 | 7.36 | |||
56% | 23.99 | 2084 | 0.27 | 12.2 | 4430 | 293 | 7.1 | |||
58% | 23.98 | 2216 | 0.3 | 13.3 | 4568 | 320 | 6.93 | |||
60% | 23.98 | 2347 | 0.33 | 14.5 | 4707 | 348 | 6.75 | |||
62% | 23.98 | 2486 | 0.36 | 15.6 | 4831 | 375 | 6.63 | |||
64% | 23.97 | 2645 | 0.38 | 16.9 | 4954 | 406 | 6.52 | |||
66% | 23.97 | 2806 | 0.42 | 18.3 | 5073 | 439 | 6.4 | |||
68% | 23.96 | 2936 | 0.45 | 19.6 | 5207 | 471 | 6.24 | |||
70% | 23.96 | 3091 | 0.48 | 21 | 5330 | 504 | 6.13 | |||
75% | 23.94 | 3456 | 0.56 | 24.5 | 5595 | 587 | 5.89 | |||
80% | 23.93 | 3818 | 0.66 | 28.6 | 5884 | 685 | 5.58 | |||
90% | 23.9 | 4606 | 0.82 | 37.7 | 6439 | 901 | 5.11 | |||
100% | 23.86 | 5444 | 1.02 | 48.8 | 6975 | 1163 | 4.68 | |||
Note: Motor temperature is motor surface temperature @100%throttle running 10mins. | ||||||||||
Analytical Graph of Motor Operation |

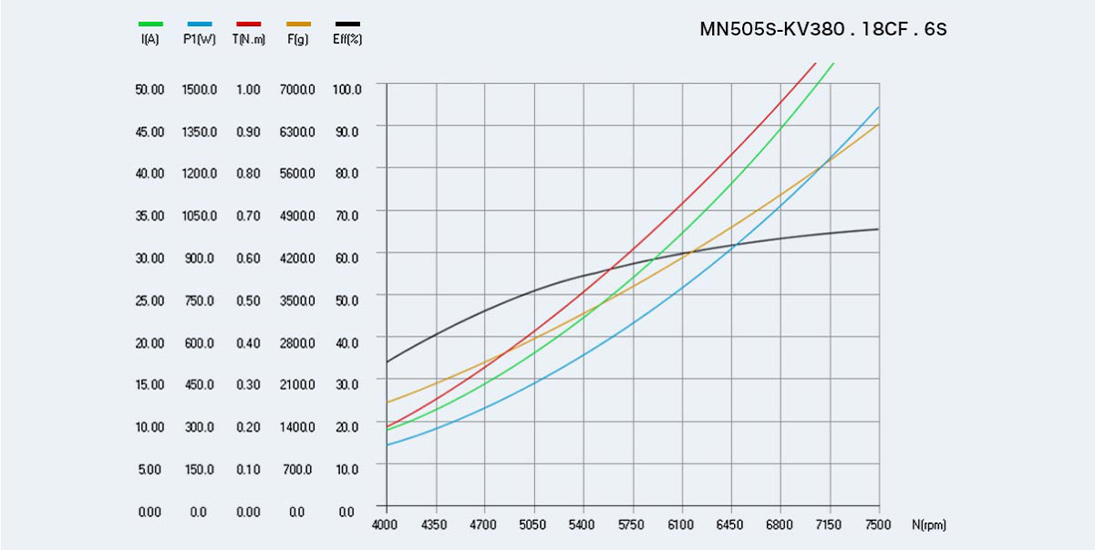

Thrust, Efficiency. Torque, Power Current & Rpm Graph

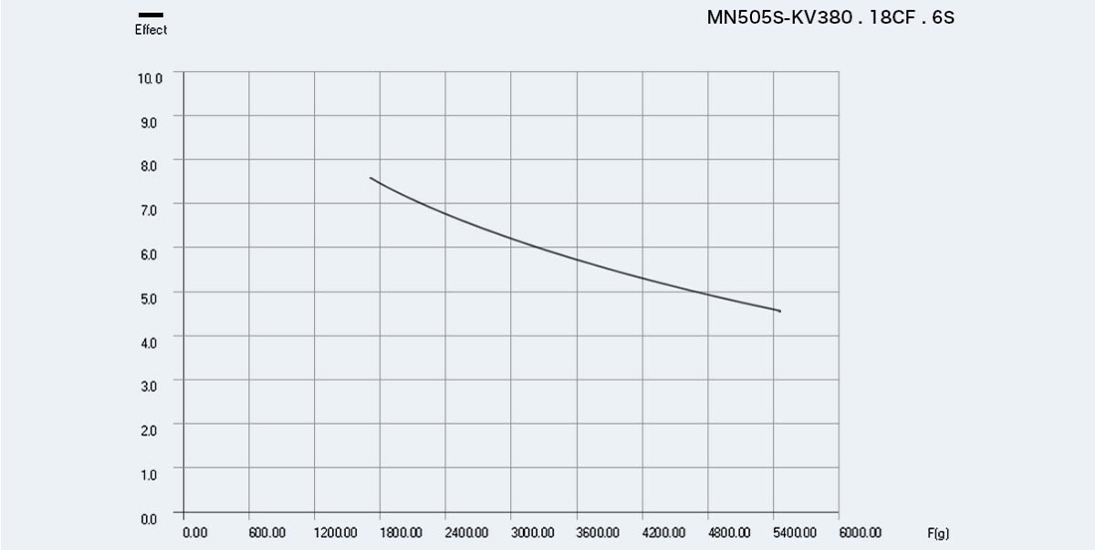

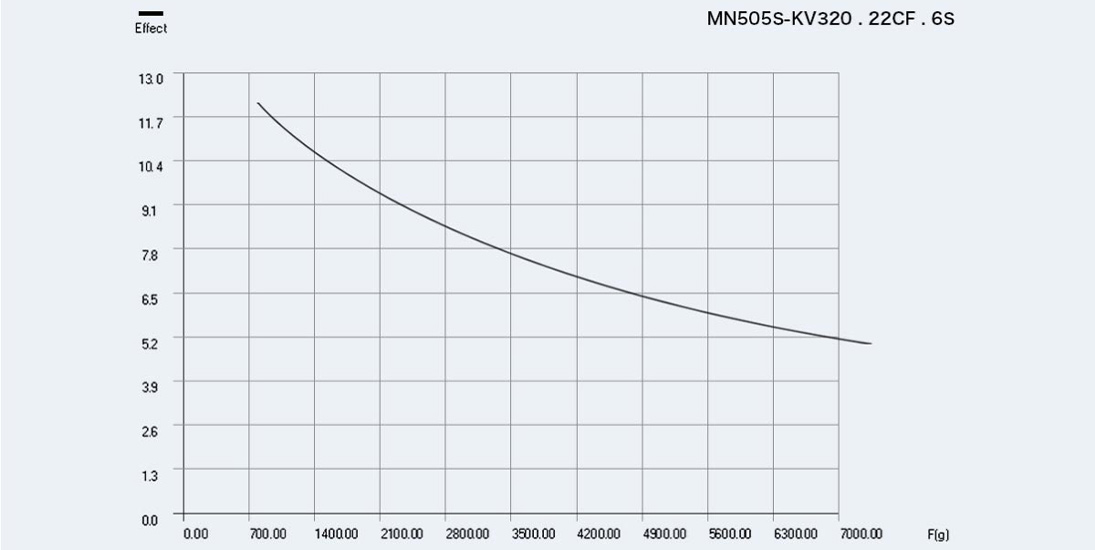

Efficiency Graph
Thrust, Efficiency, Torque,Power,Current & Rpm Graph
Efficiency Graph
Pack
Contents
Motorx1(KV320orKV380）
Parts Bagx 1
