Product Description

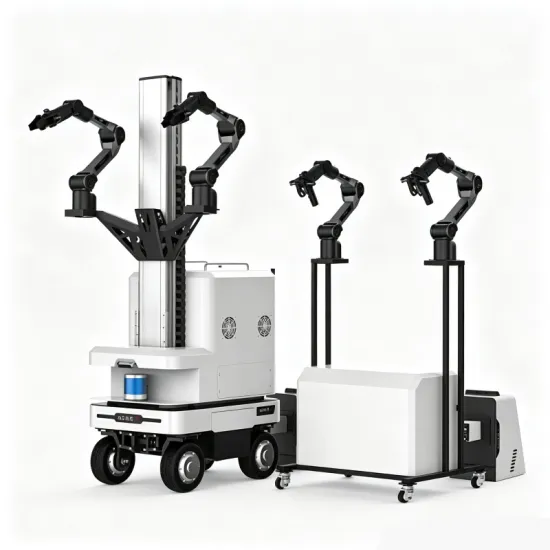

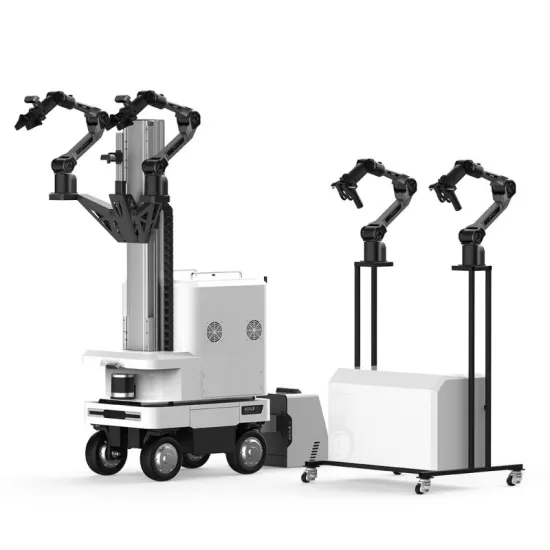

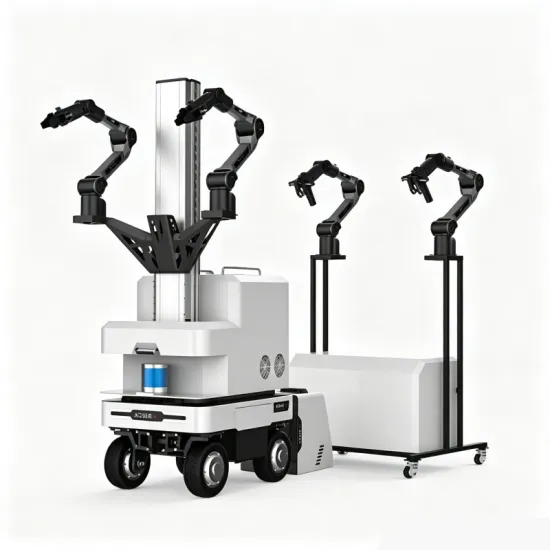

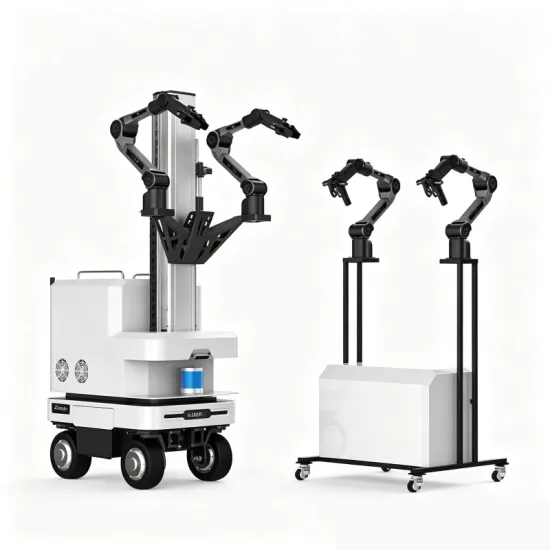

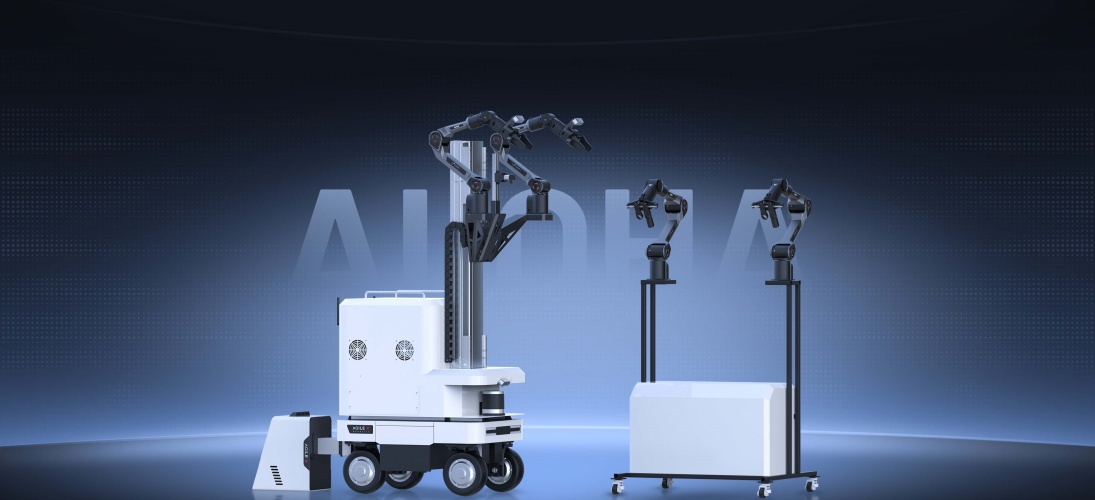

Cobot Magic Split Body Remote Control Platform

Functional Features

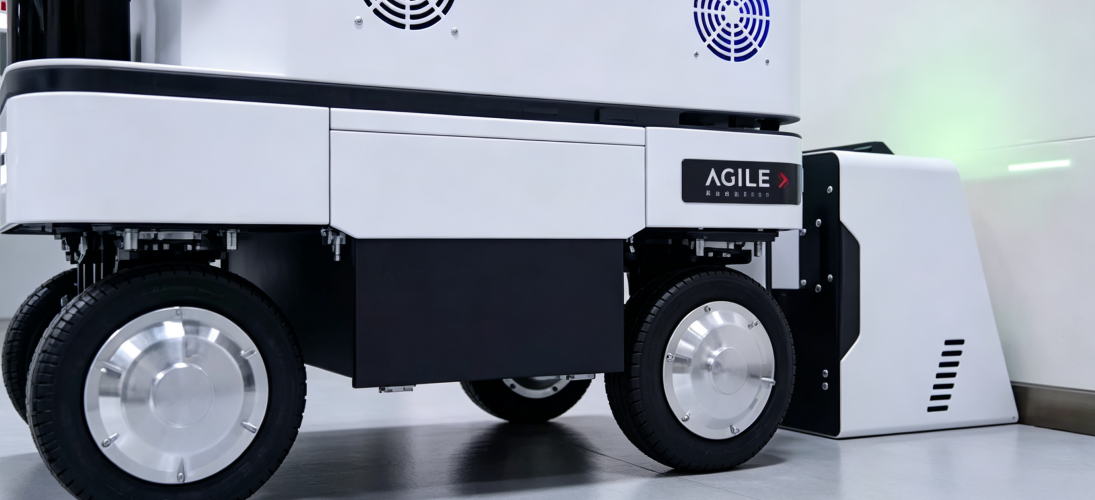

Automatic recycling of charging stations

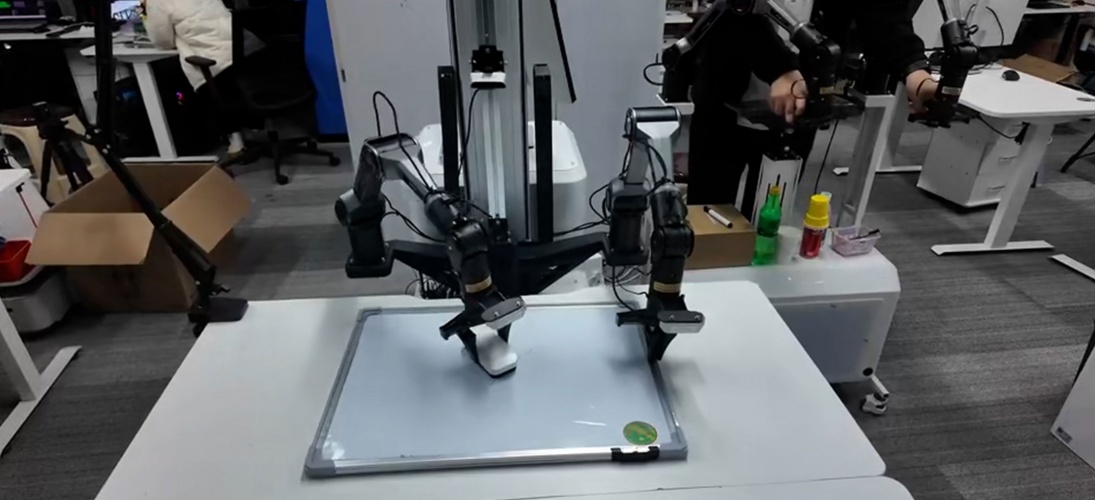

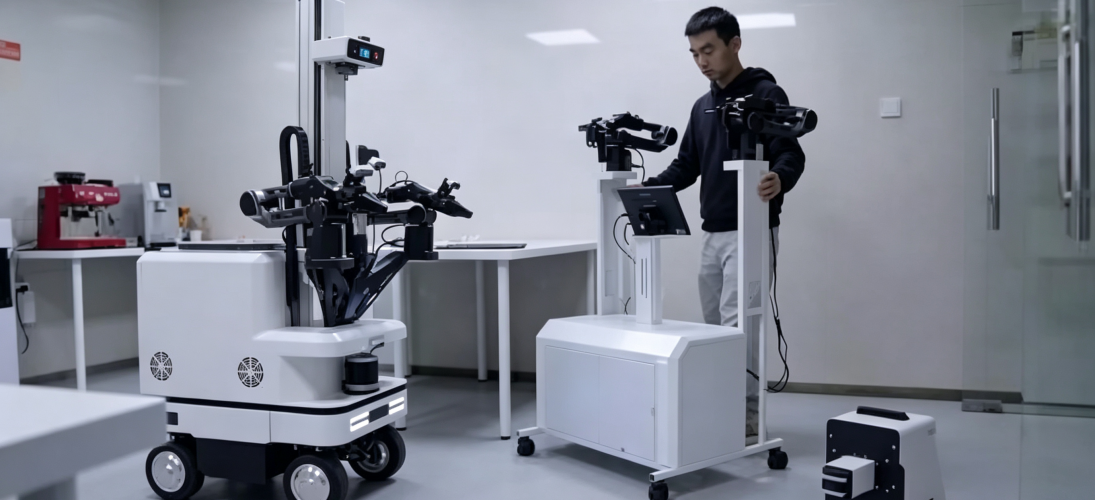

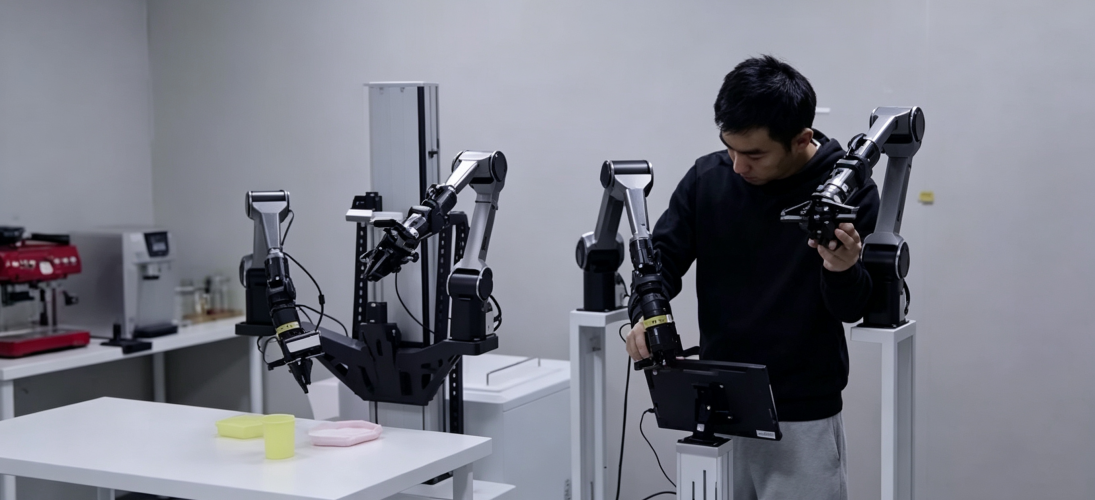

Able to lift and remotely operate both arms

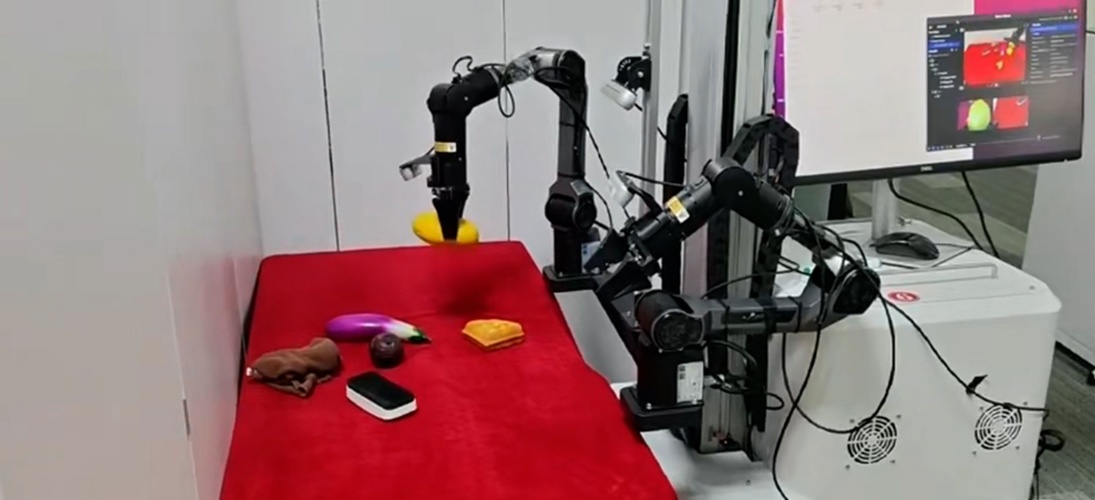

Multi scene intelligent collection at will

Product Display

Technical Specifications

Product	Module	Specification
Actuator End	Four-wheel four-steer Mobile Chassis	RANGER MINI3.0
	Multi-line LiDAR	RS Helios 16P
	Stereo Depth Camera	Orbbec DaBai DC1
	Router	Huawei b535-836
	Quick-release Battery Module	48V 24Ah + AgileX battery box V1.0
	6-DOF Robotic Arm	AgileX PiPER
	Two-finger Gripper	PiPER Gripper
	Industrial PC	i7 13700 / 32G / 2T SSD / RTX 4090 /
Teleoperation End	6-DOF Robotic Arm	AgileX PiPER
	Teach Pendant	PiPER Teach Pendant
	Monitor	1080P
	Mobile Outdoor Power Supply	Dxpower 1000Pro2
	Sensor Bracket	Custom bracket

Product parameters

Item	Product	Model	Unit	Qty
Split Front-end (Actuator End)	Sensor Bracket	Custom bracket	Pcs	1
	4G Industrial Router	4G version	Pcs	1
	Voltage Stabilizer Module	24V (15–40V) to 12V/20A, large aluminum	Pcs	1
	Sensor Bracket	Custom bracket	Pcs	1
	Robotic Arm	PIPER (1.5 kg payload)	Pcs	2
	Gripper	PIPER	Pcs	2
	Quick-release Battery Module	48V 24Ah + AgileX battery box V1.0	Pcs	1
	Lifting Platform Bracket	AgileX Custom	Pcs	1
	USB to 485 Module	485-DC, 31.5 cm	Pcs	1
	Universal Charger - Ground Unit	Contact-type pile head - ground V1.0	Pcs	1
	Universal Charger - Vehicle Unit	Contact-type pile head - vehicle V1.0	Pcs	1
	USB Hub Splitter	12V power, 7-port	Pcs	1
Split Back-end (Teleoperation End)	Robotic Arm	1.5 kg	Pcs	2
	Teach Pendant	PIPER (1.5 kg payload)	Pcs	2
	Display	PIPER	Pcs	1
	Sensor Bracket	Custom bracket	Pcs	1
	Mobile Outdoor Power Supply	Dxpower 1000Pro2	Pcs	1
	USB Hub Splitter	12V power, 7-port	Pcs	2
	Wireless Keyboard with Touchpad	Logitech K400 Plus	Pcs	1
Basic Configuration	Two-wheel differential drive: Dimensions: 702×610×169 mm Rated payload: 100 kg Battery: 24V 30Ah Protection rating: IP22	TRACER2.0	Unit	1
