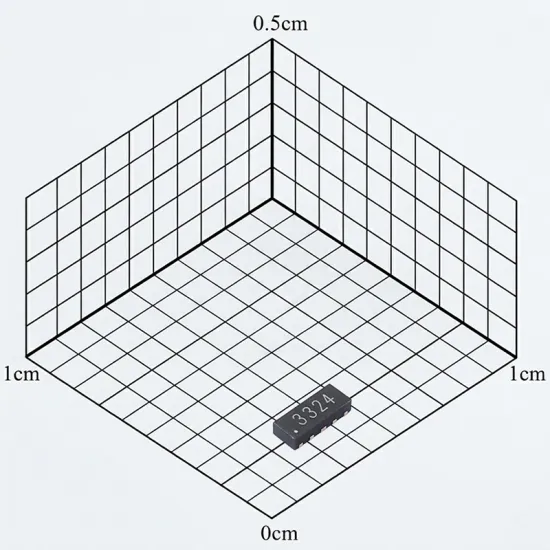

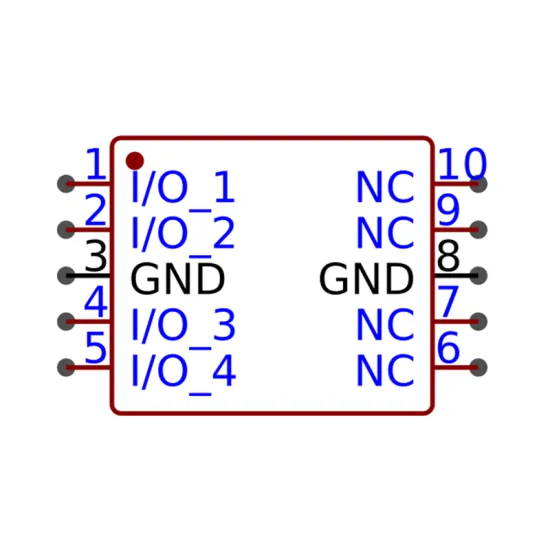

AZ1143-04F
This ESD suppressor meets IEC 61000-4-2 ±20kV air/±15kV contact, EFT 40A, and lightning 4A, protecting 4 data lines plus 1 power line.
- Reverse cutoff voltage (Vrwm) ：3.3V
- Clamping voltage ：15V
- Peak pulse current (Ipp) ：4A@8/20us
- Breakdown voltage (VBR) ：3.6V
- Reverse current (Ir)：60nA
- Product Package ：DFN2510-10
- Packaging Method ：Tape & Reel
- Product Gross weight ：0.028333(g)
USD 0.0764
26000
