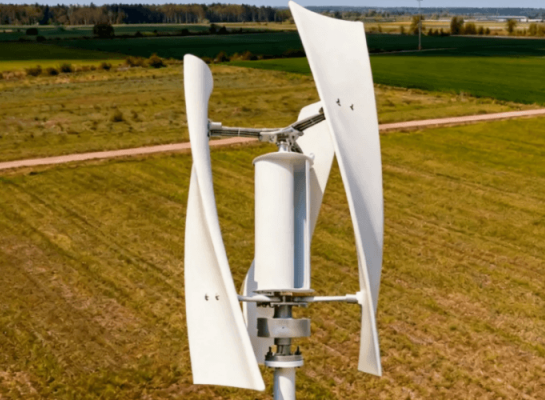

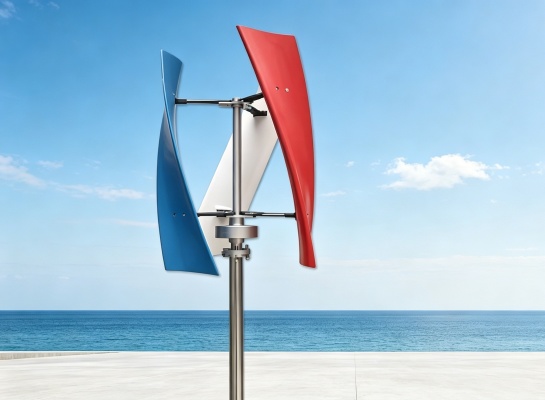

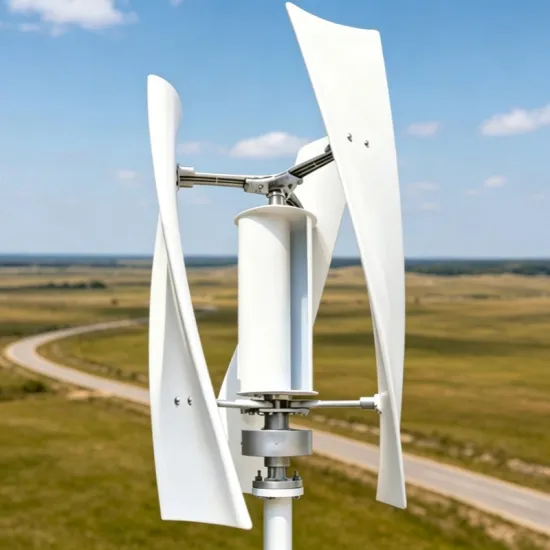

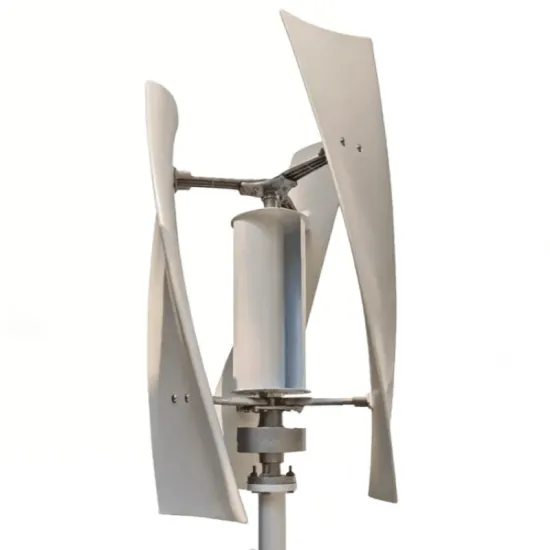

Product Description

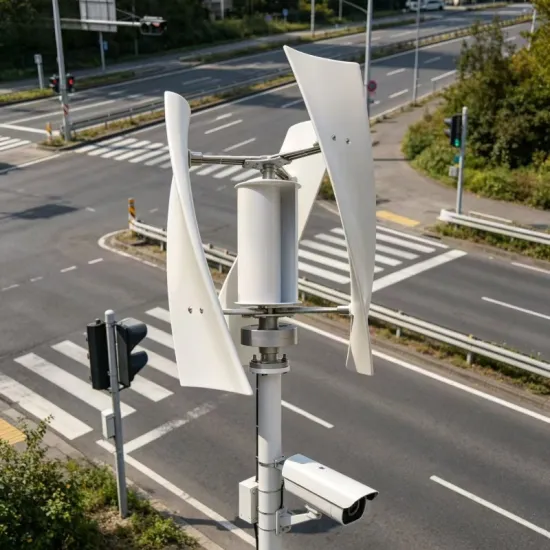

The X-type vertical-axis wind turbine is a compact power generator optimized for low and medium wind speed areas. Featuring a distinctive cross-shaped blade design, it captures wind from all directions with no yaw mechanism required, delivering stable output even under turbulent wind conditions.
Boasting low start-up wind speed, low-noise operation and simple installation, this unit fits residential, off-grid and small commercial projects.
The matched mounting pole adopts high-strength steel with anti-corrosion coating, offering sturdy and long-lasting support for outdoor deployment.
Product parameters
Technical Specifications
Model | X-100 | X-200 | X-300 | X-400 |
Rated Power | 100W | 200W | 300W | 400W |
Maximum Power | 130W | 220W | 320W | 420W |
Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
Start-up Wind Speed | 3.0m/s | 3.0m/s | 3.0m/s | 3.0m/s |
Rated Wind Speed | 10m/s | 11.5m/s | 11.5m/s | 11.5m/s |
Safe Wind Speed | 45m/s | 45m/s | 45m/s | 45m/s |
Net Weight of Main Unit | 9kg | 10kg | 11kg | 12kg |
Rotor Diameter | 0.53m | 0.53m | 0.53m | 0.53m |
Number of Blades | 3 | |||
Blade Material | Nylon fiber | |||
Generator | Three-phase AC permanent magnet generator | |||
Braking Method | Electromagnetic brake | |||
Operating Temperature | -40℃—80℃ | |||
Recommended Mounting Pole Selection
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
Recommended Complete Kits
Recommended Complete Kits | Application | Features |
1 kW Wind Turbine + 6 m Mounting Pole | Single-family houses, farms, small monitoring stations, campsites; wind-solar hybrid off-grid systems | 6m pole, easy installation. Powers lighting and small household appliances. |
3 kW Wind Turbine + 9 m Mounting Pole | Island docks, breeding farms, remote base stations, medium-sized homestays | 9m pole reduces ground turbulence. Supports water pumps and multiple electrical loads. |
5 kW Wind Turbine + 12 m Mounting Pole | Island power supply, large farms, resorts, field industrial monitoring stations | 12m pole for stable wind capture. For heavy continuous loads, guy wire reinforcement recommended. |
Product Highlights
Low Wind Startup & 360° Automatic Wind Alignment
It starts power generation at low wind speed. 360° automatic wind alignment efficiently captures wind energy in turbulent urban and landscape sites.
Low Noise & Strong Anti-Interference Performance
The vertical-axis structure enables ultra-smooth operation to minimize vibration and noise.
Multiple Model Options for Wide Application
We supply turbines from 100W to 400W with matched tower solutions. Customizable setups fit off-grid, island, farm and monitoring projects of varying scales.
Key Advantages
1. High-efficiency Generator
Equipped with rare-earth permanent-magnet generator, it ensures high generating efficiency and stable reliable output even at low-wind-speed conditions.
2. Durable Wind Turbine Blades
Constructed from advanced fiberglass-reinforced plastic. Light-weight yet high-strength, well-suited for long-term outdoor working environments.
3. Robust Flange Assembly
Flange-type connecting structure guarantees solid joint, smooth running performance and quick on-site installation.
Cost-Effective Installation
Compared with traditional wind turbines, the vertical-axis wind turbine requires no complicated installation process. Its simple and compact structure reduces labor and equipment requirements, significantly saving installation time and overall project costs while making on-site deployment more efficient.

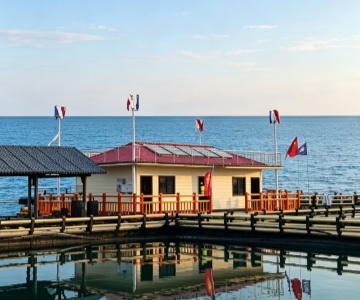

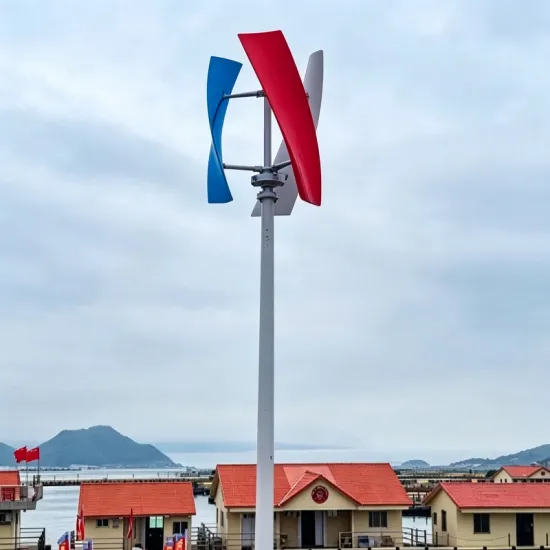

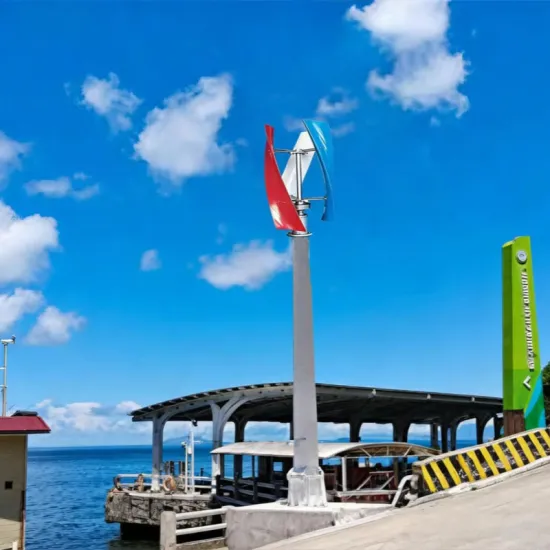

Application Scenarios
Suitable for off-grid, remote and distributed energy projects, such as islands, rural residences, farms and telecom power supply systems.
