AZ1045-04F

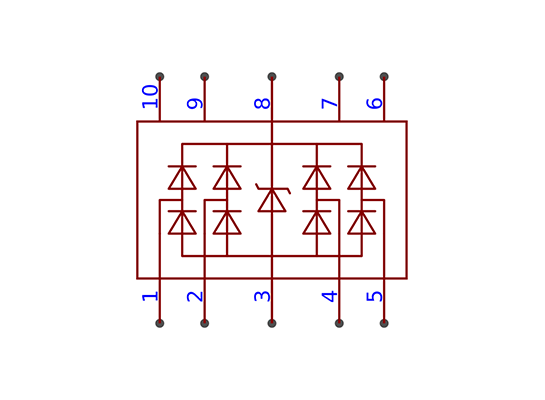

This ESD suppressor meets IEC 61000-4-2 ±25kV air/±20kV contact, EFT 40A, and 4A lightning, protecting 4 data lines plus 1 power line.

  • Reverse cutoff voltage (Vrwm) ：5V
  • Clamping voltage ：9V; 16V
  • Peak pulse current (Ipp) ：4A@8/20us
  • Peak pulse power (Ppp) ：80W@8/20us
  • Breakdown voltage (VBR) ：8V
  • Reverse current (Ir)：100nA
  • Product Package ：DFN2510-10​
  • Packaging Method ：Tape & Reel
  • Product Gross weight ：0.02703(g)

USD 0.0523

26000

contact shop

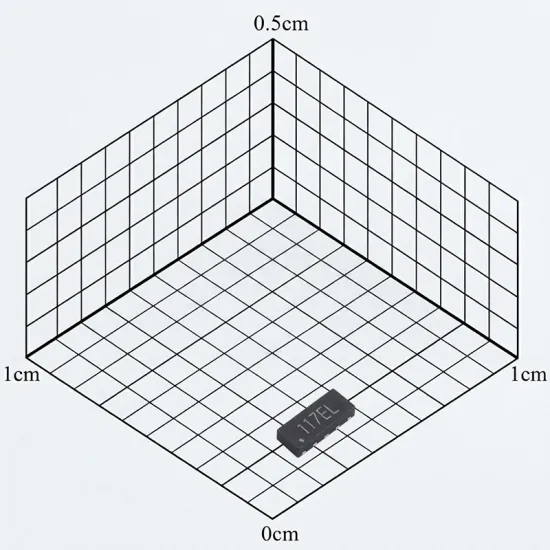

Product Images

Download

Download

Datasheet PDF

Enlarge View Download PDF

Supplier Information

Email：[email protected]

Tel：15670610275
