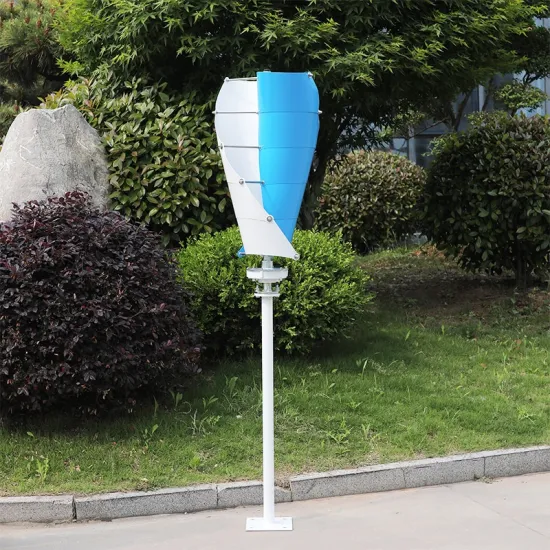

Product Description

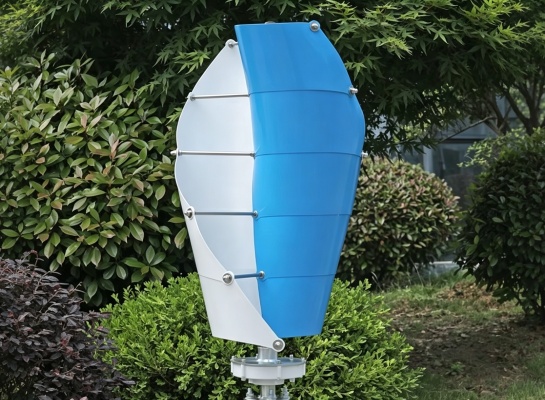

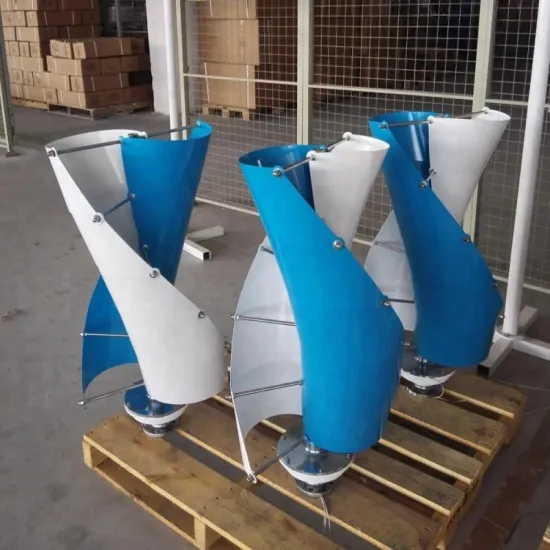

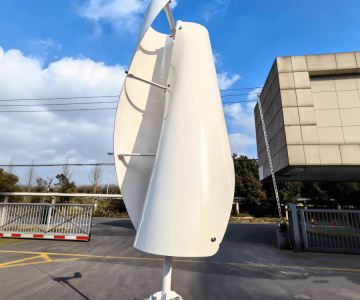

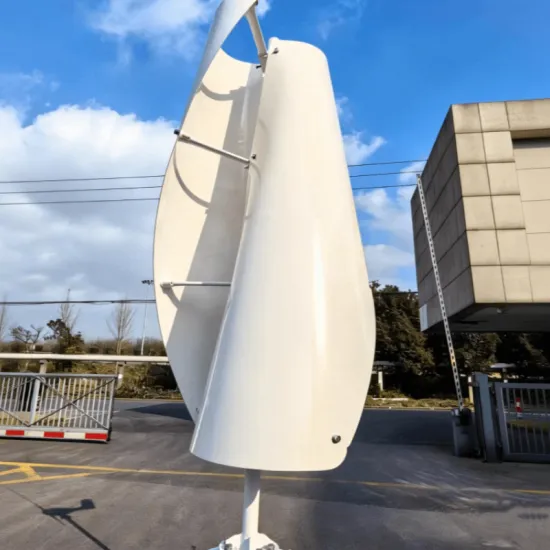

The spiral vertical-axis wind turbine integrates renewable power generation with modern aesthetics. Its twisted blades harvest wind from all directions and require no yaw mechanism, well-suited for turbulent urban wind conditions. It delivers a flexible, low-disturbance energy solution.
The matching mounting pole provides stable, long-lasting support for small and medium wind turbines. Fabricated from high-strength steel with anti-corrosion surface treatment, it maintains reliable performance under outdoor exposure.
Suitable for off-grid systems, residential power supply and hybrid wind-solar projects.
Product parameters
Rated Power | 100W | 200W | 300W | 400W |
Maximum Power | 130W | 220W | 310W | 410W |
Rated Voltage (V) | 12/24 | 12/24 | 12/24 | 12/24 |
Start-up Wind Speed | 1.5m/s | 1.5m/s | 2.0m/s | 2.0m/s |
Rated Wind Speed | 11m/s | |||
Safe Wind Speed | 45m/s | |||
Net Weight of Main Unit | 10kg | 10.5kg | 11kg | 12kg |
Rotor Diameter | 0.47m | |||
Number of Blades | 10 pieces | |||
Blade Material | Aluminum alloy | |||
Generator Type | Three-phase AC permanent magnet generator/permanent magnet levitation generator | |||
Braking Method | Electromagnetic | |||
Wind Direction Adjustment | Automatic wind direction adjustment | |||
Operating Temperature | -40°C to 80°C | |||
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
Product Display

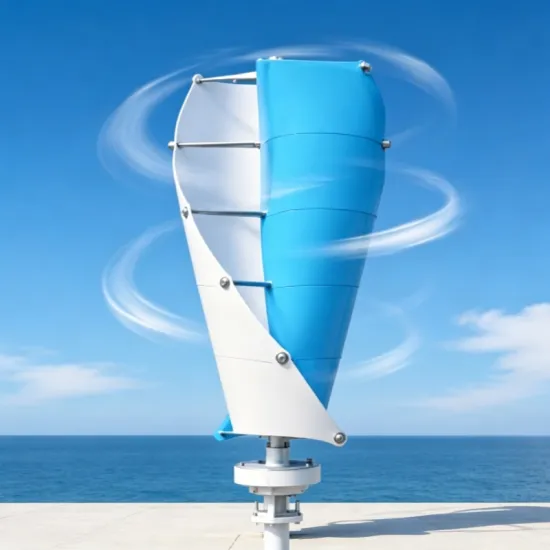

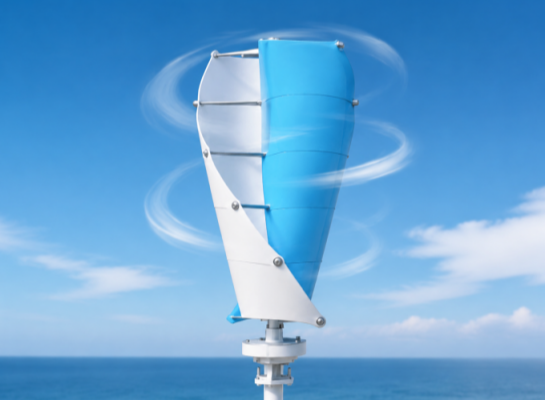

All-Directional Capture & Low Start-up Wind Speed
The turbine adopts a unique aerodynamic design to capture wind from all directions and start power generation at low wind speeds.

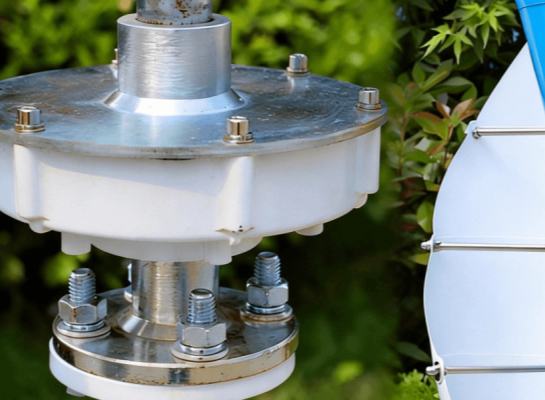

Sturdy Support & Simple Maintenance
This mounting pole suits small & medium wind turbines. High-strength steel with anti-corrosion coating delivers reliable outdoor performance, tolerating -40℃~80℃ temperatures and winds up to 45m/s. Its vertical-axis design reduces the center of gravity for easy installation and maintenance.
Reliable Safety Protection
Built-in electromagnetic braking. It activates automatically in strong winds to avoid overspeed and safeguard the turbine.

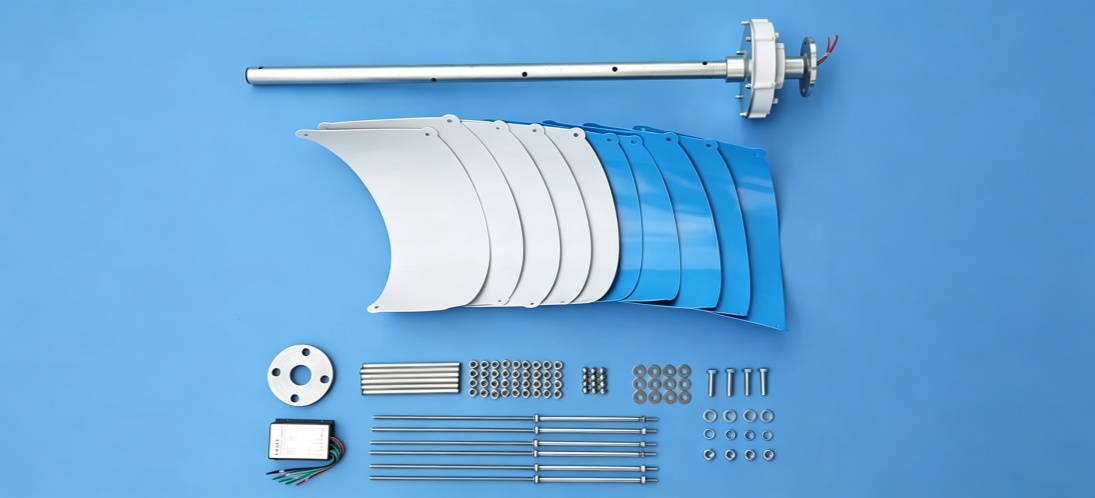

Package Contents

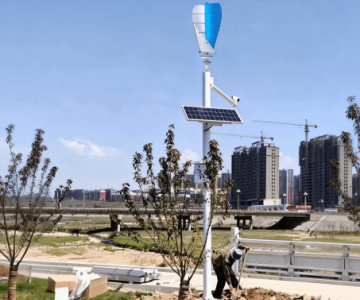

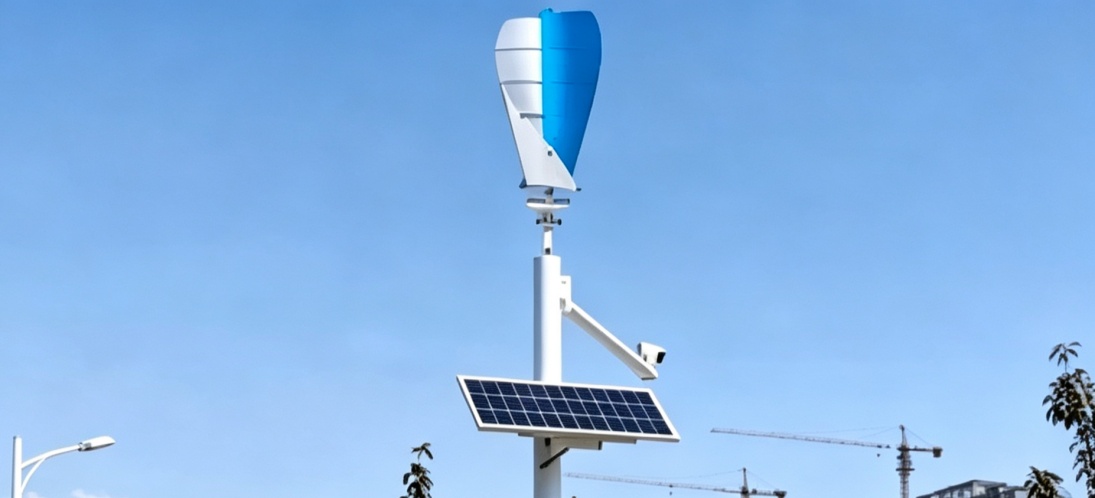

Hybrid Wind & Solar Power System
This vertical axis wind turbine can be integrated with photovoltaic solar panels to form a hybrid power generation system.It makes use of wind and solar resources complementarily, generating power day and night under different weather conditions.
The dual-source design greatly improves power supply stability and energy harvesting efficiency, ideal for off-grid monitoring, lighting and remote power supply projects.

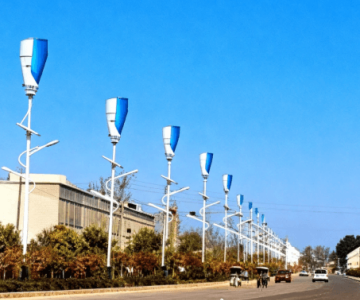

Application Cases
Ideal for off-grid, remote, and distributed energy applications , including islands, rural homes, farms, and telecom systems.
